Medium ball point
The rounded point is designed to move between loops in knitted and elastic fabrics instead of cutting directly through them.

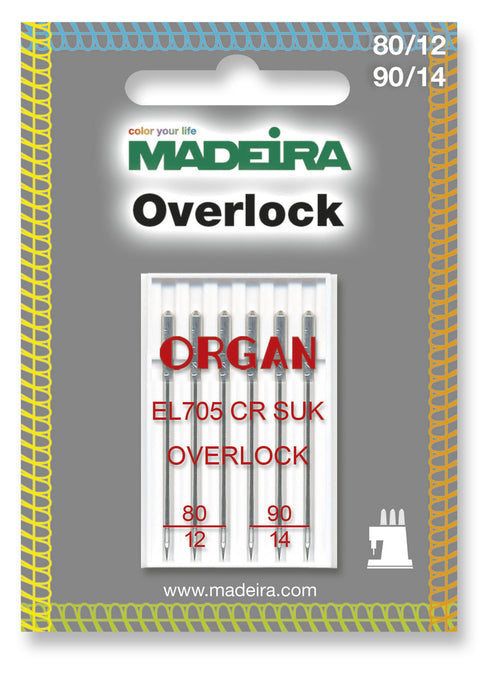

Madeira 9462 · ELx705 overlock needles
Two sizes engineered for overlock and coverstitch performance
Madeira Overlock Needles 9462 combine medium ball points with a chrome finish, deep scarf and double-groove construction. The six-needle assortment contains three 80/12 and three 90/14 needles for compatible household overlock, serger and coverstitch machines.
- Six needles per card with 3 × 80/12 and 3 × 90/14.
- Medium ball point suited to overlocking knitted and elastic fabrics.
- ELx705 system for machines whose manual specifies this needle type.
6
needles per pack
3 × 80/12
finer overlock needles
3 × 90/14
heavier overlock needles
9462
Madeira article number
Check the needle system before ordering. ELx705 is not universal across every overlocker or coverstitch machine. Confirm ELx705 in your machine manual or check with us using the exact brand and model.
Purpose-built details for fast overlock and coverstitch sewing
Overlock and coverstitch machines form several interlocking threads at speed. Madeira’s article 9462 needle uses specialised geometry and a durable surface finish to support reliable thread handling in compatible machines.
Chrome finish
A chrome-finished surface is specified by Madeira for strong performance and resistance during high-speed sewing.
Deep scarf and double grooves
The specialised scarf and groove design supports looper timing and controlled thread movement for good thread tension.
Select the size for the fabric and thread combination
The machine manual determines the needle system; the fabric and thread help determine the size. These are useful starting points, but always test the complete stitch setup on a project offcut.
Three needles included
A finer starting option for lightweight to medium knitted fabrics and suitably fine overlocking thread.
Three needles included
A larger starting option for more substantial fabrics, denser layer combinations or a heavier compatible thread.
Needle size explained: the first number is the metric NM size and the second is the American size. NM 80 corresponds to size 12, while NM 90 corresponds to size 14.
Use the exact system named by your machine manufacturer
| Check | What to look for | Why it matters |
|---|---|---|
| Machine manual | Look for ELx705 in the needle specifications or accessories section. | The correct system aligns the needle length, scarf and grooves with the machine’s loopers. |
| Machine type | Household overlock, serger or coverstitch machine that explicitly accepts ELx705. | A conventional domestic sewing machine may require a different needle system. |
| Needle size | Choose 80/12 or 90/14 to suit the fabric, thread and number of layers. | The right diameter helps the thread pass cleanly without unnecessary fabric marking. |
Four checks for smoother overlocking
Confirm ELx705
Check the machine manual rather than relying on the machine type alone.
Fit a fresh needle
Insert it fully and in the orientation specified by the machine manufacturer.
Test the stitch
Use a project offcut and check the seam, edge finish and both sides of the fabric.
Fine-tune the setup
Adjust thread tension, differential feed and stitch length according to the manual and fabric response.
Change both needles together: when using a two-needle overlock or coverstitch setup, begin with a matched pair of the same size unless the machine manual directs otherwise.
Madeira Overlock Needles 9462 at a glance
| Brand | Madeira |
|---|---|
| Product | Overlock Needles |
| Article number | 9462 |
| Needle system | ELx705; use only where specified by the machine manufacturer |
| Pack contents | 6 needles: 3 × NM 80 / size 12 and 3 × NM 90 / size 14 |
| Point style | Medium ball point |
| Finish | Chrome finish |
| Needle features | Deep scarf and double grooves for controlled thread tension |
| Machine type | Compatible household overlock, serger and coverstitch machines |
| Barcode / GTIN | 4003760994622 |
Madeira 9462 overlock needle FAQs
How many needles are in the Madeira 9462 pack?
There are six needles: three in size 80/12 and three in size 90/14.
Will these needles fit every overlocker?
No. Overlock and coverstitch machines do not all use the same needle system. These are ELx705 needles, so your machine manual must list ELx705 as compatible.
Can I use them in an ordinary domestic sewing machine?
Only if that machine’s manual specifically accepts ELx705. Most conventional domestic sewing machines use another system, so never choose solely by needle size.
What is a medium ball point?
It is a rounded point intended to move between fabric loops rather than cutting straight through them, making it a useful match for many knitted and elastic fabrics.
Should I choose 80/12 or 90/14?
Use 80/12 as a finer starting option and 90/14 for more substantial fabric, denser layers or heavier compatible thread. Confirm stitch quality on an offcut before sewing the project.
Are these suitable for coverstitch machines?
Yes, when the coverstitch machine manufacturer specifies the ELx705 system. Check the exact model manual before ordering.
Why do these needles have double grooves and a deep scarf?
These features are designed to support thread control and the close interaction between the needle and loopers during overlock or coverstitch formation.
When should I replace an overlock needle?
Replace it if it becomes bent or blunt, if you hear unusual impact sounds, or if skipped stitches and thread damage appear after the machine has been correctly threaded and adjusted.
Keep two practical ELx705 sizes ready for the next overlock or coverstitch project
Madeira 9462 combines three 80/12 and three 90/14 chrome-finished, medium ball point needles in one clearly organised six-needle pack.
