Layer alignment
Keep upper, middle and lower layers better matched through long construction seams.
True compound-feed industrial walking foot
Zoje ZJ1541-BD: stronger control through thick, shifting layers
A direct-drive 1541-style industrial machine with genuine compound feed, a 9mm stitch and 16mm foot lift. Built for leather goods, upholstery, canvas, vinyl, bags and outdoor products where the needle, inner foot and feed dog need to move the work together.
- Compound or triple feed controls layers above, below and through the needle.
- 9mm maximum stitch length suits strong construction seams and bold topstitching.
- 16mm maximum foot lift provides useful clearance when positioning bulky assemblies.
- Large-capacity side-loading hook supports longer runs with fewer bobbin changes.
- Integrated direct-drive motor gives responsive power without constant idle noise.
- Adjustable speed lets the operator slow down for corners and difficult seam crossings.
ZJ1541-BD | compound feed
2,000 SPMmaximum sewing speed
9mmmaximum stitch length
16mmmaximum foot lift
DPx17industrial needle system
When an ordinary walking foot is good, but not quite enough
The ZJ1541-BD adds needle feed to the movement of the feed dog and walking feet. This extra control is valuable when dense layers, webbing, piping or grippy surfaces want to move at different rates.
Webbing crossings
Maintain positive feeding as bags and outdoor products build into denser seam stacks.
Piping and welting
Guide upholstery components with stronger control around raised cord and bulky edges.
Grippy surfaces
Reduce relative movement through vinyl, coated fabric and suitable leather assemblies.
Even topstitching
Create long, visible stitches while the feed system manages the material stack.
Repeat heavy work
Give a professional workroom a dedicated flat-bed machine for demanding straight seams.
Three feeding elements share the work
The feed dog, needle and inner presser foot move together during the feeding phase. The outer presser foot alternates to hold the assembly while the feeding components return for the next stitch. This is why the system is also called unison feed or triple feed.
Movement working together
1Bottom feed dog
2Needle and inner foot
3Alternating outer foot
What the operator gains
- Positive control through multiple layers
- Less upper-layer creep on long seams
- More dependable feeding over transitions
- Better handling of piping and reinforcement
- More consistent stitch spacing in demanding work
The difference from the ZJ0303L: the ZJ0303L uses top-and-bottom dual feed, while the ZJ1541-BD also moves the needle with the material. Choose this compound-feed model when webbing, piping, thick corners and independently shifting layers are a regular part of the job.
See the actual Zoje workstation and compound-feed sewing area

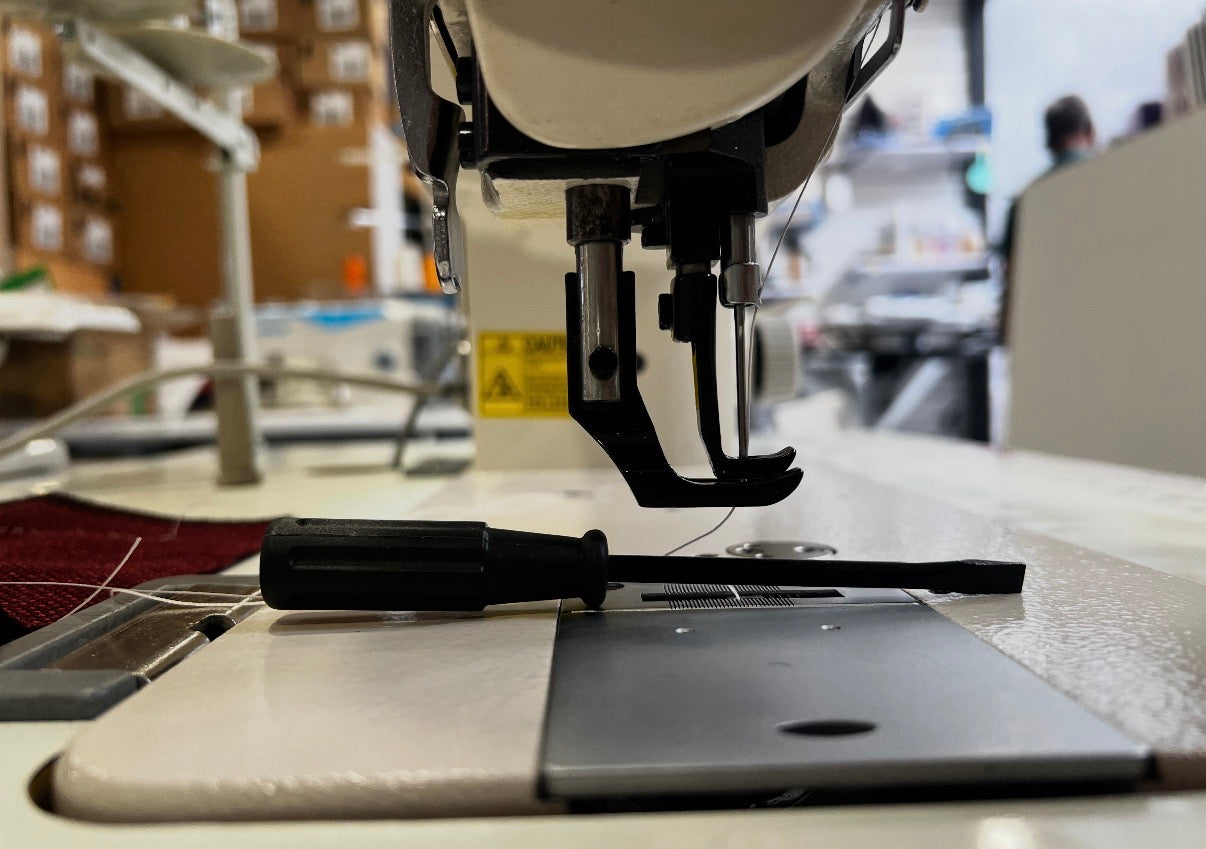

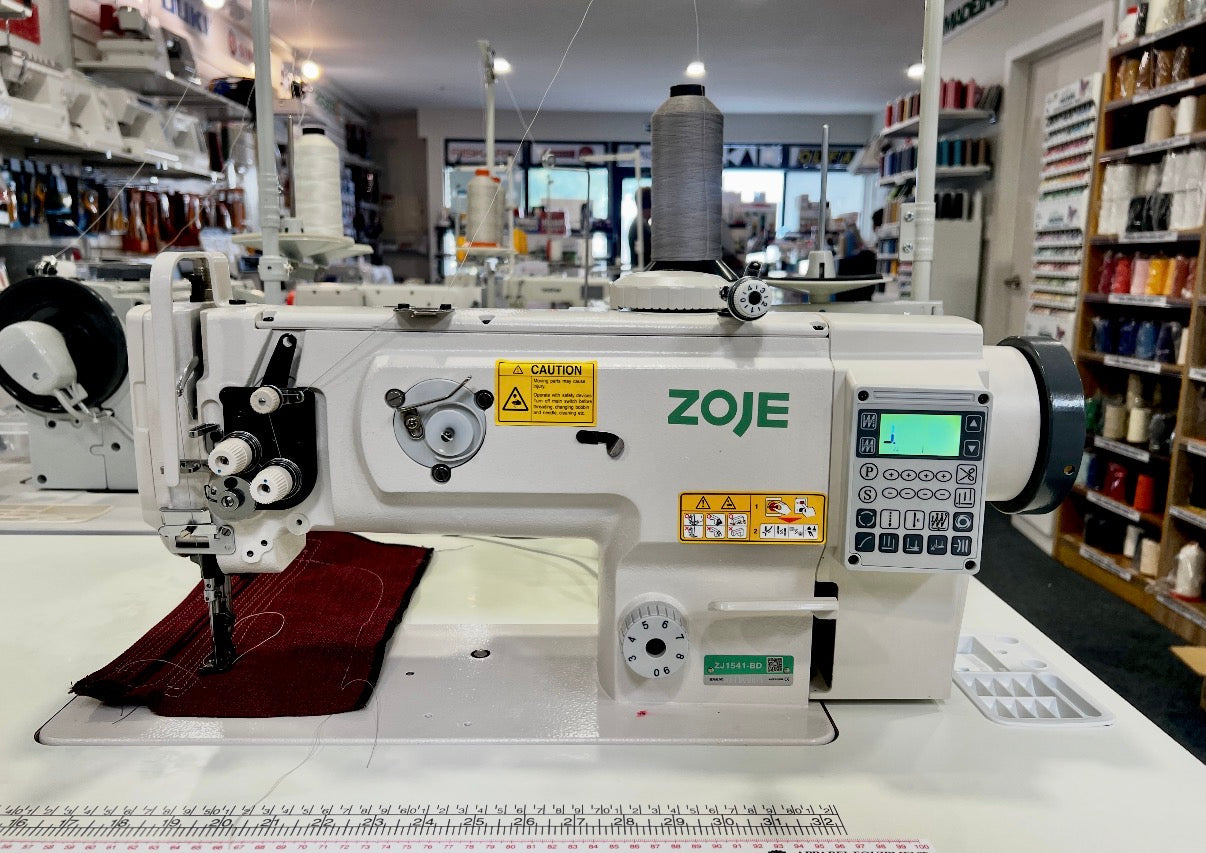

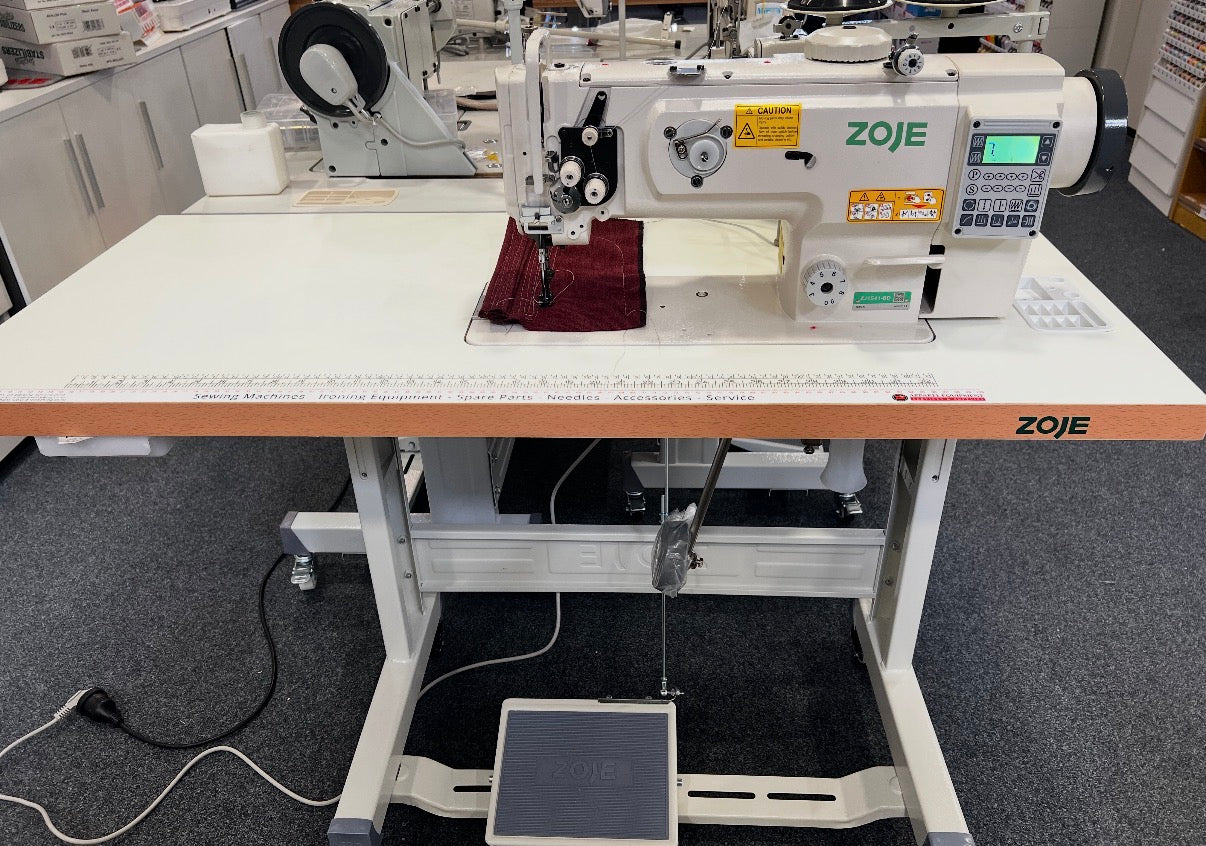

These photographs show the current ZJ1541-BD machine head, integrated control panel, walking feet, side-loading hook area and complete industrial table setup. Table and stand finish can vary.
A flat-bed workhorse for serious leather, canvas and upholstery sewing
Leather goods
Bags, wallets, straps and suitable soft-to-medium leather assemblies.
Upholstery
Furniture covers, cushions, piping and suitable automotive interior work.
Canvas products
Boat covers, lorry curtains, bags, covers and heavy canvas assemblies.
Outdoor equipment
Awnings, sails, tents and suitable technical textile products.
Vinyl and PVC
Grippy synthetic layers that benefit from positive compound feeding.
Bags and luggage
Panels, bindings, reinforcements, webbing and boxed construction.
Horse rugs
Construction and repair work across layered rug materials and reinforcement.
Decorative seams
Long, visible straight stitches using thread and needle matched to the project.
Choose by the thickest finished seam, not one flat layer. Test piping, folds, binding, webbing, reinforcement and adhesive layers together. Material density and seam shape can matter more than the simple number of layers.
1541-style working format
Familiar controls without unnecessary complexity
The flat-bed, side-loading 1541 design operates much like a straightforward industrial plain sewer, while its compound-feed mechanism is built for much more demanding material stacks.
- Clear stitch-length adjustment for the operation
- Manual reverse for locking seam ends
- Side-loading bobbin access
- Knee lift keeps both hands near the work
- Flat bed supports broad panels and straight assemblies
- Walking feet can be selected for specialist operations
Responsive power that stays quiet while you pause
The motor is integrated with the machine head, so the ZJ1541-BD responds directly to the pedal and does not produce the constant idle running associated with a traditional clutch-motor workstation.
Limit the top speed for learning, detailed work or dense seam crossings, then increase it for confident straight runs.
Direct drive gives the operator a close connection between pedal input and machine movement.
The motor remains quiet while the operator pauses to reposition or inspect the work.
No separate under-table drive motor is required, leaving a cleaner area around the stand.
A lower speed setting makes it easier to place the first stitches accurately before accelerating.
Reduce speed before tight turns, raised piping and intersections where precise control matters most.
Long stitch, high lift and a larger bobbin capacity
Create strong construction seams and generous visible topstitching on suitable materials.
Gain practical clearance when placing bulky assemblies beneath the alternating feet.
Carry more bobbin thread for longer production seams and appropriately heavier thread setups.
Reach the bobbin area from the side, a useful arrangement when broad work is supported on the flat bed.
Select the correct industrial needle size and point for textile, coated material or leather.
Secure the start and finish of a seam with operator-controlled reverse stitching.
Foot lift is positioning clearance, not guaranteed sewable thickness. The practical limit changes with density, compressibility, thread, needle, seam shape and machine setup. Always sew a representative sample first.
ZJ0303L dual feed or ZJ1541-BD compound feed?
Both are strong flat-bed walking-foot machines. The better choice depends on the most difficult seam you need to sew regularly.
| Feature | ZJ0303L | ZJ1541-BD |
|---|---|---|
| Feed system | Feed dog plus alternating upper feet | Feed dog, needle and inner foot move together, outer foot alternates |
| Best fit | General upholstery, canvas, covers, bags and soft leather | More demanding layered work, webbing, piping, dense corners and leather goods |
| Maximum stitch | 8mm | 9mm |
| Maximum foot lift | 16mm in the current local listing | 16mm |
| Working space | Extended arm, approximately 10cm extra clearance | Standard 1541-style arm |
| Reason to choose it | More room and capable dual feed for broad general work | Stronger control over layers that want to shift independently |
Set it up for the seam
The best result comes from the whole sewing system
Match the machine, needle point, needle size, thread, foot set, pressure, stitch length and speed to the exact construction. A setup that suits soft upholstery vinyl may not suit dense leather or a webbing-reinforced corner.
- Use DPx17 / 135x17 needles for textile and coated materials
- Use a compatible leather point when the leather requires it
- Match needle size to the selected thread
- Set the walking-foot movement only as high as the job needs
- Reduce speed through corners and abrupt thickness changes
- Inspect both sides of every test seam
Test the real construction
Include lining, piping, binding, webbing, foam and reinforcement.
Start with a suitable needle, moderate stitch length and balanced tension.
Check feed alignment, stitch balance, marking and seam strength.
Zoje ZJ1541-BD at a glance
| Brand | Zoje |
|---|---|
| Model | ZJ1541-BD |
| Design | 1541-style industrial flat-bed platform |
| Machine type | Single-needle straight-lockstitch compound-feed walking-foot machine |
| Feed system | Unison or triple feed using the feed dog, needle, inner foot and alternating outer foot |
| Material setup | Heavy-material industrial sewing |
| Motor | Integrated energy-saving direct-drive servo motor |
| Maximum sewing speed | Up to 2,000 stitches per minute |
| Maximum stitch length | 9mm |
| Maximum presser-foot lift | 16mm |
| Needle system | DPx17 / 135x17 industrial needles |
| Hook | Large-capacity side-loading rotary hook |
| Speed control | Adjustable maximum speed through the integrated controls |
| Reverse | Manual reverse lever |
| Stitch type | 301 two-thread straight lockstitch |
| Bed type | Flat bed |
| Workstation | Complete industrial table, steel stand, pedal system, thread stand and wheels |
The machine, direct drive and essential setup components
The ZJ1541-BD is supplied as a complete industrial workstation rather than a loose domestic-style machine. Table and stand colour or finish may vary from the photographs.
- Zoje ZJ1541-BD machine head
- Compound-feed walking-foot mechanism
- Integrated direct-drive motor
- Integrated speed controls
- Large-capacity hook system
- Industrial table and steel stand
- Foot-pedal control system
- Knee-lift mechanism
- Thread stand
- Wheels for easier repositioning
- Sewing-machine oil
- Bobbins
- Screwdriver
- Industrial needles
- Operating information
- DPx17 / 135x17 needles
- Compatible 135x16 leather points
- Rasant Oxella 35 thread
- Thread matched to the needle and seam
- Zipper and piping feet
- Left-toe and right-toe foot sets
- Edge-guide feet
- Foot sets matched to the 1541-style platform
- Zigzag stitches
- Overedge trimming
- Cylinder-bed access
- Decorative stitch programs
- Domestic needle compatibility
Keep the feed, hook and oiling system working together
Use the specified clear industrial sewing-machine oil and follow the supplied instructions before operation.
Remove lint, fragments and thread from the hook, feed dog and needle plate regularly.
A bent, blunt or burred needle can damage material, skip stitches and strike the hook.
Changed feeding, marking or uneven movement can indicate that the walking-foot system needs adjustment.
Keep the workstation stable and level before sewing, particularly at higher speed.
Timing, hook clearance, feed synchronisation and electrical adjustments require industrial-machine expertise.
Choose the right feed system, needle and thread
Walking-foot feed guide
Compare top-and-bottom feed, needle feed and compound feed before choosing your workstation.
Read the Feed GuideDPx17 industrial needles
Select the correct needle size and point for canvas, upholstery textiles, coated materials and related work.
Shop DPx17 NeedlesRasant Oxella 35 thread
A durable poly-cotton upholstery thread option for suitable construction and topstitching applications.
View Oxella 35 ThreadZoje ZJ1541-BD questions answered
What type of machine is the Zoje ZJ1541-BD?
It is a direct-drive industrial single-needle straight-lockstitch machine with compound feed, alternating walking feet, a flat bed and a large-capacity side-loading hook.
What does compound feed mean?
The feed dog, needle and inner presser foot move the material together while the outer foot alternates to hold the work. It is also called unison feed or triple feed.
How is this different from an ordinary walking-foot machine?
A top-and-bottom-feed machine uses the feed dog and walking feet. This compound-feed machine also moves the needle with the material, giving extra control over layers that want to shift independently.
How does it compare with the Zoje ZJ0303L?
The ZJ0303L offers dual feed and an extended arm for broad general work. The ZJ1541-BD adds needle feed and a 9mm stitch, making it the stronger choice for regular webbing, piping, dense corners and demanding leather or canvas assemblies.
What does 1541 design mean?
It describes the familiar flat-bed, side-loading compound-feed mechanical format used for heavy-material industrial sewing. This listing is specifically for the Zoje ZJ1541-BD.
What materials can it sew?
It is intended for suitable leather goods, upholstery, canvas, vinyl, PVC, bags, luggage, outdoor products, quilted goods and horse rugs. Always test the complete seam stack.
Will it sew leather?
Yes, suitable soft-to-medium leather goods are a key application. Leather temper, density, total thickness, thread, needle point and seam construction all affect the result.
Is it a specialist saddlery machine?
No. Very dense harness leather, rigid saddlery and extreme stacks may require a heavier cylinder-arm or leather-stitching platform. Test the thickest finished seam before choosing.
Can it sew upholstery and piping?
Yes. Compound feed is particularly useful for upholstery panels, piping, welting, foam-backed materials and intersections where layers tend to move differently.
Can it sew canvas and webbing?
Yes, suitable canvas and webbing assemblies are strong applications. Build the real stack, including folds and reinforcement, when testing machine capacity.
What is the maximum material thickness?
There is no single dependable thickness figure for every material. The 16mm lift is positioning clearance, not guaranteed sewing capacity. Density, compressibility, thread, needle and seam shape determine the practical limit.
What is the maximum stitch length?
The current ZJ1541-BD listing specifies a maximum stitch length of 9mm.
How fast does it sew?
The listed maximum is up to 2,000 stitches per minute. Reduce the speed for learning, corners, raised piping and abrupt changes in thickness.
Can the maximum speed be adjusted?
Yes. The integrated direct-drive controls let the operator set a suitable top speed, then use the pedal for variable control up to that limit.
Does it automatically trim the thread?
Automatic thread trimming is not stated for the current ZJ1541-BD package. Do not assume that every button visible on the control panel represents an enabled automatic function.
Does it have automatic backtack or foot lift?
Those automatic functions are not stated for the current package. Reverse and knee-operated foot lift provide direct operator control.
Does it sew zigzag?
No. It sews straight lockstitch and reverse only. Choose an industrial zigzag machine when side-to-side needle movement is required.
What needle system does it use?
It uses DPx17 industrial needles, also commonly identified as 135x17. Select the correct size and point for the material and thread.
Can I use leather-point needles?
Use a compatible 135x16 leather-point needle when appropriate for the leather. Cutting-point leather needles should not be used on ordinary woven textiles.
Can I use domestic sewing-machine needles?
No. Domestic 130/705 H needles are a different system. Use DPx17 / 135x17 or the compatible leather-point system selected for the operation.
What does the large-capacity hook do?
It carries more bobbin thread than a standard-capacity hook, reducing interruptions across long seams and supporting appropriately heavier thread setups.
Is it a cylinder-bed machine?
No. It has a flat bed that supports broad panels. Narrow tubes, tight bag openings and three-dimensional work may be easier on a cylinder-bed machine.
Is this a portable sewing machine?
No. It is a dedicated industrial workstation with a full-size table, steel stand, pedal system and thread stand.
What comes with the machine?
The current package includes the Zoje head, integrated direct-drive motor and controls, industrial table and stand, pedal system, knee lift, thread stand, wheels, oil, bobbins, screwdriver and needles. Table or stand finish can vary.
Choose compound feed when every layer needs to arrive together.
The Zoje ZJ1541-BD combines genuine triple-feed control, a 9mm stitch, high foot lift and direct-drive response for demanding leather, upholstery, canvas and bag-making work.
