Extended-arm industrial walking foot

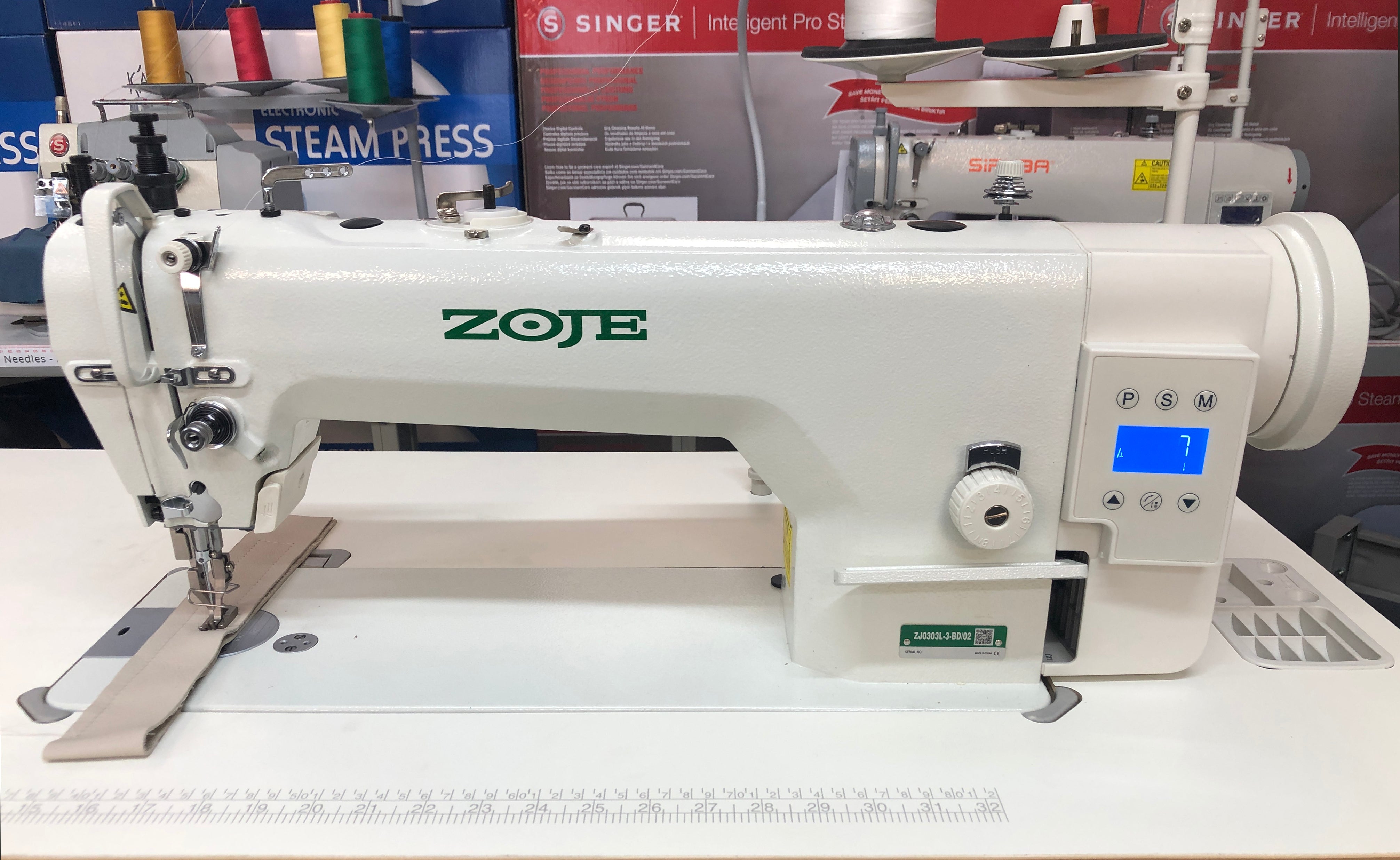

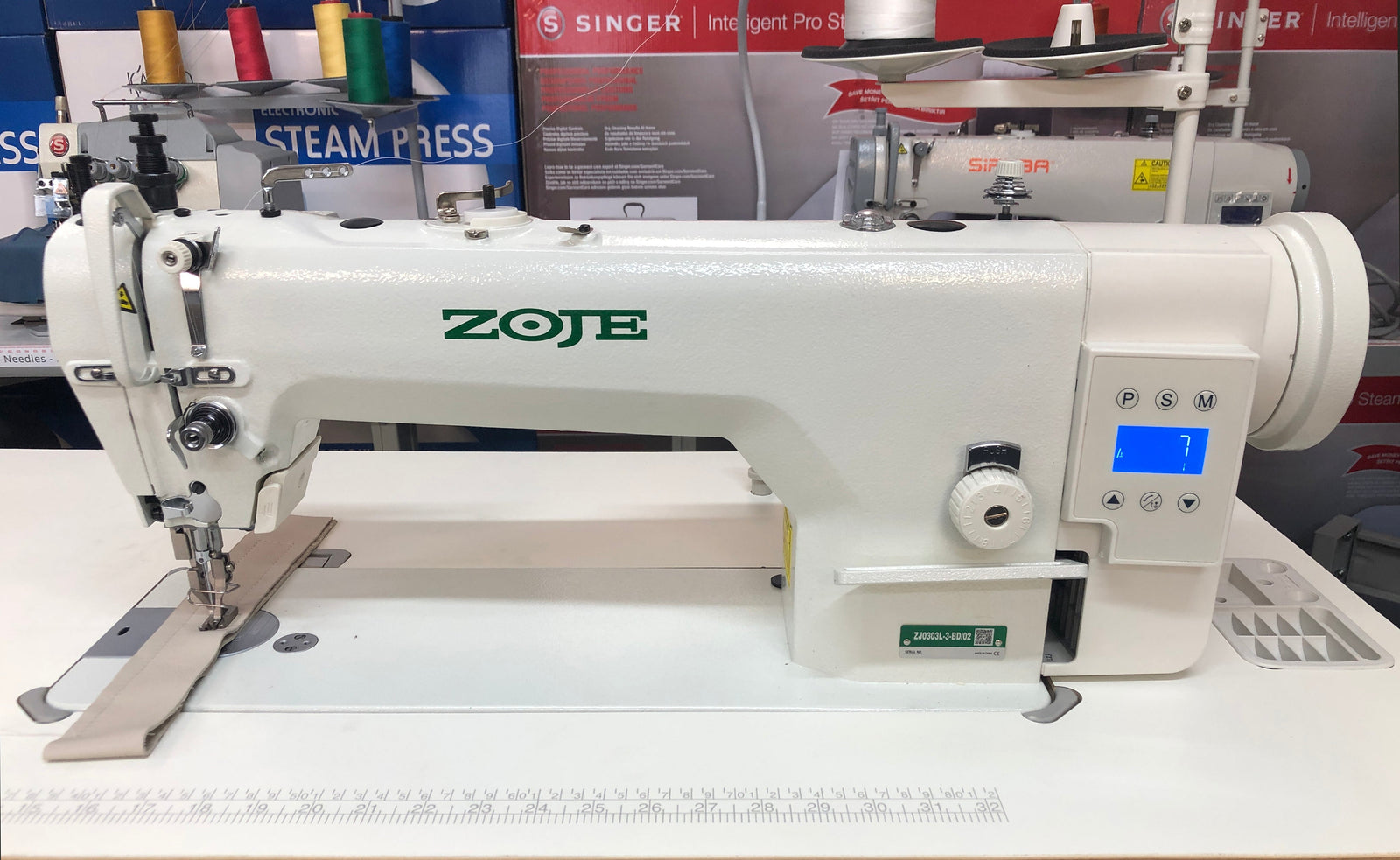

Zoje ZJ0303L-3-BD: confident control over layered, demanding work
A smooth direct-drive industrial walking-foot machine with top-and-bottom feed, extra working space and a large-capacity hook. Built for upholstery, canvas, bags, soft leather and other medium-to-heavy projects where ordinary bottom feed can allow layers to creep.
- Dual-feed walking-foot action helps the upper and lower layers advance together.
- Extended arm provides approximately 10cm more working room than a standard model.
- Large-capacity rotary hook supports longer sewing runs with fewer bobbin changes.
- Up to 8mm stitch length creates a strong, suitably bold stitch for heavier work.
- Up to 16mm presser-foot lift gives useful clearance when positioning bulky assemblies.
- Direct-drive motor, speed control and needle positioning make the machine easier to command.
ZJ0303L-3-BD | dual feed
2,000 SPMlocal maximum speed setting
8mmmaximum stitch length
16mmmaximum knee lift
DPx17industrial needle system
A practical step up when layers need more positive feeding
Choose the ZJ0303L when your straight-stitch work has outgrown a standard bottom-feed machine and you want better layer control, a longer stitch and room for larger assemblies.
Canvas projects
Handle covers, awnings, bags and suitable outdoor textile work with the right needle and thread setup.
Bag makers
Keep multiple layers aligned through panels, linings, binding and suitable reinforcement sections.
Soft leather goods
Create straight seams in suitable garment, handbag and furnishing leathers after testing the complete stack.
Rugs and quilted goods
Gain useful clearance and steady layer movement for horse rugs, quilted covers and padded work.
Repair and production
Use the adjustable speed, needle position and direct drive for repeat medium-to-heavy straight-stitch operations.
The right kind of walking foot matters. This model uses dual feed, with the feed dog and alternating presser feet moving the work. It is not described as needle feed or compound feed. If your work regularly requires the needle to travel with the material, compare it with a true compound-feed machine.
Better layer control where a plain sewer can struggle
A standard industrial plain sewer feeds mainly from underneath. The ZJ0303L adds alternating presser-foot movement above the work, helping layers travel together and reducing the shifting, rippling and mismatched edges that can appear in bulky assemblies.
Movement above and below
The feed dog advances the underside while the walking feet step across the top. This gives the machine a firmer grip on layered work.
Top layers→Together
What it helps with
- Matching edges across stacked materials
- Reducing layer creep on long seams
- Feeding quilted or lightly padded work
- Managing grippy and coated surfaces
- Maintaining control over seam crossings
More room to manoeuvre
The extended arm makes larger work easier to position
The ZJ0303L provides approximately 10cm more workspace than the comparable standard-arm model sold locally. That extra room becomes valuable when turning furniture covers, boat cushions, bags and quilted panels around the needle.
- More space to the right of the needle
- Less bunching around the machine head
- Easier repositioning of broad panels
- Better visibility while guiding bulky work
Responsive power with less idle noise
The servo motor is mounted directly to the machine head. It responds when the pedal is pressed and remains quiet while you pause, giving a cleaner, more controllable setup than a traditional continuously running clutch motor.
Set a sensible top speed for the operator and operation, especially while learning or approaching corners.
Choose a repeatable stopping position to make pivoting, repositioning and removing work more efficient.
Built-in illumination makes the needle entry point, seam guide and material edge easier to follow.
The direct-drive motor does not need to run continuously while the operator pauses.
Power reaches the machine directly for controlled starts and predictable pedal response.
Motor demand is concentrated around active sewing rather than constant idle running.
Longer stitches, generous lift and a larger hook
Select a longer stitch for suitable upholstery, canvas and leather work, or shorten it when the material and seam require closer formation.
Raise the feet quickly by hand for everyday positioning and removal of the work.
Gain extra clearance for placing a bulky seam assembly while keeping both hands on the project.
A larger bobbin capacity supports longer seams and reduces interruptions when using appropriately heavier thread.
The manufacturer-specified stroke forms part of the machine's medium-to-heavy material design.
A full-pump oil system supports regular industrial use when it is filled and maintained as described in the manual.
Lift is clearance, not a material-thickness rating. A 16mm knee lift helps you position the work, but the sewable stack depends on material density, compressibility, seam shape, needle, thread and setup. Test the complete assembly before production.
Built around straight seams in medium-to-heavy materials
Furniture upholstery
Cushion covers, furniture covers and suitable upholstery panels.
Boat and outdoor covers
Canvas, coated textiles and suitable cover assemblies.
Bags and luggage
Panels, linings, binding and reinforcement layers within the machine's range.
Soft leather goods
Purses, handbags, furniture leather and suitable garment leather.
Quilted goods
Padded covers and layered textile work that benefits from upper feeding.
Horse rugs
Rug construction and repairs using the correct setup for the full seam stack.
PVC and banners
Straight seams in suitable flexible PVC and banner materials after testing.
Decorative topstitching
Visible longer stitches with thread, needle and tension balanced for the material.
Specialist limits still apply. This is a flat-bed straight-stitch machine. It does not zigzag, overlock, sew around narrow tubular items like a cylinder-bed machine, or replace a heavy leather stitcher for rigid saddlery and very dense stacks.
Get the best result
Tune the whole sewing system to the job
Industrial results come from the combination of machine, needle point, needle size, thread, foot pressure, stitch length and speed. Change one element at a time and keep a sample of the approved setup for repeat work.
- Use the specified DPx17 / 135x17 needle system
- Select a needle point suited to textile, coated material or leather
- Match needle size to the thread and seam specification
- Reduce speed for corners, dense crossings and unfamiliar materials
- Test top and bobbin tension on the actual layer stack
- Check feeding and marking on a project offcut first
A sensible test sequence
Use the real material, lining, binding and reinforcement layers.
Begin slowly with a suitable needle, thread and moderate stitch length.
Check feeding, tension balance, stitch appearance and material marking.
Zoje ZJ0303L-3-BD at a glance
| Brand | Zoje |
|---|---|
| Model | ZJ0303L-3-BD |
| Machine type | Industrial single-needle, flat-bed straight-lockstitch walking-foot machine |
| Feed system | Dual feed with bottom feed dog and alternating top presser feet |
| Material range | Medium-to-heavy materials |
| Motor | Integrated direct-drive servo motor |
| Local maximum sewing speed | Up to 2,000 stitches per minute |
| Maximum stitch length | 8mm |
| Presser-foot lift by hand | Up to 8mm |
| Presser-foot lift by knee | Up to 16mm |
| Alternating-foot lift | 3.5 to 5.5mm manufacturer specification |
| Needle-bar stroke | 37mm |
| Needle system | DPx17 / 135x17 industrial needles |
| Hook | Large-capacity lubricated rotary hook |
| Controls | Adjustable maximum speed and automatic needle positioning |
| Lighting | Built-in LED work light |
| Lubrication | Automatic full-pump lubrication |
| Working space | Extended arm, approximately 10cm more clearance than the comparable standard local model |
| Table size | Approximately 1.2 x 0.6m in the current Direct Sewing workstation |
| Stitch type | 301 two-thread straight lockstitch |
Supplied ready for a dedicated sewing space
The current Direct Sewing package is a complete industrial workstation rather than a loose machine head. Table and stand colour or finish may vary from the product photograph.
- Zoje ZJ0303L-3-BD machine head
- Integrated direct-drive motor
- Speed and needle-position controls
- Built-in LED work light
- Automatic lubrication system
- Industrial table and steel stand
- Foot-pedal control system
- Knee-lift mechanism
- Thread stand
- Wheels for easier repositioning
- Sewing-machine oil
- Bobbins
- Screwdriver
- Industrial needles
- Operating information
- DPx17 / 135x17 needles
- Correct large-hook bobbins
- Clear industrial sewing-machine oil
- Rasant Oxella 35 upholstery thread
- Leather sewing upgrade kit
- Suitable walking-foot attachments
- Edge guides for repeat seam allowance
- Needle points matched to each material
- ZJ0303L parts and accessories
- ZJ0303L threading guide
- Needle and thread selection help
- Machine setup guidance
Automatic lubrication still needs regular attention
Use the correct clear industrial sewing-machine oil and keep the reservoir within the manual's indicated range.
Remove lint and thread fragments around the hook, feed dog and needle plate before they affect stitch formation.
Replace damaged needles promptly and check the hook, feet and feed surfaces when performance changes.
Follow the manual's commissioning procedure before sustained operation on a new or long-idle machine.
An incorrect needle system, point or size can cause skipped stitches, damage or poor seam appearance.
Timing, hook clearance, feed synchronisation and electrical work should be handled by a qualified industrial technician.
Setup, threading and official technical information
Direct Sewing threading guide
Follow the local step-by-step guide for the ZJ0303L thread path and preparation.
Open Threading GuideOfficial Zoje product page
Review the manufacturer's ZJ0303L series overview and technical positioning.
Open Official Product PageOfficial ZJ0303L manual
Keep the setup, lubrication, adjustment and maintenance information close to the machine.
Open Official Manual (PDF)Zoje ZJ0303L-3-BD questions answered
What type of machine is the Zoje ZJ0303L-3-BD?
It is an industrial single-needle, flat-bed straight-lockstitch machine with dual-feed walking-foot action, an extended arm and an integrated direct-drive motor.
What does dual feed mean?
The lower feed dog and alternating upper presser feet both help advance the work. This gives layered, coated and bulky materials more positive feeding than a standard bottom-feed plain sewer.
Is this a compound-feed machine?
No. The ZJ0303L is described as a dual-feed or top-and-bottom-feed machine. A compound-feed machine also uses needle feed, where the needle travels with the material during part of the feed cycle.
What is the benefit of the extended arm?
It provides approximately 10cm more working clearance than the comparable standard local model, giving larger covers, bags and panels more room to the right of the needle.
What materials can it sew?
It is intended for suitable medium-to-heavy materials such as upholstery textiles, canvas, PVC, quilted goods, horse rugs, bags, luggage and soft leather. Always test the actual material stack.
Will it sew leather?
It is suitable for many soft and medium leather applications when correctly equipped. Leather type, temper, total layers, reinforcement, thread and seam shape all affect the result, so test the complete assembly first.
Is it suitable for saddlery and rigid leather?
It is not positioned as a specialist heavy leather stitcher. Dense saddlery, rigid leather and very thick assemblies may require a heavier compound-feed or cylinder-arm machine.
Can it sew upholstery?
Yes, suitable furniture upholstery, cushions and soft furnishings are core applications. Choose the needle, point, thread and settings for the exact fabric and number of layers.
Can it sew canvas and outdoor covers?
Yes, it is designed for suitable canvas, covers, banners and related assemblies. Seam crossings, binding, webbing and coated layers should be tested as a complete stack.
What is the maximum material thickness?
There is no single reliable thickness figure for every material. The 16mm knee lift describes positioning clearance, not guaranteed sewable thickness. Density, compressibility, thread, needle and seam construction determine the practical limit.
How long can the stitch be?
The maximum stitch length is 8mm, giving useful scope for longer visible stitches on suitable upholstery, canvas and leather work.
How fast does it sew?
The current Direct Sewing package is listed at up to 2,000 stitches per minute. Use a lower speed for precision work, corners, dense crossings and unfamiliar materials.
Can I adjust the top speed?
Yes. The direct-drive control lets you set a maximum speed, then use the pedal for variable control up to that limit.
Does it have needle positioning?
Yes. Automatic needle positioning lets the machine stop consistently with the needle up or down, depending on the selected setting.
Does it automatically trim the thread?
Automatic thread trimming is not listed for the current ZJ0303L-3-BD package. The machine is supplied with needle positioning and speed control.
Does it sew zigzag?
No. It produces straight lockstitch and reverse stitching only. Choose an industrial zigzag machine when side-to-side needle movement is required.
What needle system does it use?
It uses DPx17 industrial needles, also commonly identified as 135x17. Select the needle size and point for the material and thread.
Can it use leather-point needles?
Yes, use a compatible 135x16 leather-point needle when appropriate for the leather and seam. Do not use a cutting point on ordinary woven textiles.
What does the large-capacity hook do?
It holds more bobbin thread than a standard-capacity hook, helping reduce bobbin changes on long seams and with appropriately heavier thread.
How high does the presser foot lift?
The listed lift is up to 8mm by hand and up to 16mm with the knee lifter. These figures describe clearance for positioning the work.
Does it need oil?
Yes. It uses an automatic full-pump lubrication system. Fill and maintain it with the correct clear industrial sewing-machine oil according to the official manual.
Is this a portable machine?
No. It is a dedicated industrial workstation with a full-size table, steel stand, pedal system and thread stand.
What comes with the machine?
The current package includes the machine head, integrated direct-drive motor and controls, industrial table and stand, pedal system, knee lift, thread stand, wheels, oil, bobbins, screwdriver and needles. Table or stand finish can vary.
Move layered projects through the machine with confidence.
The Zoje ZJ0303L-3-BD combines dual-feed walking-foot action, extended working space and direct-drive control for serious upholstery, canvas, bag and soft leather sewing.
