Overlocked seams
For garment construction on a machine specified for this needle system. Match the needle size to the thread and complete seam thickness, including folded seam allowances.

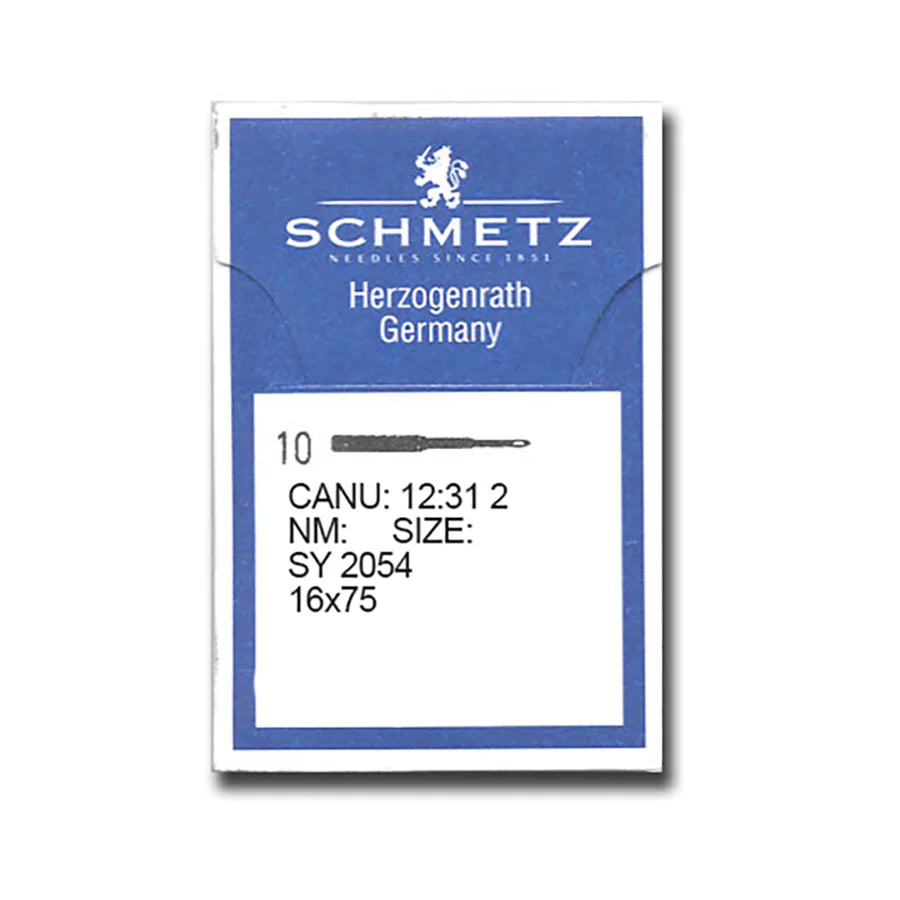

Schmetz · Special-system overlocker needles
The specialised SY 2054 / 16x75 system.
Schmetz SY 2054 / 16x75 needles are a system-specific choice for compatible overlockers. Their narrow flat shank and second thread groove distinguish this family from standard household needles. Choose a pack of ten in 70/10, 80/12 or 90/14, matching the machine specification before choosing the size for your sewing.
Pack of 10 needles. Choose 70/10, 80/12 or 90/14.
SY 2054 / 16x75Needle system
3 sizes70/10 to 90/14
10 needlesPer pack
Choose it for your project
Edge finishing
Use on the appropriate overlocker to neaten fabric edges. Test the stitch balance and needle penetration on a scrap before finishing a visible or delicate edge.
Changing project weight
The three size choices allow you to select a finer or larger needle within your machine’s requirements. Choose according to the fabric-and-thread combination, not size alone.
Product details
| Supplied | 10 Schmetz SY 2054 / 16x75 needles in the selected size |
|---|---|
| System | SY 2054 / 16x75 |
| Size choices | 70/10, 80/12 or 90/14 |
| Shank design | Narrow flat shank |
| Pack quantity | 10 needles |
Choose the required size or pack option above. Your order supplies the selected option, not the full range.
Before you start
- Confirm SY 2054 / 16x75 in the manual for your exact machine, including any specified point designation.
- Switch off, fit the needle fully in the required orientation, and follow the machine’s needle-threading sequence.
- Test the intended seam layers. Inspect the fabric around the needle holes and check that each stitch forms consistently.
SY 2054 has a different shank specification from standard household 130/705 H needles; a flat side alone does not establish compatibility.
Good to know
Will these fit every Singer overlocker?
No. Needle systems vary between models and subclasses. Use the full model’s manual to establish the required system.
What do the two size numbers mean?
They are two size conventions for the same needle: for example, NM 80 corresponds to size 12. Neither number replaces the system designation.
