Coverstitched hems
Use on a coverstitch machine that calls for ELx705. Match the needle size to the hem layers and needle thread, then check the sample for skipped stitches.
Schmetz · Overlocker and coverstitch needles
Built around the ELx705 needle system.

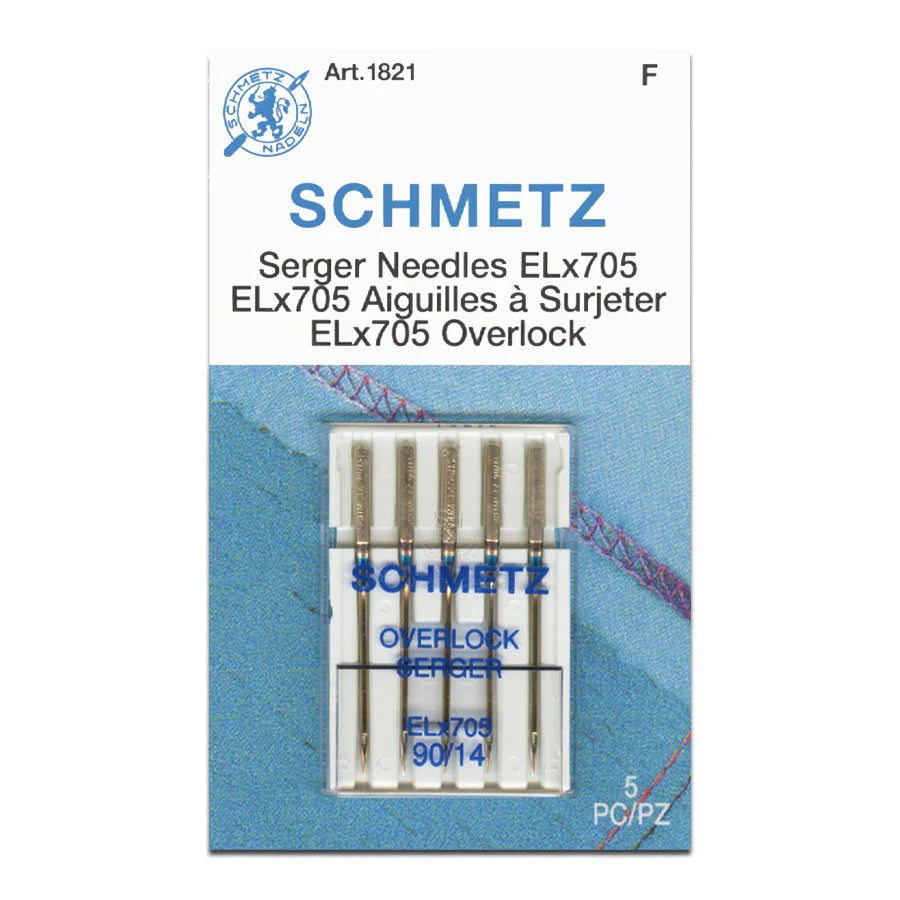

Schmetz ELx705 needles are for overlockers and coverstitch machines that specify the ELx705 system. Their flat shank and second thread groove are part of that specialised design. Choose 80/12, 90/14 or Assorted, then match the complete needle designation and size to the requirements of your machine and project.
Available selections: 80/12, 90/14 or Assorted.
ELx705Specified machine system
80/12 or 90/14Single-size choices
AssortedAdditional pack option
Choose it for your project
Overlocked garment seams
For seam construction and edge finishing on compatible overlockers. The correct system matters even when another flat-shank needle appears to fit the holder.
Comparing fabric and thread
Use a single-size option when repeating a known setup. When changing fabrics, assess stitch formation and the size of the needle holes on a representative scrap.
Product details
| Supplied | The selected Schmetz ELx705 needle pack |
|---|---|
| Needle family | ELx705 |
| Selections | 80/12, 90/14 or Assorted |
| Design | Flat shank and second thread groove |
Choose the required size or pack option above. Your order supplies the selected option, not the full range.
Before you start
- Check the complete needle designation in your manual, including any required point or finish suffix.
- Switch off and replace the needle in the specified position and orientation. Re-thread following the machine instructions.
- Test the actual material layers and thread. Examine both sides of the seam before stitching the finished garment.
ELx705 is not a universal substitute for household 130/705 H needles, and machine brand alone does not confirm compatibility.
Good to know
What does SUK mean on an ELx705 needle?
SUK identifies a medium ballpoint. It is a point designation, separate from the ELx705 system and the needle size.
Does every overlocker use ELx705?
No. Overlockers may specify different systems. Check your exact model’s manual rather than choosing simply because the machine is an overlocker.
Compare your options
Schmetz ELx705 SUK CF Ballpoint Overlocker Needles 80/12 · Schmetz DCx1 F Special Overlocker Needles – 10 Pack · Schmetz SY 2054 / 16x75 Overlocker Needles – 10 Pack
