Leather goods
Suitable bags, panels and straps, with controlled feeding for construction and visible topstitching.
Top-loading bobbin · compound feed · safety clutch
Mirsew MS1510: control for demanding seams.

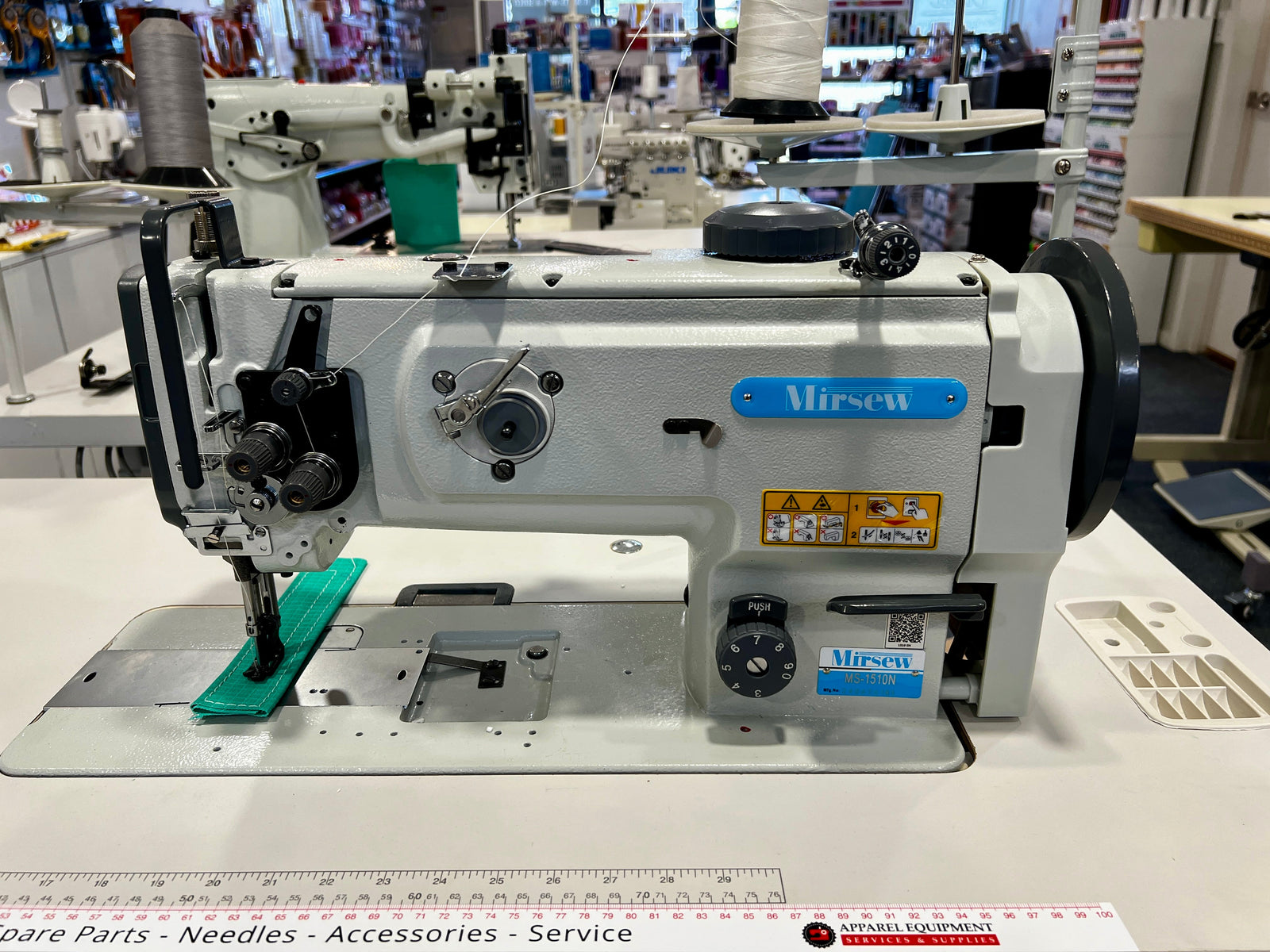

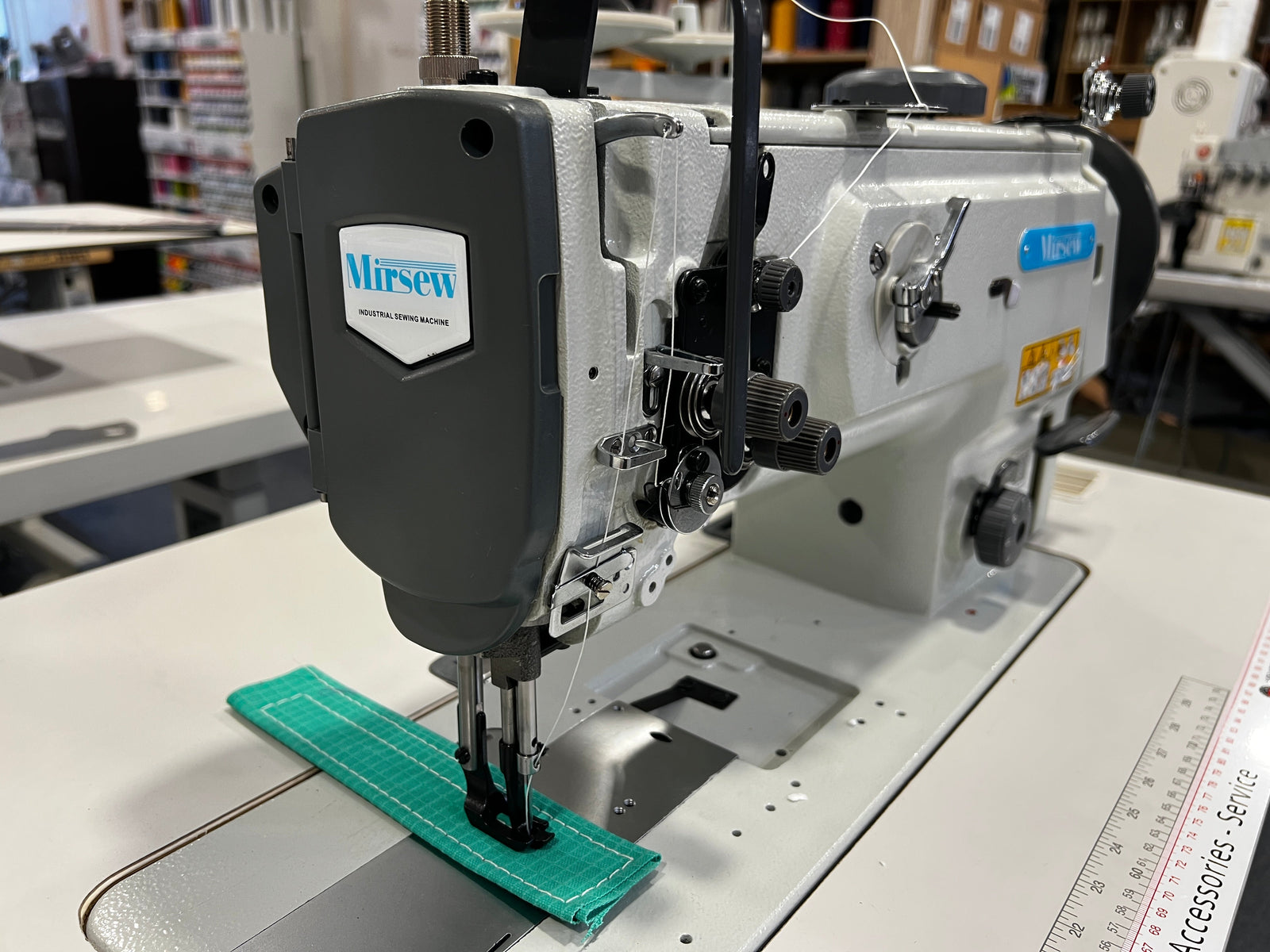

An industrial walking foot sewing machine for leather goods, upholstery, canvas and coated fabrics. The MS1510 combines positive compound feed with a large-capacity top-loading bobbin and adjustable servo-motor speed.
- Compound feed helps keep multiple layers moving together.
- Top-loading bobbin access puts the hook area within reach from above the bed.
- Safety clutch helps protect the hook drive during a serious jam.
- Servo control lets you set a suitable maximum sewing speed.
Supplied built up with its industrial table, motor, thread stand and accessories.
2,000 SPMmaximum sewing speed
9mmmaximum stitch length
16mmmaximum presser-foot lift
DPx17135x17 needle system
Keep layers under control.
Compound feed combines needle feed, bottom feed and alternating walking feet to help reduce movement between layers. It is especially useful where folds, reinforcement and changes in thickness make a seam harder to manage.
Upholstery
Cushion covers, furniture panels and related upholstery work where layers can shift during sewing.
Canvas & covers
Suitable canvas bags, boat covers, awnings and outdoor goods, including reinforced seams.
Match the machine to the seam: material density, thread, needle and the full number of layers determine practical sewing capacity. The 16mm foot lift is positioning clearance—not a guarantee that every 16mm stack can be sewn.
The top-loading difference
Practical bobbin access for longer seams.
The large-capacity bobbin holds a useful supply of thread for covers, upholstery panels and other extended runs. Access from above the flat bed makes the bobbin area straightforward to reach when the material is moved clear.
The flat-bed layout supports broad panels, while the walking feet help feed suitable leather, canvas, vinyl and webbing assemblies.
Manual stitch control: set the stitch length to suit the seam and use the reverse lever to secure the beginning and end.
Protection for the hook drive
A safety clutch for unexpected jams.
The MS1510 includes a safety clutch designed to disengage the hook drive under excessive load, helping reduce the risk of damage if thread becomes seriously jammed.
It is an added safeguard, not a reason to force difficult material through the machine.
If the clutch releases
Stop sewing and switch off the machine. Clear the cause safely and follow the correct reset procedure before restarting. If the cause is unclear, have the machine checked before further use.
Set the pace to suit the work.
Set a lower speed limit for detail work, learning the machine or approaching bulky seam intersections.
The energy-saving servo motor does not run continuously while you pause to position the next section.
Choose a suitable stitch for assembly or a more pronounced line of visible topstitching.
Mirsew MS1510 at a glance.
| Machine type | Industrial single-needle, flat-bed straight-stitch walking foot machine |
|---|---|
| Feed system | Compound feed |
| Bobbin arrangement | Large-capacity, top-loading |
| Hook-drive protection | Safety clutch |
| Motor | Energy-saving servo motor with adjustable speed |
| Maximum sewing speed | 2,000 stitches per minute |
| Maximum stitch length | 9mm |
| Maximum presser-foot lift | 16mm |
| Needle system | 135x17 / DPx17 |
| Material applications | Suitable leather, upholstery, canvas, vinyl, PVC and related heavy-material assemblies |
| Warranty | 1-year return-to-base warranty |
Use a lower sewing speed for dense materials and difficult transitions. Always test the actual thread, needle and complete seam stack before production.
A workshop setup, not just a machine head.
- Mirsew MS1510 machine head
- Compound-feed walking foot system
- Top-loading bobbin arrangement
- Safety clutch and servo motor
- Industrial table and stand
- Thread stand
- Built-up setup
- Wheels for easier positioning
- Sewing-machine oil
- Bobbins
- Screwdriver
- Needles
MS1510 or MS-1541S?
Both offer compound-feed walking foot sewing, a safety clutch and adjustable servo control. The key distinction is the bobbin arrangement: the MS1510 is top-loading; the MS-1541S is side-loading. Choose the access style that best suits your workflow.
Explore the Mirsew MS-1541S or browse our industrial walking foot machines.
Before you choose.
Is this suitable for leather and canvas?
Yes, suitable leather goods and canvas assemblies are core applications. Very dense leather, unusually thick stacks or specialist saddlery work may require a different machine. Test the full seam rather than relying on material thickness alone.
Does it sew zigzag?
No. This is a straight-stitch industrial machine, with manual reverse for securing seams.
Which needles and thread should I use?
Use the 135x17 / DPx17 needle system, with the needle size and point matched to the material and thread. See our DPx17 needles and Rasant Oxella 35 upholstery thread for suitable options, subject to your application and machine setup.
Can it be shipped outside Auckland?
Yes. Order online with Direct Sewing; nationwide New Zealand freight can be arranged for this industrial workstation.
Order online with Direct Sewing. The Mirsew MS1510 is supplied with its table, servo motor and listed accessories. Nationwide New Zealand shipping is available.
