Seiko STH-8BLD-3 · compound feed · servo control

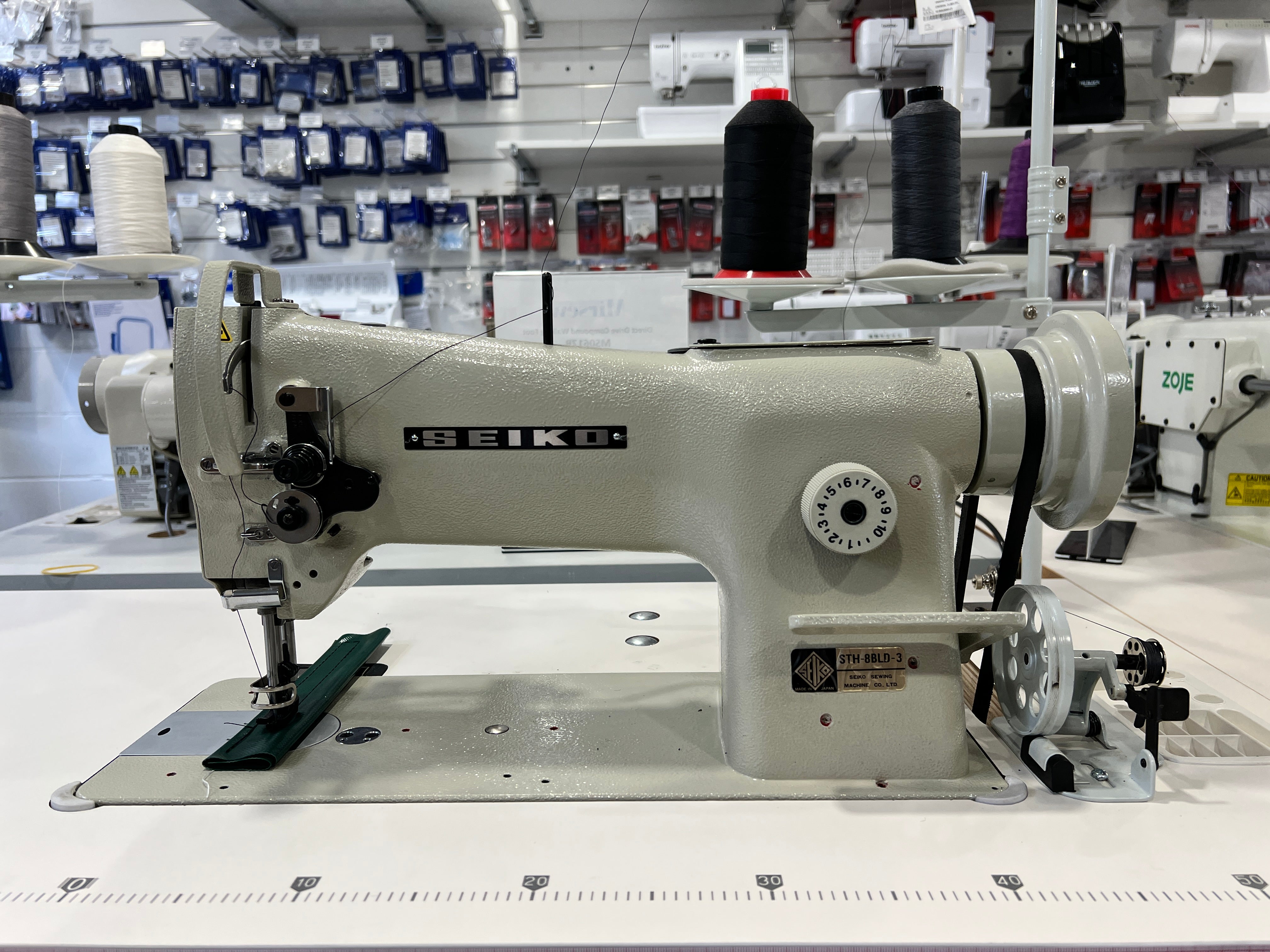

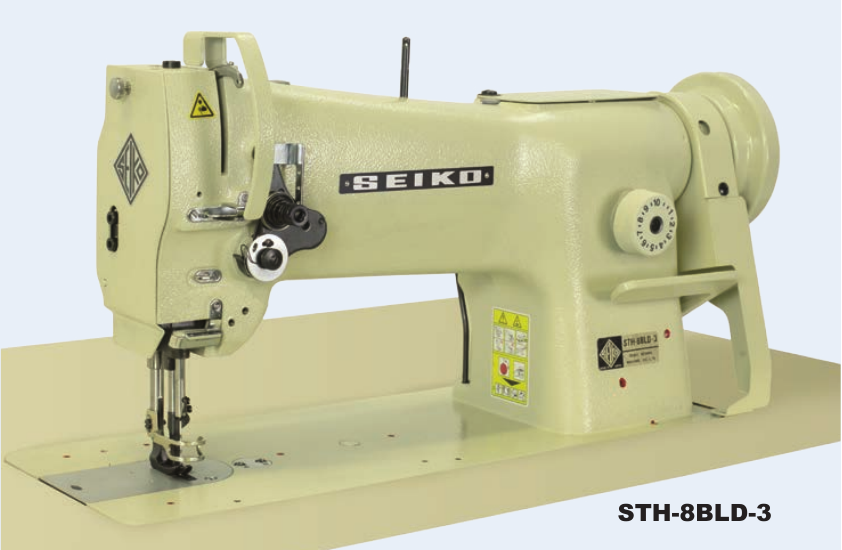

The Seiko STH-8BLD-3 walking foot sewing machine is an industrial straight-stitch machine for workshops handling medium-to-heavy materials. Compound feed helps move layered work through the needle area, while the flat bed supports larger panels.
Supplied by Direct Sewing with a variable-speed servo motor and industrial table, it combines practical speed control with a large hook and bobbin for everyday production.
The needle feed, bottom feed and walking-foot action work together to advance the material. This helps manage layers when sewing items such as upholstery covers, bags and canvas assemblies.
Set the machine for your fabric, thread and seam construction, then test folded joins before production.
Use the supplied high-torque servo motor to set a comfortable maximum sewing speed. Pedal control lets you slow down for corners, positioning and thicker joins, rather than sewing every part of the job at full speed.
The motor is quiet while idle.
Practical mechanical features
The safety clutch helps protect the hook and drive mechanism if thread jams. It is a protective feature, not an automatic jam-clearing system. Stop the machine, disconnect power and clear the cause before resetting it according to the operating manual.
Suitable applications include furniture and automotive upholstery, boat covers, awnings, bags, luggage and appropriate leather, vinyl, canvas and coated fabrics. Its straight lockstitch is useful for assembly seams and visible topstitching.
Material thickness alone does not determine suitability: density, coatings, thread and the number of layers all matter. This is not a zigzag or embroidery machine.
| Stitch / feed | Single-needle lockstitch; compound feed and walking foot; reverse |
|---|---|
| Maximum stitch length | 10mm |
| Sewing speed | 2,000 stitches/min; Seiko specifies up to 2,400 stitches/min at stitch lengths of 8mm or less |
| Presser-foot clearance | 13mm by knee; 8.5mm by hand |
| Walking-foot movement | 2.7–5.5mm; standard 3.2mm |
| Needle system | DPx17 / 135x17; standard size #22 / NM140 |
| Hook | Large horizontal-axis hook, two-times capacity |
| Lubrication | Semi-automatic |
| Working space | 258 × 110mm |
| Machine bed | 477 × 177mm |
| Supplied motor | Variable-speed, high-torque servo motor |
Use a speed suited to the thread, material and operation. Presser-foot clearance is for positioning the work, not a guaranteed sewable thickness.
Choose DPx17 / 135x17 needles in a size and point appropriate to your work. Rasant Oxella 35 upholstery thread is one option to assess for suitable seams.
Includes a one-year return-to-base warranty.
Keep the correct model documents handy for operation, maintenance and identifying replacement parts.
The operating manual includes installation information for different motor arrangements. Follow the supplied servo motor’s instructions for its controls and electrical setup.
Yes. Direct Sewing supplies the machine built up with the listed table, servo motor, thread stand and accessories.
No. It helps protect the hook mechanism. The cause must be safely cleared before the machine is reset and used again.
Nationwide New Zealand freight is available. Use the product page’s ordering and availability controls to purchase online.
