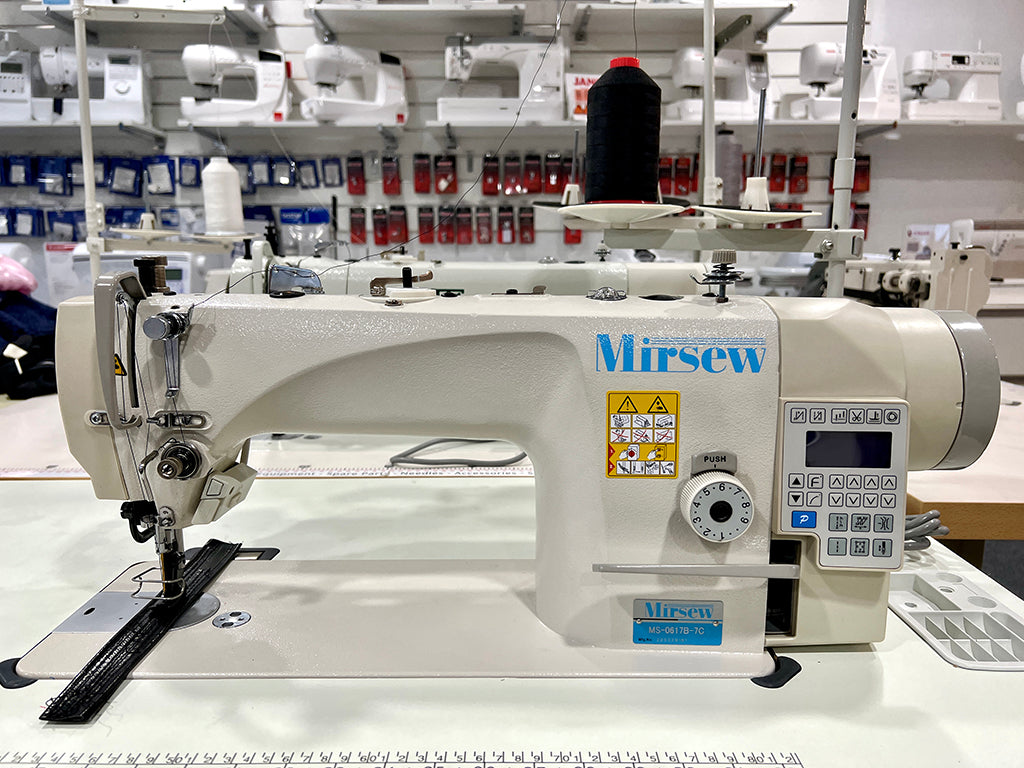

Mirsew MS0617B-7C · automatic walking foot
The Mirsew MS0617B-7C automatic compound-feed walking foot sewing machine combines layered-material feeding with automatic thread trimming, backtacking and presser-foot lift.
For upholstery, leather goods and canvas work, it brings useful seam-finishing functions together with adjustable direct-drive servo control. Supplied built up with its industrial table, motor and listed accessories.
Automatic backtacking helps secure seam ends, while automatic thread trimming reduces the need to reach for scissors after each seam. These functions are especially useful when a job involves repeated starts and stops.
Choose the settings for your work and check the result on a sample before production.
The automatic presser-foot lift makes it easier to release the work for repositioning or removal. A clearly laid-out control panel puts the machine’s electronic functions within reach.
You still guide the material: this is a production sewing machine, not an automated pattern-sewing system.
Compound feed combines needle feed, bottom feed and walking-foot action to help advance layers together. It is a practical choice for assemblies that are harder to handle consistently on a conventional plain sewing machine.
Use it for suitable leather goods, upholstery, canvas covers, bags, luggage, PVC and outdoor products. Adjustable stitch length also gives you control over the appearance of visible straight topstitching.
The direct-drive servo motor provides adjustable sewing speed and quiet idle operation. Set a comfortable pace for your material, slowing down around corners, folded edges and thicker joins.
A maximum-speed figure is not a target for every seam. Match the pace to the job and your level of control.
The side-loading bobbin arrangement provides access for routine bobbin changes. The flat-bed layout supports panels around the sewing area, with the thread stand and controls arranged as part of a built-up workstation.
Switch off and isolate the machine before changing needles or working around moving parts.
| Model | Mirsew MS0617B-7C |
|---|---|
| Machine type | Industrial flat-bed, compound-feed walking foot sewing machine |
| Automatic functions | Thread trimming, backtacking and presser-foot lift |
| Motor | Direct-drive servo with adjustable speed |
| Maximum stitch length | 9mm |
| Presser-foot lift | 10mm |
| Maximum sewing speed | 1,800 stitches per minute |
| Needle system | 135x17 / DPx17 |
| Bobbin access | Side loading |
| Material applications | Suitable heavy materials, including leather, canvas, upholstery and PVC |
One-year return-to-base warranty.
For consumables, choose DPx17 / 135x17 needles in the size and point suited to your work. Rasant Oxella 35 upholstery thread is an option to assess for suitable seams; test the needle and thread combination on your material.
It adds automatic backtacking, thread trimming and presser-foot lifting alongside the compound-feed walking-foot mechanism and direct-drive servo control.
Yes. The supplied workstation includes the industrial table, motor, thread stand, wheels and listed accessories.
Suitable leather goods, bags, canvas and upholstery are key applications. Test your actual seam stack, especially reinforced areas and folded joins.
Yes. Order online with Direct Sewing; nationwide New Zealand freight is available for the built-up machine.
