More space for your quilting ideas

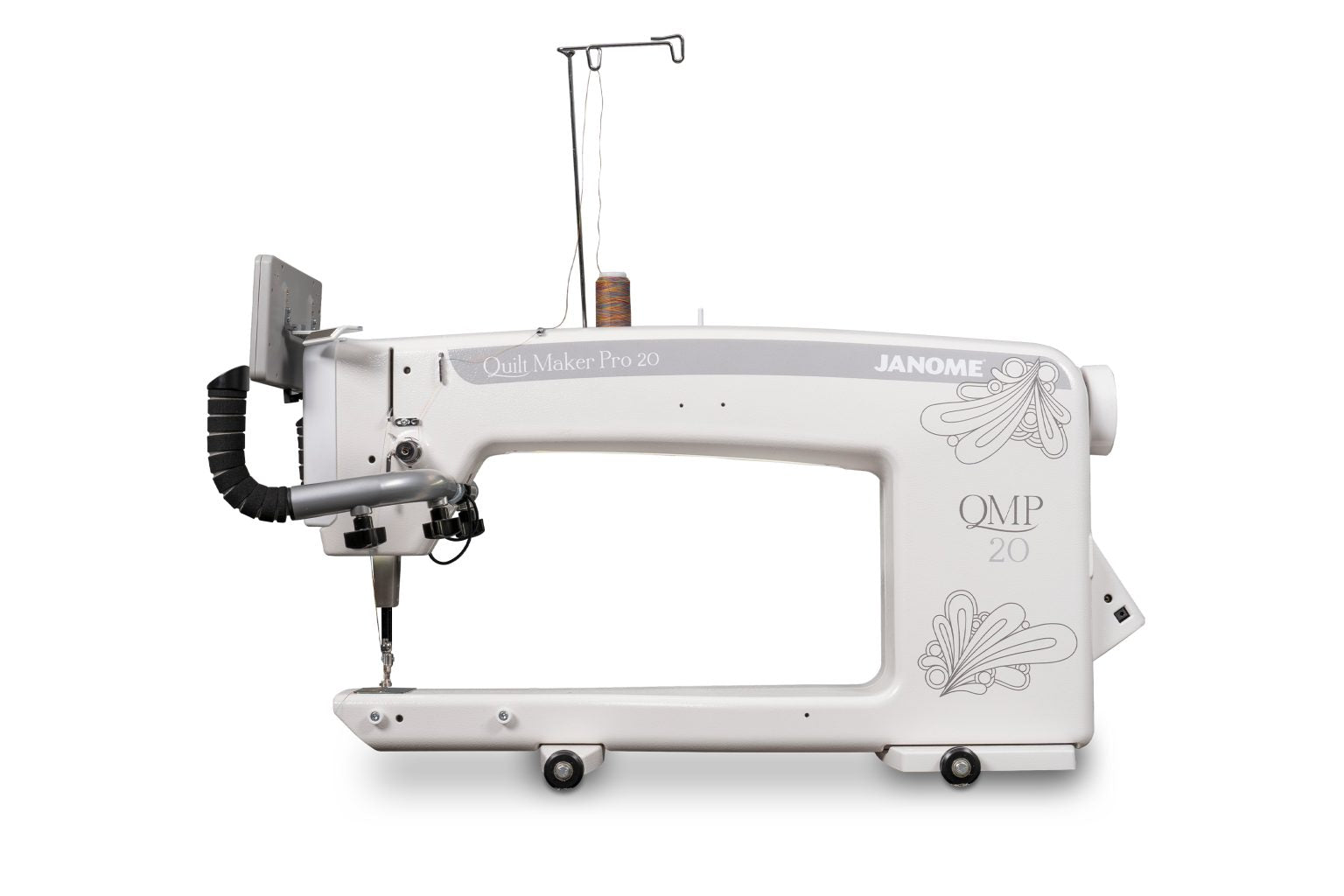

The Janome Quilt Maker Pro 20 pairs a 20-inch longarm machine with an adjustable quilting frame. It is a frame-guided setup: the quilt is supported while you move the machine to create your design. A larger arm gives you more room to work on flowing motifs and detailed fills.
Designed around the quilter
- Up to 2,500 stitches per minute with Precision and Cruise stitch regulation.
- Adjustable front handlebars with integrated micro-quilting positioning and programmable buttons.
- 7-inch front touchscreen and digital tension display.
- LED lighting at the needle, throat and bobbin area.
- Needle-point laser, thread-break sensor and large M-class bobbin.


What is included?

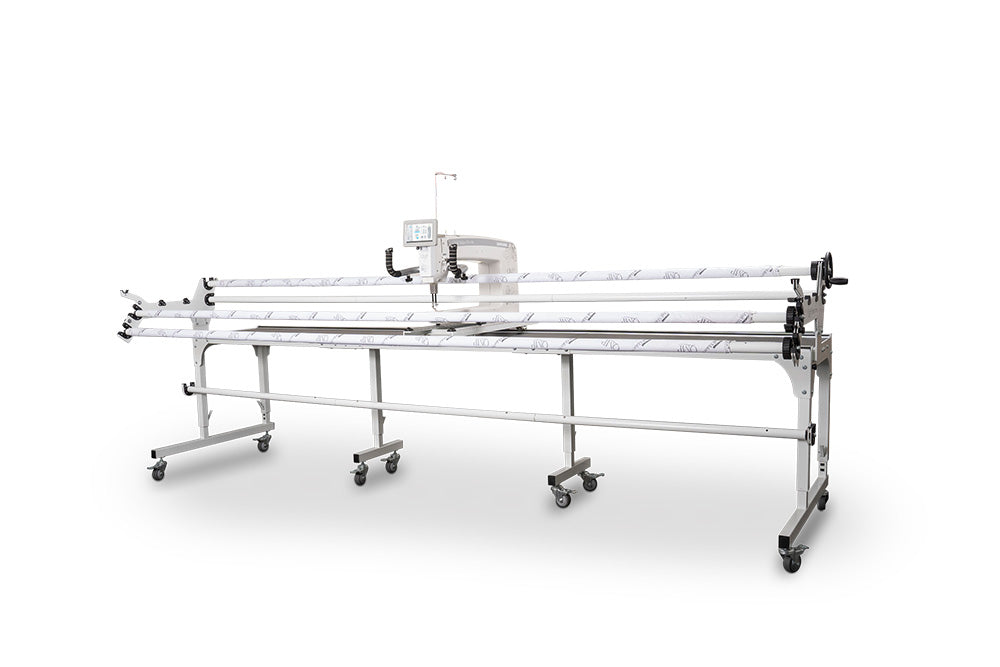

QMP20 machine, adjustable 4ft/8ft/12ft frame and independent bobbin winder. Pro-Stitcher robotics, rear handlebar kit and castor wheels are not included in this listing. The frame photograph shows optional castors.
Standard accessory checklist
- Open-toe foot and fitted closed-toe/ruler foot.
- Five M-class bobbins in total and M-class bobbin case.
- Two packs of ten needles: size 100/16 and size 110/18.
- Thread tray and mast, pen oiler, screwdriver and hex wrenches.
- Power cord, handlebar button stickers and quick reference card.
The machine, adjustable frame and bobbin winder are included as described above. Ruler base and other optional accessories are extra; promotional bonuses are not included unless expressly confirmed in your quotation.
Choose a frame layout that works for you
The frame can be configured at 4ft, 8ft or 12ft. Allow additional room for loading, moving around the machine and servicing. Arm length is not the usable quilting depth, and frame length is not the maximum quilt width. Include room dimensions and quilt sizes with your enquiry.
Hand-guided now, robotics later
Stitch regulation supports consistent stitch length while you guide the machine. Optional QMP20-specific Pro-Stitcher adds computer-guided movement; the robotics system is sold separately. Do not order the QMP18 robotics kit for this model.
QMP18 or QMP20?
| Feature | QMP18 | QMP20 |
|---|---|---|
| Machine arm | 18 inches | 20 inches |
| Maximum speed | 2,200 stitches/min | 2,500 stitches/min |
| Stitch regulation | Precision & Cruise | Precision & Cruise |
| Rear handlebars | Included | Optional |
| Thread-break sensor | No | Yes |
| Frame configurations | 4ft / 8ft / 12ft | 4ft / 8ft / 12ft |
| Robotics in these packages | Not included | Not included |
Choose QMP18 for an 18-inch setup with rear controls already included. QMP20 adds arm space, a thread-break sensor and its newer front-control layout. Decide by your quilting method and room—not speed alone.
Arm length is not the usable quilting depth. Frame settings describe nominal length, not the full working footprint.
Before you choose your setup
How much room do I need?
Nominal frame lengths are approximately 1.22m, 2.44m and 3.66m for the 4ft, 8ft and 12ft settings. These are not room-size recommendations: allow extra depth and clearance to stand, load the quilt and reach the rear. Send room dimensions, doorways and any stairs or access restrictions for a layout check before ordering.
Does it quilt automatically?
Not in the machine-and-frame package. You guide the machine; stitch regulation responds to your movement. Computer-guided quilting requires the separately purchased robotics system matched to the exact model.
Can I use quilting rulers?
Use suitable longarm quilting rulers with the correct ruler foot and a model-specific ruler base. A ruler foot alone does not provide the supporting surface needed for ruler work. The optional ruler base is not included in this package.
What should my quotation cover?
Ask for the selected frame layout, confirmed availability, delivery, installation scope and costs, and any optional equipment to be itemised. Confirm training arrangements, applicable New Zealand warranty terms and the servicing pathway before proceeding; these are not additional promises included in the displayed price.
Manufacturer resources
Janome Quilt Maker Pro comparison chart (PDF)
Enquire to order in New Zealand
Price includes GST. Delivery and installation are additional. Please include your postcode, access details and preferred setup with your enquiry. Availability and the full delivered-and-installed quotation will be confirmed before ordering.
