Jack K7-UT · 5.6mm · Cylinder arm
Professional hems.
Less handling between seams.

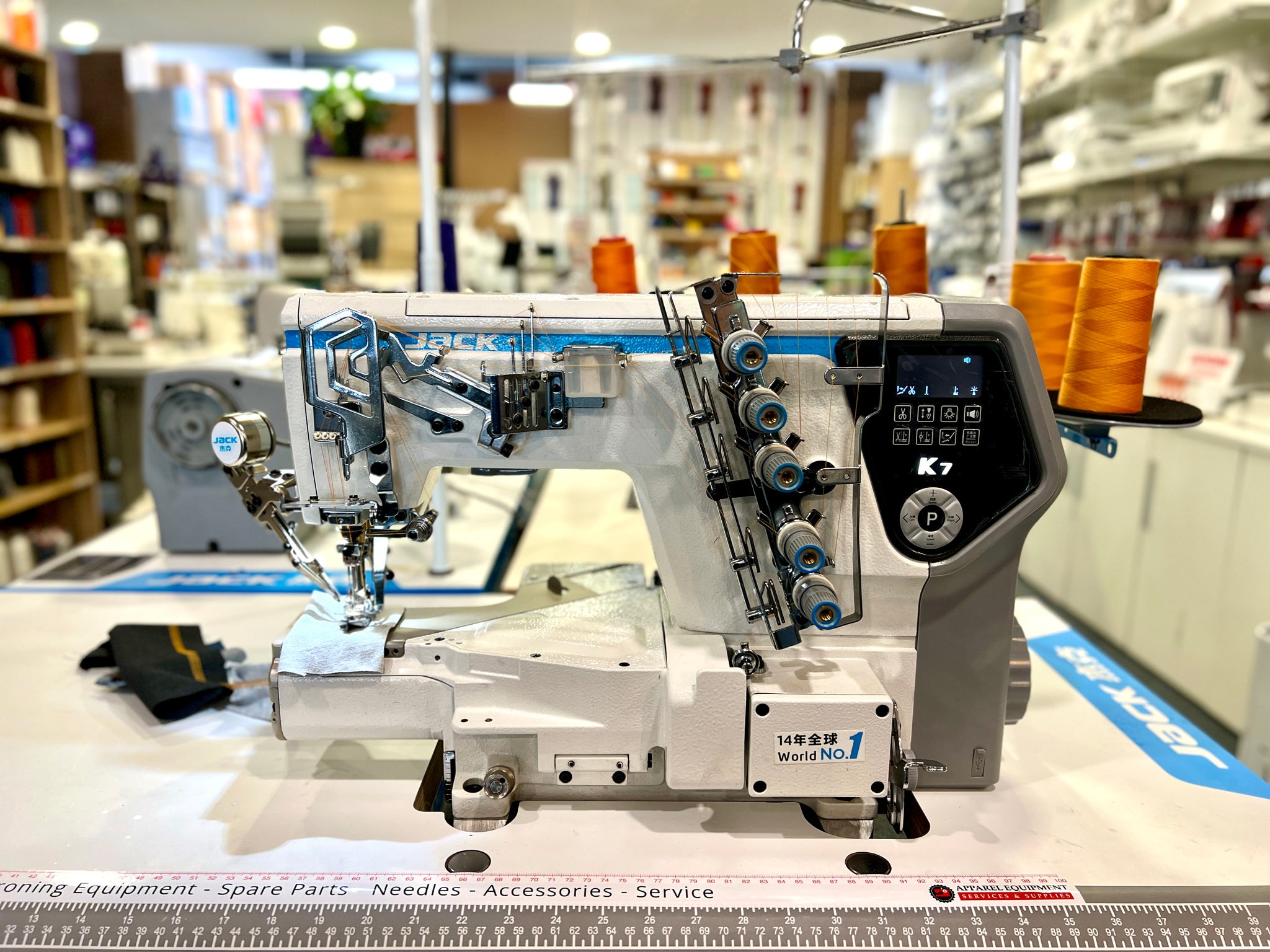

Finish T-shirts, sleeves and knitwear with the Jack K7 automatic cylinder-arm coverseamer. The 5.6mm, three-needle setup combines garment-finishing versatility with automatic trimming and foot lift.
For workrooms sewing repeated hems, the UT functions help make the transition from one piece to the next simpler—while the operator stays in control of guiding the garment.
Made for garment finishing
Room to guide the garment.

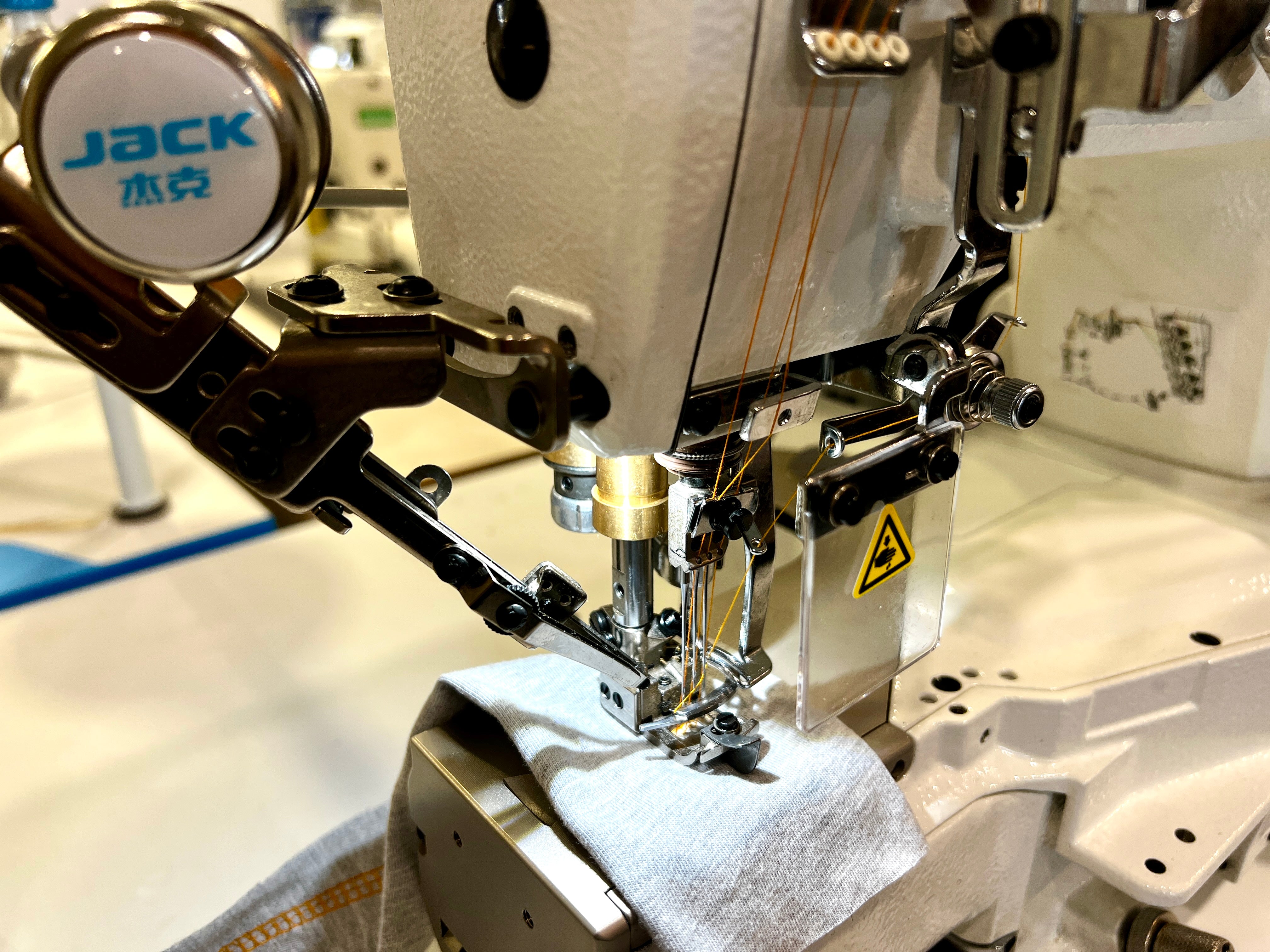

T-shirt and knitwear hems
Create neat parallel stitch lines with underside coverage at garment hems. Match the needle, thread and settings to the fabric for a balanced finish.
Sleeves and tubular pieces
The raised cylinder arm gives you access around closed garment sections, making it easier to guide a sleeve or smaller opening than on a broad flat bed.
Stretch-fabric finishing
Differential feed helps manage fabric movement. Test on the actual material before production to find the balance between a flat hem and unwanted stretching or gathering.
The UT difference
Finish the seam.
Move to the next piece.
Automatic top and bottom thread trimming, foot lift and thread wiping reduce separate end-of-seam tasks. They are particularly useful when a job involves many short, repeated sewing cycles.
This is an operator-guided coverseamer, not an unattended automatic hemming station.
Looking for a simpler setup? Compare the Jack K7 simple-type coverseamer.
Control at the machine
Accessible settings. Adaptive feeding.

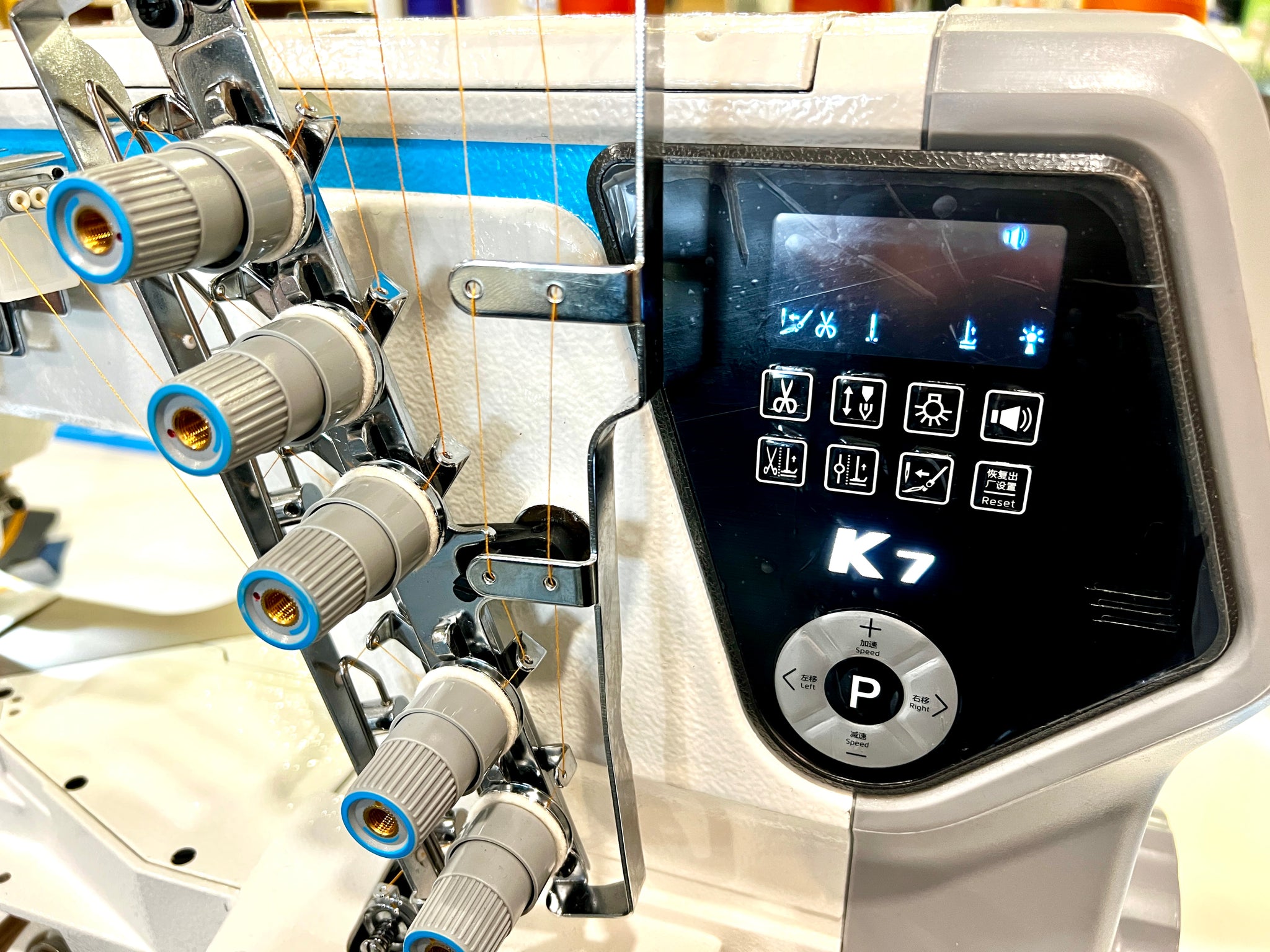

The integrated panel puts speed and sewing-function controls beside the operator. Adjustable LED lighting illuminates the working area.
Jack’s adaptive feeding technology responds to changes in fabric thickness to help maintain material movement across seams. It supports the sewing process without replacing correct threading, suitable needles or a test sew.
Machine specifications
| Model | Jack K7-UT-01GB, 356 configuration |
|---|---|
| Machine type | Industrial cylinder-arm coverseamer |
| Needles / threads | 3 needles / 5 threads |
| Needle gauge supplied | 5.6mm |
| Stitch length | 1.5–4.5mm |
| Differential ratio | 0.6–1.8 |
| Presser-foot lift | 7.5mm |
| Maximum speed | Up to 6,000 stitches per minute; select speed to suit the material and operation |
| Drive | Built-in direct-drive servo motor |
| Automatic functions | Top and bottom thread trimming, presser-foot lift and thread wiping |
| Needle system | UY128GAS / DV×43 |
This listing is the 5.6mm UT-01GB configuration. Other gauges and specialised subclasses shown in the family brochure are not included.
Supplied for your workroom

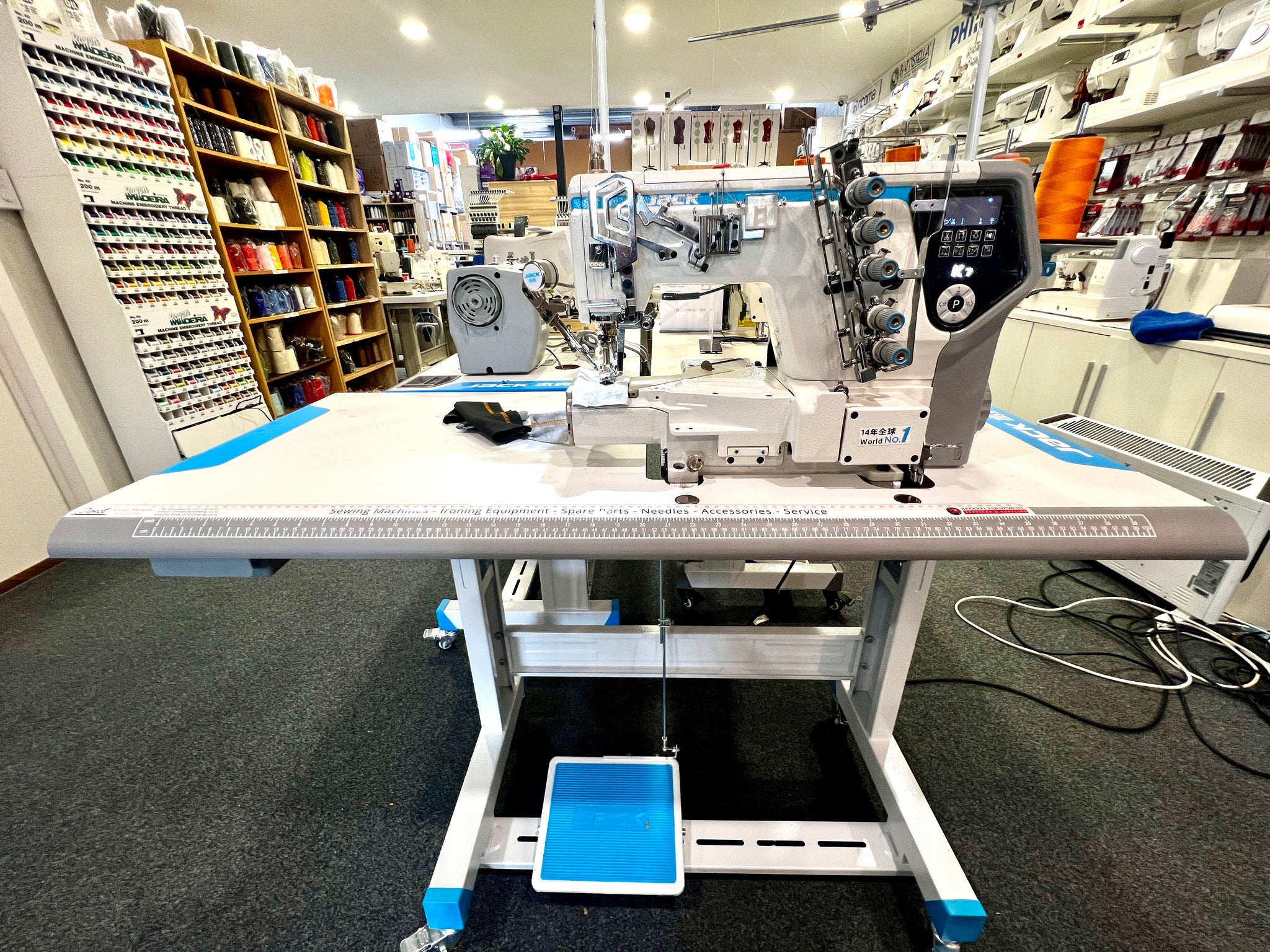

Supplied built up with table, stand, direct-drive motor, thread stand and standard accessories, including needles, oil and screwdriver. The stand has wheels for repositioning.
1-year return-to-base warranty.
Need a specialised operation?
Binding and other attachment-based operations require the correct guide or attachment for the job. Do not assume a specialised binder or fabric-edge trimmer is included with this standard configuration.
Product information
Jack K7-UT-01GB356 — English product information
English-language information from the official Jack UK distribution network. This listing supplies the 5.6mm configuration.
Order online for your workroom.
Use the product’s purchase options above when available. Direct Sewing can arrange nationwide New Zealand freight for your machine.
