Industrial walking foot · 12mm stitch version
More control for layered, heavier sewing.

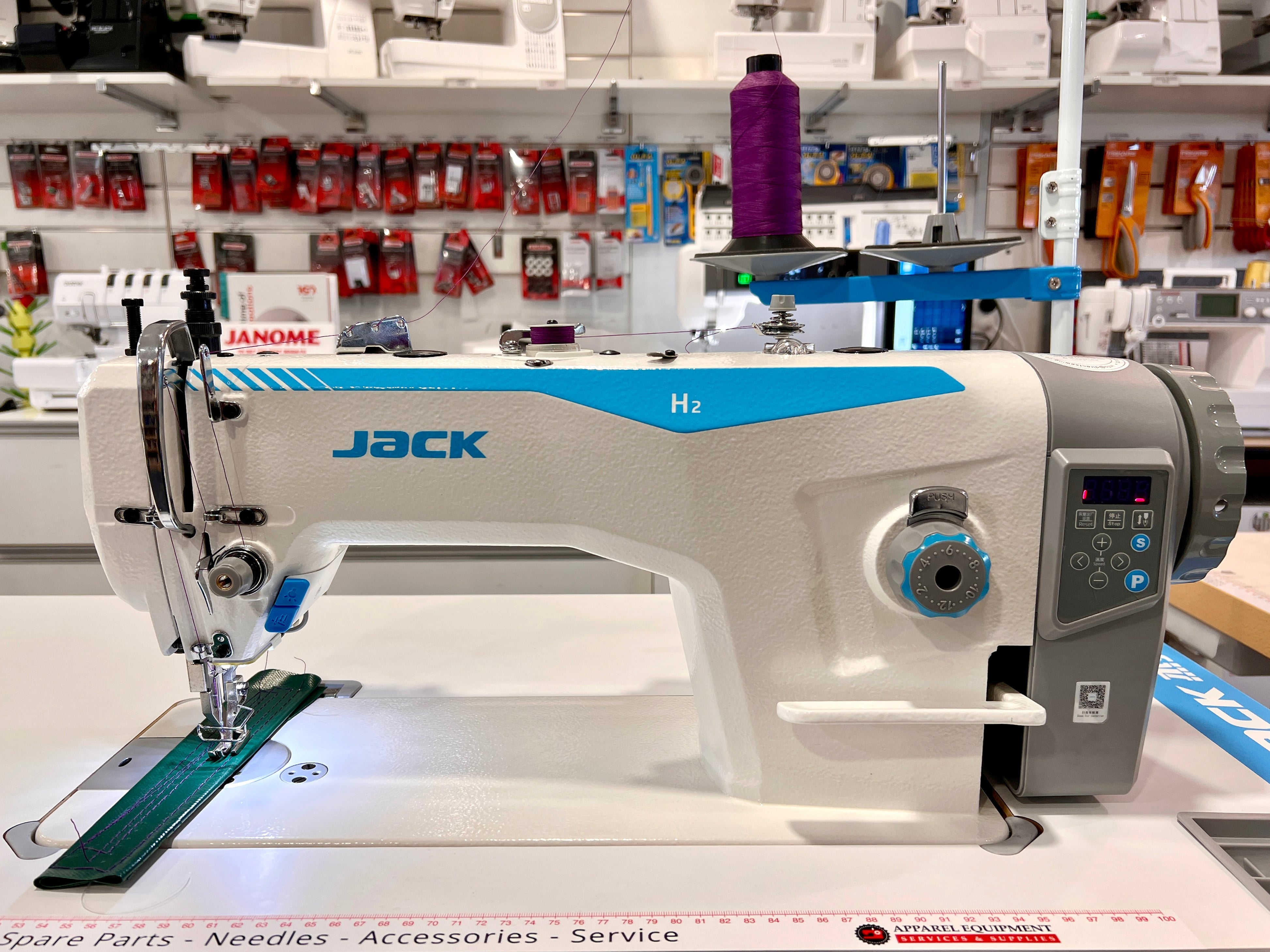

The JACK H2CZ walking foot sewing machine combines top-and-bottom feed with a built-in 750W direct-drive servo motor. It is a practical choice for suitable upholstery, canvas, denim and soft leather projects where a standard drop-feed machine struggles to move the layers evenly.
This is our H2CZ12 configuration, with an extra-long stitch setting for bold topstitching and work that calls for a longer stitch.
Buy onlineWe ship nationwide across New Zealand. Order your JACK H2CZ online using the Add to Cart button above.

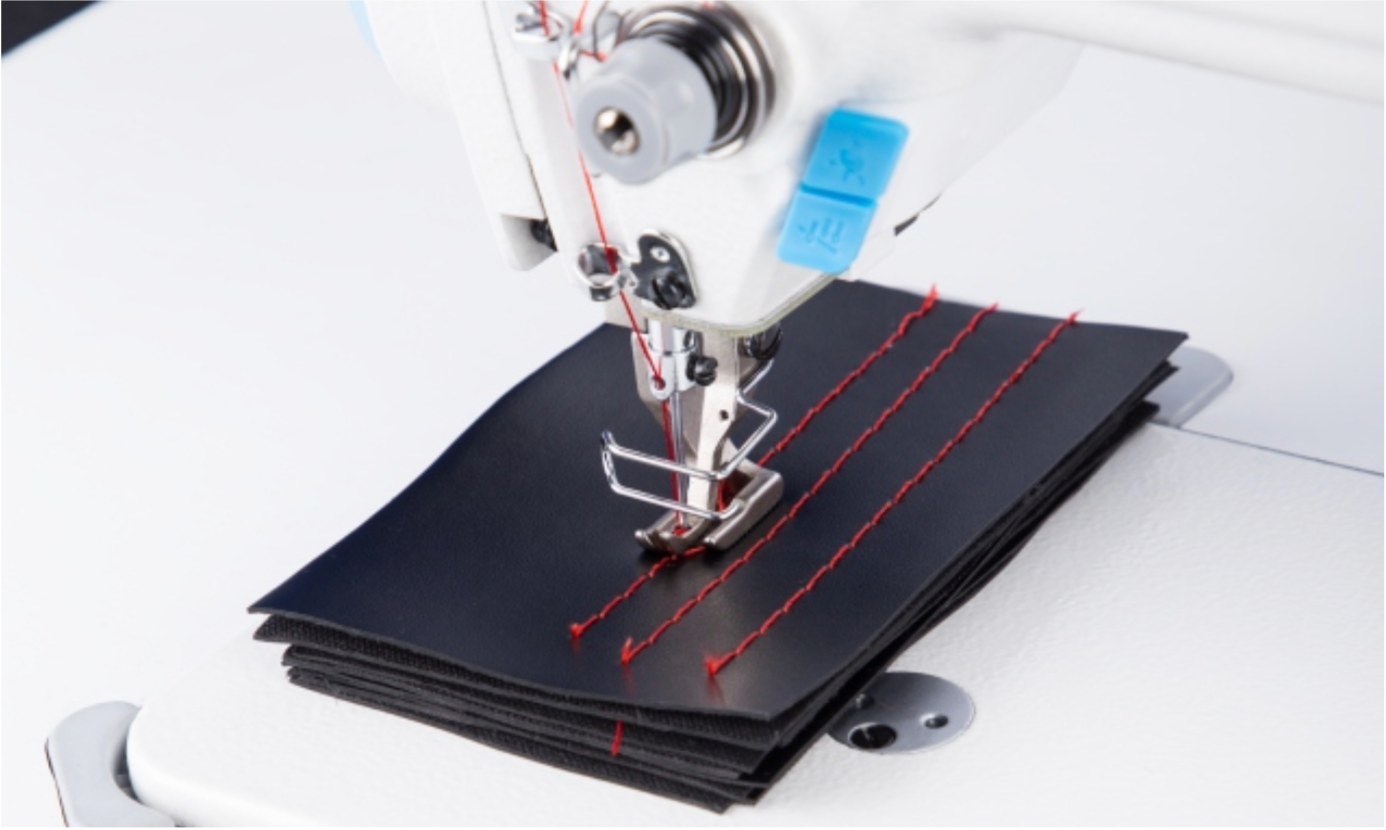

Walking-foot feeding
The upper walking foot and lower feed dog help move the material together. This supports more consistent handling of layered work than relying on bottom feed alone.
Feed type: top-and-bottom feed, also called shuffle feed. This is not a needle-feed or triple-feed compound machine.
Set the pace for the job
Adjustable sewing speed and needle positioning help with controlled starts, stops and turning your work. The stitch-length dial gives direct, mechanical adjustment up to 12mm.

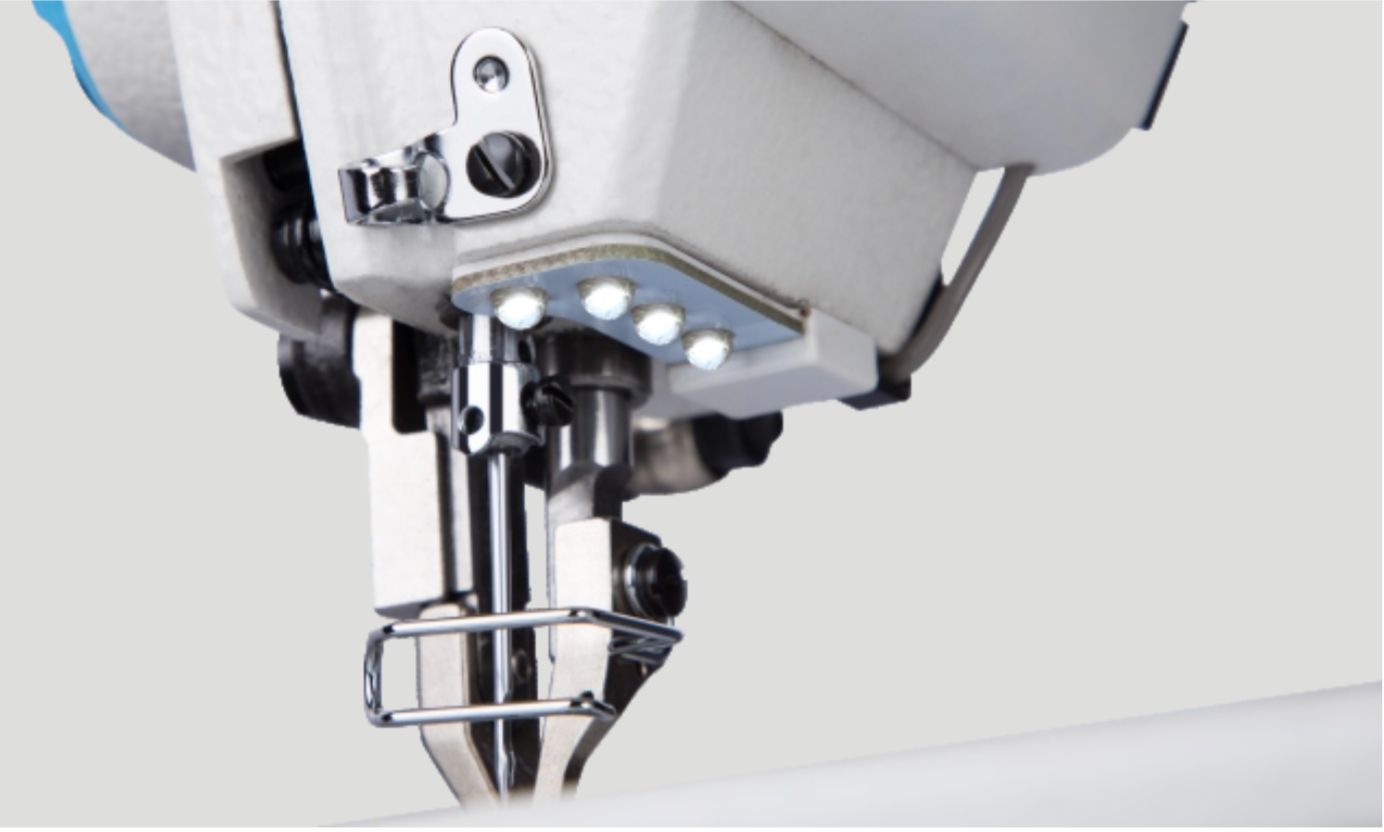

The integrated LED lights the sewing area, making the needle, seam line and material easier to see.
See the features up close
Made for practical workroom jobs
- Upholstery: cushion covers, seating and suitable furniture fabrics.
- Canvas and denim: bags, covers and other layered projects.
- Soft leather and vinyl: suitable bags, accessories and upholstery pieces.
- Visible topstitching: longer stitches where the material and thread combination allow.
For very dense leather, bulky seam crossings or difficult combinations, ask us to help choose the right feed system and setup.
Supplied assembled
The machine comes built up with its sewing table, stand, motor and thread stand, mounted on wheels for easier positioning.
- Oil
- Bobbins
- Needles
- Screwdriver
Table top: approximately 1.2m long × 0.55m wide. Stand height has limited adjustment. Table and stand colours may differ from photographs.
JACK H2CZ specifications
| Machine / stitch type | Industrial single-needle lockstitch; 2 threads |
|---|---|
| Configuration | H2CZ12 — 12mm stitch-length version |
| Feed system | Top-and-bottom feed / shuffle-feed walking foot |
| Maximum stitch length | 12mm |
| Motor | 750W built-in direct-drive servo motor |
| Operator controls | Adjustable speed, needle positioning and manual reverse lever |
| Presser-foot lift | Up to 16mm using the knee lift |
| Needle system | DP×17 / 135×17; choose the appropriate size and point for your thread and material |
| Lighting | Built-in LED sewing light |
| Lubrication | Oil-pump lubrication; maintain the oil level and follow the machine instructions |
| Table-top size | Approximately 1.2m × 0.55m (length × width) |
| Warranty | 1-year return-to-base warranty |
Foot lift is not a sewing-thickness rating. The thickness you can sew depends on the material, seam construction, needle and thread. A sample trial is the best way to check demanding work.
Brochure & parts reference
Explore the original JACK H2 range and its component diagrams. The brochure covers multiple versions; refer to H2-CZ-12 for the 12mm stitch model.
View H2 brochure (PDF) View H2 parts book (PDF)The parts book is a component reference, not an operating guide. Contact us for threading, operation or parts advice with your model and serial number.
Buy online. We ship nationwide.
Order your JACK H2CZ online from Direct Sewing, with nationwide shipping across New Zealand.
Your machine is supplied assembled with its table, stand, integrated motor and listed accessories. Buy from a New Zealand sewing specialist with more than 30 years' experience selling, servicing and repairing sewing machines.
Buy onlineCommon questions
Is this the 8mm or 12mm version?
This listing is for Direct Sewing's H2CZ12 configuration with a maximum stitch length of 12mm. The H2 family also includes other configurations, so use the model designation when comparing brochures.
Is it a compound-feed walking foot machine?
No. This model uses top-and-bottom feeding. If your job needs the needle to help transport the material as well, ask us about a compound-feed machine.
Can I order online for delivery?
Yes. Use the Add to Cart button on this page to order online. We ship nationwide across New Zealand.
Does the price include the table and motor?
Yes. The machine is supplied built up with its table, stand, integrated motor, thread stand and listed accessories.
Can I use it for leather?
It can suit soft leather applications with an appropriate needle, thread and setup. Leather varies greatly in density and finish, so contact us with a sample or project details before choosing a machine for demanding leatherwork.
