Automatic trimming and foot lift

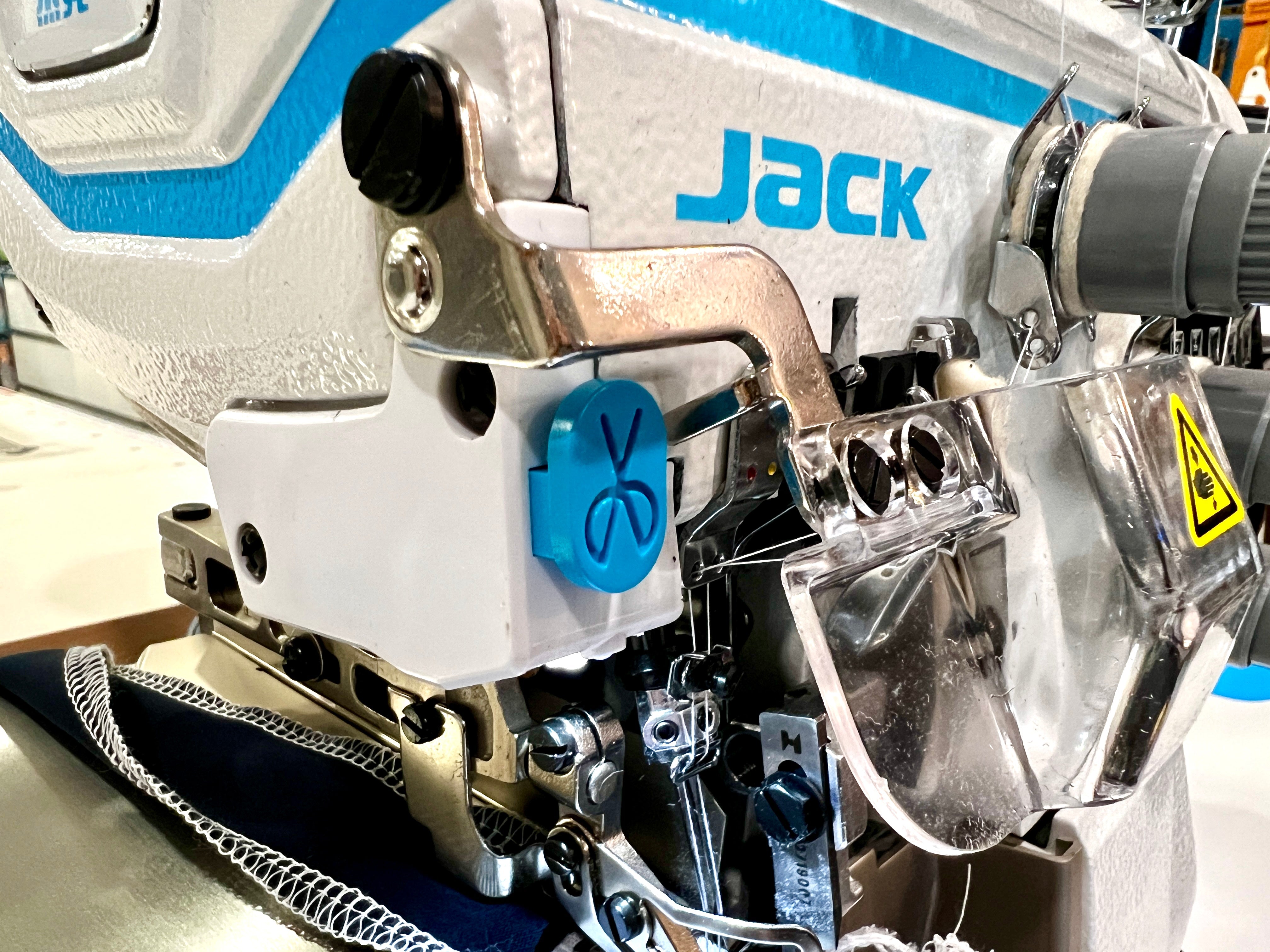

Sensor-controlled thread trimming reduces hand snipping between pieces. Automatic presser-foot lifting assists loading and unloading, with operating settings adjustable to suit the job.
JACK C7 Urus · C7-4-M03/333/S
Automatic overlocking. Consistent garment finishing.

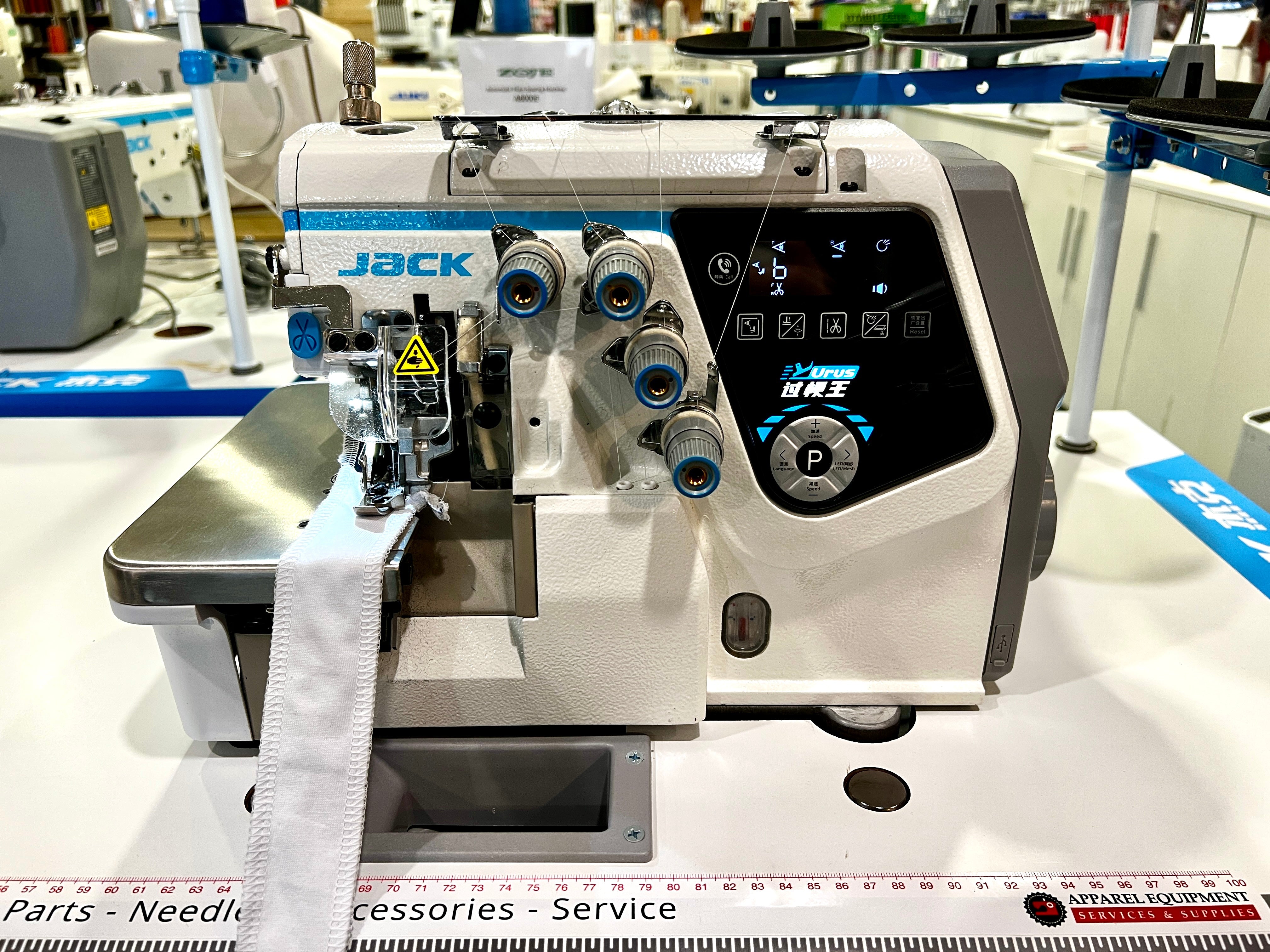

The JACK C7-4-M03/333/S is a two-needle, four-thread industrial overlocker for garment production and busy alteration workrooms. Adaptive fabric feeding, automatic thread trimming and presser-foot lifting help keep repetitive sewing moving smoothly.
2 needles · 4 threadsAutomatic trimmingUp to 7,000 stitches/min
Intelligent fabric handling
Support where the fabric changes.
The Urus system senses changes at fabric joins and coordinates presser-foot pressure with feeding force. It helps the machine transition between thinner sections and thicker cross-seams, supporting an even finish through changing layers.
Control that suits your work

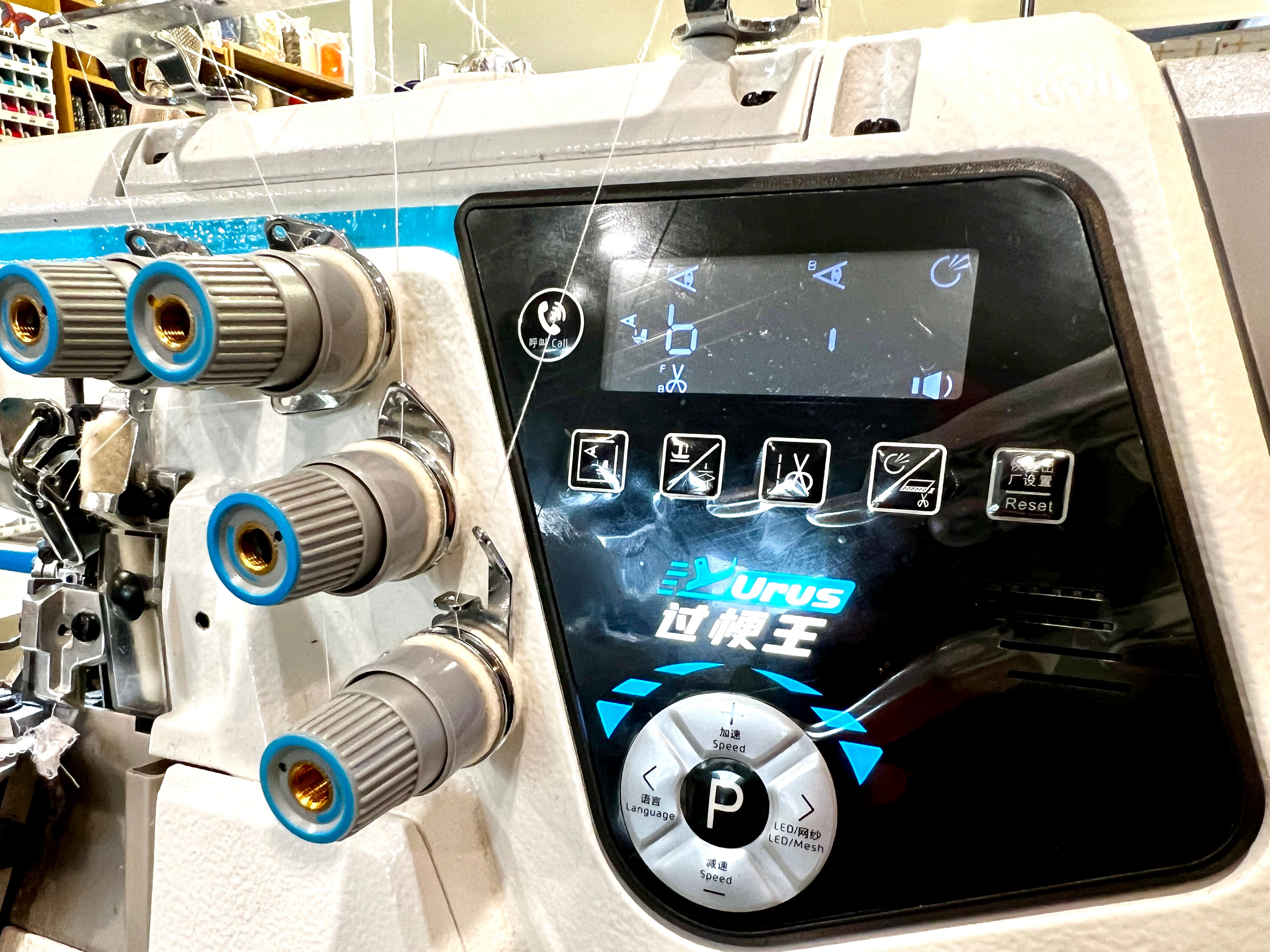

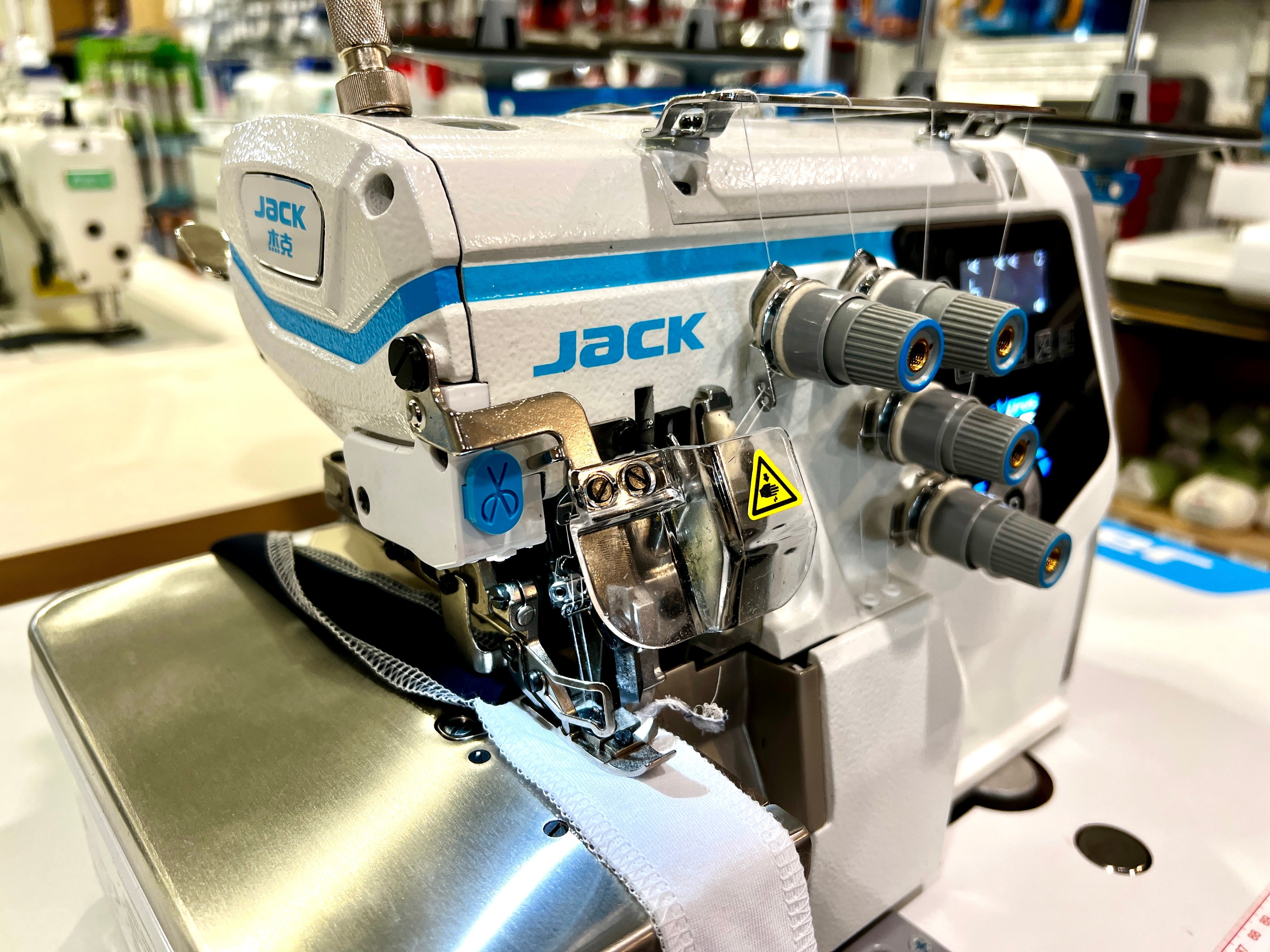

Choose manual, semi-automatic or automatic sewing modes. Adjustable sewing speed and needle-stop positioning let you balance production pace with control, while the front-mounted tension dials keep thread adjustment accessible.
For everyday garment production
A practical choice for T-shirts, knit garments, general clothing, alterations and woven-fabric edge finishing. Differential feed helps manage fabric stretch or gathering. Match the needle, thread and settings to your fabric, and test a sample before production.
Machine specifications
C7-4-M03/333/S at a glance
- Machine type
- Industrial four-thread overlocker
- Needles / threads
- 2 needles / 4 threads
- Needle spacing / overedge width
- 2mm / 4mm (2 × 4 configuration)
- Stitch length
- 0.8–4.6mm
- Differential feed ratio
- 0.7–2.0
- Maximum presser-foot lift
- 10mm
- Maximum sewing speed
- 7,000 stitches per minute
- Needle system
- DC×27 / B27
- Drive and control
- Servo motor with adjustable speed and needle-stop positioning
- Tabletop dimensions
- 1,200 × 550mm (length × depth)
Supplied assembled
Ready for your workroom.

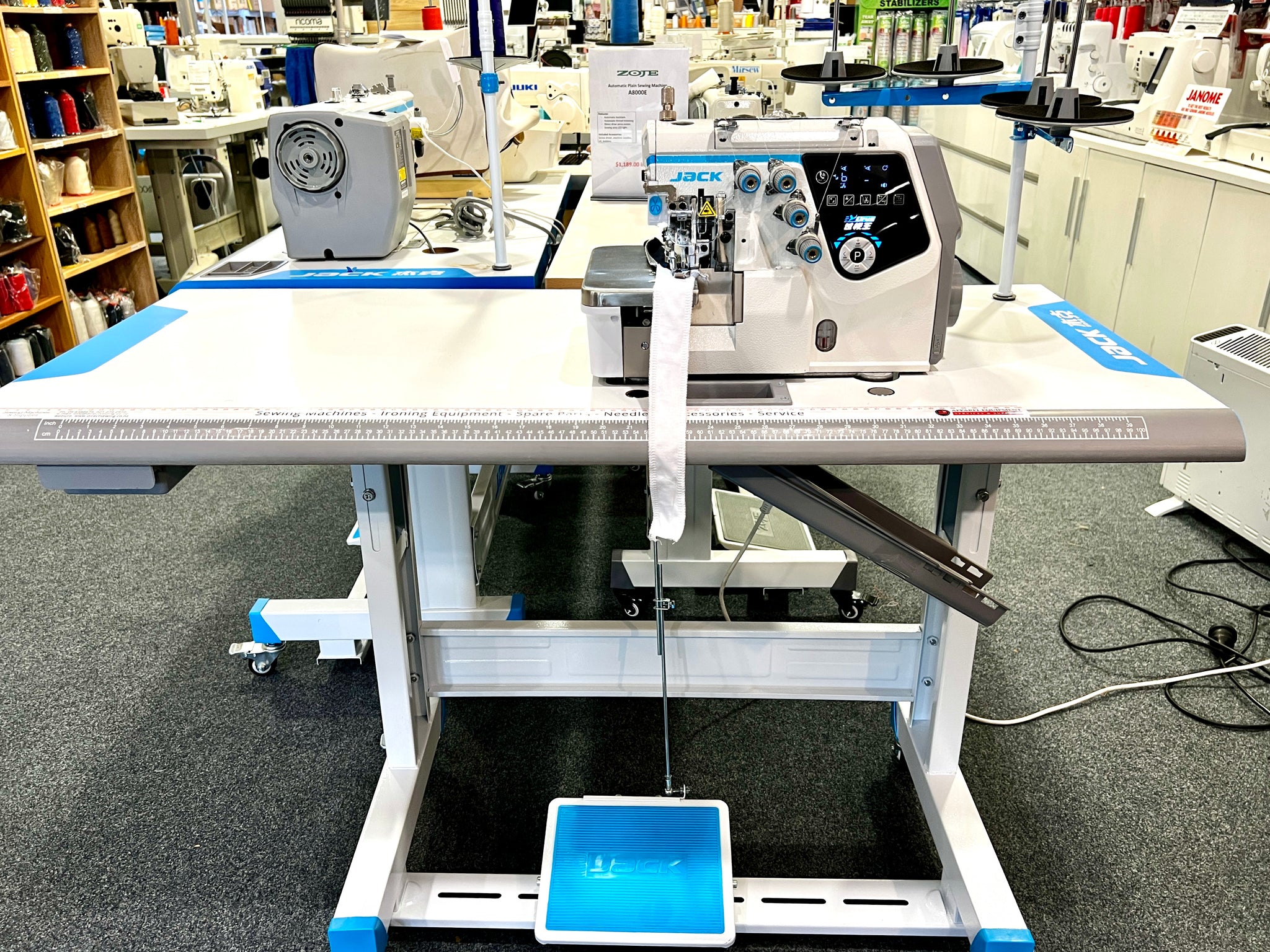

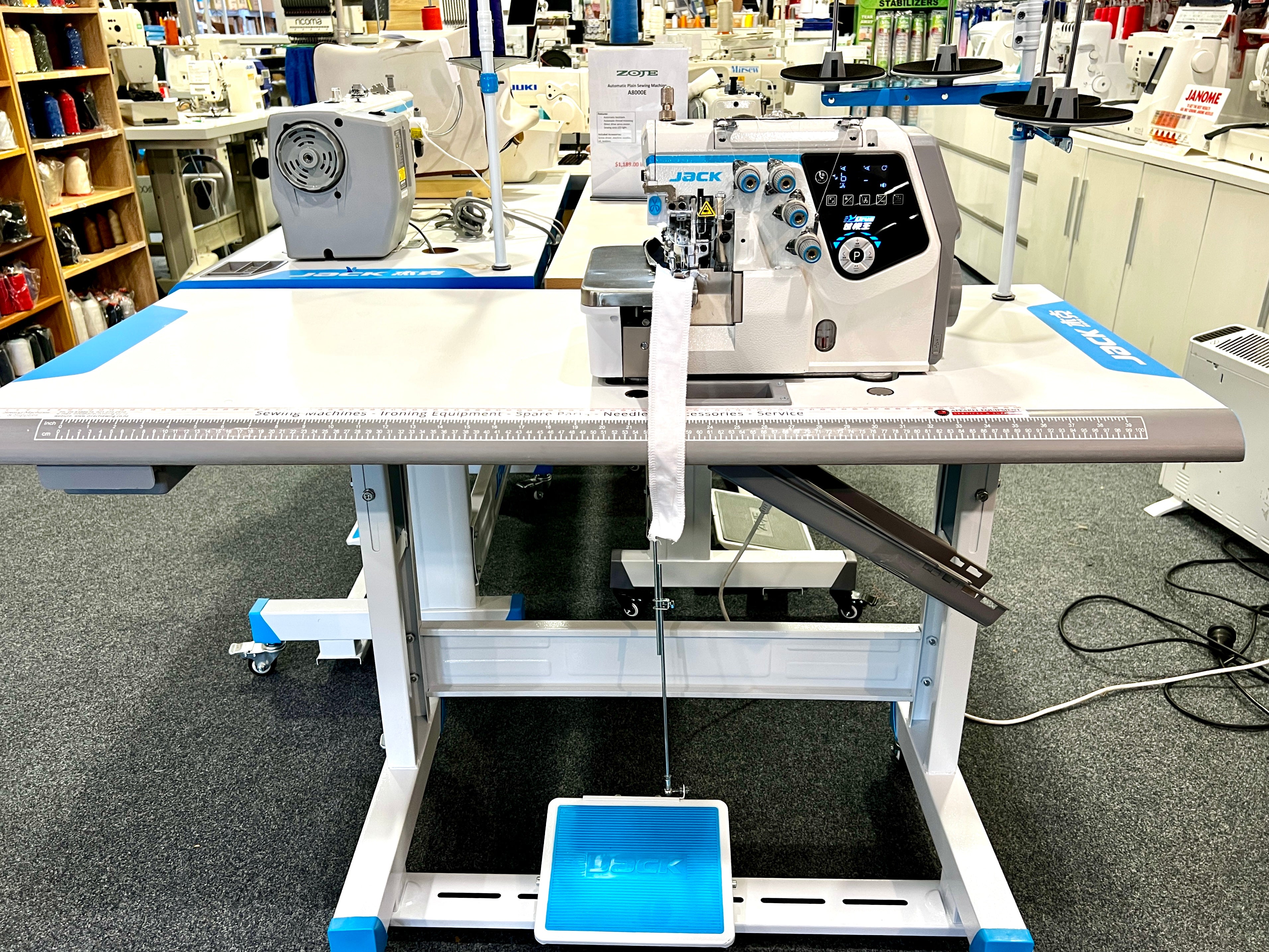

Supplied built up with the industrial table, stand, motor and thread stand. The wheeled base makes repositioning easier.
- Oil, tweezers, screwdriver and needles included
- 1-year return-to-base warranty
- Freight outside Auckland can be arranged
Need help matching the C7 to your fabric or arranging delivery? Talk to Direct Sewing before ordering.
Brochure, manuals and sewing supplies
JACK C7 brochure · Instruction manual · Control-box manual · Parts manual
DC×27 / B27 overlocker needles · Coats Astra sewing thread · Explore industrial overlockers
