The larger bobbin capacity helps reduce bobbin changes during extended sewing runs. Select thread and needles to suit your material and seam.
Eagle GC20606-1-L18 · long-arm walking foot
More room for the bigger jobs.

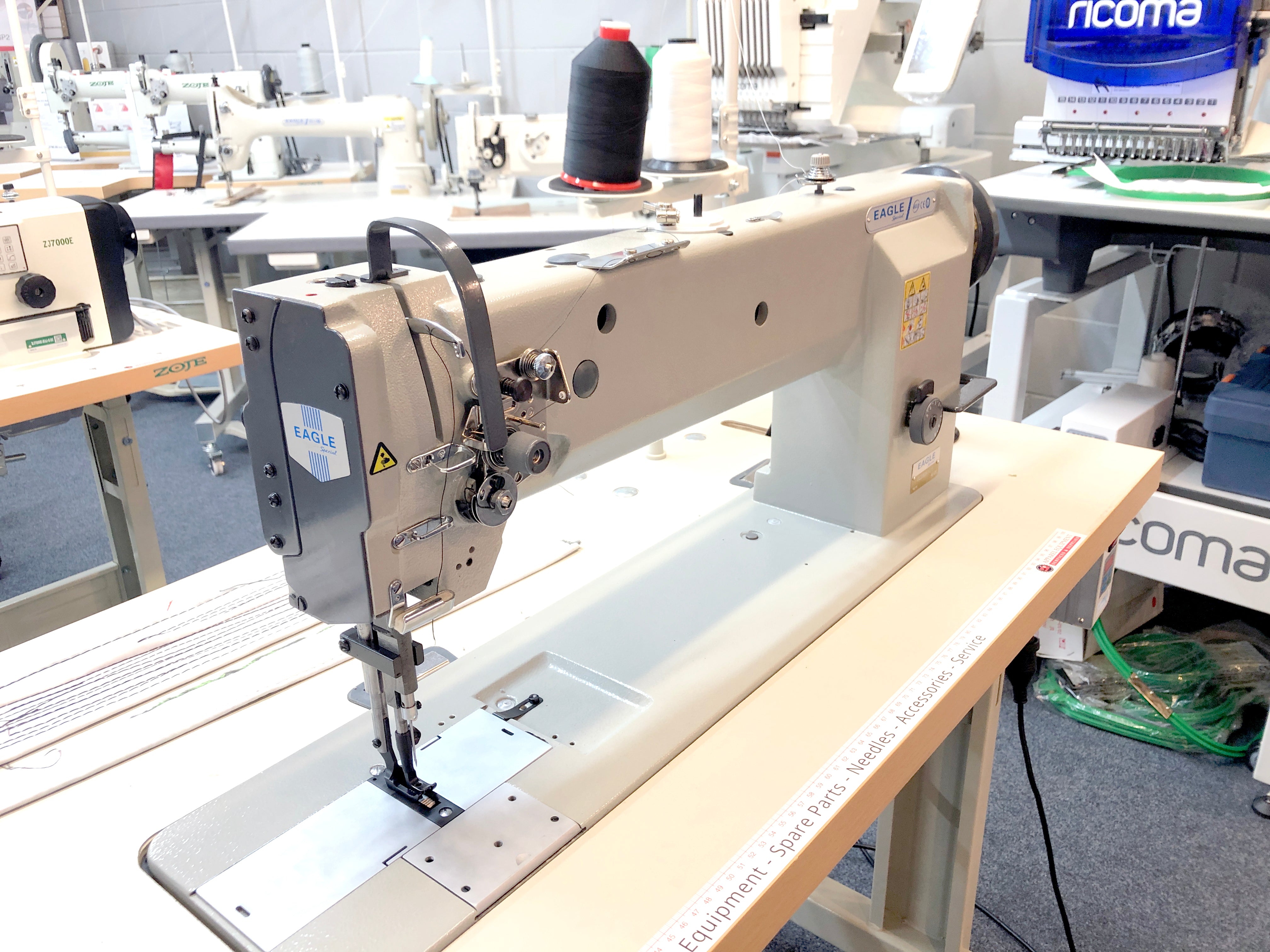

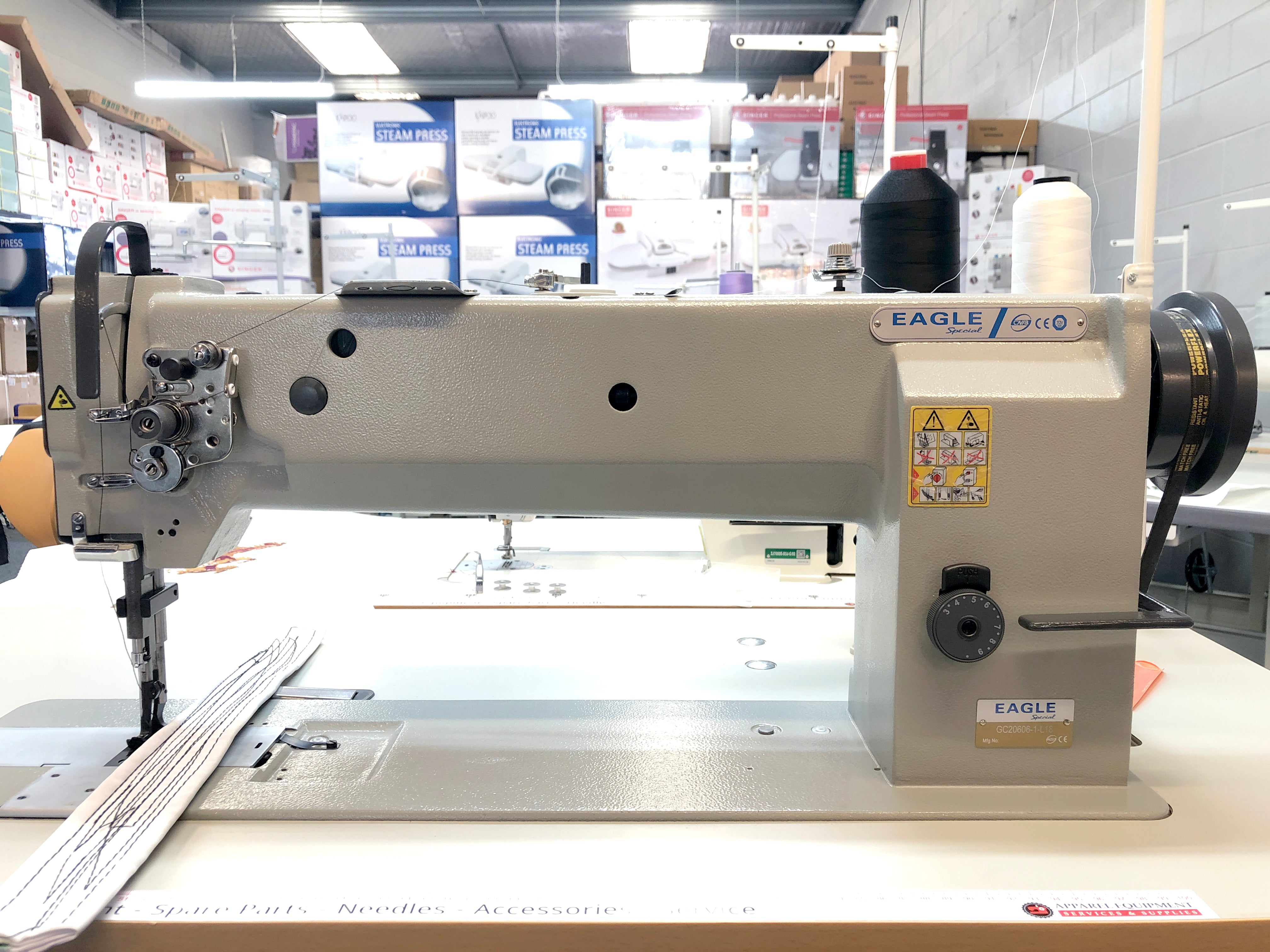

When a standard walking foot machine leaves you wrestling with bulky panels, the Eagle GC20606-1-L18 gives you an extended sewing bed and more room beneath the arm. Built for heavy-material work, it combines compound feed, a large rotary hook and adjustable servo-motor speed.
- Long-arm workspace for manoeuvring larger covers, panels and outdoor goods.
- Compound feed helps keep layered materials moving together.
- Large-capacity bobbin for fewer interruptions on longer seams.
- Servo speed control to suit the material and the job.
Supplied built up with its industrial table, motor, thread stand and accessories. Enquire to order.
Long armextended working space
9mmmaximum stitch length
16mmmaximum presser-foot lift
Compound feedcontrolled material handling
Space where it matters
Handle the panel, not just the seam.

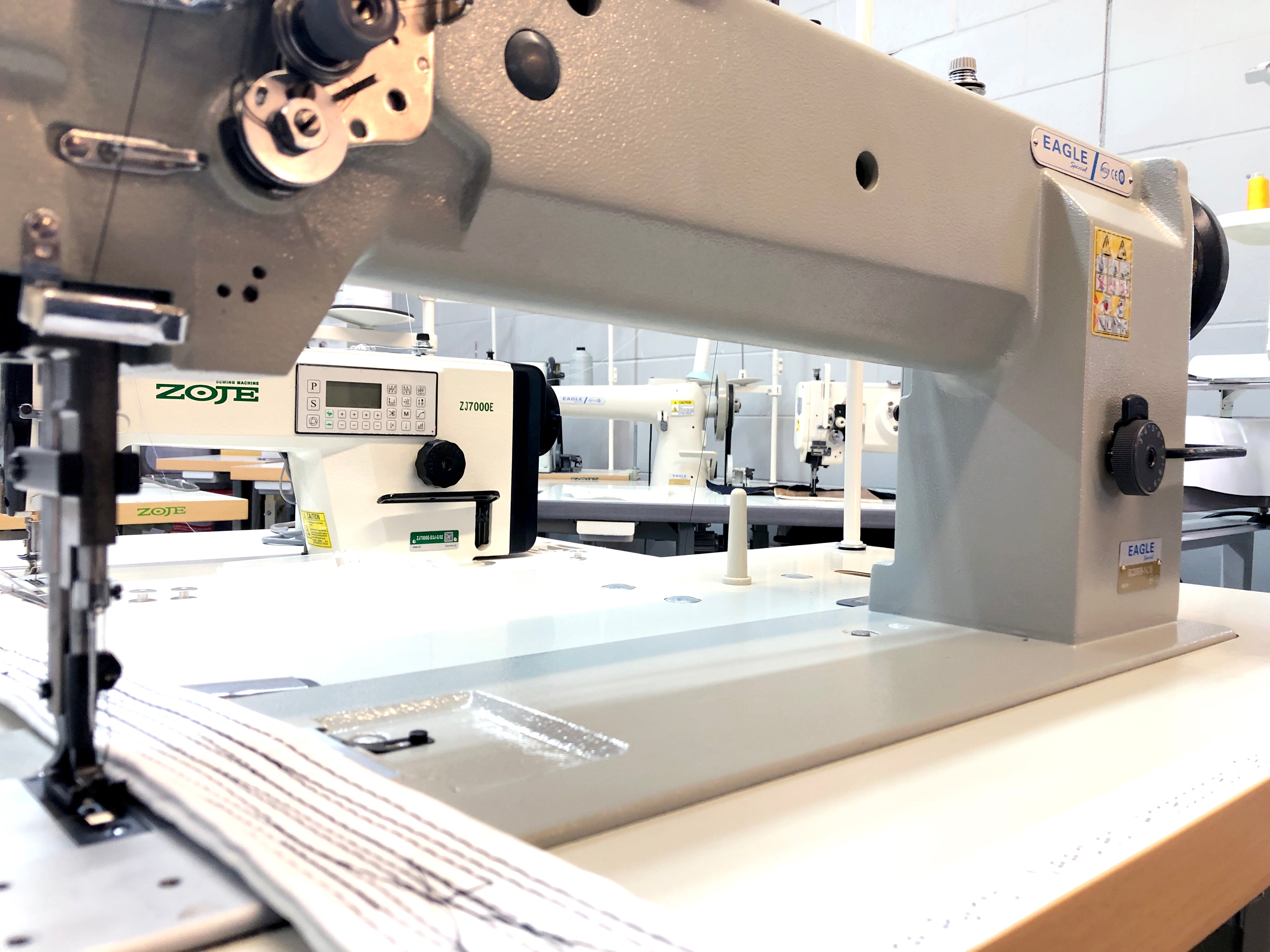

Boat covers, awnings and upholstery panels can be awkward to turn and reposition on a conventional machine. The extended arm provides more working room to the right of the needle, helping you manage material while following the seam.
The long, flat bed supports the work as you position folds, reinforcement and larger sections. It is a practical step up when workspace—not simply stitch length—is the limitation.
Feed the layers together.
Compound feed combines needle feed, bottom feed and alternating walking feet to help reduce shifting between layers. That control is useful when sewing folds, webbing reinforcements and changes in material thickness.
Set a suitable maximum speed for the work. Take a controlled approach to corners, thick junctions and visible topstitching.
An oil-pump system circulates lubricant during operation. Keep oil levels and routine maintenance in line with the machine's operating instructions.
Construction & topstitching
Long seams. Clear stitch definition.

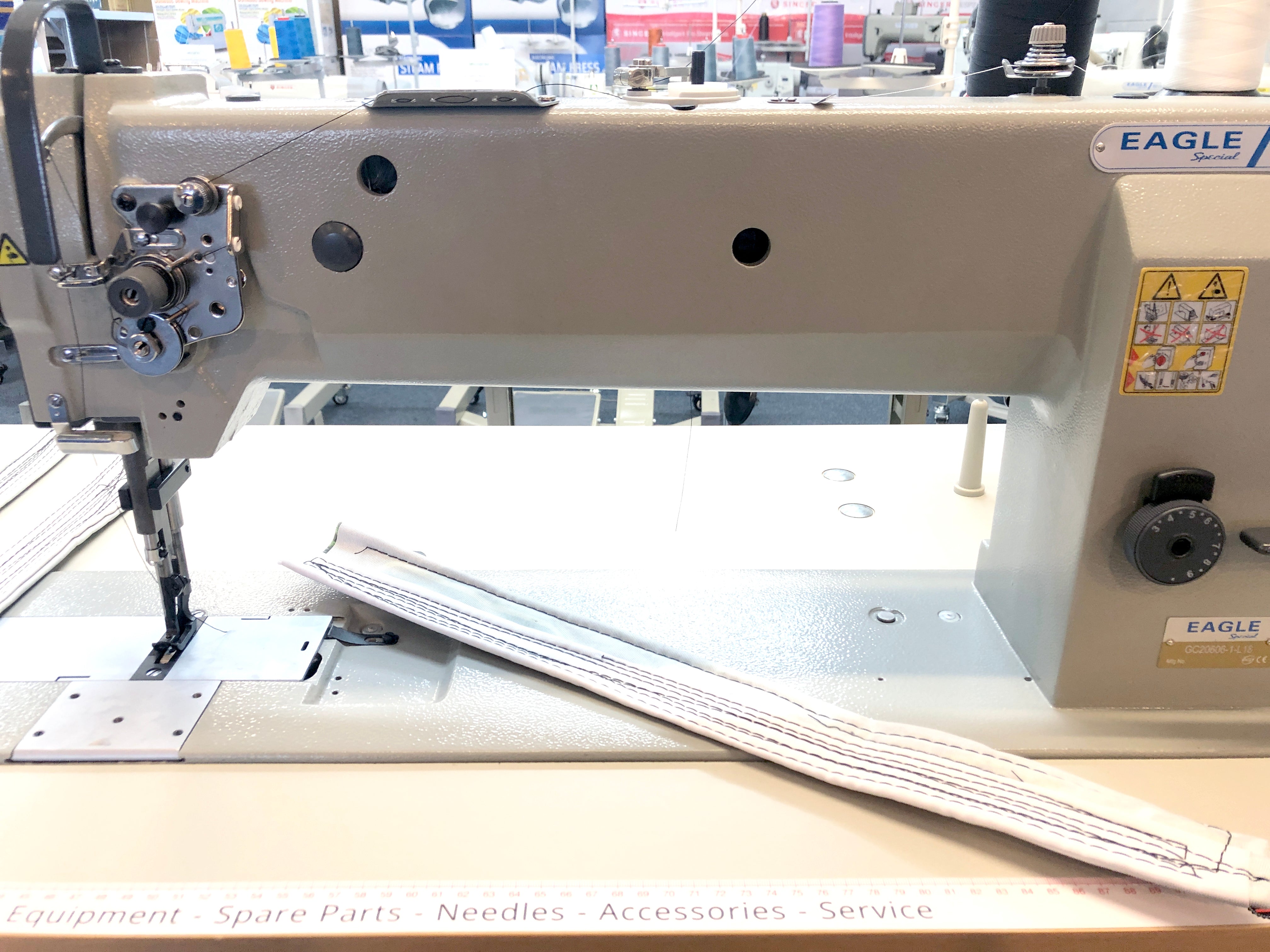

A stitch length of up to 9mm gives you scope for construction seams and visible decorative stitching on suitable heavier materials. The sample shown is photographed with this machine.
Match stitch length, thread, needle point and tension to the actual job. A test seam through the full material stack is the best way to check feeding, stitch formation and finish.
Foot lift is clearance, not sewing capacity. The 16mm lift helps you position work beneath the foot; it does not mean the machine will sew every material 16mm thick.
Made for larger, heavier work.
Canvas & covers
Boat covers, awnings, suitable sail work and other large fabric panels.
Upholstery
Cushion covers, furniture panels and suitable layered upholstery materials.
PVC & banners
Suitable coated fabrics, banner hems and reinforced outdoor goods.
Leather & equestrian
Suitable leather goods, bags, horse rugs and quilted items.
Suitability depends on the material, seam construction and thread. Include details of your intended work when enquiring so the setup can be checked.
Eagle GC20606-1-L18 specifications.
| Machine type | Long-arm industrial walking foot sewing machine |
|---|---|
| Feed system | Compound feed |
| Material class | Heavy materials |
| Maximum stitch length | 9mm |
| Maximum presser-foot lift | 16mm |
| Maximum sewing speed | 2,000 stitches per minute; working speed depends on material and setup |
| Needle system | DPx17 / 135x17 |
| Hook | Large rotary hook |
| Lubrication | Oil-pump circulation system |
| Motor | Servo motor with adjustable speed |
| Supply format | Built up with table, motor, thread stand and accessories; mounted on wheels |
| Warranty | 1-year return-to-base warranty |
Ready for the workroom
The machine and its working setup.

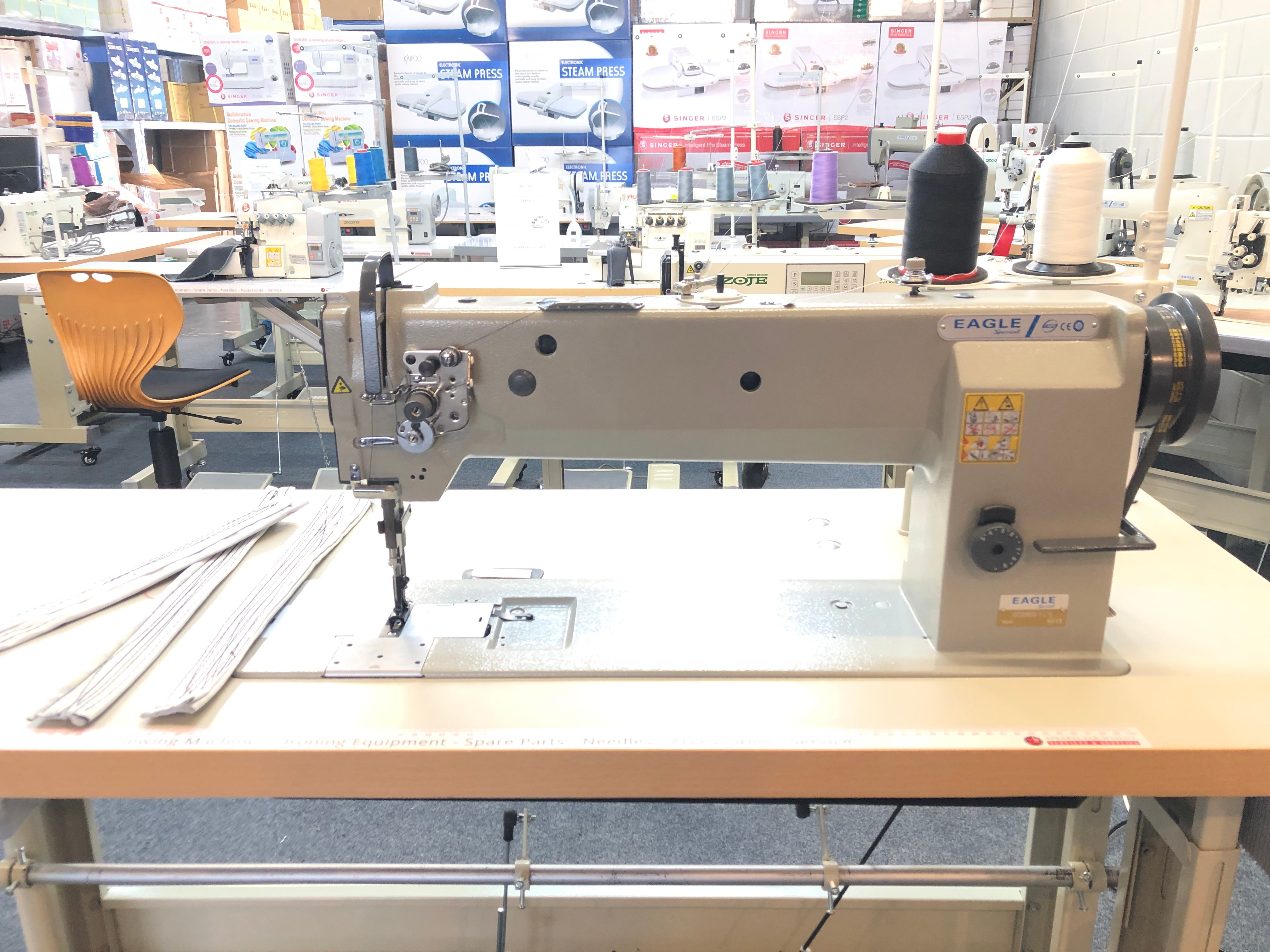

Your machine is supplied built up with its industrial table, servo motor and thread stand. Wheels make it easier to reposition within the workroom.
Included accessories
Oil, bobbins, screwdriver and needles are included.
For placement and access planning, confirm the assembled dimensions and freight requirements when enquiring.
Useful questions, answered.
Why choose a long arm instead of a standard walking foot?
The main advantage is working space. The extended arm makes larger panels easier to position to the right of the needle. It does not automatically make a machine suitable for a thicker or tougher material.
Will it sew my canvas, leather or coated fabric?
It is intended for suitable heavier materials, but the complete seam matters: material type, number of layers, reinforcement and thread choice. Provide those details with your enquiry so suitability can be assessed.
Are the table and motor included?
Yes. The machine comes built up with its industrial table, servo motor, thread stand and the accessories listed above.
Can it be delivered outside Auckland?
Yes. Nationwide New Zealand freight can be arranged. Include your delivery location when enquiring for availability and freight details.
Enquire to order the Eagle GC20606-1-L18.
Use the product enquiry option to confirm availability, your sewing requirements and nationwide New Zealand delivery. Include the materials you work with and your delivery location.
