Compact industrial · Compound-feed walking foot
Keep your layers moving together.

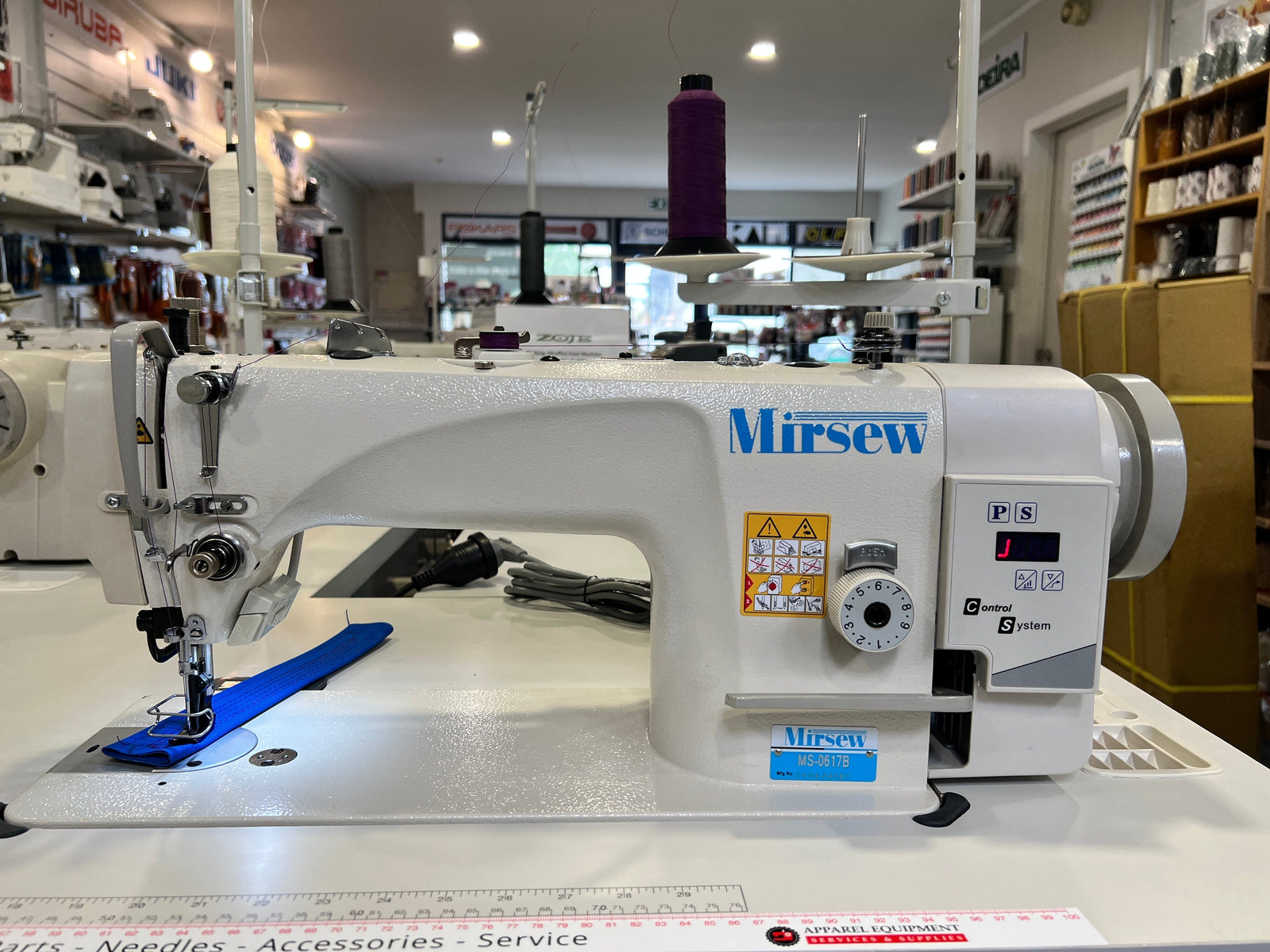

The Mirsew MS-0617B compound-feed walking foot sewing machine brings controlled feeding to leather goods, upholstery and canvas work. Its needle, walking foot and feed dog work together to help move layered material through the seam.
A compact machine head for smaller workrooms, supplied assembled with a sewing table, stand and motor.
Available to order online, with nationwide New Zealand shipping.
What compound feed does for your sewing
Unlike a bottom-feed-only machine, compound feed combines needle feed with the walking foot and lower feed dog. This helps control layers that would otherwise shift as you sew.
It is useful for assembling bags, upholstery panels and other layered projects where consistent feeding matters.
Control without unnecessary complexity
- Direct-drive servo motor: integrated drive with adjustable sewing speed.
- Stitches up to 7mm: flexibility for seams and visible topstitching.
- Side-loading bobbin: a familiar industrial lockstitch layout.
- High presser-foot lift: room to position your work before sewing.
For leather, canvas and upholstery
- Leather goods: suitable bags, accessories and soft-leather assemblies.
- Upholstery: cushions, furniture panels and layered covers.
- Canvas and coated fabrics: suitable covers, bags and outdoor projects.
- Topstitching: visible seam details on heavier materials.
Match your needle, thread and speed to the material. Test thick seam crossings and delicate finishes before production.
Supplied built up, ready for your workroom
Your machine is supplied assembled with its sewing table, stand, motor and thread stand. The stand is mounted on wheels for easier positioning.
Included accessories: oil, bobbins, needles and screwdriver.
The table top is 0.55m wide. Allow space around the table to support and turn your work; “compact” describes the machine, not a portable domestic-style setup.
MS-0617B specifications
| Machine type | Industrial single-needle lockstitch |
|---|---|
| Feed system | Compound feed: needle, walking foot and lower feed dog |
| Drive | Direct-drive servo motor with adjustable speed |
| Maximum stitch length | 7mm |
| Presser-foot lift | Up to 16mm |
| Maximum sewing speed | 1,800 stitches per minute; working speed depends on the material and seam |
| Needle system | DP×17 / 135×17 |
| Bobbin access | Side loading |
| Table-top width | 0.55m |
| Supplied setup | Assembled machine, table, wheeled stand, motor, thread stand and listed accessories |
| Warranty | 1-year return-to-base warranty |
Foot lift is not a material-thickness rating. Sewing capacity depends on the density, backing and number of layers, together with the needle and thread combination.
Ordering & delivery
Order your Mirsew walking foot machine online from Direct Sewing. We ship nationwide across New Zealand.
Buy from a local sewing specialist with more than 30 years' experience selling, servicing and repairing sewing machines.
Needles, parts & support
Keep the correct needles and consumables on hand for your work.
- Shop DP×17 / 135×17 industrial needles
- Browse the linked 0617 parts and accessories range
- Compare walking foot sewing machines
Check part compatibility against your machine model before ordering. For documentation or technical questions, send us a message with the model and serial number.
Common questions
How is compound feed different from a basic walking foot?
Compound feed adds needle feeding to the movement of the walking foot and feed dog. Together, these help control the material layers through the stitch.
Does it include the table and motor?
Yes. The machine comes built up with its table, stand, motor, thread stand and listed accessories. It is not a head-only listing.
Is it a portable machine?
No. This is a compact industrial machine supplied on a sewing table and wheeled stand. It still needs a dedicated, stable working area.
Can I buy online for delivery outside Auckland?
Yes. Order through the Add to Cart button on this page. We ship nationwide across New Zealand.
