Bond cohesion
The bond holds the twisted plies together, helping resist fraying and ply separation during demanding sewing.
The versatile lighter Dabond size
Strong outdoor seams without the bulk of heavier thread

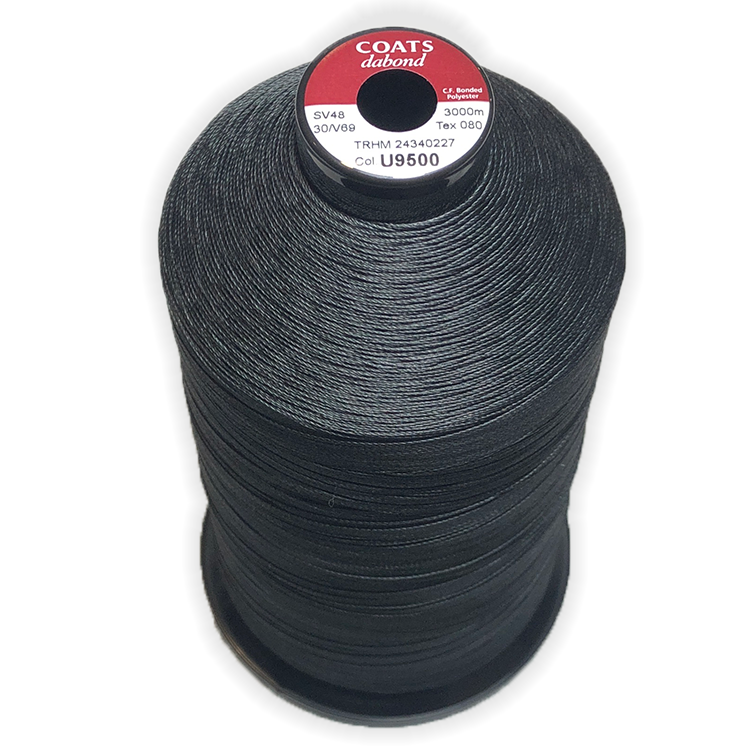

Coats Dabond V69 is a bonded, twisted continuous filament polyester thread for outdoor products, sports goods, upholstery and other demanding sewn applications. This 3000m Ticket 30 / Tex 80 cone combines excellent bond cohesion with UV and abrasion protection.
- Ticket 30 / Tex 80 offers a finer seam than V92 or V138 while retaining commercial strength.
- Exceptional bond cohesion helps control the plies through straight stitch and zigzag sewing.
- Bonded and lubricated construction supports smooth sewing and needle heat protection.
- 3000 metres per cone gives useful continuity for production and larger projects.
V69 / Ticket 30 / Tex 80
3000mOne cone
Ticket 30Coats thread size
Tex 80Official technical size
2 coloursBlack or White
What arrives: one 3000m cone of genuine Coats Dabond V69 thread in Black or White, according to the option selected. A sewing machine, needle, bobbin, fabric and other project materials are not included.
Why makers choose bonded continuous filament polyester
The thread is part of the finished product, so dependable feeding, seam appearance and environmental resistance all matter. Dabond is built for work where ordinary general purpose thread is not enough.
Outdoor protection
Coats specifies UV and abrasion protection plus excellent resistance to bleach for suitable outdoor and technical products.
Balanced thread size
Tex 80 is easier to accommodate than V92 or V138 in compatible equipment while still producing a strong, visible seam.
The genuine standard Dabond range
Commercial thread for hard-working sewn products
Coats positions Dabond for furniture and upholstery, sports goods, military products, slings, safety harnesses and applications requiring vinyl and chlorine bleach fastness.
Upholstery and covers
A practical choice for compatible outdoor furniture, canvas covers, bags and related upholstery work.
Sports and technical products
Suitable where the approved product specification calls for Ticket 30 / Tex 80 bonded polyester.
Smooth production sewing
The bonded and lubricated construction is designed for needle heat protection and controlled sewing.
Choose Jet Black or White
Select your required colour from the product options. Each choice supplies one 3000m cone.
Jet BlackCore dark production colour
WhiteCoats shade reference U2703
Colour note: screens, lighting and the sheen of the physical thread can change how a colour appears. Compare a physical sample with the final material when an exact production match is critical.
Choose the thread weight your seam actually needs
V69 / Ticket 30
- This product
- Tex 80
- Finer and less prominent seam
- Upholstery, canvas, bags and outdoor furniture
- 3000m cone
V92 / Ticket 25
- Tex 105
- Heavier marine and outdoor sewing
- Awnings, canopies, covers and squabs
- View Dabond Outdoor V92
V138 / Ticket 18
- Tex 150
- Heaviest of these three options
- Suitable sails, shade, straps and heavy upholstery
- View Dabond Outdoor V138
From upholstery to sports and technical goods
Coats lists sports goods among the core uses for standard Dabond.
Technical sewn products require the complete seam specification to be validated.
The 3000m cone supports longer runs with fewer thread changes.
For load bearing or safety critical products: thread choice is only one part of the design. Confirm the complete material, stitch, seam and production specification for the intended end use before manufacturing.
Check the complete sewing system first
V69 is lighter than V92, but it is still industrial thread
Ticket 30 / Tex 80 must suit the machine, needle, bobbin, tension, stitch and material. Coats lists a 120 to 140 metric needle range as a guide, but the correct needle always depends on the exact application and machine system.
- Confirm that the machine is approved to feed and tension Tex 80 bonded polyester.
- Use the correct needle system and choose the size for the thread, material and seam.
- Check that the needle eye allows the thread to pass without abrasion.
- Balance upper and bobbin tensions on project offcuts.
- Use a suitable cone stand and thread path for reliable feeding.
- Do not assume that an ordinary domestic machine can accommodate the thread or cone.
Water resistant thread is not a waterproof seam: standard Dabond offers environmental resistance but it is not the separate Dabond AWF anti-wick product. Fabric, needle holes, seam construction, tension and sealing all affect water penetration.
Coats Dabond V69 specifications
| Brand | Coats |
|---|---|
| Range | Dabond |
| Trade size | V69 |
| Coats ticket size | Ticket 30 |
| Tex size | Tex 80 |
| Construction | Bonded, twisted continuous filament polyester |
| Make-up | 275 x 3 dtex/ply |
| Length | 3000m per cone |
| Average breaking strength | 5700 cN |
| Elongation | 12 to 25% |
| Guide needle size | Metric 120 to 140, subject to machine and application |
| Finish | Bonded and lubricated |
| Key protection | UV, abrasion and bleach resistance |
| Colours on this listing | Jet Black and White |
| Included | One 3000m cone in the selected colour |
| Not included | Machine, needle, bobbin, fabric and project materials |
Coats Dabond V69 FAQs
How much thread do I receive?
Each selection supplies one 3000m cone of Coats Dabond V69 in Black or White.
Is this V69, Ticket 30 or Tex 80?
All three references describe this product in different sizing systems. It is commonly traded as V69, while the verified Coats specification is Ticket 30 / Tex 80.
Is this Dabond Outdoor?
No. This listing is for standard Coats Dabond. Dabond Outdoor and Dabond AWF are separate products in the wider Dabond family.
Can I use it in a domestic sewing machine?
Some heavy duty domestic machines may accommodate certain heavier threads, but many ordinary domestic machines cannot correctly feed or tension Tex 80 from a commercial cone. Check the machine manual, needle limits and thread path before ordering.
Is the seam waterproof?
No thread alone makes a seam waterproof. This is standard Dabond, not Dabond AWF anti-wick thread. The complete fabric and seam construction determine water resistance.
When should I choose V69 instead of V92?
Choose V69 when the approved seam calls for a finer Tex 80 thread and a less prominent stitch. Choose V92 when the fabric, machine and seam design require the heavier Tex 105 size.
What needle should I use?
Coats lists metric 120 to 140 as a guide for Ticket 30 / Tex 80 Dabond. The correct needle system and size depend on the machine, material, stitch and application, so confirm them before sewing.
What is included?
One 3000m cone in the selected colour. A sewing machine, needle, bobbin, fabric and other project materials are not included.
Choose V69 when the seam needs strength without excess bulk
Coats Dabond V69 combines bonded polyester construction, UV and abrasion protection and a practical 3000m cone for compatible upholstery, sports, outdoor and technical sewing.
Choose Black or White
