Switchable tensionThe double-tension arrangement lets the operator switch tension behaviour for different sections of the work without repeatedly resetting the dials.
Juki LU-2818A · automatic walking foot
Control the seam. Simplify the finish.
A heavy-duty industrial walking foot machine for upholstery, leather goods, canvas and covers. The Juki LU-2818A combines compound feed with automatic thread trimming, backtacking and pneumatic foot lift to reduce handling between seams.
- Direct-drive motor for responsive speed control.
- Generous workspace for managing larger panels.
- Large-capacity hook to reduce bobbin changes.
- Stepping and tension controls for changes in material thickness.
Supplied built up with table, motor, thread stand and accessories. Enquire to order.
Automatic trimless handling at seam end
347 × 127mmspace beneath the arm
20mmautomatic foot lift
2.7-fold hooklarge bobbin capacity
Designed for repeated sewing work
Spend more time on the seam.
Automatic trimming cuts the threads at the end of sewing, while backtacking helps secure the seam. Pneumatic foot lift makes it easier to release and reposition the work.
Unison feed—also called compound feed—coordinates the needle, feed dog and walking feet to help control layered materials.
Room for upholstery and covers
The high, semi-long arm provides space to the right of the needle for handling larger pieces. This is useful when positioning folds, reinforcement and bulk around the sewing area.
Match the material, thread and needle to the job, and test the complete seam before production.
Useful controls, within reach.
Switchable tension
Stepping over thicker sectionsAdjustable alternating foot movement helps the feet travel over changes in thickness. The stepping control is useful at layered junctions.
More bobbin capacityThe LU-2818-7 uses the larger 2.7-fold-capacity hook shown at right in Juki's comparison. It reduces the frequency of bobbin changes.
Original Juki LU-2800-series reference illustrations. The main photograph shows the machine offered by Direct Sewing.
Built for practical heavy-material work.
Upholstery
Furniture panels, cushion covers and suitable layered upholstery assemblies.
Canvas & covers
Boat covers, awnings, canvas bags and reinforced outdoor goods.
Leather goods
Suitable soft leather furniture components, bags and purses.
Coated fabrics
Suitable PVC, banners, quilted goods and horse rugs.
Foot lift is not a sewing-thickness guarantee. The 20mm automatic lift provides clearance to position work. Material hardness, layers, compression and thread choice determine actual sewing suitability.
Juki LU-2818A specifications.
| Machine type | Single-needle industrial lockstitch with compound / unison feed |
|---|---|
| Automatic functions | Thread trimming, backtacking and pneumatic presser-foot lift |
| Drive | Direct-drive servo motor |
| Stitch length | Up to 9mm for the advertised configuration. Confirm longer-stitch requirements before ordering. |
| Presser-foot lift | Automatic: 20mm; by hand: 10mm |
| Maximum sewing speed | 3,000 stitches per minute, subject to stitch length and alternating foot movement |
| Needle system | 135×17 / DP×17 |
| Hook | Vertical-axis 2.7-fold-capacity hook |
| Space under the arm | 347 × 127mm |
| Alternating foot movement | 1–9mm |
| Stitch control | Two-pitch dial and front-mounted function switches |
| Lubrication | Semi-dry head with tank-based automatic lubrication |
| Compressed air | Required for pneumatic functions; operating pressure 0.5–0.55MPa (5–5.5 bar) |
| Warranty | 1-year return-to-base warranty |
Use the operating manual's speed limits for the chosen stitch length and foot movement. Maximum speed is not available at every setting.
The machine and its working setup.

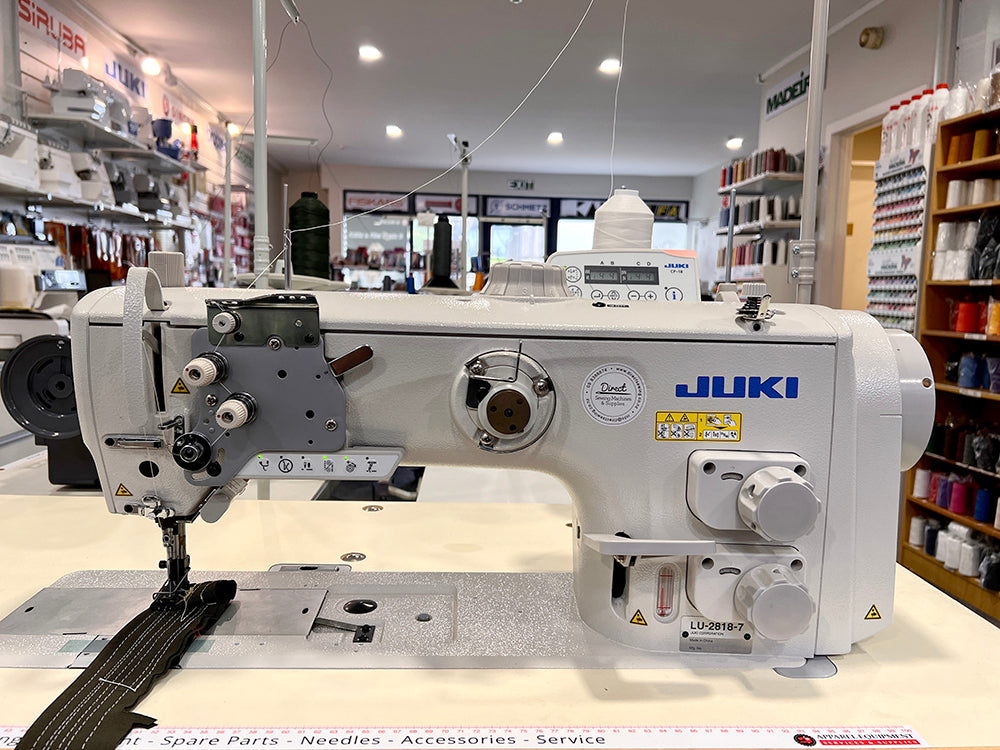

Juki automatic walking foot machine with its direct-drive motor.
Industrial table and thread stand, mounted on wheels for easier repositioning.
Oil, bobbins, screwdriver and needles.
Confirm electrical connection, compressed-air supply and delivery access when arranging your order.
Manuals, brochure and parts reference.
Operating manual
English instructions covering the LU-2818-7 and related models.
Open operating manual (PDF)LU-2800 brochure
Series features and model comparisons, including other configurations.
Open Juki brochure (PDF)Parts reference
Use the full machine designation when identifying parts.
Open parts list (PDF)These documents cover multiple LU-2800 models. Match the model and configuration before using specifications or ordering parts.
Useful questions, answered.
Does it need compressed air?
Yes. Its pneumatic functions require an appropriate air supply. Confirm the installation requirements before delivery.
Does stepping mean automatic thickness sensing?
No. The operator can change the alternating foot movement to help cross thicker sections. It should not be confused with automatic material detection.
Why does the brochure mention a 12mm stitch?
Juki's documentation includes longer-stitch settings and different configurations. This listing retains a 9mm advertised limit; if you need longer stitches, confirm the supplied setup before ordering.
Is this the short-thread-tail LU-2828 model?
No. This is the LU-2818A listing. It has automatic trimming, but the LU-2828's special short-thread-tail claims should not be applied to this machine.
Can delivery be arranged outside Auckland?
Yes. Nationwide New Zealand freight can be arranged. Include your delivery location and intended materials when enquiring.
Enquire to order the Juki LU-2818A.
Use the product enquiry option to confirm availability, the setup for your work and nationwide New Zealand delivery.
