A long-established professional head with familiar parts, adjustments and service knowledge across the industry.
Juki Standard Plain Sewing Machine with Powerful Servo Motor DDL-8700
$1,399.00
$1,480.00
The proven JUKI straight-stitch standard
DDL-8700: less complication, more beautiful straight sewing
A genuine JUKI industrial lockstitch head paired by Direct Sewing with a modern servo motor and complete workstation—quiet when waiting, responsive at the pedal and ready for years of garment and general sewing.
- Up to 5,500 stitches per minute with a speed ceiling you can set to match your confidence and work.
- Modern external servo motor gives variable pedal control without an old clutch motor's constant idle hum.
- Beautiful low-tension seams from a mechanism refined for stable response across general fabrics.
- Simple mechanical operation keeps daily use familiar and servicing straightforward.

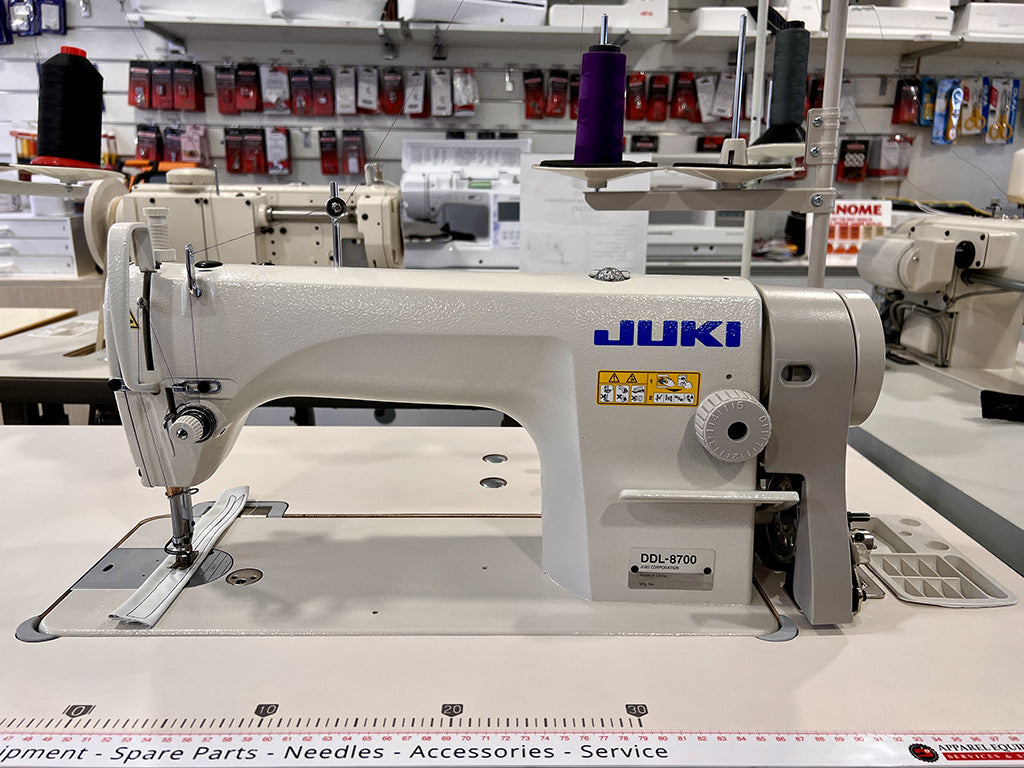

DDL-8700 · Genuine JUKI
5,500 spmMaximum JUKI sewing speed
5mmMaximum stitch length
13mmMaximum adjusted knee lift
DB × 1Industrial needle system
A great industrial machine does not need to be complicated
The DDL-8700 concentrates on one job: making consistent straight lockstitches quickly. For many workrooms, that focused design is exactly the advantage.
Direct Sewing's package replaces clutch-motor behaviour with quiet standby and controllable variable speed.
The rigid, well-balanced head is engineered to reduce vibration and noise at working speeds.
Refined feed and thread handling support balanced, attractive seams across general light-to-medium fabrics.
Marker grooves on the throat plate give practical seam-allowance references at the needle.
A dedicated mounting seat helps protect the bed surface when workroom attachments are fitted and changed.
The value is focus, not missing features. If your operation is straight seams and you are happy to reverse and trim manually, the DDL-8700 avoids paying for automation you may not need while delivering genuine industrial speed, space and stitch formation.
An ideal first industrial machine—and a dependable machine for established rooms
Alterations
Hems, zips, seams, repairs, linings and everyday garment work on a dedicated straight-stitch station.
Apparel making
Fast construction on common woven and suitable knit garments from sampling through small production.
Home studios
A sensible first industrial for sewists who have permanent space and mainly need excellent straight stitch.
Training rooms
Mechanically clear controls and a servo speed limit support learning without giving up industrial capability.
Homewares
Long, clean seams for cushions, bedding, light curtains, napery and many décor projects.
Production backup
A straightforward lockstitch station that can be set up for recurring operations and common attachments.
Choose by feeding method as well as power. The DDL-8700 uses bottom drop feed. It is not a compound-feed walking-foot machine for heavy leather, webbing, upholstery stacks or difficult multi-layer assemblies.
Small refinements that make long sewing sessions easier
Direct Sewing servo package
Quiet at rest. Power when your foot asks for it.
The DDL-8700 head is driven by an external under-table servo motor in Direct Sewing's package. Unlike a traditional clutch motor that continues running whenever it is switched on, the servo waits quietly and delivers variable speed through the treadle.
- Adjustable maximum speed for learning and precision
- Variable control through the treadle
- No clutch-motor idle noise
- Lower standby energy use than an old clutch setup
- Familiar belt-drive layout with accessible service parts
Servo control is not automatic sewing. This package does not automatically trim threads, sew backtacks or lift the presser foot. Those actions remain with the operator, which is part of the DDL-8700's simple, familiar workflow.
General apparel and light-to-medium straight-stitch work
Woven garments
Cotton, linen, shirting, suiting, uniforms and many everyday apparel fabrics.
Alterations
Trouser hems, side seams, zips, repairs, linings and practical tailoring operations.
Medium denim
Garment denim with the correct DB × 1 needle, suitable thread and reduced speed at bulky junctions.
Homewares
Pillowcases, cushions, bedding, light curtains, napery and projects with long straight seams.
Suitable knits
Straight sewing where appropriate, using the right industrial ballpoint/stretch needle and careful testing.
Soft leather
Some light garment leather with the correct needle, foot and thread—not thick leather assemblies.
Sampling
Controlled prototyping across varied general fabrics with a familiar mechanical setup.
Repeat operations
Fit folders, guides or suitable feet to dedicate the machine to a recurring workroom task.
Not “almost any material”. The standard DDL-8700 has a broad general-fabric range, but correct results still depend on needle, thread, presser foot, tension, motor speed and layer thickness. For regular upholstery, canvas stacks, heavy webbing or heavy leather, ask Direct Sewing about a more suitable feed system.
Start with the workflow you actually want
The DDL-8700 is the strongest value when you want proven straight stitch and manual control. Move to the 7000A platform when automatic seam-finishing functions will save enough time to matter.
| Feature | DDL-8700 This model |
DDL-7000AS-7 | DDL-7000AS-7FL |
|---|---|---|---|
| Best reason to choose it | Proven simplicity and excellent workstation value | Direct drive plus automatic backtack and trimming | Automatic sewing cycle plus automatic foot lift |
| General material range | Light to medium general fabrics | Light to medium | Light to medium |
| Maximum speed | Up to 5,500 spm | Up to 5,000 spm below 4mm stitch length | Up to 5,000 spm below 4mm stitch length |
| Maximum stitch length | 5mm | 5mm | 5mm |
| Motor | External under-table servo in Direct Sewing package | Integrated direct-drive servo | Integrated direct-drive servo |
| Adjustable speed | Yes | Yes | Yes |
| Automatic thread trim | No—manual scissors/snips | Yes | Yes |
| Programmable automatic backtack | No—manual reverse lever | Yes | Yes |
| Automatic presser-foot lift | No—hand lever or knee lifter | No—hand lever or knee lifter | Yes |
| Best fit | Straightforward professional sewing with maximum value | Faster start/finish workflow | Maximum hands-free handling in repeat production |
JUKI DDL-8700 at a glance
| Model | JUKI DDL-8700 standard general-fabric configuration |
|---|---|
| Machine type | Industrial single-needle, bottom-feed, straight lockstitch machine |
| Drive package | External under-table modern servo motor supplied by Direct Sewing; belt driven |
| Maximum sewing speed | Up to 5,500 stitches per minute; set a lower servo limit for the work and operator |
| Maximum stitch length | 5mm |
| Needle system | DB × 1 / 16x231 / 134; #14 installed, #9–18 supported by JUKI |
| Needle-bar stroke | 30.7mm |
| Presser-foot lift | 5.5mm by hand; 10mm standard by knee lifter, adjustable up to 13mm maximum |
| Feed system | Four-row bottom drop feed; standard DDL-8700 specification |
| Hook | Automatic-lubricating full-rotary hook |
| Lubrication | Automatic lubrication; JUKI New Defrix Oil No.1 or equivalent ISO VG7 |
| Reverse sewing | Manual reverse lever |
| Automatic functions | None on this DDL-8700 package; no automatic trim, backtack or foot lift |
| Work aids | Light-touch stitch dial, seam-guide markings on throat plate and attachment mounting seat |
| Machine-head mass | Approximately 28kg; table, stand, motor and wheels are additional |
| Electrical connection | Determined by the servo motor fitted to the current Direct Sewing NZ package; confirm motor plate, lead and plug before installation |
A complete, mobile industrial workstation
Direct Sewing currently supplies the DDL-8700 built up with its table, servo motor, thread stand, treadle controls and accessories, mounted on wheels for easier positioning. Table and stand colour may vary from the photograph.
- JUKI DDL-8700 machine head
- Standard presser foot and feed setup
- Bobbin winder
- Knee-lifter mechanism
- Automatic lubrication system and oil pan
- Industrial table and stand
- Modern external servo motor
- Variable-speed treadle control
- Thread stand
- Wheels/castors for mobility
- Table/stand appearance may vary
- Industrial sewing-machine oil
- 30 industrial needles
- Five bobbins
- Screwdriver / setup tools
- JUKI factory certification
- Operating information
- DB × 1 / 16x231 needles
- Industrial plain-sewer bobbins
- Clear ISO VG7 industrial sewing-machine oil
- Quality industrial thread matched to the operation
- Industrial feet and attachments
- Table-mounted LED-98K work lamp
- LED-16M magnetic machine lamp
- Folders and seam guides selected for the operation
- Automatic thread trimming
- Programmable automatic backtack
- Automatic presser-foot lift
- Built-in needle light
- Zigzag, overlocking or walking-foot feed
DDL-8700 instruction manual
Official JUKI information for installation, threading, bobbin loading, oiling, stitch length, foot pressure, knee lift and maintenance.
Open Correct ManualDDL-8700 official catalogue
Review JUKI's model variants, sewing speed, stitch length, needle system, presser-foot lift and design features.
Open Correct CatalogueOfficial JUKI product page
See the current DDL-8700 family description, specification table and genuine JUKI feature photography.
Open Official Product PageTalk with Direct Sewing
Discuss materials, motor speed, attachments, delivery access, setup, training, parts and ongoing New Zealand service.
Contact Direct SewingWhat to know before choosing the DDL-8700
What exactly is the JUKI DDL-8700?
It is a professional industrial, single-needle, bottom-feed straight-lockstitch machine. Direct Sewing pairs the genuine JUKI head with a modern external servo motor and complete table workstation.
Is this the standard, A, H or L version?
This listing is the standard DDL-8700 for general light-to-medium fabrics. It is not the lightweight DDL-8700A, heavy DDL-8700H, long-stitch DDL-8700L or automatic-trimmer DDL-8700-7.
Does the DDL-8700 only sew straight stitch?
Yes. It makes a two-thread straight lockstitch and manual reverse lockstitch. It does not zigzag, make decorative stitches, overlock edges or sew buttonholes.
Who is this machine best suited to?
Alteration businesses, apparel makers, sample rooms, training environments, small production studios and serious home sewists who need a dedicated, dependable straight-stitch workstation.
What materials can it sew?
JUKI's manual describes the standard model for general light-to-medium fabrics. Typical work includes cotton, linen, shirting, suiting, uniforms, many homewares and garment denim. Setup still needs to match the fabric and seam.
Can the DDL-8700 sew denim?
Yes, it is commonly used for medium garment denim. Use the right DB × 1 needle and suitable thread, reduce speed at bulky intersections and do not assume every stacked jeans hem is within the standard setup.
Can it sew leather?
Some soft, light garment leather may be manageable with the correct leather-point needle, foot, thread and testing. This is not a compound-feed leather machine for belts, tack, heavy bags or thick leather stacks.
Is it suitable for upholstery, canvas or webbing?
Only lighter work within its general-fabric range. Frequent multi-layer upholstery, canvas, webbing or difficult materials usually call for a needle-feed or compound-feed machine.
Can it sew stretch fabric?
It can straight-stitch suitable knits using the correct industrial ballpoint/stretch needle, pressure, thread and testing. It has no stretch stitches or differential feed, so an overlocker may be a better primary knit machine.
How fast is the DDL-8700?
JUKI specifies the standard DDL-8700 at up to 5,500 stitches per minute. Actual speed should be limited to suit the material, seam, operator and servo-motor setup.
Do I have to sew at full speed?
No. The supplied servo motor provides variable pedal control and an adjustable maximum-speed setting. Start slowly, then raise the limit only when the operation and operator are ready.
What is a servo motor?
A servo motor waits quietly when the pedal is released and provides variable power when pressed. It is easier to control and more energy efficient at idle than a traditional continuously running clutch motor.
Is the DDL-8700 direct drive?
No. The Direct Sewing package uses a modern external motor beneath the table and a belt to drive the machine head. Choose the DDL-7000AS-7 if an integrated direct-drive motor is important.
Does this model trim threads automatically?
No. Threads are cut manually with snips or the machine's manual thread-cutting point. The DDL-7000AS-7 adds automatic trimming.
Does it backtack automatically?
No. Reverse is controlled manually with the lever on the front of the machine head. The operator decides when and how many reverse stitches to sew.
Does it have automatic presser-foot lift?
No. Raise the foot with the hand lever or knee lifter. The separate DDL-7000AS-7FL package adds automatic pedal-controlled foot lift.
How high does the presser foot lift?
JUKI specifies 5.5mm by the hand lever. Knee-lift height is 10mm as standard and may be adjusted up to 13mm maximum by a technician, with the needle-bar clearance checked.
What is the maximum stitch length?
The standard DDL-8700 maximum is 5mm. The DDL-8700L is a separate long-stitch configuration and should not be confused with this machine.
Which needles does it use?
It uses DB × 1 industrial needles, also commonly labelled 16x231 or 134. JUKI lists #14 installed and sizes #9–18 for the standard DDL-8700. Choose point and size for the material and thread.
Can I use ordinary domestic needles?
No. Use the specified DB × 1 / 16x231 industrial needle system. Domestic 130/705 H needles have a different shank and are not interchangeable.
Which bobbins does it use?
It uses standard industrial plain-sewer bobbins appropriate to the DDL-8700 hook. Match replacements to the supplied bobbin; Direct Sewing stocks compatible aluminium options.
Does the machine require oil?
Yes. The DDL-8700 uses an automatic lubrication system and oil pan. Use JUKI New Defrix Oil No.1 or equivalent clear ISO VG7 industrial sewing-machine oil and follow the manual for level and flow checks.
Does it have a built-in needle light?
No built-in LED is specified for the standard DDL-8700 head. Direct Sewing offers table-mounted and magnetic work lamps that can be positioned over the needle area.
Can I fit different presser feet and folders?
Yes. A wide range of industrial feet, guides and folders can configure the machine for specific operations. Confirm compatibility, needle clearance and feed setup before use.
Does it come with a table and motor?
Yes. Direct Sewing currently states that the machine comes built up with table, servo motor, thread stand and accessories, mounted on wheels. The table and stand colour may vary.
Is the machine portable?
No. The machine head alone is approximately 28kg, before the table, stand and motor. The wheels help reposition the workstation, but it still needs permanent working space.
What power supply does the servo motor use?
The motor is part of Direct Sewing's current NZ package rather than the bare JUKI head specification. Confirm its voltage, rating, grounded lead and NZ plug on the current unit before installation.
How does it differ from the DDL-7000AS-7?
The DDL-8700 uses an external servo and keeps trimming and backtacking manual. The DDL-7000AS-7 integrates the servo motor and adds programmable automatic backtacks and automatic thread trimming.
Why choose the DDL-8700 instead of the automatic model?
Choose it when reliable straight stitching, familiar manual control, straightforward servicing and excellent value matter more than automatic seam-finishing functions.
Is it suitable as a first industrial machine?
Yes. Its focused straight-stitch operation and adjustable servo speed make it approachable, provided you have permanent space and learn correct threading, oiling, knee-lift and motor control.
Can I see or test it before buying?
Contact Direct Sewing to confirm showroom availability and arrange a demonstration. Bring representative fabric, thread and seam samples for the most useful test.
What should I confirm before delivery?
Confirm current table/stand colour, wheels, motor and plug, assembled dimensions, doorway or stair access, delivery format, setup, training and current warranty support.
Bring your fabric. Try the machine that fits your work.
The JUKI DDL-8700 remains a superb value for professional straight sewing. Talk with Direct Sewing about a demonstration, servo speed, attachments, delivery, setup and New Zealand parts and service support.
