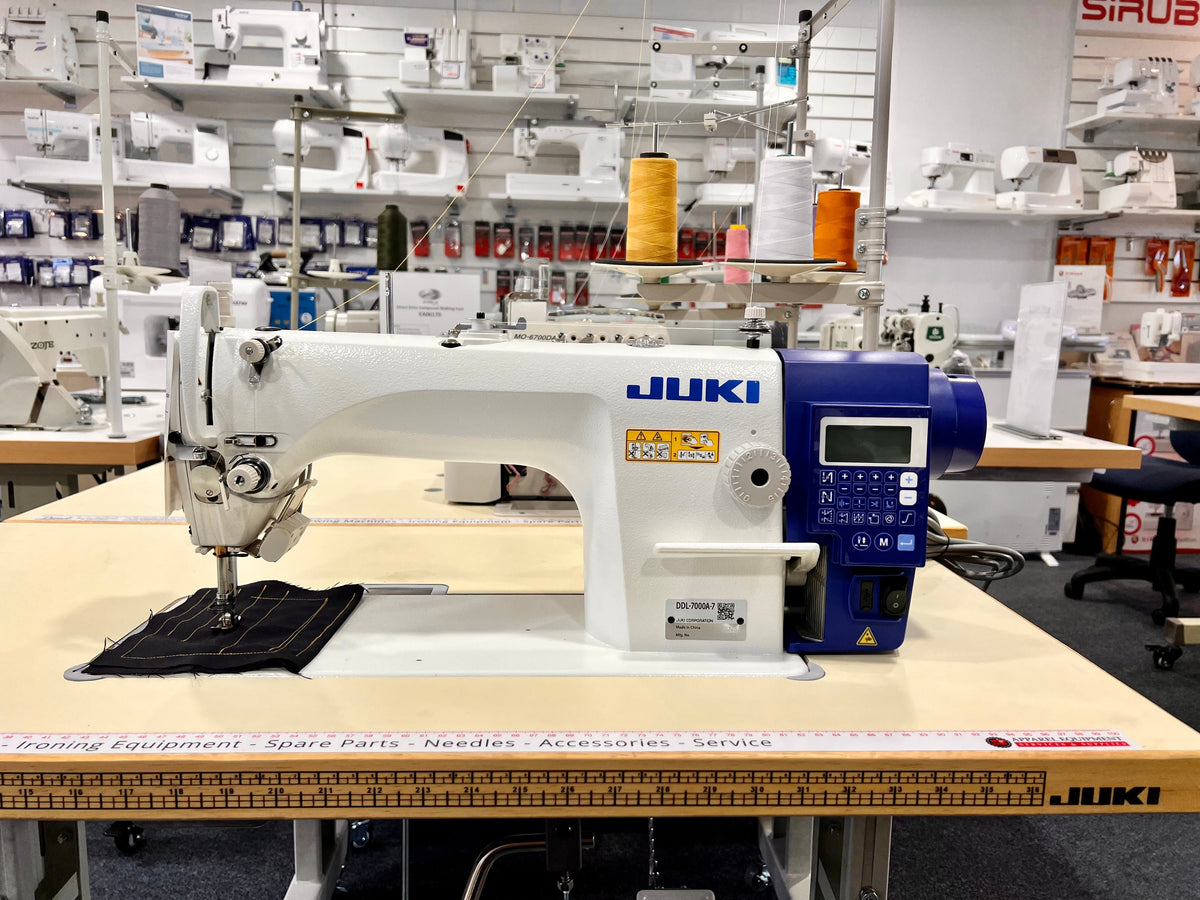

Juki Automatic Plain Sewing Machine with Automatic Footlift DDL7000A

It is Direct Sewing's package built around the light-to-medium DDL-7000AS-7 industrial straight-stitch machine, with a pedal-driven automatic presser-foot lifter added to the standard automatic thread trim and programmable backtack functions.

The factory machine head is DDL-7000AS-7. “FL” identifies Direct Sewing's fitted foot-lift package. JUKI lists the compatible auto-lifter as an option for the DDL-7000A platform rather than including it on every machine.

Yes. The purpose of this listing is the DDL-7000AS-7 supplied with a fitted pedal-driven automatic presser-foot lifter. Confirm the current fitted part identification and package details with Direct Sewing before dispatch.

JUKI's DDL-7000A catalogue identifies the AK85C pedal-driven auto-lifter as the compatible option. Direct Sewing can confirm the exact unit fitted to current New Zealand stock.

JUKI specifies a standard 9mm automatic lift for the compatible AK85C. The machine also provides 5.5mm by the hand lever and up to 13mm through the separate knee-lifter mechanism.

They are different lifting methods. The powered lifter is designed for fast hands-free handling at a standard 9mm, while the knee lifter can provide up to 13mm for extra clearance when required.

Yes. The compatible automatic lifter can be used alongside the machine's knee-lift arrangement, giving you powered pedal lift for routine handling and manual knee lift when you want it.

The multi-function pedal controls sewing and, through its programmed positions, can call the automatic trim and presser-foot-lift sequence. Direct Sewing can demonstrate the pedal positions and configure settings for your workflow.

The DDL-7000A control system provides an auto-lifter enable/disable setting and related adjustment. Have the machine set up and demonstrated by Direct Sewing or a qualified industrial technician.

No. You still guide the fabric, choose settings, start and stop the operation and manage the work. It automates repeat actions around the seam: programmed backtacks, thread trimming and presser-foot lift.

Yes. It makes a strong two-thread straight lockstitch and reverse lockstitch. It does not zigzag, overlock edges, make buttonholes or sew decorative stitches.

Alteration businesses, apparel makers, sample rooms, production workrooms, fashion training and serious studios where straight stitching is frequent and hands-free fabric control can improve the workflow.

It is designed for light-to-medium apparel and general sewing materials such as cotton, linen, shirting, suiting, many uniform fabrics, homewares and medium garment denim. Needle, thread, foot, pressure and speed must still match the job.

Yes, within the machine's light-to-medium range. Use the correct DB × 1 needle and suitable thread, reduce speed at bulky seam crossings and test your actual layer stack. Very thick hems may need specialised setup or a different feed system.

Some soft, light garment leather may be suitable with the correct needle, foot, thread and testing. It is not a compound-feed leather machine and is not the right choice for belts, tack, heavy bags or thick leather stacks.

Only lighter work that falls within its material range. For frequent layered canvas, upholstery, heavy webbing or combinations that creep, ask Direct Sewing about a needle-feed or compound walking-foot machine.

It can straight-stitch suitable knits with the right industrial ballpoint or stretch needle, thread, pressure and testing. It does not provide stretch stitches or differential feed, so an overlocker may be a better primary machine for many knit operations.

JUKI specifies up to 5,000 stitches per minute when stitch length is below 4mm and up to 4,000 stitches per minute at 4mm or longer. Actual speed should be set for the material, operation and operator.

No. Set a lower maximum speed at the panel and use the servo pedal for variable control up to that ceiling. Start slowly while learning the multi-function pedal and for precision or bulky intersections.

The 550W AC servomotor is integrated with the machine head and drives the main shaft directly. This gives quick response and avoids the constant idle running associated with a traditional clutch motor.

Yes. The built-in trimmer cuts the needle and bobbin threads through the programmed end-of-seam pedal action, reducing scissor work and thread tails between pieces.

Yes. Beginning and ending reverse stitches can be programmed at the operation panel. The touch-back lever also gives manual reverse whenever the operator needs it.

The standard DDL-7000AS-7 maximum is 5mm. Do not confuse this AS model with heavy-material configurations or optional conversions referenced elsewhere in the DDL-7000A family.

It uses DB × 1 industrial needles, also commonly labelled 16x231 or 134. JUKI lists #14 as standard and #14–18 for the AS configuration. Select point style and size for the material and thread.

No. Use the specified DB × 1 / 16x231 industrial system. Domestic 130/705 H needles have a different shank and are not interchangeable.

It uses standard industrial plain-sewer bobbins appropriate to this JUKI hook system. Direct Sewing stocks compatible aluminium bobbins; match replacements to the supplied sample.

Yes. It uses forced lubrication from a 450ml reservoir. Use only the specified clear industrial sewing-machine oil—JUKI Machine Oil 7 or equivalent ISO VG7—and follow the manual for level checks and maintenance.

Yes. Standard LED lighting reaches the needle area from both sides of the needle bar and offers five brightness levels.

It is intended for service/update or compatible low-power accessory use described by JUKI. This is not an embroidery machine and the port does not load designs or decorative stitch files.

The Direct Sewing listing presents a complete workstation with industrial table, stand, treadle, thread stand, knee-lift arrangement and fitted automatic lifter. Confirm the current finish, castors, assembly and delivery format when ordering.

No. The machine head alone is approximately 34kg before the table, stand and lifter. Plan a permanent workspace and discuss delivery access, stairs and assembly with Direct Sewing.

JUKI offers the DDL-7000A in a single-phase 220–240V, 50/60Hz configuration suitable for markets such as New Zealand. Confirm the exact NZ-stock voltage, lead and plug arrangement before installation.

The sewing head, direct drive, automatic thread trim and programmable backtack functions are the same. This FL package adds the fitted pedal-driven presser-foot lifter for hands-free handling.

Direct Sewing's DDL-8700 package is a simpler manual straight-stitch workstation with an external servo. This machine integrates the drive and control system and adds automatic backtack, thread trim and presser-foot lift.

Yes, if straight stitch matches your work and you have permanent space. Set a low speed ceiling first and arrange a demonstration so the pedal sequence, threading, bobbin loading, oiling and automatic functions are clear.

Contact Direct Sewing to confirm showroom availability and arrange a demonstration. Bring representative fabric, thread and the seam construction you expect to sew for the most useful test.

Confirm the current fitted auto-lifter, table and stand finish, castors, electrical connection, assembled dimensions, access through doors or stairs, freight method, installation, training and current warranty support.
