Husqvarna Viking Opal 690Q Sewing Machine
A highly capable computerised sewing and quilting machine with intelligent fabric sensing, automatic thread handling and the space needed for more ambitious projects.
- Exclusive Sensor System for even fabric feeding
- 208 stitches and four programmable sewing fonts
- Automatic thread tension and automatic thread cutting
- Bobbin thread sensor and sensor-controlled presser foot
- 200mm sewing space and specialist quilting feet
Intelligent assistance for serious creative sewing
The Husqvarna Viking Opal 690Q is designed for dressmakers, quilters and experienced home sewists who want greater automation without moving into an embroidery machine. It combines a generous 200mm workspace with sensor-controlled fabric feeding, automatic tension, automatic thread cutting and a large selection of stitches.
Choose your fabric and sewing technique using the Exclusive SEWING ADVISOR® and the Opal 690Q sets or recommends the relevant sewing functions. The touchscreen displays your stitch in actual size, making it easier to review and adjust settings before sewing.
Exclusive Sensor System
The Exclusive Sensor System automatically senses the thickness of your fabric and adjusts presser-foot pressure to support smooth, even feeding. This is particularly useful when moving across seams, quilt layers or changing fabric thicknesses.
When you stop with the needle down, the presser foot can automatically rise to the correct pivot height. This makes turning corners, repositioning appliqué and controlling quilt work faster and easier.
Advanced features that save time and improve control
The Opal 690Q manages many routine sewing tasks automatically, allowing you to concentrate on fabric handling, construction and design.
208 Built-In Stitches
Choose from utility, stretch, quilt, decorative, satin, heirloom, speciality, buttonhole and pictogram stitches up to 7mm wide.
Monochrome Touchscreen
Select stitches and functions directly on the 64 × 48mm touchscreen using your fingertip or the included stylus.
Automatic Thread Cutter
Cuts the upper and bobbin threads and draws the thread ends to the underside of the fabric at the touch of a button.
Automatic Thread Tension
Electronic self-adjusting tension selects a suitable setting for the chosen stitch, fabric and sewing technique.
Bobbin Thread Sensor
The machine stops and alerts you when the bobbin thread is running low, reducing the chance of continuing with an empty bobbin.
Start/Stop Sewing
Sew without the foot controller when desired, providing consistent speed for long seams, decorative stitches and selected techniques.
Five Speed Levels
Set an appropriate maximum sewing speed for precision work, curves, free-motion sewing or faster construction seams.
Needle Stop Up/Down
Set the needle to stop in or above the fabric for easier pivoting, appliqué placement and quilt work.
Four Sewing Fonts
Programme stitched names, dates, labels and messages using four built-in alphabet styles.
My Stitches Memory
Save personal settings and programmed combinations in twelve permanent memories with capacity for 240 stitches in total.

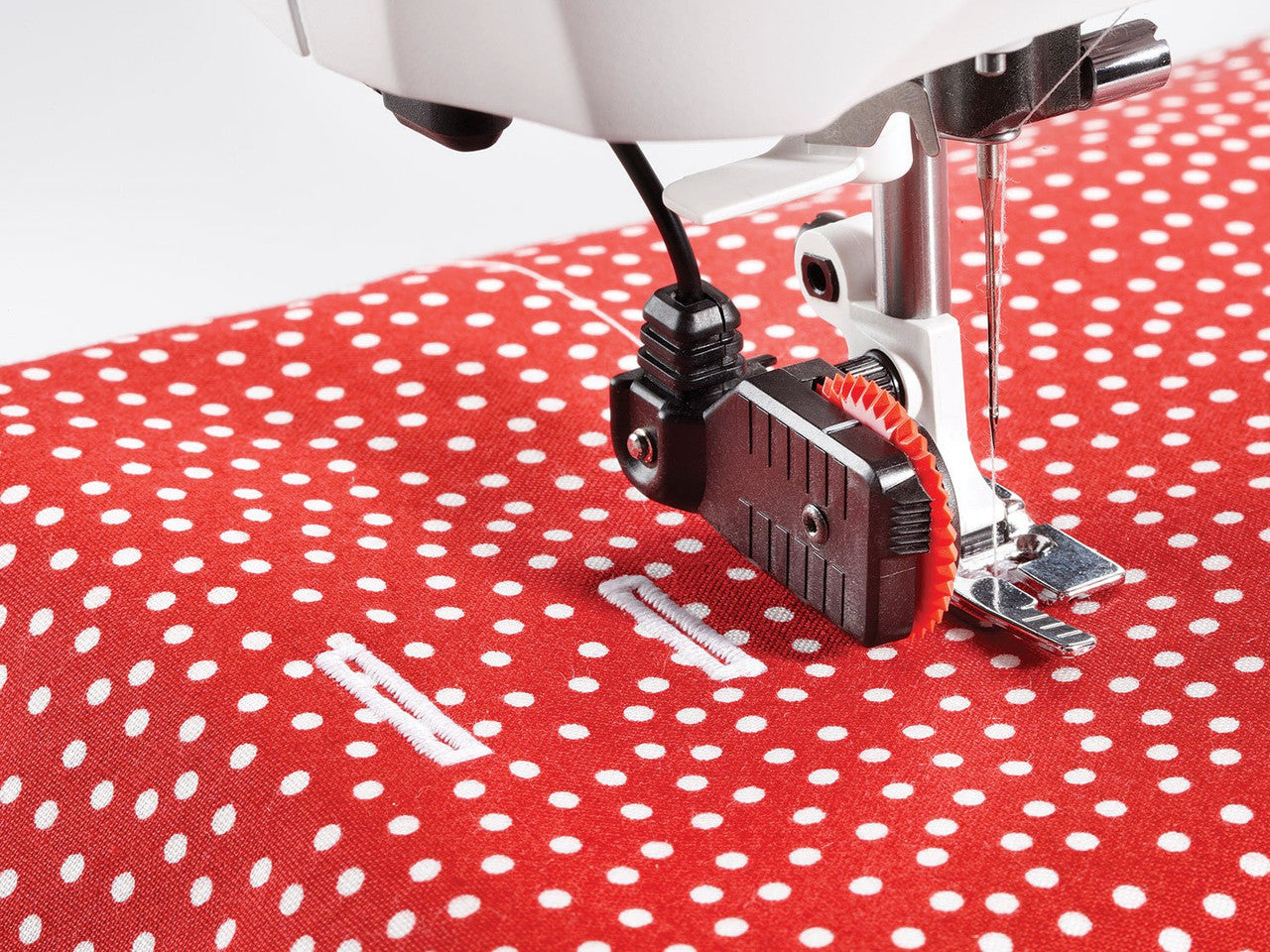

Sensor Buttonholes
The Sensor One-Step Buttonhole Foot measures while sewing to create balanced, repeatable buttonholes at a consistent size.
Automatic Tapering
Create tapered beginnings and endings on compatible stitches for decorative details, borders, appliqué and personalised effects.
29 Needle Positions
Position straight stitching accurately for zips, edge stitching, topstitching, seam allowances and quilt piecing.
Three LED Lights
Three LED lighting points illuminate the needle and sewing surface while helping reduce shadows across the work area.
Built-In Needle Threader
Helps guide thread through the needle eye, simplifying setup and making frequent thread changes easier.
Why step up from the Opal 650?
Both are capable computerised machines, but the Opal 690Q adds significant automation and quilting-focused convenience.
| Feature | Opal 650 | Opal 690Q |
|---|---|---|
| Built-in stitches | 160 | 208 |
| Display | Graphic display with button selection | Touchscreen with stylus |
| Presser-foot control | Manually adjusted pressure and lift | Exclusive Sensor System |
| Thread tension | Recommended setting shown; adjusted manually | Electronic self-adjusting tension |
| Thread cutting | Built-in manual cutters | Automatic upper and bobbin thread cutter |
| Bobbin thread sensor | No | Yes |
| Programmable fonts | 3 | 4 |
| Permanent memories | 4 memories, 80 stitches total | 12 memories, 240 stitches total |
| Included snap-on feet | 7 | 10, including specialist quilting feet |
208 stitches and four alphabets
The Opal 690Q provides a versatile range of construction and creative stitches for clothing, quilting, appliqué, home furnishings and decorative work.
- Utility and garment-construction stitches
- Stretch, overcast and reinforced stitches
- Quilting and hand-look quilt stitches
- Satin, appliqué and decorative stitches
- Heirloom and speciality techniques
- Pictogram and tapering stitches
- Seven buttonhole styles
- Four programmable alphabets
Designed for varied and ambitious projects
The Opal 690Q is particularly strong when precision, fabric handling and workspace are important.
Piecing, appliqué, pivoting, quilting and selected free-motion work.
Precision seams, stretch sewing, zips, hems and buttonholes.
Curtains, cushions, table linen and interior sewing projects.
Lettering, labels, pictograms and programmed decorative sequences.
Husqvarna Opal 690Q specifications
| Machine type | Computerised sewing and quilting machine |
|---|---|
| Utility and decorative stitches | 208 |
| Programmable fonts | 4 |
| Display | 64 × 48mm monochrome touchscreen |
| Sewing space | 200mm to the right of the needle |
| Maximum stitch width | 7mm |
| Needle positions | 29 |
| Buttonhole styles | 7, with Sensor One-Step Buttonhole Foot |
| Exclusive Sensor System | Sensor foot pressure, lift, pivot and extra lift |
| Thread tension | Electronic self-adjusting tension |
| Automatic thread cutter | Yes, upper and bobbin threads |
| Bobbin thread sensor | Yes |
| Speed control | Five electronic speed levels |
| Start/stop function | Yes, allowing sewing without the foot controller |
| Needle stop up/down | Yes |
| FIX and STOP functions | Yes |
| Stitch memory | 12 permanent memories, 240 stitches total |
| Automatic tapering | Yes, on compatible stitches |
| Lighting | Three LED lighting points |
| Needle threader | Built in |
| Feed teeth | Drop-feed capability |
| Free arm | Yes |
| Approximate dimensions | 44 × 22 × 30cm |
| Approximate weight | 8.3kg |
| Cover | Soft cover |
Included accessories
The Opal 690Q includes ten snap-on presser feet, including specialist feet for quilt piecing, appliqué and free-motion work.
- Utility Foot A
- Decorative Stitch Foot B
- Buttonhole Foot C
- Blind Hem Foot D
- Zipper Foot E
- Edging Foot J
- Sensor One-Step Buttonhole Foot
- Quarter-Inch Piecing Foot P
- Clear Open-Toe Foot
- Embroidery/Darning Foot R
- Self-adhesive glide sole
- Edge and quilting guide
- Five bobbins
- Needle pack
- Seam ripper
- Lint brush
- Screwdriver
- Multipurpose tool
- Stylus
- Spool caps and felt pads
- Foot controller
- Power lead
- Soft cover
Manuals and compatible accessories
Review the operating instructions or find compatible accessories for quilting, garment construction and decorative sewing.
Instruction Manual
Learn about the Sensor System, touchscreen, stitch programming, automatic functions, quilting and machine care.
View the instruction manualOpal 690Q Brochure
Review the key features and capabilities in the downloadable product brochure.
View the product brochureCompatible Accessories
Find presser feet, bobbins, needles and accessories suitable for your Husqvarna Viking machine.
Find accessories by machineHusqvarna Viking warranty
The current manufacturer warranty listed by Direct Sewing provides the following coverage for qualifying domestic purchases, subject to registration and the full warranty terms.
Why buy your Opal 690Q from Direct Sewing?
Direct Sewing is an authorised Husqvarna Viking dealer with more than 30 years of sewing industry experience. You receive a genuine machine, applicable New Zealand manufacturer warranty and access to knowledgeable local support after your purchase.
- Authorised Husqvarna Viking dealer
- More than 30 years of sewing industry experience
- Genuine New Zealand warranty support
- Experienced sewing machine technicians
- Nationwide delivery
- Ongoing access to feet, bobbins, needles and accessories
Showroom, service centre and workshop
Need help deciding whether the Opal 690Q is right for your sewing or quilting requirements? Contact the Direct Sewing team or visit the Henderson showroom for knowledgeable advice.
Direct Sewing also operates a technical workshop for ongoing maintenance and machine servicing.
Direct Sewing Machines & Supplies
138 Railside Avenue
Henderson, Auckland
Husqvarna Opal 690Q FAQs
Answers to common questions about this computerised sewing and quilting machine.
Who is the Husqvarna Opal 690Q best suited to?
The Opal 690Q is best suited to intermediate and experienced home sewists, quilters and dressmakers who want automated fabric handling, a larger stitch selection and time-saving thread functions.
What does the Exclusive Sensor System do?
It senses fabric thickness and automatically controls presser-foot pressure to support even feeding. It also provides electronic presser-foot lift, extra lift and automatic pivoting when stopping with the needle down.
What is the difference between the Opal 650 and 690Q?
The 690Q adds the Exclusive Sensor System, touchscreen operation, automatic thread tension, automatic thread cutting, a bobbin sensor, more stitches, an additional font, larger stitch memory and specialist quilting feet.
Does the Opal 690Q cut both threads automatically?
Yes. The automatic thread cutter cuts both the upper and bobbin threads and pulls the thread ends to the underside of the fabric.
Does it adjust thread tension automatically?
Yes. Electronic self-adjusting thread tension selects a suitable setting for the chosen stitch, fabric and sewing technique. The setting can still be adjusted for speciality threads or techniques.
Is the Opal 690Q suitable for quilting?
Yes. Its 200mm sewing space, Sensor System, needle stop up/down, automatic pivoting, five speed levels, quilting stitches and included specialist quilting feet make it a strong quilting option.
Can the feed teeth be lowered for free-motion quilting?
Yes. The feed teeth can be lowered for free-motion quilting, darning and selected decorative techniques. The included Embroidery/Darning Foot R supports this type of work.
How many stitches and fonts are included?
The Opal 690Q includes 208 utility and decorative stitches plus four programmable sewing alphabets. Stitches can be combined and saved in twelve permanent memories.
Is the Opal 690Q an embroidery machine?
No. It is an advanced sewing and quilting machine. The built-in alphabets create stitched lettering, but the machine does not use embroidery hoops or imported embroidery designs.
Can it sew without the foot controller?
Yes. The start/stop function allows sewing without the foot controller, and five electronic speed levels let you set an appropriate maximum speed.
What warranty support is available?
Direct Sewing’s current listing states up to five years of coverage on mechanical parts, five years on electronic parts and two years on labour for qualifying domestic purchases. Registration and the complete manufacturer conditions apply.
What support is available after purchase?
Direct Sewing provides local product advice, warranty assistance and ongoing technical support. The Henderson location includes a showroom, service centre and technical workshop.
Does Direct Sewing deliver throughout New Zealand?
Yes. Direct Sewing offers nationwide delivery. Current delivery terms and any free-shipping offer will be displayed on the product page or during checkout.
Advanced sewing control without unnecessary complexity
With intelligent fabric sensing, automatic thread handling, 208 stitches and a generous sewing area, the Husqvarna Viking Opal 690Q is designed to make detailed dressmaking and quilting more efficient and enjoyable.
