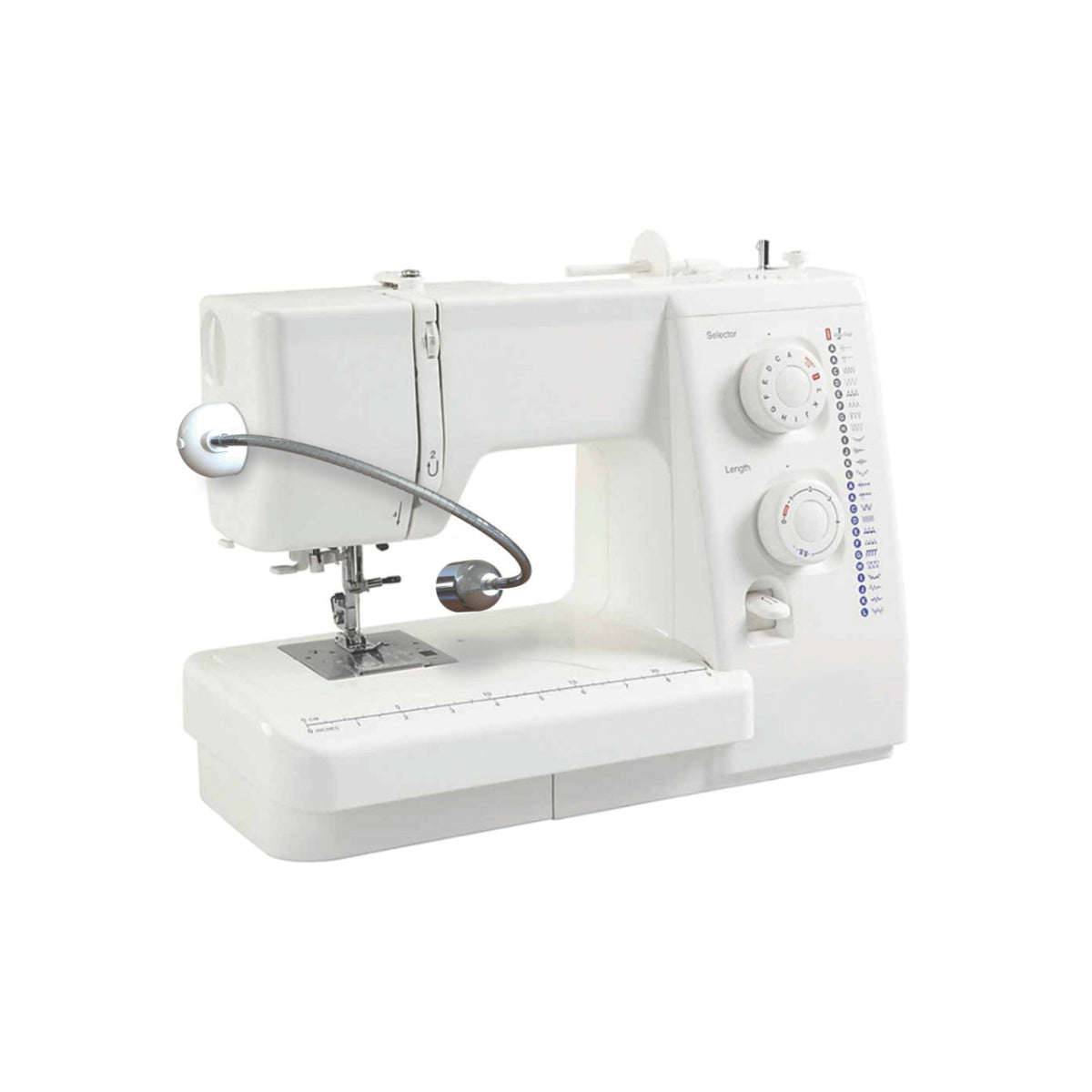

Daylight AN1180 | Self-adhesive sewing-machine lamp
Put a powerful beam exactly where your sewing machine needs it.
The Daylight AN1180 adds bright, focused illumination around the needle, presser foot and stitch line without taking up table space. Its slim flexible arm mounts directly to a suitable smooth surface on the machine, then bends into position so the light follows the detail—not the other way around.
- 17,000 focused lux at 15cm directs concentrated light onto a small working area.
- 18cm flexible arm aims the compact LED head around the needle plate and presser foot.
- Two strong self-adhesive mounts let the lamp move between two prepared positions.
- Non-magnetic attachment works without relying on a steel machine body.
- AC-powered with a 2.4m cable for continuous light through long sewing sessions.
17,000 focused lux at 15cm
17,000 luxfocused beam at 15cm
18cmflexible positioning arm
2 mountsmove between locations
2.4mlong mains cable
More light at the stitch line without flooding the whole room
17,000focused lux measured at 15cm
Why 70 lumens can still produce an intense working light
Lumens measure the total light leaving the lamp. Lux measures how much of that light reaches a surface. AN1180 concentrates its 70-lumen output into a small close-range beam, creating very high illuminance where precision matters.
- Direct the beam at the needle plate instead of lighting a broad desktop.
- Keep the 15cm measurement distance with the lux figure because illuminance reduces as the lamp moves farther away.
- Use surrounding room light as well when you need to see a wider section of the project.
- The brightness is fixed; this compact model does not include a dimmer.
Mount once, then slide the lamp in and out whenever you need it
Apply the adhesive mount
Position carefully before pressing the mount into place, following the supplied fitting guidance for the adhesive.
Insert or remove the lamp
The lamp slides or clicks into the fitted mount, so the light can be removed without peeling the adhesive pad away.
Two mounts, one flexible lamp
Set up a second machine or an alternative lighting angle
Two self-adhesive mounts are supplied. Fit them to compatible smooth surfaces, then move the lamp body between them instead of purchasing a separate light for each location. Three cable clips help guide the lead safely away from the needle area, thread path, handwheel and table edge.
Follow fine detail across sewing, quilting and machine setup
Needle + presser foot
Direct extra illumination onto needle position, guide markings and the stitch line.
Free-motion work
Aim the flexible arm towards the area where close control and fabric detail matter.
Threading + setup
Bring focused light to the needle eye, bobbin area or other small setup points.
Overlocking + repairs
Use on another compatible smooth surface when a concentrated close-range beam is useful.
A safer five-step installation
Test the reach
Hold the lamp in the proposed position and confirm the arm reaches the work area.
Check clearance
Keep clear of controls, ventilation, thread paths, covers and moving components.
Prepare the surface
Make sure the mounting area is clean, dry, smooth and suitable for adhesive.
Fit + route
Apply the mount carefully, then use the clips to guide the cable safely away.
Insert + aim
Fit the lamp into the mount, connect the adaptor and bend the arm gently into position.
The measurements behind the concentrated beam
| Specification | Published value | What customers should know |
|---|---|---|
| Focused illuminance | 17,000 lux at 15cm | A very concentrated close-range beam; output on the task reduces as distance increases. |
| Total light output | 70 lumens | The lamp uses a small amount of total light efficiently by focusing it on a compact area. |
| Colour temperature | 6,000K daylight | Crisp white task light intended to improve contrast around the sewing area. |
| Colour rendering | CRI 80+ | Standard colour rendering for viewing thread, fabric and machine markings. |
| Energy consumption | 2.6W | The current manufacturer figure for AN1180; it supersedes the 1W shown in the old listing. |
| Brightness control | Fixed output | No dimmer is fitted, so change the arm position or combine it with room lighting as required. |
Everything needed for a tidy two-position setup
Focused lamp head
Compact 6,000K LED source rated for up to 50,000 hours.
Flexible arm
Directs the small lamp head towards the needle and stitch line.
Self-adhesive mounts
Two non-magnetic positions for the removable lamp body.
Cable clips
Three clips to keep the lead tidy along a suitable route.
Power adaptor
Mains adaptor supplies continuous light without batteries or recharging.
Long power lead
Approximately 2.4m of cable for flexible connection to a power point.
Keep the lamp secure and every machine function unobstructed
Check the surface before committing the adhesive
Self-adhesive mounting works best on a clean, smooth, flat surface. Machine shapes and finishes vary, so inspect the proposed area carefully.
- Do not mount over vents, controls, doors, warning labels or serial details.
- Avoid heavily curved, textured, porous, fragile or loose finishes.
- Confirm the mount will not obstruct a cover that needs to open for servicing.
- Test the arm's reach and direction before exposing the adhesive.
- Remove or relocate adhesive fittings carefully in line with the supplied guidance.
Route the 2.4m cable deliberately
The three supplied clips help keep the lead away from areas where it could snag or interfere with sewing.
- Keep clear of the needle, presser foot and fabric path.
- Do not route across the handwheel, thread path or ventilation slots.
- Leave enough slack for arm movement without pulling the mount.
- Keep the adaptor and connections dry.
- Disconnect power before cleaning or moving the lamp between mounts.
Machine-mounted, flexible machine light or full floor lamp?
Daylight AN1180
Choose AN1180 for a small non-magnetic lamp that stays on the machine and focuses a powerful beam on the sewing area.
Review AN1180 SpecsFlexible Arm LED Light
Compare Direct Sewing's other machine-mounted flexible-arm light when you want a different mounting or lamp format.
View Flexible Arm LightDaylight Anita Floor
Choose Anita when you want broad adjustable floor lighting plus magnifier, phone holder and storage accessories around the machine.
View Anita FloorThe quick reference
| Brand / model | Daylight AN1180 |
|---|---|
| Product type | Self-adhesive LED sewing-machine lamp |
| Mounting method | Non-magnetic self-adhesive mount |
| Mounts included | Two |
| Cable clips included | Three |
| Light source | Integrated LED |
| Luminous output | 70 lumens |
| Focused illuminance at 15cm | 17,000 lux |
| Colour temperature | 6,000K daylight |
| Colour rendering | CRI 80+ |
| Energy consumption | 2.6W |
| LED rated life | Up to 50,000 hours |
| Dimmer | No |
| Flexible arm length | 18cm |
| Maximum reach | 23cm |
| Product dimensions | Approximately 3.5 × 2.3 × 25cm |
| Weight | Approximately 0.21kg |
| Cable length | Approximately 2.4m |
| Power source | AC adaptor |
| Finish | White and silver |
Daylight AN1180 sewing-machine lamp FAQs
Is the AN1180 magnetic?
No. It uses strong self-adhesive mounts, so it does not need a magnetic or steel machine surface.
Will it fit every sewing machine?
It fits many machines, but mounting is not universal. You need a clean, dry, smooth and reasonably flat surface that does not obstruct controls, vents, covers, labels or moving parts.
Why are two mounts included?
The lamp slides or clicks out of its mount. Fit the two supplied mounts in compatible positions and move the same lamp body between them.
Does the lamp use batteries?
No. AN1180 is powered continuously through its supplied AC adaptor and approximately 2.4m cable.
Can the brightness be adjusted?
No. This model has a fixed light output. Use the flexible arm to alter the beam position and combine it with room lighting when a broader working area is needed.
How can a 70-lumen lamp produce 17,000 lux?
Lumens measure total output, while lux measures light reaching a surface. AN1180 concentrates its 70 lumens into a small beam, producing 17,000 lux when measured just 15cm away.
How long is the flexible arm?
The flexible section measures 18cm, and Daylight publishes a maximum reach of 23cm for the assembled lamp.
What are the three clips for?
They guide the power cable along a suitable route on the machine, helping keep it away from the fabric path, handwheel, controls and moving parts.
Can it be used on an overlocker or another flat surface?
Potentially, yes. Daylight specifies attachment to a sewing machine or flat surface. Check that the surface is smooth, stable and suitable for adhesive and that the lamp will not interfere with operation.
Does the LED bulb need replacing?
The LED is integrated and rated for up to 50,000 hours. It is not designed as a conventional user-replaceable bulb.
Small lamp. Flexible aim. Serious close-range light.
Put the stitch line under a brighter, more controlled beam.
Mount AN1180 directly to a compatible machine surface, route the cable neatly and bend the light exactly where precision matters.
