Garment construction
Use flat seaming for appropriate panel joins in sportswear, base layers and underwear. The seam can be a visible design detail as well as a functional join.

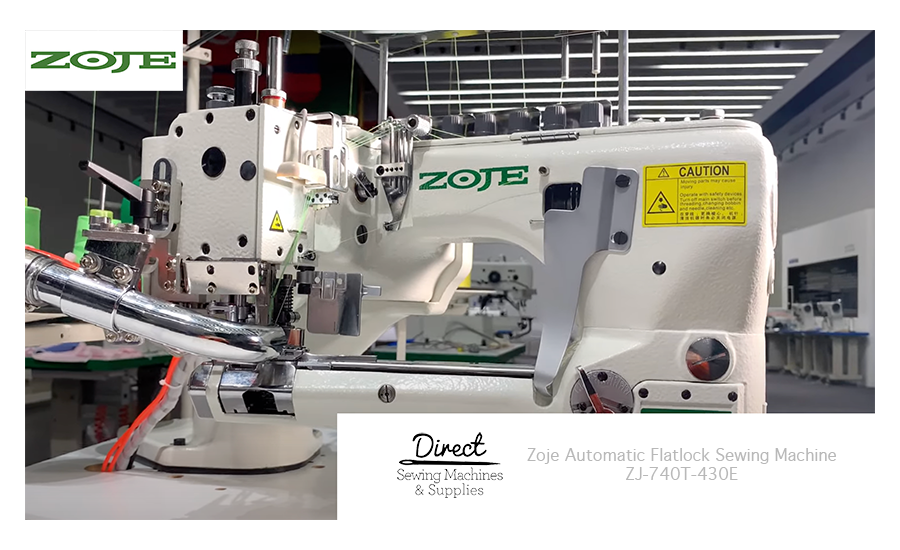

Zoje ZJ-740T-430E • Specialist flat seaming
Make the seam part of the design.
Industrial flatlock sewing for activewear, underwear and suitable merino knit garments.
The Zoje ZJ-740T-430E joins fabric with a broad, visible flatlock seam. It is a specialist option for workrooms that want a low-profile join and a distinctive stitched finish on garments worn close to the body.
Enquire to order. Confirm your fabric, seam construction and production requirements before ordering.
A dedicated machine for flat seams.
Servo-driven operation
The supplied servo motor provides controlled operation for production work. Match the sewing speed to the material and the operator’s handling.
Guiding and waste handling
The listed setup includes a sewing guide, trimming during sewing and a suction system to assist with waste removal.
Flatlock seam example
A broad, contrasting stitch line.
The existing fabric sample illustrates the visible flatlock effect on a garment seam. Thread colour can blend with the fabric or highlight the join.
This is a style example, not a guarantee of a particular finished seam width. The result depends on the fitted gauge, thread, fabric and setup.
See the sewing operation.
Is this the right seam for your range?
Flat seaming is not simply another name for hemming with a coverstitch machine. This machine is offered for joining suitable fabrics with a flatlock construction, rather than general plain sewing or a conventional overlocked edge.
For activewear or merino, trial the actual fabric with the intended thread. Check stretch, recovery, seam appearance and comfort after washing before committing to a production setup.
Listed configuration
| Model | Zoje ZJ-740T-430E |
|---|---|
| Machine type | Industrial flatlock / flat-seaming machine |
| Applications | Suitable activewear, underwear and merino knit garments |
| Motor | Servo motor |
| Maximum stitch length | 2.5mm |
| Presser-foot lift | 6mm |
| Equipment | Sewing guide, trimming and suction system |
| Warranty | One-year return-to-base warranty |
Specify the job before the machine is ordered.
Send your fabric type and weight, number of layers, required seam width and a sample or photograph of the finish you want. The fitted gauge, needle and thread selection, and any electrical or air-supply requirements should be confirmed for your setup.
Table and stand colours may differ from those pictured.
Enquire online. Nationwide New Zealand freight.
Use the enquiry option above or send your requirements online. We can confirm availability, configuration and delivery arrangements before you order.
