ZOJE ZJ5821A · Touchscreen buttonholing
A considered finish.
Buttonhole after buttonhole.

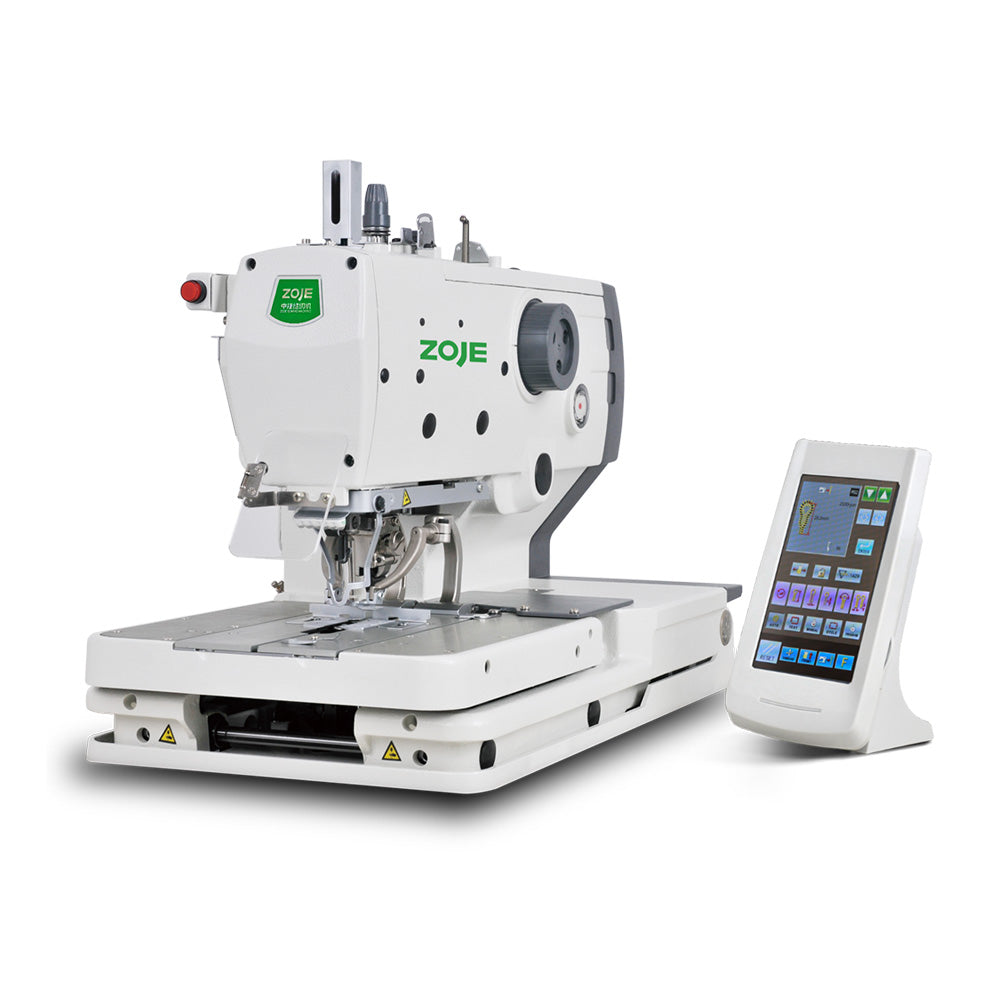

The ZOJE ZJ5821A electronic eyelet buttonhole machine brings touchscreen control and automatic thread trimming to industrial garment production. Also known as a keyhole buttonholer, it is designed for buttonhole work in menswear and womenswear.
Closed-loop control supports accurate patterns, while the long-thread-trim arrangement leaves tails available for controlled finishing.
Precision in the detail
Built around the finishing stage
- Repeatable patterns: closed-loop control helps maintain buttonhole accuracy.
- Speed to suit the job: settings from 1,000 to 2,700 rpm, adjustable in 100 rpm steps.
- Automatic trimming: upper-thread trimming with a long-cut lower-thread arrangement.
- Finishing flexibility: approximately 35mm thread tails allow subsequent trimming to suit your garment requirements.
Core specifications
- Model
- ZOJE ZJ5821A
- Machine type
- Electronic eyelet / keyhole buttonholer
- Control
- Touchscreen with closed-loop system
- Sewing speed
- 1,000–2,700 rpm
- Buttonhole length
- 5–42mm
- Stitch pitch
- 0.5–2.0mm
- Stitch width
- 1.5–5.0mm: mechanical adjustment to 4.0mm, with up to 1.0mm additional programmable width
- Thread trimming
- Automatic upper-thread trim; long-cut lower thread, 35mm tail
- Presser-foot lift
- 12mm standard; up to 16mm
- Main-shaft motor
- 550W AC servo
- Compressed air
- 0.5MPa main regulator; 0.4MPa hammer regulator
- Air consumption
- 43.2 litres/minute at 8 cycles/minute
Plan your workroom setup
The right configuration for your garments
This is the long-thread-trim ZJ5821A. Choose it when longer thread tails suit your finishing process, rather than a short-trim result straight off the machine.
Compressed air is required. Electrical versions vary by market. Confirm the supplied voltage, phase and connection requirements with Direct Sewing before installation in New Zealand.
Contact Direct Sewing to confirm your buttonhole size, fabric, supplied table and stand package, delivery and installation requirements before ordering.
