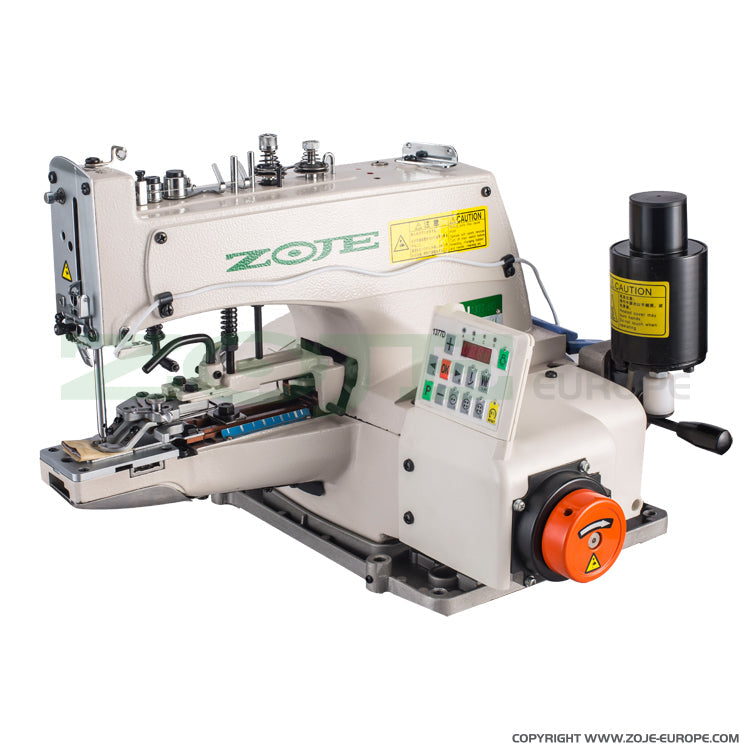

Zoje ZJ1377-BD · Direct drive · Button sewing
A dedicated finish for every button.
Attach two- and four-hole buttons with a purpose-built industrial button sewing machine, rather than completing each attachment by hand.
The Zoje ZJ1377-BD combines selectable stitch counts with a built-in servo motor, automatic thread trimming and automatic clamp lift. It is a practical addition to shirtmaking, uniform production and garment alteration workrooms.
Designed for repeat button work
Set the cycle. Keep the work moving.
Choose the attachment style
Sew two-hole buttons or use parallel and cross patterns on four-hole buttons. Select the pattern to suit the garment design and button-hole layout.
Select your stitch count
The control panel provides 8, 16 or 32 stitches per cycle. Set up for the button and fabric, then use the same cycle for repeat work.
Automatic finishing functions
Thread trimming and clamp lifting help reduce handling between attachments. Adjustable servo speed lets you work at a pace suited to the job.
Standard button holder
Flat buttons, two holes or four.
The supplied clamp holds suitable flat buttons for sewing. Check button diameter, hole spacing and needle clearance before beginning a batch.
Suitable applications include shirts, uniforms and other garments requiring repeated button attachment. Test the actual button and material combination before production.
Optional attachment
Shank buttons need a different clamp.
Post or shank buttons require the special B2401-373-0B0 clamp. Additional supports or adaptors may be needed to suit the button and shank dimensions.
This attachment is not part of the standard flat-button setup. Confirm compatibility before ordering it for a particular job.
Button sewing, not buttonhole cutting
The machine that attaches the button.
The ZJ1377-BD uses a single needle and a single thread to sew the button onto the garment. It does not make the matching buttonhole. Explore the buttonhole and button sewing collection for complementary machines.
Machine specifications
| Model | Zoje ZJ1377-BD |
|---|---|
| Needles / threads | 1 needle / 1 thread |
| Button types | 2-hole and 4-hole flat buttons; shank buttons with optional equipment |
| Stitch patterns | Two-hole attachment; parallel or cross attachment for four-hole buttons |
| Stitches per cycle | 8, 16 or 32 |
| Button diameter | 10–28mm |
| Button-hole spacing | 2.5–6.5mm |
| Maximum speed | Up to 1,500 stitches per minute; working speed depends on the application |
| Automatic functions | Thread trimming and clamp lift |
| Motor | Built-in AC servo, direct drive |
| Needle system | TQx1; TQx7 for the appropriate shank-button setup |
| Warranty | 1-year return-to-base warranty |
For your sewing workroom
Supplied with table and stand, alongside the machine’s built-in motor. Table and stand colour may vary from imagery.
Use suitable needles and thread for the fabric and button. Correct hole alignment and a test attachment are important whenever the button type changes.
Manufacturer information
Zoje ZJ1377-BD specifications and attachment information
Overseas configurations and supplied furniture may differ. Refer to this listing for the local package.
Order online for your workroom.
Check current availability using the product controls above. When available, order online with nationwide New Zealand freight arrangements.
