Separate pressure vessel
The boiler heats and stores water independently, supplying pressurised steam to the iron through the hose.
Silver Star SR-5800 | Steam generator + weighted iron
Pressurised steam for serious workroom pressing
A compact boiler-and-iron system for tailoring, alterations, garment production and demanding home sewing. The 2.3L pressure vessel supplies controlled steam through a weighted iron, helping shape seams, garments and larger pressing jobs.
- 0.25–0.4MPa published steam pressure delivers approximately 2.5–4 bar through the iron.
- 2.3L boiler capacity supports up to approximately 1.5 hours of published steam time.
- Pressure gauge and operating indicators make readiness easier to judge.
- 2300W total published power combines the boiler and iron system.
2.3Lboiler capacity
2300Wtotal published power
2.5–4 barpublished pressure range
8.5kgtotal published weight
More steam capability than an integral-tank iron
Weighted pressing iron
Heat, soleplate weight and steam work together to open seams, shape tailored sections and set crisp edges.
Longer work sessions
The 2.3L capacity and approximately 1.5-hour published steam time suit repeat pressing better than frequent small-tank refills.
Control at the workstation
See the system status before you press
Unlike a simple household iron, the SR-5800 asks the operator to monitor pressure, temperature and water level as part of a professional pressing routine.
Pressure gauge
Steam is ready when the gauge reaches the operating range; the manual references approximately 3.5 bar.
Thumb steam switch
Release steam from the iron only when the soleplate and generator are ready.
Hose + cable support
The raised hook helps keep the steam hose and power cable organised above the working area.
No-water protection
The manual describes automatic power-off with an indicator when the pressure vessel runs out of water.
A deliberate six-stage operating routine
Position
Place the unit level on a stable, heat-safe surface able to support at least 10–15kg.
Fill cold
With the system unplugged and depressurised, close the drain and fill without exceeding 2.3L.
Check
Use the measuring rod, fit the cap correctly and confirm hose connections.
Power
Confirm the rating label and circuit, then switch on the generator and iron.
Heat
Allow approximately 10–20 minutes for the gauge to reach the operating range.
Test
Direct the iron away from the garment and clear condensation before pressing.
Read the gauge before opening anything
Pressure must reach zero before refilling
A hot pressure vessel is not refilled like a domestic iron. Switching off does not instantly remove heat or pressure. The safest routine is to unplug, allow the unit to cool and follow the supplied manual before touching the cap.
Built for pressing that shapes the finished garment
Tailoring
Shape jacket sections, trouser details, seam allowances and structured garment components.
Alterations
Keep reliable steam ready for hems, repairs, resizing and presentation finishing.
Dressmaking workrooms
Press during construction, set pleats and handle repeat projects from a dedicated station.
Laundry + garment care
Support controlled flat pressing where a weighted iron is preferable to an upright steamer.
What the numbers mean in practice
| Specification | Published figure | Practical meaning | Important qualifier |
|---|---|---|---|
| Water capacity | 2.3 litres | Supports extended pressing without the elevated bottle used by a gravity-feed iron. | Never overfill; space is required for steam generation. |
| Steam pressure | 0.25–0.4MPa / 2.5–4 bar | Pressurised steam is delivered through the iron when its thumb switch is pressed. | Wait for the gauge and indicators before requesting steam. |
| Warm-up | Approx. 10–20 minutes | Time for the filled generator to reach operating pressure from cold. | Varies with fill amount, starting water temperature and conditions. |
| Steam time | Up to approx. 1.5 hours | Published working time from the SR-5800's 2.3L vessel. | Actual time varies with steam demand and operating pattern. |
| Total power | 2300W | Combined published demand of the generator and iron. | Confirm the supplied plug, rating plate and circuit requirements before use. |

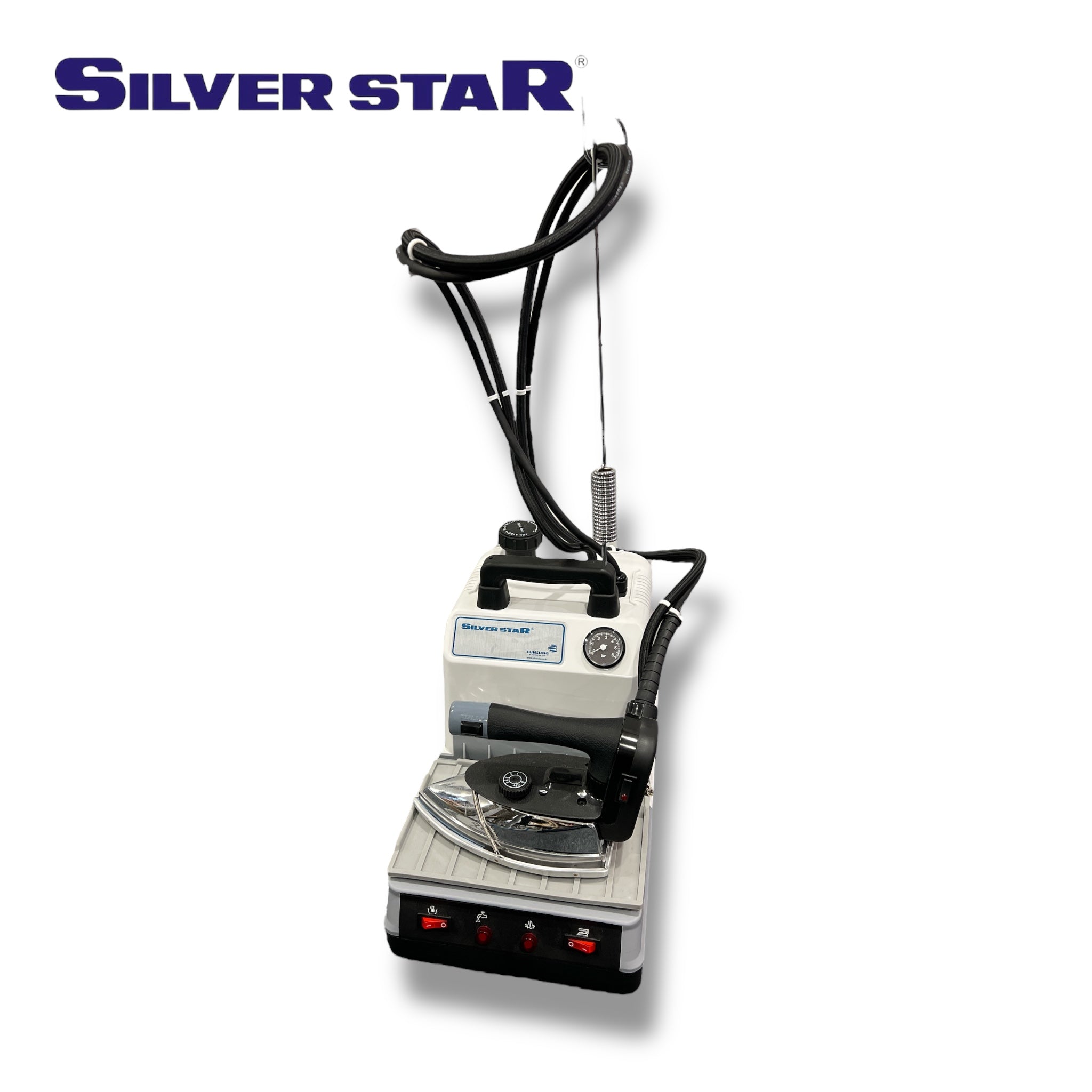

What makes up the SR-5800 station
2.3L steam generator
Compact pressure vessel with gauge, switches, indicator system and safety cap.

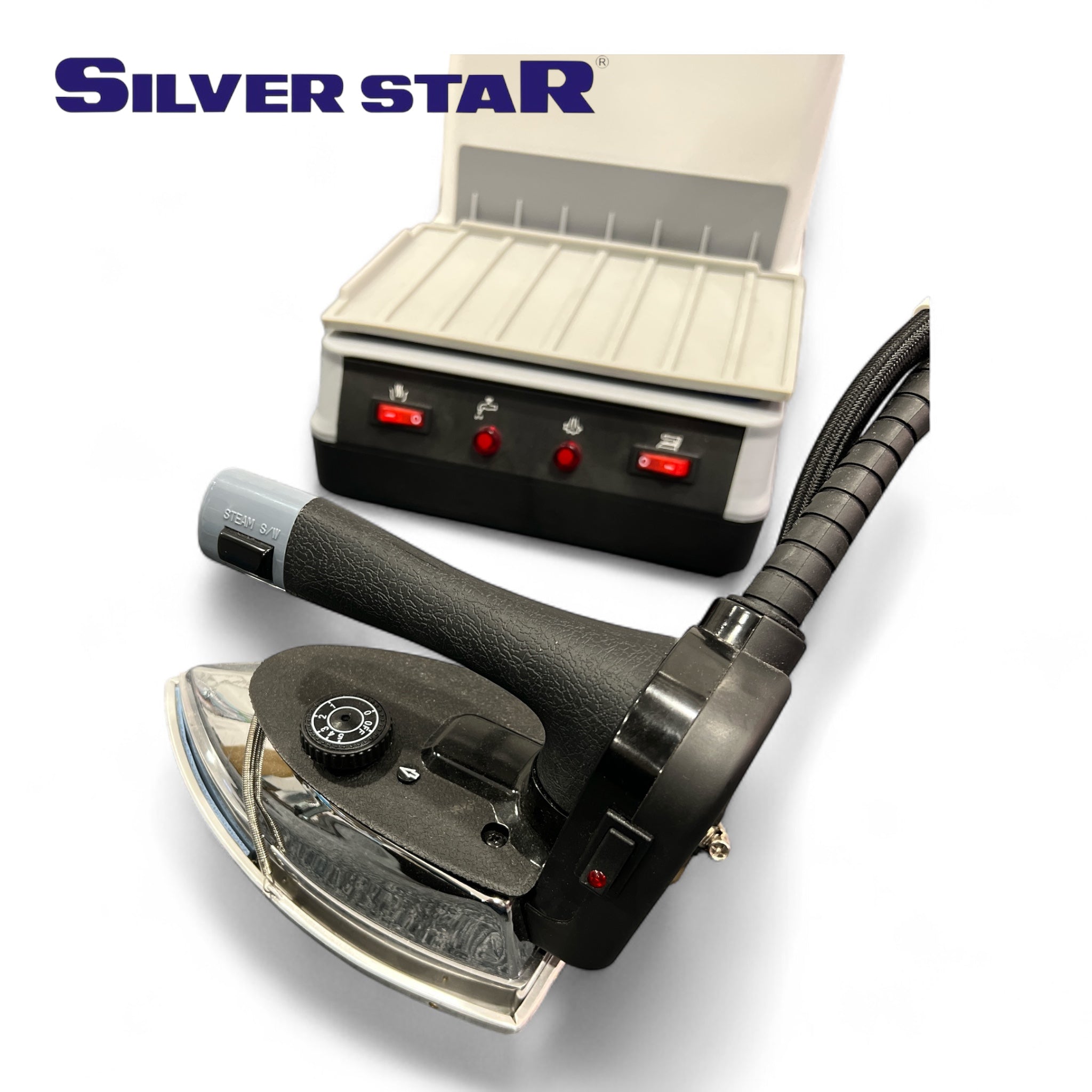

Weighted steam iron
Temperature control and a thumb-operated switch for steam release.
Steam hose assembly
Connects the pressurised generator to the iron.
Hose + cable hook
Supports the hose and cable above the working area.
Filling tools
The manufacturer manual identifies a measuring cup, funnel and measuring rod.
Operating manual
Essential instructions for filling, depressurising, cleaning and safe use.
Accessory packaging can change. If a particular filling tool or resting pad is essential, confirm the current box contents with Direct Sewing before purchase.
This is a boiler system—treat it accordingly
Never open a pressurised cap
- Confirm the gauge reads zero and the unit has cooled before opening.
- Switch off and unplug before filling, emptying or maintenance.
- Do not exceed the 2.3L maximum fill.
- Never point steam at a person or iron clothing while it is being worn.
- Rest the iron flat on its suitable heat-resistant resting area—never on its end.
- Keep children and pets away from the station.
Confirm the circuit before purchase
The manufacturer manual for the 220V version calls for an individually used grounded circuit rated above 15A and prohibits extension leads.
- Ask Direct Sewing to confirm the supplied plug and NZ circuit requirement.
- Do not share the circuit with another high-load appliance.
- Do not use an adaptor or extension cord.
- Stop if the cable, hose, cap, valve or gauge is damaged or leaking.
- Repairs must be completed by a qualified service technician.
Boiler, gravity feed or upright steamer?
SR-5800 boiler + iron
Best for sustained pressurised steam and weighted flat pressing at a dedicated workroom station.
Review SR-5800 SpecsES-94A gravity-feed iron
A weighted iron fed by an elevated 2.5L bottle—simpler water system, but without a pressurised boiler vessel.
View ES-94ASR-5000 upright steamer
Designed for wrinkle release and presentation work on hanging garments rather than weighted flat pressing.
Shop Garment SteamersThe quick reference
| Brand / model | Silver Star SR-5800 |
|---|---|
| Product type | Compact pressurised steam generator with iron |
| Published total power | 2300W |
| Water capacity | 2.3 litres |
| Steam pressure | 0.25–0.4MPa / approximately 2.5–4 bar |
| Readiness reference | Approximately 3.5 bar on the gauge |
| Approximate warm-up | 10–20 minutes, depending on fill and conditions |
| Published steam time | Up to approximately 1.5 hours |
| Total weight | 8.5kg |
| Manufacturer dimensions | Approximately 415 × 240 × 300mm high |
| Water-out response | Manufacturer describes automatic power-off with indicator |
| Safety systems | Pressure control, safety valve and overtemperature protection |
| Electrical requirement | Confirm the supplied rating plate, plug and required NZ circuit before purchase |
Silver Star SR-5800 FAQs
How is the SR-5800 different from the ES-94A?
The SR-5800 uses a sealed pressure vessel to produce pressurised steam. The ES-94A has no boiler; an elevated bottle gravity-feeds water directly to its heated iron.
How long does it take to heat?
The manufacturer’s SR-5800 manual gives approximately 10–20 minutes, depending on how much water is in the vessel and the starting conditions. Use the pressure gauge and indicators rather than time alone.
How much pressure does it produce?
The NZ listing publishes 0.25–0.4MPa, equivalent to approximately 2.5–4 bar. Manufacturer instructions reference normal readiness around 3.5 bar.
Can I refill it while it is still hot?
The safest approach is to switch off, unplug and allow the unit to cool. The pressure gauge must show zero before the cap is opened. Hot pressure and adding cool water to a heated vessel can cause scalding or water eruption, so follow the supplied manual exactly.
Can it be used for dry ironing?
Yes. The manufacturer says to leave the steam-generator switches off, switch on only the iron and select the appropriate fabric temperature.
Why is water coming through the iron?
The system may not be fully heated, the iron temperature may be too low or the vessel may be overfilled. Stop and follow the manual’s troubleshooting instructions before continuing.
What water should I use?
Use clean water. For hard-water areas, the manufacturer’s English manual recommends distilled water or a 50/50 tap-and-distilled mix. Do not add perfume, starch, special ironing water or chemical scale treatments.
Does the indicator show that the water level is adequate?
The manufacturer documentation describes an indicator and automatic power-off when the vessel runs out of water. It should not be promoted as a precise water-level gauge; use the supplied measuring rod when filling.
Can I use an extension lead?
No. The manufacturer prohibits extension leads and calls for an individual grounded circuit. Confirm the supplied plug and exact NZ circuit requirement with Direct Sewing before purchase.
What safety protection is built in?
The manufacturer documents automatic pressure control, a safety valve and overtemperature protection. These systems do not replace correct filling, pressure release, supervision and maintenance.
Pressure you can monitor. Steam you can control.
Build a pressing station for demanding garment work.
Give seams, tailored shapes and finished garments the sustained steam and weighted pressing they need.
