Automatic Colour Changes
Assign thread colours to the ten needles and let the machine follow the programmed colour sequence.
Compact 10-Needle Multi-Needle Embroidery
Ricoma Creator EM-10 Embroidery Machine
Move beyond constant thread changes with ten ready-to-sew needles, automatic colour sequencing, a large 380 × 210mm embroidery area and the professional flexibility to embroider garments, caps, bags, quilts and personalised products.
10
Needles
Keep ten thread colours loaded and ready.
1,000
Stitches Per Minute
Fast embroidery for projects and small orders.
380 × 210mm
Maximum Field
Room for jacket backs, quilts and larger designs.
220°
Cap Rotation
Wide cap coverage with close-to-brim embroidery.
10.1″
HD Touchscreen
Preview, edit and manage designs on the machine.
Multi-Needle Embroidery Without the Size of a Full Commercial Machine
The Ricoma Creator EM-10 is designed for home embroiderers, serious crafters, schools and growing custom-apparel businesses that want the productivity of a multi-needle machine in a more compact format.
Instead of stopping after every colour and manually rethreading one needle, the Creator holds ten different thread colours at once. The machine follows the programmed colour sequence and automatically changes from one needle to the next.
Its open tubular sewing arm also allows completed garments and three-dimensional products to be positioned around the machine. This makes it possible to embroider items that can be difficult or impossible to arrange on a flat-bed domestic embroidery machine.
Explore embroidery machines , machine embroidery thread , embroidery stabilisers and embroidery accessories from Direct Sewing.
The Creator is a genuine step up from a single-needle embroidery machine, offering automatic multi-colour production, tubular garment embroidery, cap capability and a large embroidery field without moving directly into a larger 15 or 20-needle commercial platform.
01
Ten-Needle Productivity
Load ten colours, assign each colour to a needle and let the machine complete multi-colour designs with far fewer interruptions.
02
Tubular Embroidery
Position finished garments, bags and other sewn products around the free sewing arm instead of laying everything flat.
03
Complete Cap Capability
Two cap frames, a cap driver and a hooping station support professional front-panel cap embroidery.
Faster Multi-Colour Embroidery
Ten Needles Mean Less Stopping and Rethreading
Each needle can remain threaded with a different colour. When the embroidery file calls for a colour change, the Creator automatically moves to the assigned needle.
This dramatically reduces the manual work involved in colourful logos, names, illustrations and decorative designs.
- Keep ten popular colours loaded at once.
- Automatic programmed colour changes.
- Change the colour sequence directly on the screen.
- Reduce interruptions during long designs.
- Complete repeat orders more efficiently.
- Ideal for logos and highly detailed artwork.
Clear On-Machine Design Control
Large 10.1-Inch High-Definition Touchscreen
The large full-colour panel provides a clear view of the loaded design, selected hoop, colour sequence, stitch count and embroidery position.
Designs can be rotated, resized, combined and positioned from the machine. The panel also provides stitch-progress information, file management and operational controls in an interface that feels closer to using a modern tablet.
- High-definition true-colour display.
- Preview the design before stitching.
- Rotate, scale and reposition embroidery.
- Combine multiple designs on screen.
- Save combined designs as a new file.
- Monitor real-time stitch progress.
- Store up to 1,000 designs or 100 million stitches.
Professional Features in a Compact Creator-Focused Machine
The Creator combines high-speed stitching, extensive design memory, wireless transfer options and a large embroidery field for serious creative work and growing production.
10
Needles
1,000
Maximum SPM
380 × 210
Maximum Area mm
100M
Stitch Memory
1,000
Stored Designs

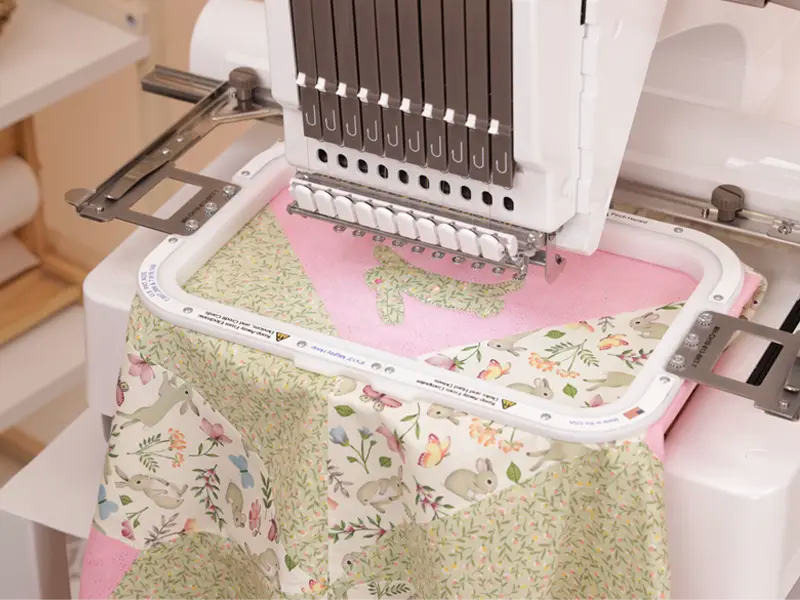

Large 380 × 210mm Embroidery Field
More Room for Jacket Backs, Quilts and Larger Designs
The largest included hoop provides an embroidery area of approximately 380 × 210mm, giving the Creator far more room than many entry-level domestic machines.
This allows wider names, larger logos and more detailed artwork to be completed without splitting the design into numerous smaller sections.
- Large jacket-back embroidery.
- Quilt blocks and decorative panels.
- Blankets and home décor.
- Wide business and school logos.
- Large-format monograms and names.
- Five hoop sizes included for different projects.
- Automatic hoop-size detection.

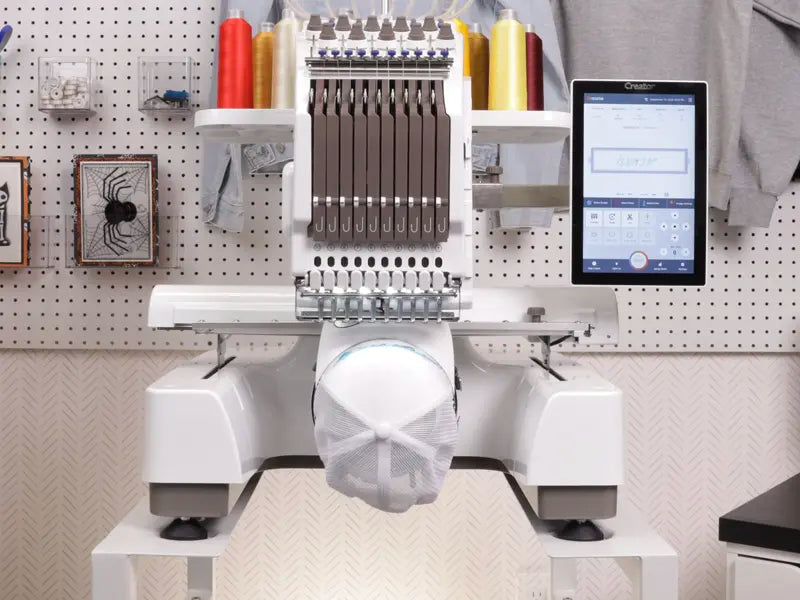

Professional-Style Cap Embroidery
Embroider Structured Caps with 220-Degree Rotation
The included cap driver and two cap frames allow caps to rotate around the sewing arm while the embroidery head remains above the stitching area.
The 220-degree cap system supports wide front-panel embroidery, while the machine’s improved cap needle plate enables designs to be positioned as close as approximately 18mm from the brim.
- Two cap frames included.
- Cap driver included.
- Cap hooping station included.
- Up to 220-degree cap rotation.
- Close-to-brim design placement.
- Suitable for logos, names and 3D puff embroidery.
- Embroider finished caps rather than flat cap panels.
Smart Embroidery Technology
Features That Help Reduce Setup Time and Mistakes
The Creator provides the controls needed to prepare, position and monitor embroidery directly from the machine.
Built-In Laser Alignment
Use the laser reference to help position the design relative to the hooped garment.
Automatic Thread Trimming
The machine trims the thread between programmed sections and colour changes.
Thread-Break Detection
Stitching stops when the system detects a broken upper thread, helping prevent incomplete areas.
Wi-Fi Design Transfer
Transfer compatible embroidery designs wirelessly without relying entirely on physical media.
USB and Ethernet
Additional connection options provide flexibility for loading and managing design files.
Design Tracing
Trace the outside boundary before sewing to confirm that the design fits within the hoop.
Automatic Hoop Detection
The machine recognises the selected hoop and helps protect against designs exceeding its field.
On-Screen Editing
Rotate, resize, mirror, reposition and combine designs using the touchscreen interface.
Large Design Memory
Store up to approximately 100 million stitches or 1,000 embroidery designs.
Maintenance Alerts
Built-in reminders help the operator keep up with routine lubrication and machine care.
Tubular Sewing Arm
Embroider finished garments, bags and tubular products without needing to open their seams.
Official Ricoma Video
See the Ricoma Creator in Action
Watch Ricoma’s official introduction to the Creator’s ten-needle system, touchscreen, tubular frame and project capabilities.
Video supplied by Ricoma TV. Features, software packages and included items can vary between international markets.
One Machine, Extensive Creative Potential
What Can You Embroider with the Creator EM-10?
01
T-Shirts and Polos
Add chest logos, names, monograms and decorative artwork to completed garments.
02
Caps and Hats
Use the included cap system for front logos, text and dimensional 3D puff embroidery.
03
Hoodies and Jackets
Embroider chest designs, sleeves, names and larger jacket-back artwork.
04
Bags and Backpacks
Personalise selected tote bags, school bags, work bags and fabric accessories.
05
Workwear and Uniforms
Produce business branding, staff names, club crests and school embroidery.
06
Quilts and Home Décor
Create quilt blocks, cushions, towels, blankets, table linen and decorative panels.
07
Baby and Children’s Items
Add names and motifs to blankets, bibs, clothing and nursery accessories.
08
Sportswear
Embroider team logos, names, numbers and club branding on selected garments.
09
Personalised Gifts
Produce monogrammed towels, bags, robes, decorations and custom keepsakes.
Ricoma Creator EM-10
Multi-Needle Embroidery
- Ten thread colours remain loaded.
- Automatic programmed colour changes.
- Tubular garment embroidery.
- Finished-cap embroidery system.
- Maximum field of 380 × 210mm.
- Speeds up to 1,000 stitches per minute.
- Automatic thread trimming.
- Built-in laser positioning.
- Better suited to repeat orders and growing production.
Typical Single-Needle Machine
Domestic Flat-Bed Embroidery
- One thread colour loaded at a time.
- Manual rethreading between colours.
- Usually uses a flat removable embroidery unit.
- Limited capability on structured caps.
- Embroidery area varies by model.
- Generally designed for lighter project volumes.
- Often smaller and easier to store.
- Excellent for occasional home embroidery.
- Lower initial investment on many models.
Technical Information
Ricoma Creator EM-10 Specifications
| Machine type | Single-head, ten-needle multi-needle embroidery machine |
|---|---|
| Number of embroidery heads | One |
| Number of needles | Ten |
| Maximum embroidery speed | Up to approximately 1,000 stitches per minute on flat embroidery |
| Maximum embroidery area | Approximately 380 × 210mm |
| Cap embroidery rotation | Up to approximately 220 degrees |
| Close-to-brim capability | Approximately 18mm from the cap brim, depending on cap construction and setup |
| Control panel | 10.1-inch high-definition true-colour touchscreen |
| Design memory | Up to approximately 100 million stitches or 1,000 designs |
| Design connection | Wi-Fi, USB and Ethernet |
| Primary embroidery file format | DST, with additional supported formats depending on software and panel version |
| Automatic colour changes | Yes |
| Automatic thread trimming | Yes |
| Thread-break detection | Yes |
| Built-in positioning laser | Yes |
| Automatic hoop detection | Yes |
| Tubular embroidery | Yes |
| Cap embroidery | Yes, using the supplied cap driver, cap frames and hooping station |
| On-screen design editing | Rotate, resize, mirror, reposition, combine and save compatible designs |
| Machine dimensions | Approximately 600mm long × 560mm wide × 865mm high |
| Net machine weight | Approximately 45 to 48kg, depending on regional configuration |
| Machine construction | Metal and moulded exterior components |
| Power supply | New Zealand-compatible configuration supplied by Direct Sewing |
What Comes with the Ricoma Creator EM-10?
The Creator includes a broad hoop and cap package so users can begin exploring flat, tubular and cap embroidery.
Embroidery Hoops
- Hoop A: approximately 70 × 50mm
- Hoop B: approximately 110 × 110mm
- Hoop C: approximately 190 × 140mm
- Hoop D: approximately 310 × 210mm
- Hoop E: approximately 380 × 210mm
- Hoop arms and mounting hardware
- Automatic hoop recognition support
Cap and Machine Accessories
- Two cap frames
- Cap driver
- Cap hooping station
- Machine stand where included in the NZ package
- Embroidery starter accessories
- Machine tools and maintenance accessories
- Instruction and training resources
- Digitising software package where specified
The exact New Zealand package, software level, stand, starter consumables and promotional accessories can vary. Please refer to the current Direct Sewing quotation or product offer for the confirmed inclusions.
Buy with Genuine New Zealand Support
Why Buy Your Ricoma Creator from Direct Sewing?
Multi-needle embroidery is a specialist purchase. Direct Sewing provides local product knowledge, setup support and an experienced in-house technical workshop rather than simply supplying a carton.
Ricoma Embroidery Specialists
Auckland Showroom
In-House Technical Workshop
Installation & Training Options
New Zealand-Wide Support
Frequently Asked Questions
Ricoma Creator EM-10 Questions and Answers
Is the Ricoma Creator the same as the EM-1010?
The Creator is based on Ricoma’s compact ten-needle embroidery platform and is commonly associated with the EM-series format. The Creator version uses Ricoma’s newer branding, touchscreen interface and package configuration. Exact panel, software and accessory inclusions should be confirmed against the current New Zealand model.
Is the Ricoma Creator a commercial embroidery machine?
It is a compact multi-needle embroidery machine suited to serious home embroidery, start-up businesses and lighter commercial production. Businesses expecting continuous high-volume operation or requiring a larger sewing field may be better suited to a Ricoma Swift, Marquee or multi-head commercial model.
How many colours can it embroider automatically?
Ten thread colours can remain loaded at once. Designs containing more than ten colours can still be embroidered, but the operator will need to reassign or change selected threads during the design.
Does the Creator change colours automatically?
Yes. The embroidery file contains a colour sequence, and the machine automatically moves between the assigned needles as it reaches each programmed colour change.
What is the maximum embroidery area?
The maximum flat embroidery area is approximately 380 × 210mm using the largest compatible standard hoop.
Can the Ricoma Creator embroider caps?
Yes. It supports finished-cap embroidery using the cap driver, cap frames and hooping station. The system provides approximately 220 degrees of rotation and can stitch close to the brim when the cap is hooped and prepared correctly.
Can it embroider structured caps?
Yes. Structured cap embroidery is one of the primary advantages of the tubular multi-needle format. Results depend on correct hooping, stabiliser, needle, speed, design digitising and cap construction.
Can it sew 3D puff embroidery?
Yes. The open sewing area and cap system can support 3D puff embroidery. The design must be digitised specifically for foam, and suitable foam, needles, thread, density and finishing techniques are required.
Can the Creator embroider finished garments?
Yes. Its tubular sewing arm allows many completed garments to be positioned around the machine so only the intended layer sits beneath the needle.
Can it embroider bags and pockets?
Many bags, pockets and difficult-to-hoop items can be embroidered, depending on their construction and available opening. Optional magnetic hoops, pocket frames and speciality devices can expand the available applications.
Does the machine include a laser?
Yes. A built-in laser reference helps the operator align and position the embroidery design relative to the hooped item.
Does it detect thread breaks?
Yes. The thread-break detection system stops the machine when an upper-thread problem is detected. The operator can correct the issue and move through the design before restarting.
Does it cut the thread automatically?
Yes. The machine includes automatic thread trimming between programmed colour sections and at the completion of the design.
How are embroidery designs transferred to the machine?
Compatible designs can be loaded using USB, Ethernet or Wi-Fi. Available methods can depend on the panel software version and the computer network configuration.
What embroidery file does the Ricoma Creator use?
DST is the principal commercial embroidery format used by the machine. Other formats may be supported or converted through the supplied digitising software.
Can the touchscreen create embroidery designs?
The touchscreen can position, rotate, resize, mirror and combine compatible embroidery files. Creating a new detailed logo or converting artwork into stitches normally requires embroidery digitising software.
What is embroidery digitising?
Digitising is the process of converting artwork into stitch instructions. A digitiser determines stitch types, directions, densities, underlay, colour sequence and trims so the design can sew correctly on the chosen material.
Is digitising software included?
Ricoma Creator packages commonly include a level of Chroma embroidery software, but the exact version and licence can vary. The current Direct Sewing package should be checked for the confirmed software inclusion.
Is the Ricoma Creator suitable for beginners?
Yes, provided the user is prepared to learn hooping, stabilising, thread tension, machine maintenance and design preparation. The large screen and automatic multi-needle operation make production easier, while training and local support remain important.
Can it be used for a small embroidery business?
Yes. It is well suited to personalised gifts, small apparel orders, schoolwear, club logos, caps and home-based embroidery businesses. Production requirements should be discussed with Direct Sewing to determine whether the Creator or a larger commercial Ricoma model is the better long-term fit.
Does the machine require maintenance?
Yes. Multi-needle embroidery machines require regular cleaning, lubrication, needle replacement and tension checks. Following the operating schedule helps maintain stitch quality and reliability.
How heavy is the Ricoma Creator?
The machine weighs approximately 45 to 48kg depending on the regional specification. It is compact compared with larger commercial embroidery machines but should still be moved carefully by suitable people.
Does Direct Sewing provide support?
Yes. Direct Sewing specialises in embroidery equipment and provides New Zealand-based advice, training options and technical support through its own in-house workshop.
Move from Single-Needle Embroidery to Multi-Needle Possibility
The Ricoma Creator EM-10 is an exciting next step for serious embroiderers who want automatic colour changes, cap embroidery, a larger sewing field and the flexibility to decorate finished garments and dimensional products.
Contact Direct Sewing for current New Zealand pricing, confirmed package inclusions, demonstrations, delivery, installation and training options.
Specifications, software, warranty terms, stand configuration, training and supplied accessories can vary between international markets and promotional packages. Please refer to the current Direct Sewing quotation for the exact New Zealand configuration and inclusions.
