OSHIMA · Fusing & pressing
Lay out the piece. Control the press.

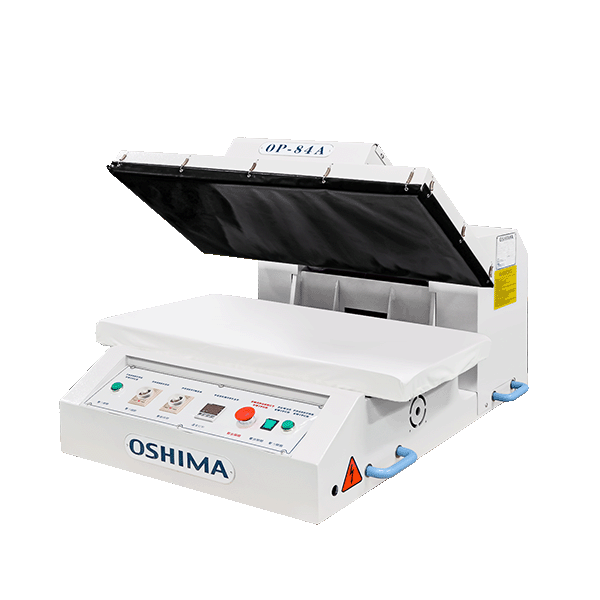

The OSHIMA OP-84A has an 800 × 400mm work area for fusing, flattening and suitable heat transfers.
At a glance
Temperature and pressure adjustment, a Teflon-covered platen and emergency stop.
- Working area
- 800 × 400mm
- Temperature / time
- Ambient–200°C / 0–30s
- Heater / motor
- 4.2kW / 0.25kW
- Manufacturer supply
- Single-phase 220V
- Dimensions (L × W × H)
- 1000 × 800 × 500mm
- Net weight
- 205kg
Plan your installation
Far-infrared positioning is optional. Confirm the supplied configuration, support and electrical installation before purchase. The manufacturer's 220V rating does not establish compatibility with a standard NZ wall socket.
Start with the material, not just the machine.
Tell us the fabric and interlining you use, your largest panel size and the space available in your workroom. We can help you compare the options before you choose.
Always trial your complete material combination and follow the interlining or transfer supplier’s recommended settings. Maximum machine temperature is not a recommended setting for every fabric.
