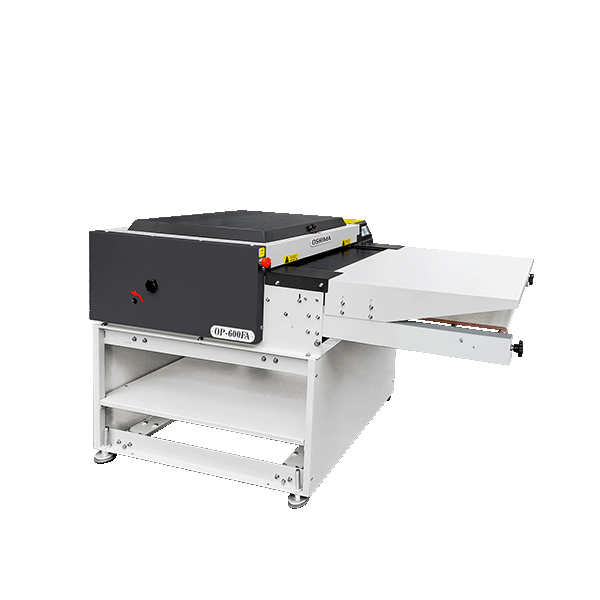

OP-600FA
Front in / front out
Choose this layout when loading and collection need to remain on the same side.
Machine size (L × W × H): 2100 × 1100 × 1050mm.
OSHIMA · Fusing & pressing
Choose the flow that fits your workroom.
The OSHIMA OP-600FA and OP-600FAL are 600mm continuous fusing presses with pneumatic pressure control. Choose front return or rear exit to suit how you load, collect and handle your garment panels.
600mm fusing widthTwo feed layoutsPneumatic pressure
Same working width. Two ways to organise the job.

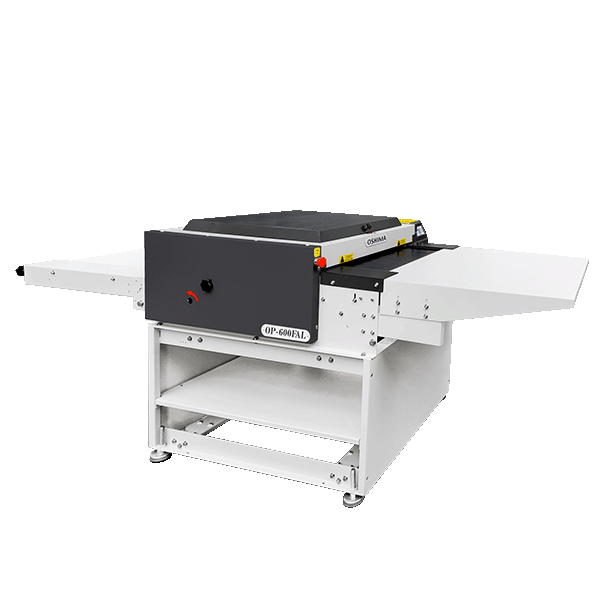

OP-600FAL
Front in / rear out
Choose this layout when work needs to pass through to a separate collection side.
Machine size (L × W × H): 2550 × 1100 × 1050mm.
At a glance
Automatic temperature control, belt-tracking correction and automatic cooling/shutdown support a controlled fusing process.
- Fusing width
- 600mm
- Temperature
- Ambient to 200°C
- Fusing time
- 10–34 seconds
- Pressure
- 0–0.5MPa
- Heater / motor
- 5.2kW / 0.04kW
- Manufacturer supply options
- Single-phase 220V or three-phase 380V
- Net weight
- 260kg
Plan your installation
An air compressor is required. Confirm the ordered electrical configuration, air requirements and installation arrangements with us before purchase. Manufacturer voltage options are not a guarantee of suitability for your existing NZ electrical connection.
Start with the material, not just the machine.
Tell us the fabric and interlining you use, your largest panel size and the space available in your workroom. We can help you compare the options before you choose.
Always trial your complete material combination and follow the interlining or transfer supplier’s recommended settings. Maximum machine temperature is not a recommended setting for every fabric.
