OSHIMA · Fusing & pressing
A compact fusing station for considered production.

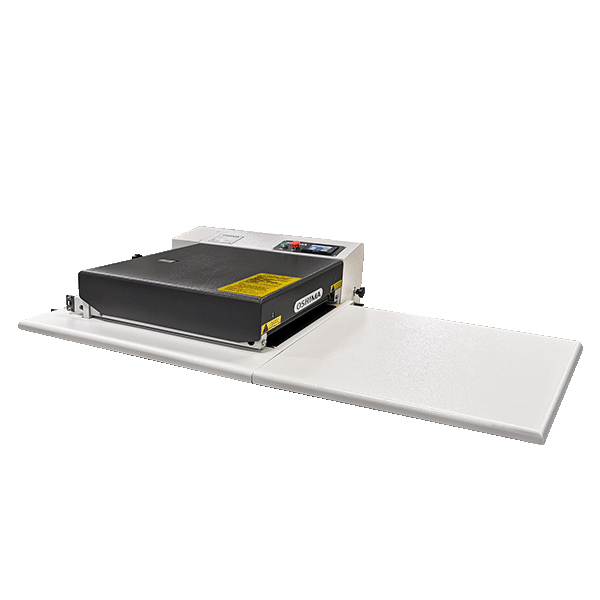

The OSHIMA OP-450GS brings 450mm conveyor fusing to sample rooms and smaller production runs.
450mm working widthConveyor feedCompact format
At a glance
Temperature control, guided cord-edge belts and upper/lower rotary separation.
- Fusing width
- 450mm
- Temperature / time
- Ambient–200°C / 0–34s
- Pressure
- 0.05–0.1MPa
- Heater / motor
- 3.6kW / 0.06kW
- Manufacturer supply
- Single-phase 220V
- Dimensions (L × W × H)
- 1700 × 910 × 360mm
- Net weight
- 145kg
Plan your installation
The machine stand is optional. Confirm the electrical connection and supporting work surface before ordering; do not assume compatibility with a standard NZ wall socket.
Start with the material, not just the machine.
Tell us the fabric and interlining you use, your largest panel size and the space available in your workroom. We can help you compare the options before you choose.
Always trial your complete material combination and follow the interlining or transfer supplier’s recommended settings. Maximum machine temperature is not a recommended setting for every fabric.
