Mauser Spezial · Programmable pattern sewing · Heavy materials
Repeat the pattern. Refine the process.

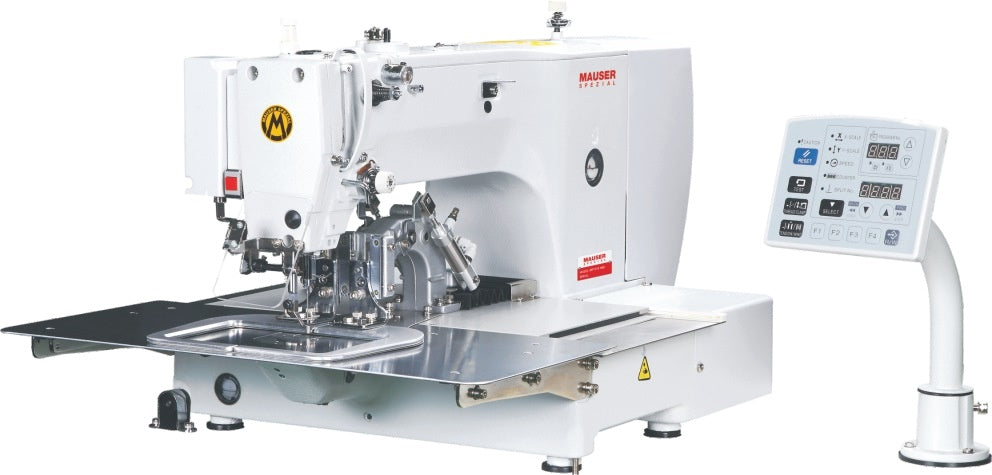

The Mauser Spezial MP2210-H80/H brings programmed stitching to repeat production work. With a 220 × 100mm sewing field and a heavy-material configuration, it is a practical option for businesses making bags, webbing assemblies, workwear and upholstery components.
Instead of guiding every seam by hand, the workpiece is held in a clamp and follows a programmed stitch path. The right program and fixture help turn a recurring sewing task into a controlled, repeatable operation.
220 × 100mm sewing field
Room for reinforcement patterns, attachment seams and shaped stitch paths. The usable area also depends on the clamp designed for your workpiece.
Clamped work control
The pneumatic work clamp holds the material during the programmed cycle. A compressed-air supply is required.
Production-focused features
Servo direct drive, automatic thread trimming, needle-thread break detection, oil-pump lubrication and LED needle-area lighting support daily sewing work.
Build the machine around your job
Potential applications include webbing and strap attachments, bag components, workwear reinforcement, labels and patches, and repetitive seams in upholstery or shade-cloth products.
Successful pattern sewing depends on more than the machine: the material stack, thread, stitch design and clamping method must work together. A sample of your actual job is the best starting point.
This is a programmed pattern stitcher, not a general-purpose embroidery machine or a replacement for every long, free-guided seam.
At a glance
- Model
- Mauser Spezial MP2210-H80/H
- Machine type
- Programmable industrial pattern sewing machine
- Configuration
- Heavy-material version
- Maximum sewing field
- 220mm × 100mm
- Drive
- Servo direct drive
- Work clamp
- Pneumatic; compressed air required
- Needle system
- 135 × 17
- Thread handling
- Automatic trimming and needle-thread break detection
- Lubrication / lighting
- Oil-pump lubrication and LED needle light
- Machine package
- Machine, industrial table and stand
Price and job-specific setup
NZ$12,499 including GST. Specific clamps and fixtures to suit your job, additional devices such as flip-flop equipment, pattern design and programming, training, delivery and installation are additional and quoted separately. Optional-device compatibility is confirmed for the proposed setup.
Please allow for a suitable compressed-air supply; an air compressor is not included.
What to send with your enquiry
- A photo or sample of the finished item and intended stitch pattern.
- The materials, number of layers and thread you plan to use.
- The approximate sewing dimensions, production volume and delivery location.
We can then confirm suitability, the required clamp and programming work, lead time and nationwide New Zealand delivery arrangements before you order.
Explore our industrial bartack and pattern sewing machines, or view the Mauser catalogue’s MP2210-H80 series overview (PDF, printed page 25). The catalogue covers multiple models and configurations.
