Sew the design flat
Use running stitches or open decorative stitching so the fabric has room to move when the thread contracts.

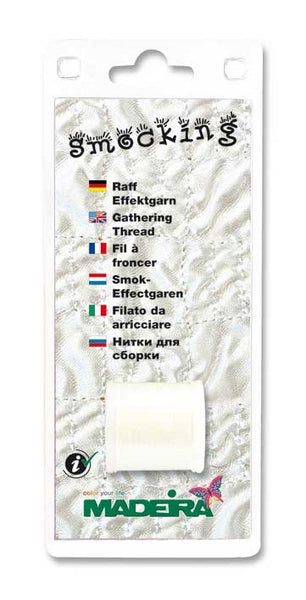

Madeira 9662 · Heat-Reactive Smocking Thread
Stitch it flat, add steam and watch the texture rise
Madeira Smocking is a heat-reactive 100% polyester bobbin thread for controlled puckering. Sew embroidery or decorative stitching with the fabric flat, then apply steam from the bobbin side: the special thread shrinks while the fabric does not, drawing the stitched area into dimensional folds and textured effects.
- Heat creates the effect: steam activates the thread after the stitching is complete.
- Controlled surface texture: stitch layout, spacing, fabric and pressing influence the finished pucker.
- Domestic-machine compatible: suitable for household sewing and embroidery machines.
200mapproximately 220 yards
100% polyesterheat-reactive special-effect thread
Bobbin threadregular thread stays in the needle
NM 75–80recommended needle range
Madeira Smocking goes in the bobbin. Keep a suitable ordinary sewing or embroidery thread in the needle. This is not conventional elastic shirring thread: the fabric remains flat while sewing and gathers only when heat and steam activate thread 9662.
How the heat-reactive effect works
The bobbin stitches form a hidden network on the reverse of the fabric. Heating that network makes the Smocking thread contract more than the fabric, so the surface is drawn into relief according to the stitched lines and spaces.
Expose the reverse to steam
Turn the work bobbin-side up and slowly apply controlled steam and heat while keeping the iron moving.
Reveal the texture
The bobbin thread shrinks and pulls the stitched fabric into puckers, folds, bubbles and raised surfaces.
Creative ways to use Madeira Smocking
Dimensional machine embroidery
Choose open motifs and running-stitch designs with negative space, allowing the activated fabric to rise between stitched areas.
Decorative sewing
Create textured panels, borders and line patterns on suitable heat-tolerant fabric with an ordinary sewing machine.
Fashion and costume details
Add controlled puckering to yokes, sleeves, collars, bags and statement panels before assembling the finished item.
Textile art and samples
Explore grids, spirals, waves and free-motion lines, then compare how different stitching layouts transform under steam.
Set up the machine for the smocking effect
Use a suitable ordinary sewing or embroidery thread that gives the desired visible colour on the right side.
Wind Madeira Smocking 9662 onto the bobbin and place it underneath the fabric where heat can activate it later.
Start with a universal sewing needle NM 75–80. Madeira article 9455 is the corresponding recommended needle.
No special iron or needle is required. Madeira says the thread works in all domestic sewing and embroidery machines. Use stabiliser only when the chosen fabric or embroidery design would normally require it.
How to create the finished puckered texture
Always make a complete sample using the project fabric, thread, stitch settings and iron. The amount and character of the shrink effect can change considerably between combinations.
Test the materials
Confirm the fabric, top thread, stabiliser and trims can safely tolerate steam and the iron temperature being used.
Stitch an open design
Sew the motif with Smocking in the bobbin. Running stitches and generous negative space give the fabric room to pucker.
Turn bobbin-side up
Place the stitched work wrong-side up on a heat-safe surface so the special thread is directly exposed to the steam.
Steam slowly
Move the iron gradually over the reverse. Begin with light pressure, watch the fabric contract and build the effect in stages.
Four variables shape the result
Stitch layout
Parallel lines, grids, waves and outlines pull the cloth in different directions. Sample the full repeat rather than judging a single line.
Density and negative space
Open stitching leaves room for dimensional movement. Dense filled areas can restrict the fabric and produce a firmer result.
Fabric character
Weight, weave, fibre and heat tolerance influence the scale and softness of the puckers. The same design can look different on another cloth.
Steam and pressure
Activate gradually. Light controlled pressing encourages raised texture, while more pressure can create a flatter, more wrinkled appearance.
Helpful habits and common mistakes
Do
- Create and activate a sample before stitching the project.
- Use the Smocking thread in the bobbin and regular thread in the needle.
- Choose simple, open stitching with room for movement.
- Apply steam from the reverse and build the effect gradually.
Do not
- Do not activate without checking the fabric's heat and steam tolerance.
- Do not confuse this with ordinary elastic shirring or gathering thread.
- Do not begin with maximum heat and heavy pressure on the final project.
- Do not press the finished raised texture flat unless that is the intended effect.
Smocking 9662 is not knitting elastic or ordinary shirring thread
| Product | How it is used | When the gathering appears | Main purpose |
|---|---|---|---|
| Madeira Smocking 9662 | Heat-reactive thread in the sewing or embroidery machine bobbin | After stitching, when steam and heat are applied | Dimensional puckers and decorative textured surfaces |
| Elastic shirring thread | Elastic thread wound in the bobbin for rows of stitching | During sewing as the elastic draws in the cloth | Traditional gathered rows and stretch shirring |
| Madeira Elastic 9800B | Transparent elastane carried alongside knitting or crochet yarn | Elasticity is built into the stitches; no heat activation | Shape retention in knitted cuffs, ribs and fitted edges |
Madeira Smocking specifications
| Brand | Madeira |
|---|---|
| Product | Smocking heat-reactive gathering and special-effect thread |
| Article / SKU | 9662 |

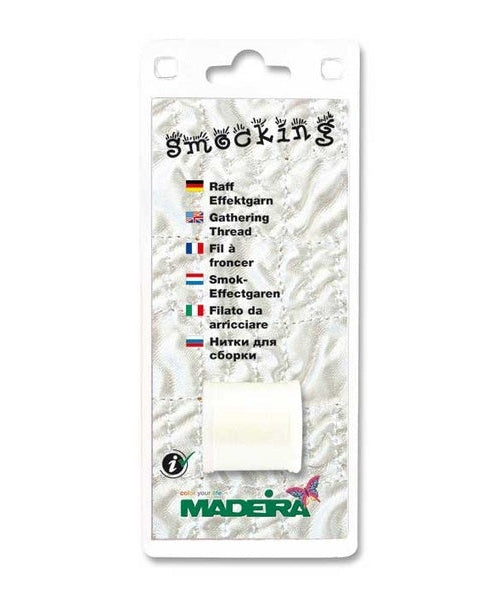

| Pack contents | One 200m Snapspool (approximately 220 yards) |
| Material | 100% polyester |
| Colour | One neutral / white colour |
| Thread position | Use as the heat-reactive bobbin thread with suitable ordinary thread in the needle |
| Machine compatibility | Suitable for all domestic sewing and embroidery machines |
| Recommended needle | Universal sewing needle NM 75–80; Madeira Universal Needle article 9455 |
| Activation | Slowly apply heat and steam from the reverse / bobbin side to create controlled puckering |
| GTIN / EAN | 4003760980670 |
Madeira Smocking thread FAQs
What is Madeira Smocking 9662?
It is a 100% polyester special-effect bobbin thread that contracts under heat. The contracting thread draws the stitched fabric into controlled puckers and dimensional textures.
Does Smocking thread go in the needle or bobbin?
Put Madeira Smocking in the bobbin and use a suitable ordinary sewing or embroidery thread in the needle. The bobbin side is then exposed to steam after stitching.
Which designs work best?
Begin with running-stitch motifs, decorative lines and designs with generous negative space. The fabric needs open areas in which to move and form texture as the thread contracts.
How is the thread activated?
Turn the work wrong-side or bobbin-side up and slowly apply steam and heat with a moving iron. Start with light pressure and build the effect gradually after testing the complete material combination.
Will it work on every fabric?
The amount of puckering varies with fabric weight, fibre, weave and stitch layout. Only use fabrics and trims that can tolerate the required heat and steam, and always activate a sample first.
Do I need a special iron, needle or stabiliser?
Madeira says no special iron or needle is required and recommends an NM 75–80 universal sewing needle. Add stabiliser only if the chosen fabric or embroidery design would normally need it.
Which machines can use Madeira Smocking?
It is suitable for domestic sewing and embroidery machines. Test bobbin tension, stitch formation and the heat-activated result on a project sample before sewing the final piece.
Is this the same as elastic shirring thread?
No. Ordinary elastic shirring thread gathers while it is sewn. Madeira Smocking is heat-reactive: the fabric is stitched flat and the puckering develops afterwards when steam and heat shrink the bobbin thread.
Turn open stitching into dimensional textile texture
Place Madeira Smocking in the bobbin, sew the design with room for movement, then activate the reverse gradually with steam. A careful sample lets you balance stitch layout, fabric and heat before transforming the final project.
