JUKI · Fully digital zigzag · Complete set
More control.
A more refined zigzag.

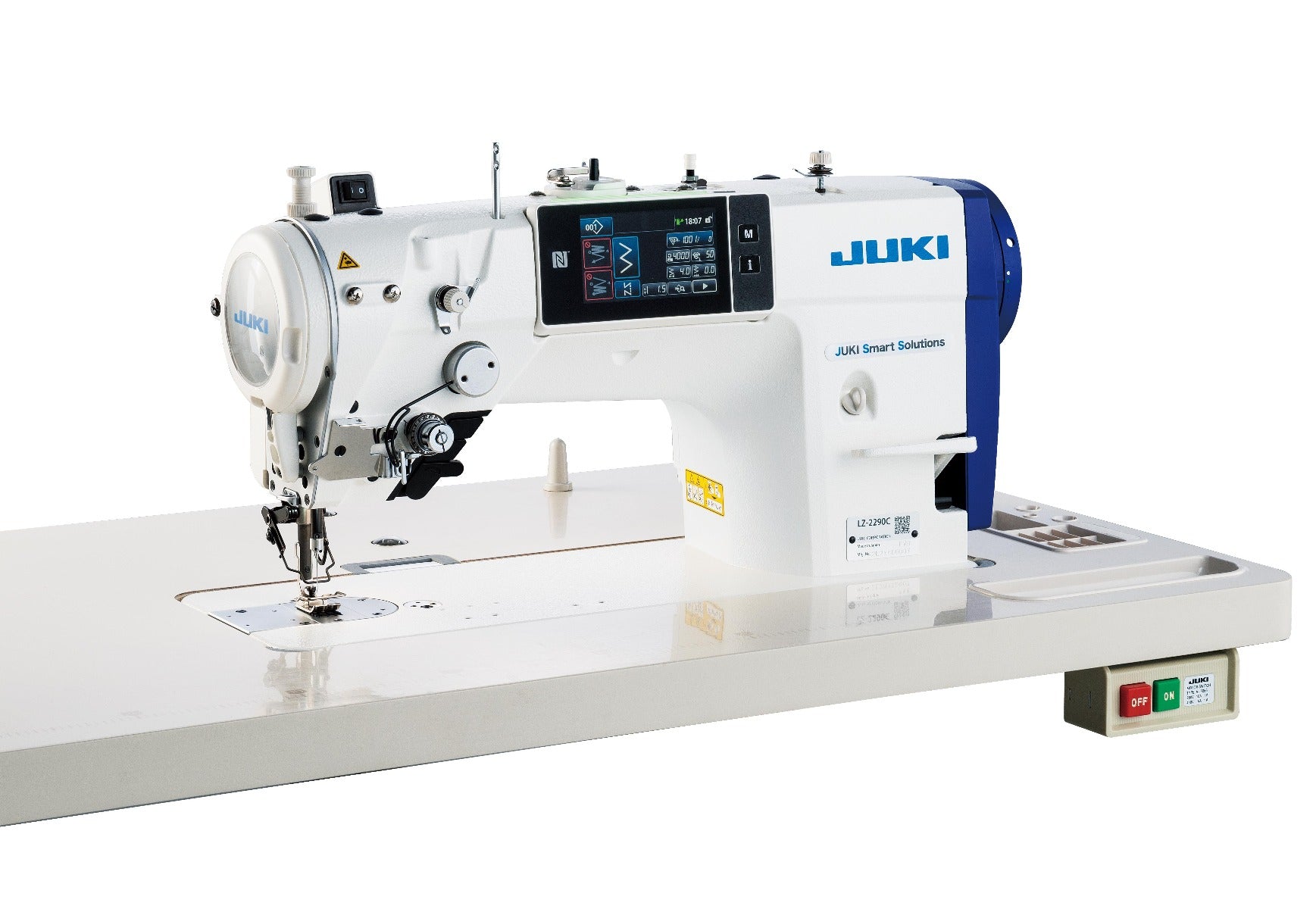

The JUKI LZ-2290CF-7-WB brings fully digital adjustment to industrial zigzag sewing. Its integrated direct-drive motor, colour touchscreen and automatic thread trimming help keep garment production moving, while precise feed and tension settings give you more control over the finish.
Built for light- to medium-weight materials, it is a versatile choice for garment workrooms, lingerie, labels and decorative stitching. Supplied as a complete set.
Control where it counts
Fine-tune the seam to your fabric
- Digital material feeding: adjust horizontal and vertical feed movement, timing and feed path from the panel to suit the material.
- Rotary active tension: electronic tension correction helps maintain consistent stitches as speed and remaining bobbin thread change.
- Multilayer detection: set different sewing conditions for flat areas and thicker joins.
- Pattern versatility: choose built-in zigzag, T-stitch and decorative patterns, or save your own stitch designs.
- Convenient finishing: automatic thread cutting, a thread wiper and one-touch reverse reduce interruptions between seams.
Key specifications
- Model
- LZ-2290CF-7-WB / LZ2290CF7WB
- Machine type
- Fully digital, single-needle industrial zigzag lockstitch
- Maximum sewing speed
- 5,000 stitches/min; factory setting 4,000. Maximum depends on stitch pattern and settings.
- Zigzag width
- 8mm standard; up to 10mm with a gauge change
- Feed length
- Up to 5mm; factory setting 2.5mm
- Custom pattern memory
- 200 patterns, up to 500 stitches per pattern
- Needle system
- DP×5 / 438
- Working space
- 300mm from machine arm to needle
- Operator features

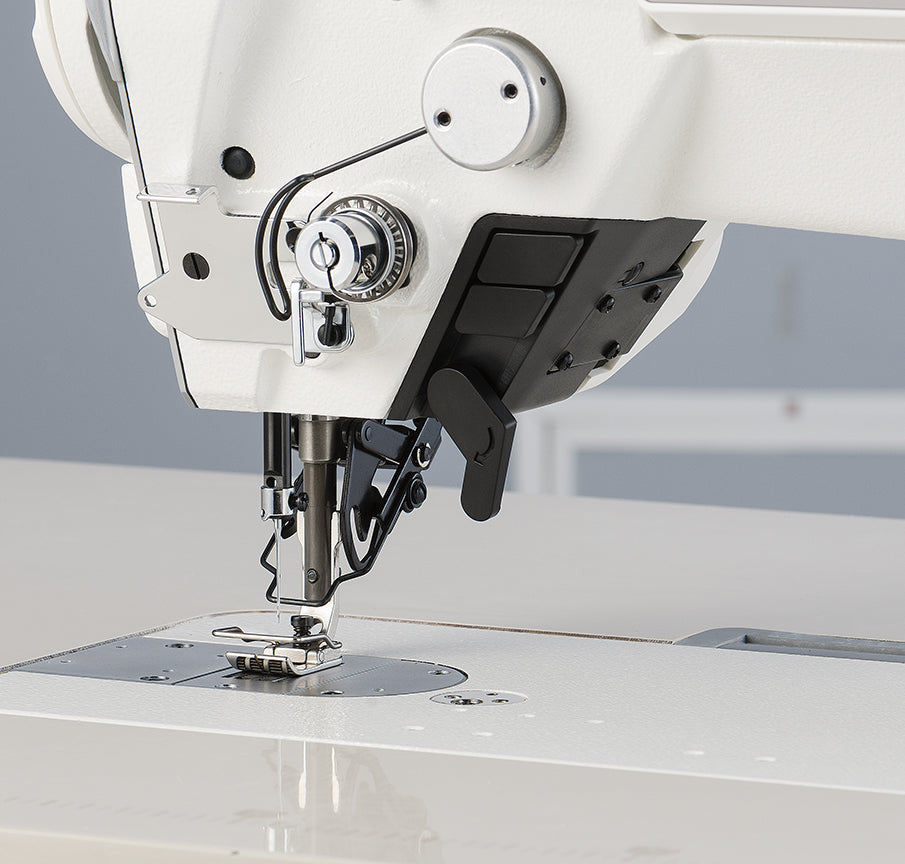

- Colour touchscreen, USB, NFC, adjustable LED light and programmable triple hand switch
- Lubrication
- Semi-dry: grease-lubricated frame, with oil supplied to the hook from a tank
Plan your workroom setup
Complete set. Matched to your work.
Choose the LZ-2290CF-7-WB for controlled, repeatable zigzag stitching in a professional garment workroom. Talk to Direct Sewing about your fabric, thread and stitch requirements before ordering.
Automatic foot lifting and the AK156 active presser are separate configuration options. Please confirm any required options, the supplied electrical version, delivery and installation arrangements with Direct Sewing.
