Large working area
Approximately 347 mm of needle-to-arm space and 127 mm of vertical clearance provide additional room for large and bulky workpieces.

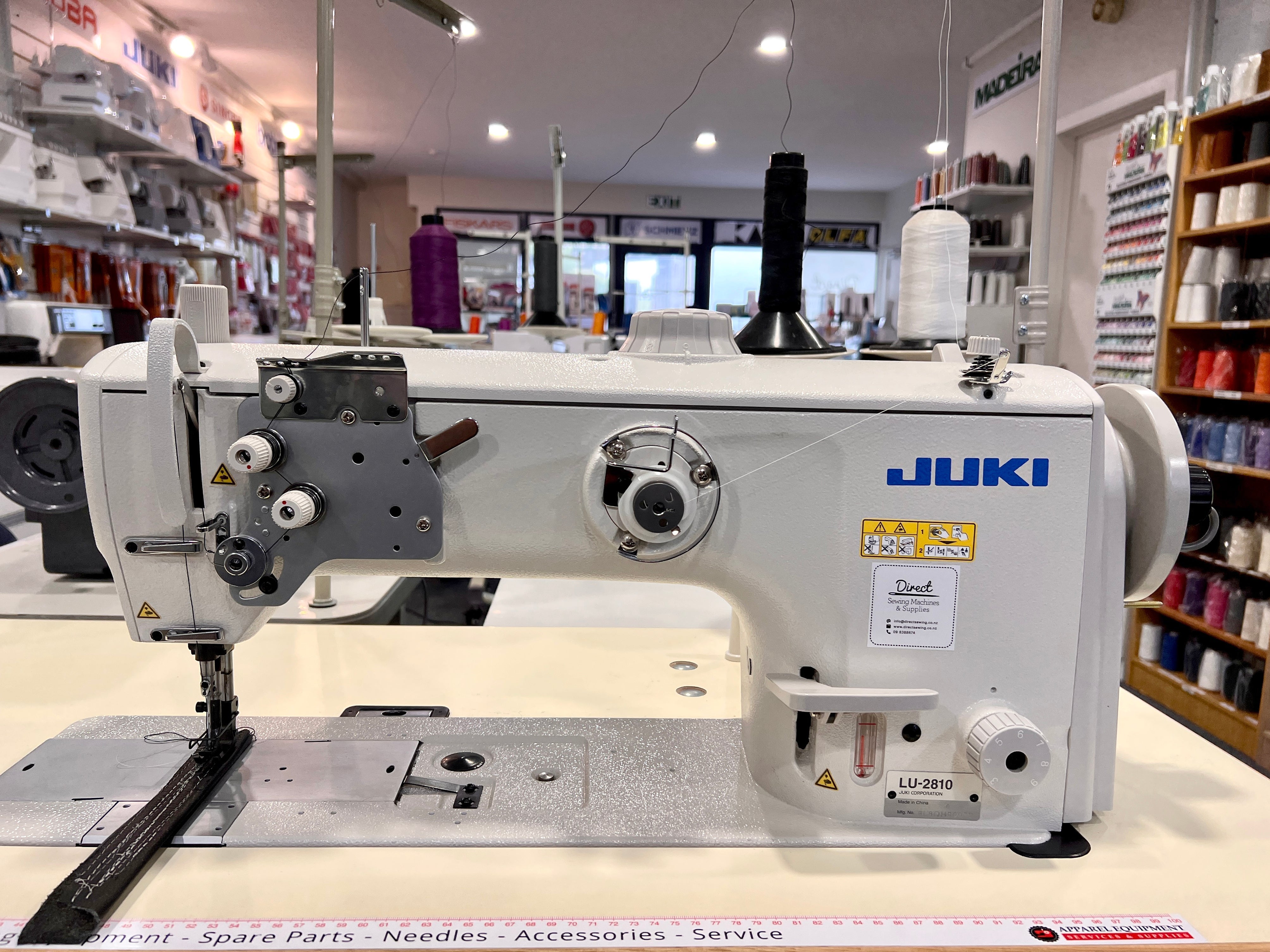

JUKI Industrial | Model LU-2810AS
More workspace and control for large, heavy sewn products
The JUKI LU-2810AS is a high and semi-long-arm compound-feed industrial sewing machine designed for heavy materials and large assemblies. Its true unison-feed system, large drop-in bobbin and expanded working area make it particularly effective for upholstery, canvas, marine covers, tents, bags and other bulky products.
- True compound feed controls layered materials from the needle, foot and feed dog.
- 347 mm working area provides more room than a standard walking-foot machine.
- Vertical-axis 2×-capacity hook provides easy bobbin access and longer sewing runs.
- Safety clutch helps protect the hook if the machine becomes jammed.
3,000
Stitches per minute
9 mm
Maximum stitch length
1–9 mm
Walking-foot movement
347 mm
Needle-to-arm workspace
Extra working room without moving to a full long-arm machine
The increased distance between the needle and machine arm makes it easier to turn, position and support large workpieces such as boat covers, furniture panels, tents, automotive upholstery and bulky bags.
The LU-2810AS combines this expanded workspace with JUKI’s unison-feed system, allowing the needle, inside presser foot and feed dog to move the material together. This helps maintain alignment and consistent stitch length across multiple layers.
Designed around heavy-material productivity
Large drop-in bobbin
The vertical-axis 2×-capacity hook provides easy top access and reduces bobbin changes during long seams with heavier thread.
Adjustable walking movement
Walking-foot and presser-foot movement can be adjusted from approximately 1 to 9 mm using the large top-mounted dial.
Double thread tension
The standard double-tension system provides greater control when sewing heavier materials with thicker industrial thread.
Resettable safety clutch
If excessive load is applied around the hook, the safety clutch can disengage and be reset by button after the cause is cleared.
Semi-dry lubrication
The semi-dry head and tank-style automatic lubrication system provide stable lubrication while helping reduce oil around the needle area.
True Unison Feed
Positive control across bulky layered assemblies
The LU-2810AS feeds the material at three points. This helps keep upper and lower layers aligned while crossing raised joins, piping, foam-backed materials and changing seam thicknesses.
A bottom-feed micro-adjustment mechanism allows the feed balance to be tuned for the material and thread being used.
Needle feed
The needle travels with the material during the feeding movement.
Inside walking foot
The inside foot controls and advances the material from above.
Bottom feed dog
The feed dog advances the material from beneath the needle plate.
Recommended Applications
Built for heavy and bulky sewn products
The combination of strong unison feed, expanded workspace and large-capacity hook makes the LU-2810AS suitable for demanding commercial and industrial applications.
Marine and canvas work
Boat covers, awnings, canopies, tents, tarpaulins and equipment covers.
Furniture upholstery
Sofa panels, cushions, piping, foam-backed materials and decorative seams.
Automotive upholstery
Vehicle seating, interior panels, marine seating and trim components.
Horse rugs and covers
Equestrian textile products, binding and layered rug assemblies.
Bags and luggage
Equipment bags, travel goods, backpacks, cases and reinforced products.
Leather, vinyl and PVC
Suitable upholstery and bag materials where the selected feet and feed setup are appropriate.
Sample testing is recommended
Material density, surface finish, thread size, foam thickness and the
number of layers all affect suitability. Standard presser feet and feed
dogs can mark some delicate, glossy or coated surfaces. Very dense
belting, heavy harness work and thick saddlery may require a machine
designed for heavier thread than the LU-2810AS.
Supplied with a high-powered servo motor and synchronizer
Direct Sewing supplies the LU-2810AS as a complete industrial workstation rather than a machine head alone.
Machine package
- Genuine JUKI LU-2810AS machine head
- High-powered adjustable-speed servo motor
- Synchronizer for controlled machine positioning
- Industrial table and stand
- Thread stand
- Wheels for easier workshop movement
Included accessories
- Machine oil
- Large-capacity bobbins
- Screwdriver
- Industrial needles
- Instruction and setup guidance
The machine is supplied built up as a complete workstation. Freight
arrangements are required for delivery outside Auckland. Table and
stand appearance may vary from the product photography.
JUKI LU-2810AS specifications
| Model | JUKI LU-2810AS |
|---|---|
| Machine type | Semi-dry, single-needle industrial lockstitch machine |
| Feed mechanism | Unison/compound feed |
| Application | Heavy materials and bulky multi-layered products |
| Maximum sewing speed | Up to 3,000 stitches per minute |
| Maximum stitch length | 9 mm in forward and reverse |
| Stitch-length control | Single stitch-length dial |
| Presser-foot lift | 10 mm by hand; up to 20 mm when equipped with the appropriate automatic lifting mechanism |
| Automatic foot lifter | Optional on the non-trimmer LU-2810 platform. Confirm the supplied package if automatic lifting is required. |
| Alternating vertical movement | Adjustable from approximately 1 to 9 mm |
| Movement adjustment | Large top-mounted dial |
| Hook and bobbin | Vertical-axis 2×-capacity hook with drop-in bobbin |
| Thread tension | Double-tension system |
| Bottom-feed adjustment | Micro-adjustment mechanism provided as standard |
| Safety clutch | Provided as standard with push-button reset |
| Needle system | 135×17 / DP×17; Nm160 standard specification, usable range Nm125–Nm180 |
| Thread range | #30 to #5; approximately B46 to B138 |
| Lubrication | Semi-dry head with automatic tank-style lubrication |
| Working area | Approximately 347 mm from needle to arm and 127 mm high |
| Package motor | High-powered adjustable-speed servo motor with synchronizer |
| Automatic thread trimming | No; automatic trimming is associated with LU-2810-7 variants |
| Automatic backtacking | No; reverse stitching is manually controlled |
Use the correct DP×17 needles
Match the needle size and point to the material and thread for reliable stitch formation and reduced needle deflection.
Shop Schmetz DP×17 NeedlesChoose suitable industrial thread
Rasant Oxella 35 is a strong poly-cotton industrial thread suited to many canvas, upholstery and outdoor-product applications.
Shop Rasant Oxella 35 Thread
Direct Sewing Support
Industrial-machine advice backed by over 30 years of experience
Direct Sewing has sold, serviced and repaired sewing machines for over 30 years. The team can assess your materials, compare the LU-2810AS with other compound-feed models and recommend suitable needles, thread, feet and machine setup.
The machine includes a one-year return-to-base warranty. Direct Sewing also provides ongoing servicing, repairs and after-sales assistance.
Visit or contact us
138 Railside Avenue
Henderson, Auckland 0612
Phone: (09) 838 8674
Mobile: 021 274 2910
Email: info@directsewing.co.nz
JUKI LU-2810AS downloads
Access official JUKI LU-2800 Series information for operation, maintenance and parts identification.
JUKI LU-2810AS questions and answers
What materials is the LU-2810AS designed to sew?
It is designed for heavy materials and bulky multi-layered products including canvas covers, tents, upholstery, automotive and marine trim, horse rugs, bags, luggage, selected leather, vinyl and PVC applications.
Is the LU-2810AS a true compound-feed machine?
Yes. The needle, inside presser foot and feed dog move together during feeding. This helps keep layered materials aligned and improves stitch consistency across changing thicknesses.
How does it differ from the DNU-1541?
The LU-2810AS provides a larger 347 mm working area, a vertical-axis drop-in 2×-capacity bobbin, up to 9 mm of walking-foot movement, double thread tension and a higher presser-foot lift capability. It is particularly useful for larger and bulkier workpieces.
Does the LU-2810AS have a safety clutch?
Yes. A resettable safety clutch is provided to help protect the hook and lower drive if excessive load or a thread jam occurs. The cause of the jam must be cleared before resetting the clutch.
Does the presser foot lift to 20 mm?
The machine head supports up to 20 mm of lift when equipped with the appropriate automatic lifting mechanism. Hand lift is 10 mm. Because the automatic lifter is optional on the non-trimmer model, confirm the supplied package with Direct Sewing if the full automatic 20 mm lift is required.
Does it have automatic thread trimming or backtacking?
No. The LU-2810AS package is not the automatic LU-2810-7 version. Thread trimming and reverse stitching are manually controlled. The supplied servo motor and synchronizer provide adjustable speed and controlled machine positioning.
Can it sew leather and vinyl?
It can sew many upholstery, bag and furnishing leathers as well as suitable vinyl and PVC products. Standard feet and feed dogs may mark delicate or glossy surfaces, so sample testing and suitable feed components are recommended.
What needle system does the LU-2810AS use?
The machine uses the 135×17 / DP×17 industrial needle system. JUKI specifies a range from Nm125 to Nm180, selected according to the material and thread.
Does the package include a motor, table and stand?
Yes. Direct Sewing supplies the LU-2810AS with a high-powered adjustable-speed servo motor, synchronizer, industrial table, stand, thread stand and wheels. Oil, bobbins, a screwdriver and needles are also included.
What warranty, freight and support are available?
The machine includes a one-year return-to-base warranty. Direct Sewing can arrange freight outside Auckland and provides material assessment, setup advice, servicing, repairs and after-sales support.
