Automatic industrial plain sewer
Essential JUKI automation with the AK foot lift included

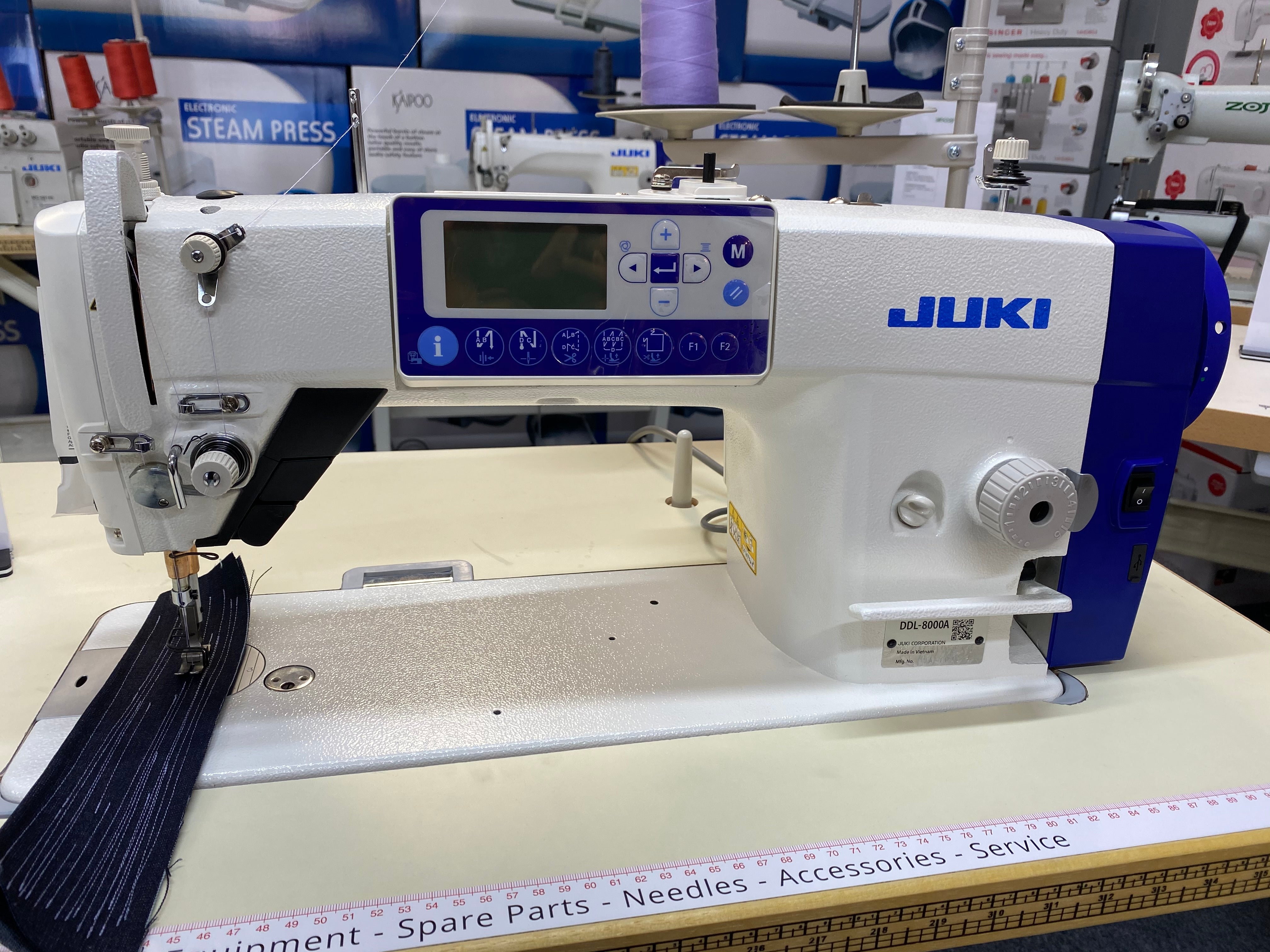

The JUKI DDL-8000A is a high-speed, direct-drive industrial lockstitch machine with automatic thread trimming, automatic backtack and the AK motor-driven automatic presser-foot lift included in this package.
Professional straight-stitch production
A dependable automatic plain sewer for garment work
The DDL-8000AS-MS is JUKI’s semi-dry, medium-weight model. It is designed for productive straight-lockstitch sewing in alteration shops, fashion studios, professional workrooms and garment manufacturing environments.
Automated seam finishing
Automatic backtacking, thread trimming and foot lifting reduce the manual actions required at the beginning and end of each seam.
Integrated direct drive
The servo motor connects directly to the machine shaft for responsive control, strong low-speed performance, efficient power use and no idle motor noise.
JUKI seam quality
Developed around JUKI’s established lockstitch platform, the machine provides reliable feeding and consistent stitch formation on garment-weight materials.
Included AK automatic foot lift
Keep both hands on the material while the machine lifts the foot
The AK motor-driven foot-lifting system raises the presser foot automatically as part of the sewing cycle. This helps the operator reposition or remove the work without reaching for the hand lever after every seam.
Faster handling
Move from sewing to repositioning or removing the work with fewer separate hand movements.
Better control
Keep both hands available to guide panels, match seams and control garment pieces.
Two lift stages
Select the clearance required for normal handling or thicker seam intersections.
Production rhythm
Automatic lifting works with the trimming and backtack functions to streamline repeated seams.
Automatic functions
Reduce repeated manual operations at each seam
The DDL-8000A automates the most repetitive steps around straight-stitch production while retaining familiar industrial machine controls.
- Programmable automatic reverse stitching
- Automatic thread trimming at the end of the seam
- Included AK automatic presser-foot lift
- Needle up and needle down positioning
- Adjustable maximum sewing speed
- One-touch reverse switch near the needle area
Operator guidance and production support
Useful information directly on the machine
The integrated LCD operation panel controls the automatic functions and provides operator-assistance features without requiring a separate external control box.
- Built-in voice guidance with clock function
- Production target and completed-piece counters
- Achievement-rate and machine operating-rate displays
- Bobbin-thread counter
- Error information and operator prompts
- Automatic panel backlight shut-off after inactivity
Cleaner garment production
Semi-dry head technology reduces the risk of oil staining
The medium-weight DDL-8000AS-MS uses JUKI’s semi-dry system. The needle-bar area operates without conventional oiling, helping protect light-coloured and high-value garments from oil marks.
Semi-dry machine head
Grease lubrication and specially treated components reduce the need for oil around the needle-bar mechanism.
Hook lubrication retained
The hook still receives controlled lubrication from the machine’s oil system. Use the specified JUKI oil and follow the maintenance instructions.
Suitable for light-coloured work
Reduced oil around the head makes the machine a practical choice for bridalwear, shirts, blouses, uniforms and other work where cleanliness matters.
High-speed capability
The semi-dry medium-weight configuration can operate at up to 5,000 stitches per minute for efficient professional sewing.
Visibility and convenient controls
Designed to support the operator throughout the working day
- LED lighting directed onto the needle entry area
- Five adjustable LED brightness levels
- USB ports on the panel and control box
- USB support for software updates and sewing data
- Compact control box integrated with the machine head
- Hand wheel and frequently used controls within easy reach
Suitable applications
A strong automatic machine for garment-weight materials
Alterations and repairs
Suitable for straight-stitch alterations to trousers, shirts, dresses, uniforms and many everyday garments.
Dressmaking and apparel production
Ideal for professional construction using cotton, polyester, linen, suiting, shirting and similar light-to-medium or medium-weight materials.
Studio and workroom use
A practical choice for fashion studios, bridal workrooms, costume departments, training rooms and small manufacturing businesses.
Technical specifications
JUKI DDL-8000AS-MS with AK foot lift
| Machine type | Direct-drive, high-speed, single-needle industrial lockstitch machine |
| Configured class | DDL-8000AS-MS standard type, medium-weight specification |
| Automatic foot lift | AK motor-driven foot lifter included |
| Automatic lift height | First stage: 8.5 mm; second stage: 13 mm |
| Hand lift | 5.5 mm |
| Knee lift | Up to 15 mm when the knee-lifter arrangement is fitted |
| Application | Garment-weight light-to-medium and medium-weight materials |
| Maximum sewing speed | Up to 5,000 stitches per minute |
| Maximum stitch length | 5 mm |
| Needle-bar stroke | 30.7 mm |
| Needle system | DB×1 / 16×231, sizes #9–#18 depending on material and thread |
| Automatic backtack | Yes |
| Automatic thread trimmer | Yes |
| Motor | Integrated 550W direct-drive servo motor |
| Power consumption | Approximately 330VA |
| Lubrication | Semi-dry head with controlled hook lubrication |
| Recommended oil | JUKI Machine Oil 7 or equivalent ISO VG7 oil |
| Operation panel | Integrated LCD panel with voice guidance and production-support functions |
| Lighting | LED needle-area light with five brightness levels |
| USB | USB ports on the operation panel and control box |
Supplied package
Current Direct Sewing configuration
The product listing currently includes the AK foot-lifting package and the following genuine machine supplies and accessories:
- AK motor-driven automatic foot lift
- JUKI genuine machine oil
- Thirty industrial needles
- Five bobbins
- Screwdrivers
- Instruction booklet
- JUKI quality-control certificate
- JUKI genuine factory certificate
Industrial machine packages can vary. Please confirm the supplied tabletop, stand, pedal arrangement, knee-lifter setup, assembly, freight and installation requirements with Direct Sewing before ordering.
Official demonstration
See the JUKI DDL-8000A Series in operation
Industrial machine support
Choose the right machine, feeding system and setup
Direct Sewing has more than 30 years of sewing-machine experience and can help determine whether the DDL-8000A is the right machine for your materials and production requirements.
- Practical industrial machine selection advice
- Guidance on the AK foot lift and automatic functions
- Help selecting compatible needles, thread and presser feet
- Industrial servicing, repairs and parts support
- Local showroom and workshop in Henderson, Auckland
Contact Direct Sewing
Direct Sewing Machines & Supplies
138 Railside Avenue
Henderson, Auckland 0612
Phone: (09) 838 8674
Mobile: 021 274 2910
Email: info@directsewing.co.nz
Frequently asked questions
JUKI DDL-8000A FAQs
Is the AK automatic foot lift included with this machine?
Yes. This Direct Sewing package includes the AK motor-driven automatic presser-foot lift. It is not an optional extra on this particular product configuration.
What does the AK foot lift do?
The AK system raises the presser foot automatically as part of the sewing cycle. It provides an 8.5 mm first-stage lift and a 13 mm second-stage lift, helping the operator reposition or remove the work while keeping both hands available.
What type of stitch does the DDL-8000A make?
It produces a single-needle straight lockstitch using one needle thread and one bobbin thread. It is intended for professional seam construction and straight topstitching.
Does it include automatic backtack and thread trimming?
Yes. Automatic reverse stitching secures the seam, and the automatic thread trimmer cuts the needle and bobbin threads at the end of the sewing cycle.
How fast does the JUKI DDL-8000A sew?
The DDL-8000AS-MS medium-weight model can sew at up to 5,000 stitches per minute. The maximum speed can be reduced from the operation panel for detailed or unfamiliar work.
Which needles does this machine use?
It uses DB×1 industrial needles, also identified as 16×231, 287WH or 1738(A). The medium-weight model accepts sizes #9–#18, with the size and point selected to suit the material and thread.
What does semi-dry head mean?
The needle-bar and upper machine-head mechanisms use grease lubrication rather than conventional oiling. This reduces the risk of oil reaching the garment, while the rotary hook continues to receive controlled lubrication.
Can the DDL-8000A sew leather or heavy upholstery?
This configuration is intended for garment-weight light-to-medium and medium materials. It may sew some light leather with the correct setup, but thick leather, upholstery, webbing and difficult layered assemblies generally require a needle-feed, walking-foot or compound-feed machine.
Does the machine have a touchscreen?
No. It uses an integrated LCD operation panel with physical controls, voice guidance, production counters and automatic-function settings. Customers wanting electronic stitch-length control and a colour touchscreen should compare the JUKI DDL-900C.
What is the difference between the DDL-8000A and DDL-900C?
Both are automatic direct-drive industrial plain sewers. The DDL-8000A focuses on essential automation, voice guidance and value, while the DDL-900C adds electronic feed-length control and a colour touchscreen for more advanced digital stitch control.
Is the table and stand included?
Industrial machine packages can differ depending on assembly, freight and installation requirements. Confirm the exact tabletop, stand, pedal, knee-lifter arrangement and assembled package with Direct Sewing before ordering.
What support is available from Direct Sewing?
Direct Sewing provides industrial machine advice, setup assistance, servicing and help selecting compatible DB×1 needles, thread, presser feet and attachments from its Henderson, Auckland showroom and workshop.
Complete your industrial sewing setup
Match the DDL-8000A with the correct DB×1 needles, quality thread and suitable industrial presser feet for reliable production sewing.
