Eight-piece feed system
Multiple feed sections maintain broad contact with fine fabric, stretch knits and layered seams.
Smooth and capable 3 and 4-thread overlocker

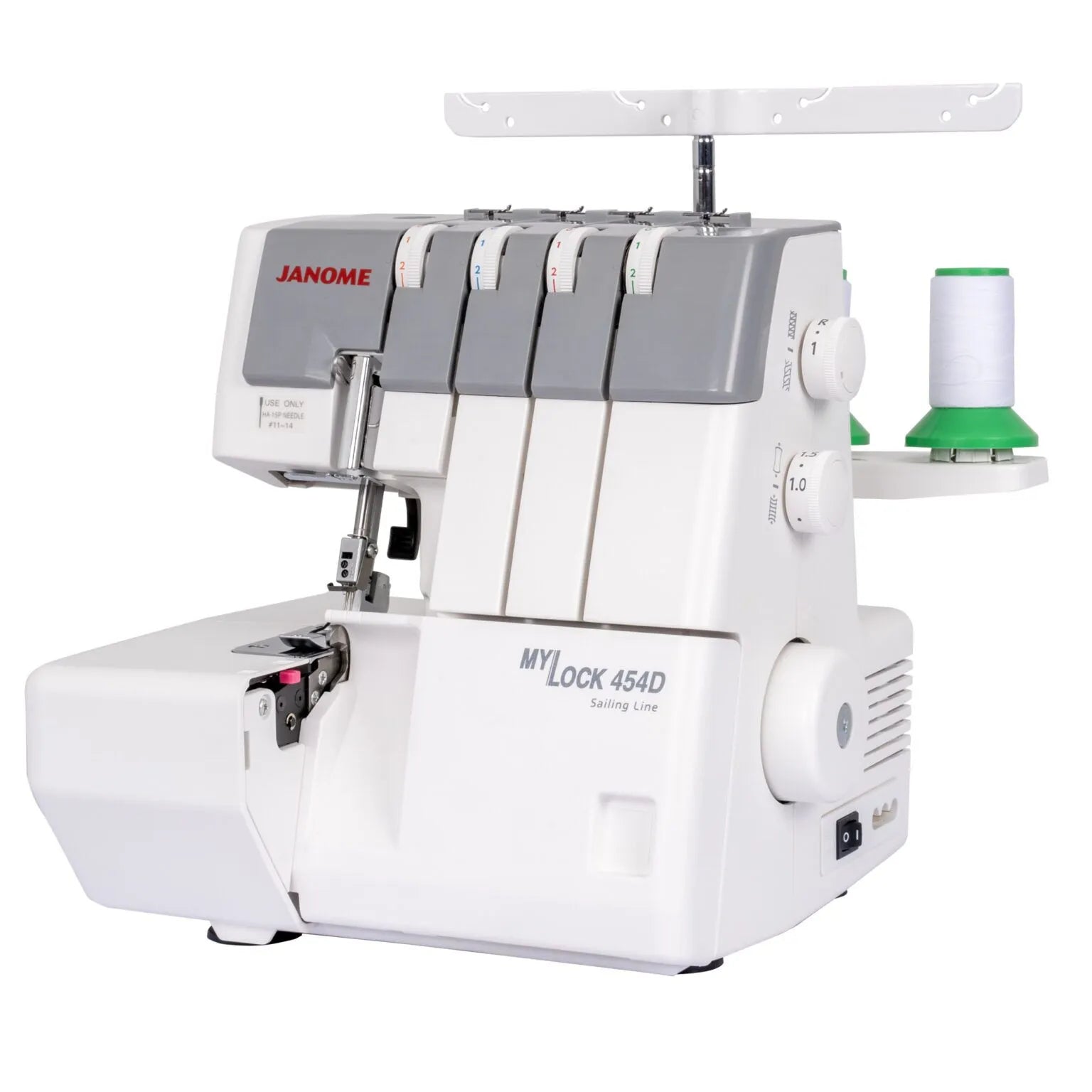

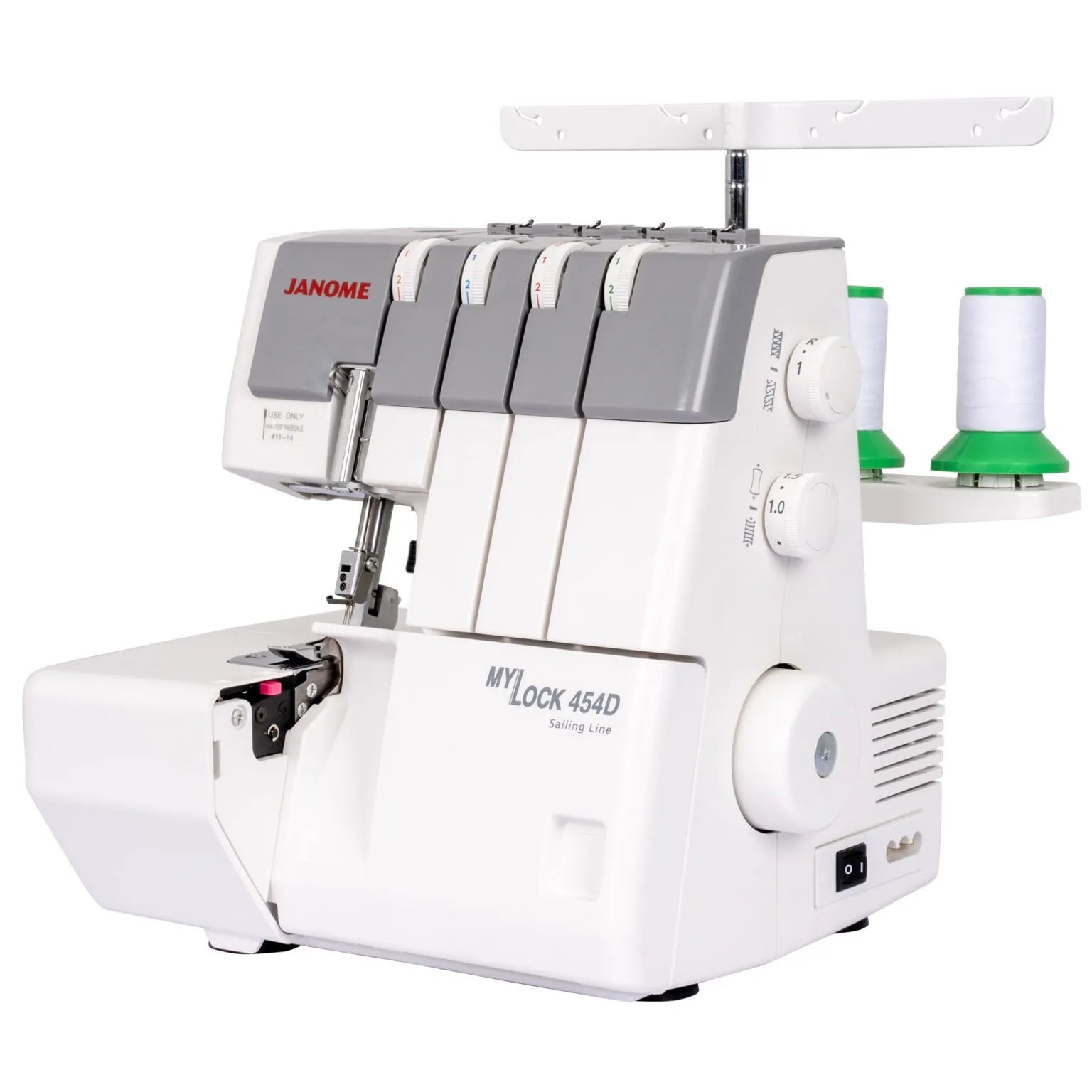

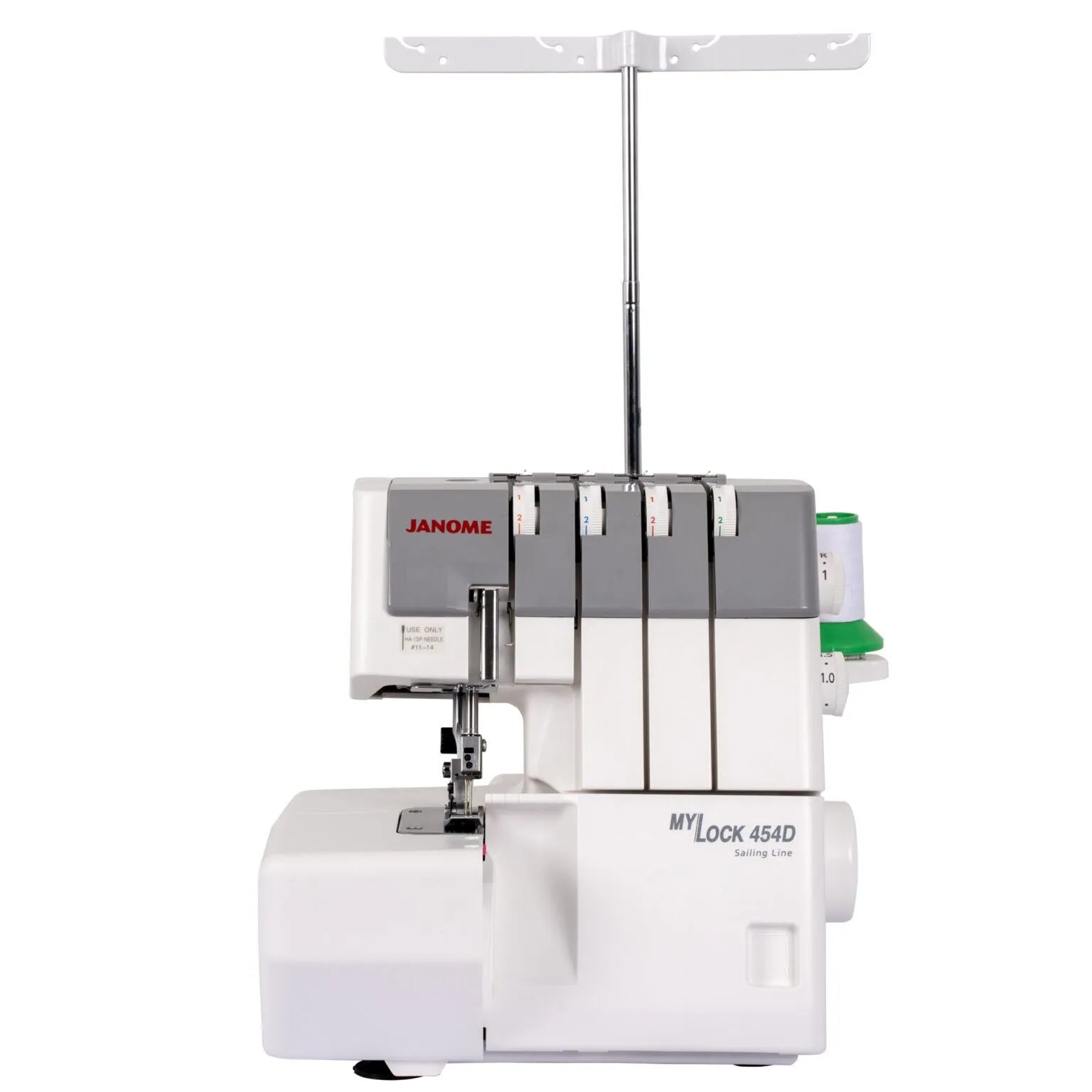

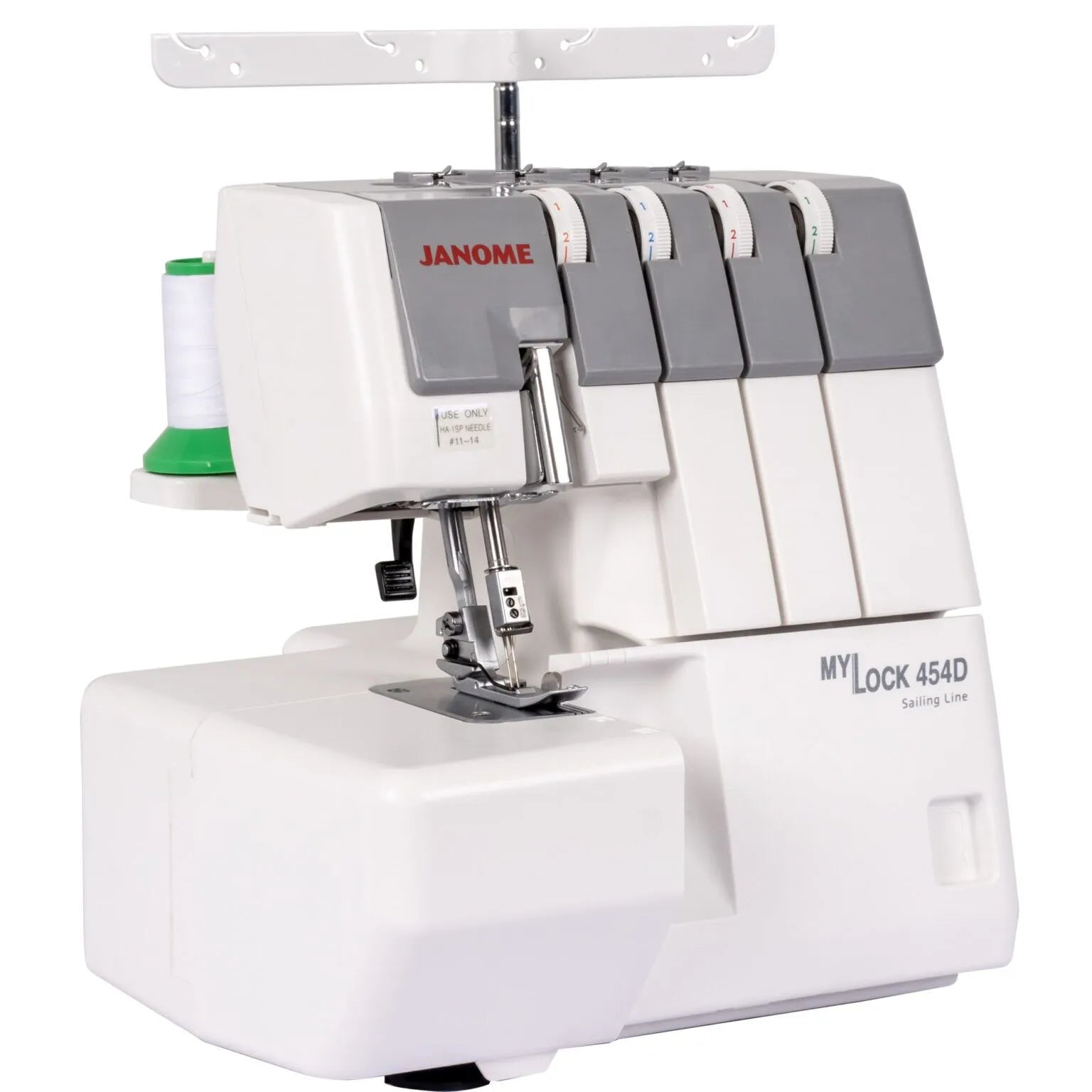

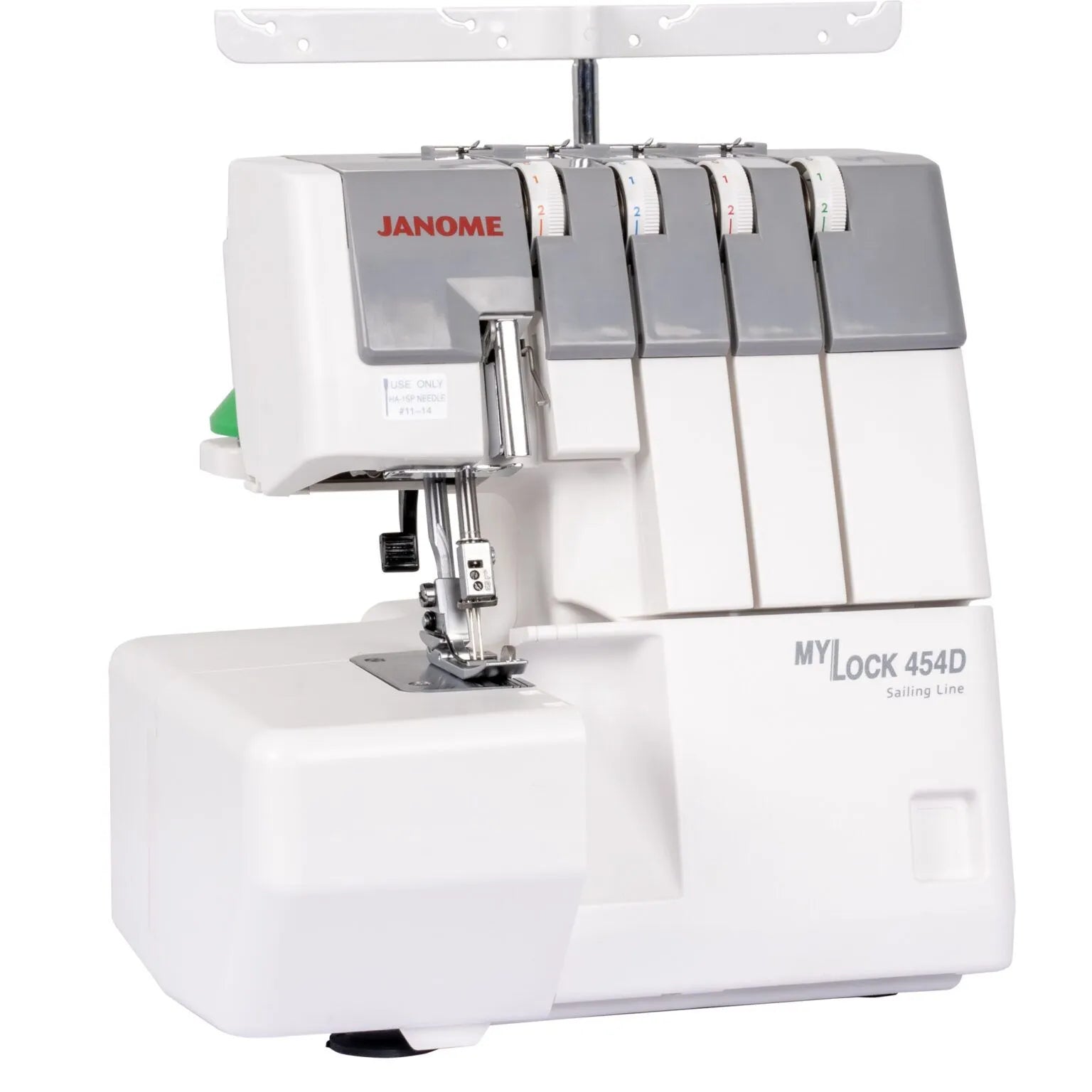

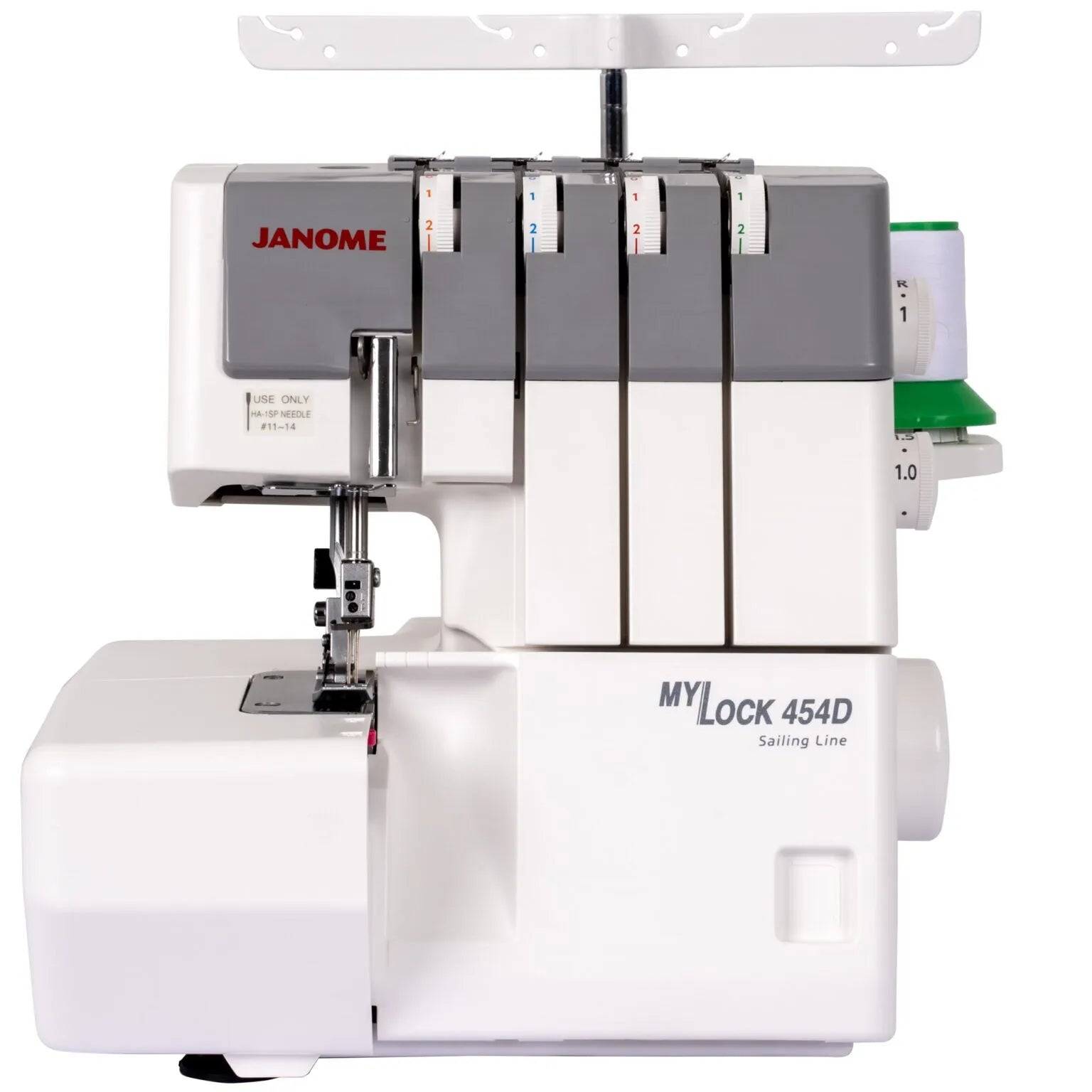

Janome MyLock 454D Sailing Line
Create secure stretch seams, professionally finished garment interiors and beautifully overlocked fabric edges with a compact machine engineered for smoother feeding and quieter operation. The Janome MyLock 454D combines an eight-piece feed system, easy lower-looper threading, differential feed and an improved Sailing Line presser foot.
3 / 4
thread configurations
1,300 SPM
maximum sewing speed
8-piece
feed dog system
6.1kg
machine weight
A practical overlocker for garments, knits and alterations
The MyLock 454D is an excellent choice for sewists ready to replace slow zigzag edge finishing with faster, cleaner and more professional overlocking.
It trims the raw fabric edge while wrapping it securely in thread. Four-thread overlocking can sew and finish stretch seams in one operation, while three-thread configurations are ideal for neatening woven seams, decorative finishing, rolled hems and flatlock effects.
The machine uses straightforward colour-coded threading, slide-in tension guides and an accessible lower-looper mechanism. It is conventionally threaded rather than air threaded, keeping the operation familiar and mechanically uncomplicated.
New Zealand and Australian package
Supplied with the essential tools to begin
The regional package includes the standard snap-on presser foot, Janome HAx1SP needles, tweezers, large and small screwdrivers, instruction book and foot controller with power lead.
- Standard snap-on overlocking foot
- HAx1SP #11 needles × 2
- HAx1SP #14 needles × 3
- Large screwdriver
- Small screwdriver
- Tweezers
- Foot controller
- Power lead
- Instruction book
- Built-in carry handle
The waste chip box, soft machine cover, additional specialist feet and extra-wide table are optional accessories.
Enhanced fabric handling with easy-to-understand controls
Easy lower-looper threading
The most difficult threading route is brought into a more accessible position.
Three and four-thread sewing
Construct stretch seams, finish woven edges, create rolled hems and form flatlock effects.
Differential feed
Adjust fabric movement from 0.5 to 2.25 to manage waving, puckering and gathering.
Improved presser foot
A wider tip, underside grooves and a stopper support rolled hems and bulky seam crossings.
Lay-in tension guides
Slide each thread into its tension path while the presser foot is raised.
Quick rolled-hem conversion
Change the chaining-finger position without replacing the needle plate.
Reduced vibration
Special Hanenite rubber feet help deliver quieter and more stable high-speed sewing.
Enhanced Sailing Line feeding
Eight feed-dog sections improve control
The feed dogs maintain contact with the project before, beneath and behind the needle area.
This helps fine woven fabrics, jersey, fleece and layered seams move consistently beneath the foot.
Additional feeding support is especially valuable when the presser foot climbs over a crossed seam or changes between fabric thicknesses.
Improved presser-foot engineering
Smoother starts and better bi-level sewing
The foot has a gently curved leading edge that helps it approach thicker fabric levels smoothly.
Grooves beneath the foot help reduce fabric slippage, while the built-in stopper limits excessive tilting when the machine crosses bulky seam intersections.
An extended needle-drop guide improves visibility when positioning the fabric before it reaches the knife and needles.
- Wide rolled-hem tip
- Gentle leading curve
- Anti-slip underside grooves
- Foot-tilt stopper
- Extended needle-position guide
- Snap-on attachment
Slide-in tension guides and colour-coded paths
The MyLock 454D is conventionally threaded, with each route clearly organised and identified.
Raise the presser foot to release the tension discs, then slide each thread into its corresponding guide. This helps ensure the thread is seated correctly inside the tension system.
Separate colours identify the left needle, right needle, upper looper and lower looper. The full sequence is also displayed inside the opening front cover.
Lay-in tension
Slide thread directly into each tension guide.
Tension release
Raising the presser foot releases all four tension paths.
Colour coding
Each needle and looper route has its own colour.
Visible diagram
The threading chart remains visible while the cover is open.

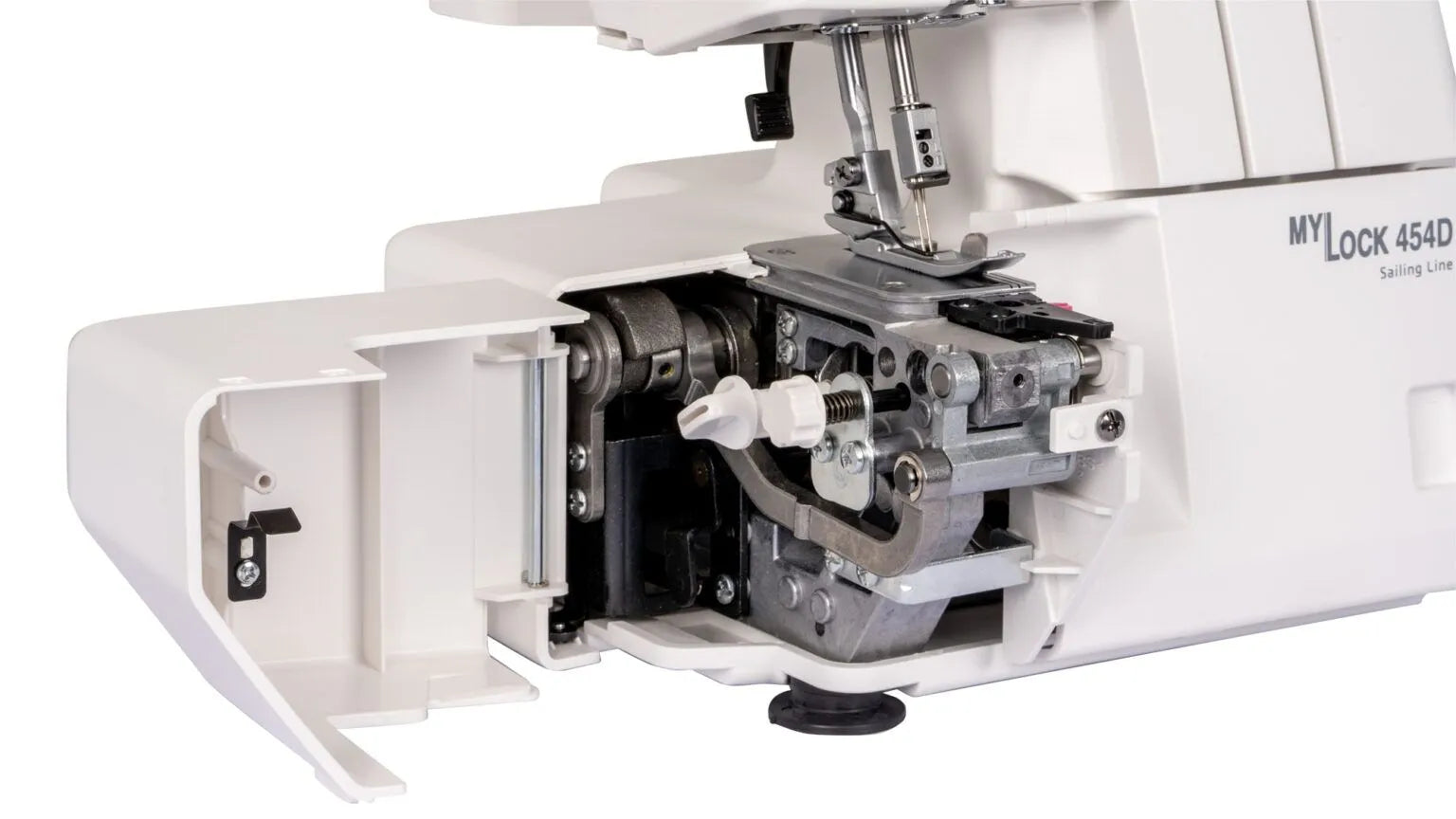

The difficult path made easier
Accessible lower-looper threading
Open the looper and side covers, then follow the green colour-coded route to the lower-looper mechanism.
Janome’s easy-threading system brings the difficult guide into a more convenient position, reducing the need to reach behind the upper-looper assembly.
This is not an air-threading system, but it makes conventional lower-looper threading considerably more approachable.

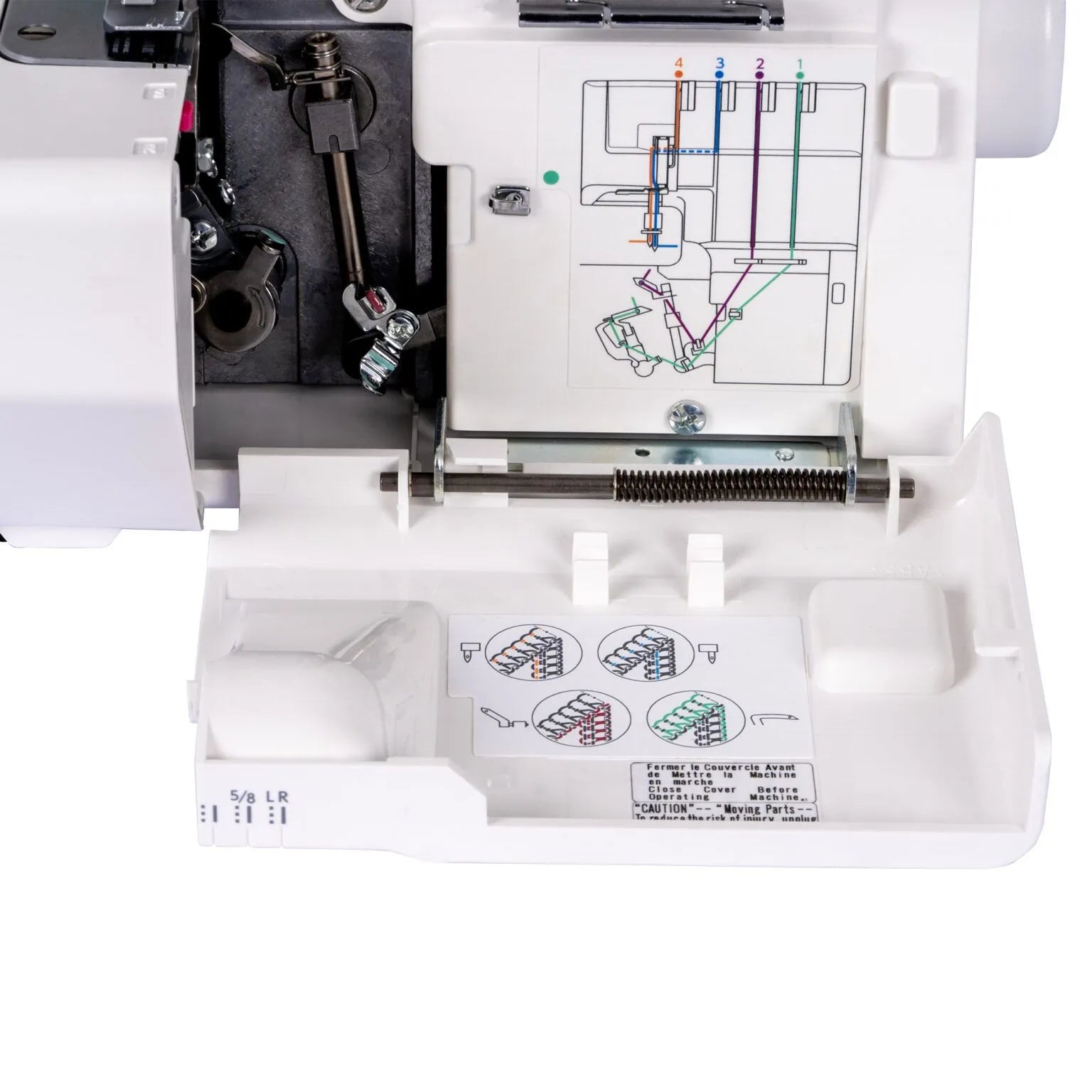

Threading guidance built into the machine
A full diagram inside the front cover
The printed chart shows each thread route in the correct order and identifies every internal guide point.
Keeping the chart inside the machine means it remains available whenever threads are changed or the overlocker needs to be rethreaded.
Differential feed from 0.5 to 2.25
Differential feed changes the relationship between the front and rear feed dogs.
Increase the setting to help prevent stretch fabrics from becoming wavy or to create controlled gathering. Reduce the setting to help manage puckering on lightweight woven materials or to create a deliberately stretched finish.
Stretch knits
Help prevent rippled T-shirt and activewear seams.
Fine woven fabrics
Adjust feeding to help reduce unwanted puckering.
Gathering
Create controlled fullness by increasing the feed ratio.
Lettuce edging
Stretch suitable knit fabric during rolled hemming.
Garment easing
Ease one fabric edge into another during construction.
Everyday overlocking
Return to the neutral setting for standard flat seams.
Quick rolled-hem conversion
Change techniques without replacing the plate
Move the chaining-finger switch knob from the standard position to the rolled-hem position.
With the stitch finger withdrawn, the looper threads can roll the fabric edge into a narrow, dense finish.
Rolled hems are ideal for napkins, scarves, ruffles, sheer fabrics and decorative garment edges.
Reliable thread placement
Improved slide-in pre-tension guides
Each thread passes through a top pre-tension guide before entering its main numbered tension dial.
The guide design helps keep thread seated in the correct route and reduces common threading errors that can lead to loose or unbalanced stitches.
Stable operation at higher speeds
Hanenite rubber feet reduce vibration and noise
Overlockers operate quickly and use both needles and cutting knives, which can create vibration through the work surface.
Special rubber feet help isolate this vibration, reduce machine movement and create a smoother, quieter sewing experience.
Improved motor torque also supports controlled seam starts and movement through layered fabric sections.
Adjustable stitch length, cutting width and foot pressure
Stitch length
Adjust from 1 to 4mm for dense edging or longer construction seams.
Cutting width
Adjust from approximately 3.1 to 7.3mm depending on needle position.
Foot pressure
Adapt fabric contact for fine, stretch and firmer materials.

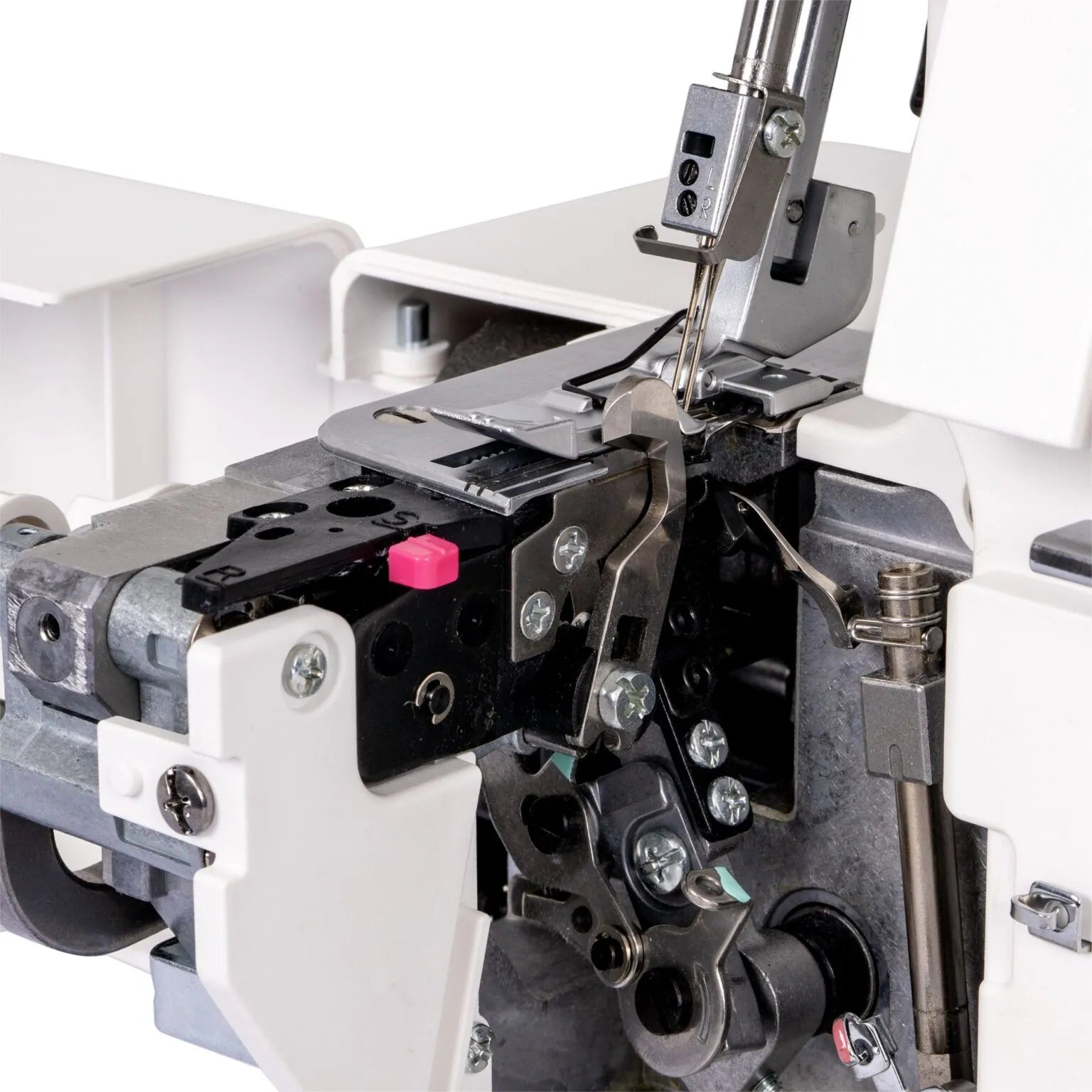

Retractable knife
Disengage the upper knife when fabric trimming is not required.
Cutting width using the left needle is approximately 5.3 to 7.3mm. When the left needle is not used, the available range is approximately 3.1 to 5.1mm.
Professional finishes for garments and creative sewing
Four-thread overlock
A strong and flexible construction seam for stretch garments and general overlocking.
Three-thread wide overlock
Use the left needle for wider edge finishing on medium and heavier materials.
Three-thread narrow overlock
Use the right needle for a narrower edge finish on light and medium fabrics.
Three-thread rolled hem
Create a narrow rolled finish for ruffles, scarves, napkins and delicate edges.
Flatlock effect
Adjust the tension to form a flat decorative or joining stitch.
Picot edging
Produce a delicate decorative edge on chiffon and other lightweight fabrics.
Gathered overlocking
Combine differential feed, stitch length and tension to create controlled gathers.
Lettuce-leaf edging
Stretch knit fabric during rolled hemming to create a decorative wave.
An excellent overlocker for beginners and regular garment makers
T-shirts
Stretch garments
Activewear
Childrenswear
Woven garments
Alterations
Seam finishing
Rolled hems
Flatlock effects
Decorative edging
Sewing classrooms
Frequent home sewing
Important information before purchasing
The MyLock 454D is a conventional manually threaded overlocker. It does not have air threading or automatic thread tension.
It is a three and four-thread model and does not provide two-thread stitching.
It does not create a coverstitch. A separate coverstitch machine is required for hems with parallel stitching on top and looped coverage underneath.
It has a flat overlocking bed and does not convert to a free arm.
It is intended for domestic garment sewing, alterations and creative projects rather than continuous industrial production.
Janome MyLock 454D included accessories
View all standard accessories
- Standard snap-on overlocking foot
- HAx1SP #11 needles × 2
- HAx1SP #14 needles × 3
- Large screwdriver
- Small screwdriver
- Tweezers
- Foot controller with power lead
- Instruction book
Janome MyLock 454D Sailing Line specifications
| Machine type | Domestic three and four-thread overlocker |
|---|---|
| Needles | One or two |
| Threads | Three or four |
| Maximum sewing speed | Up to 1,300 stitches per minute |
| Feed system | Eight-piece feed dog |
| Differential feed | Adjustable from 0.5 to 2.25 |
| Stitch length | Adjustable from 1.0 to 4.0mm |
| Cutting width with left needle | Approximately 5.3 to 7.3mm |
| Cutting width without left needle | Approximately 3.1 to 5.1mm |
| Thread tension | Four manual lay-in tension dials |
| Tension release | Presser-foot lift releases the tension discs |
| Threading chart | Colour-coded chart inside the front cover |
| Lower-looper threading | Easy-access lower-looper mechanism |
| Two-thread conversion | No |
| Rolled hemming | Yes |
| Flatlocking | Yes, using three threads and adjusted tension |
| Quick rolled-hem conversion | Yes, using the chaining-finger switch knob |
| Upper knife | Retractable using an accessible knob |
| Foot pressure | Manually adjustable |
| Presser foot | Enhanced snap-on Sailing Line foot |
| Lighting | LED sewing light |
| Thread cutter | Manual cutter on the faceplate |
| Needle system | Janome HAx1SP ballpoint needles |
| Free arm | No |
| Coverstitch capability | No |
| Waste collector | Optional |
| Machine cover | Optional |
| Foot controller | Included |
| Machine dimensions | Approximately 311mm wide × 282mm high × 270mm deep |
| Machine weight | Approximately 6.1kg |
Expand the MyLock 454D
Optional feet and attachments
- Beading foot with attachment
- Blind-stitch foot
- Cloth guide
- Cording Foot I for fine thread
- Cording Foot II for heavier thread
- Elastic-gathering attachment
- Gathering foot
- 1/8-inch piping foot
- 3/16-inch piping foot
- Taping foot with tape reel
- Extra-wide overlocker table
- Waste chip box
- Soft dust cover
- Handheld needle threader
Manuals and product information
Instruction Manual
Complete operating guide covering threading, settings, rolled hems, tension, cleaning and troubleshooting.
Product Brochure
Official Janome sell sheet showing the key Sailing Line features and standard accessories.
Janome New Zealand
Regional specifications, standard accessories and optional accessory details.
Janome Global
Detailed information about the feed system, presser foot, threading and Sailing Line engineering.
Instructional Videos
Janome’s official MyLock 454D setup and operating video playlist.
Janome MyLock 454D FAQ
Does the MyLock 454D have air threading?
No. It uses conventional colour-coded threading with lay-in tension guides and an easy-access lower-looper mechanism.
Can it sew with two threads?
No. The MyLock 454D provides three and four-thread overlocking.
Does it have automatic tension?
No. Each needle and looper thread has its own manual tension dial.
Can it sew a rolled hem?
Yes. Move the chaining-finger switch knob into the rolled-hem position without changing the needle plate.
Can it flatlock?
Yes. A three-thread configuration with adjusted tension can produce a flatlock effect.
Can the upper knife be disengaged?
Yes. The upper knife can be retracted using the accessible release knob.
Does it have adjustable cutting width?
Yes. The total available range is approximately 3.1 to 7.3mm, depending on which needle is used.
Does it include a waste tray?
No. The compatible waste chip box is an optional accessory.
Does it create a coverstitch?
No. A separate coverstitch machine is required for professional knit hems with parallel top stitching.
What is the difference between the MyLock 454D and 654D?
The 654D adds two-thread stitching, a two-thread spreader, a waste collector, a broader accessory package and heavier construction. The 454D focuses on the most widely used three and four-thread stitches in a lighter and more affordable machine.
Is the MyLock 454D industrial?
No. It is a domestic overlocker intended for garment making, alterations and creative sewing rather than continuous industrial production.
