Elevate your sewing with the space, precision and intelligent control serious projects deserve. The Janome Horizon Memory Craft 9410QC combines a generous 280mm workspace, 300 built-in stitches, automatic pivoting, ruler-work capability and a vibrant 5-inch colour touchscreen in one beautifully engineered machine.

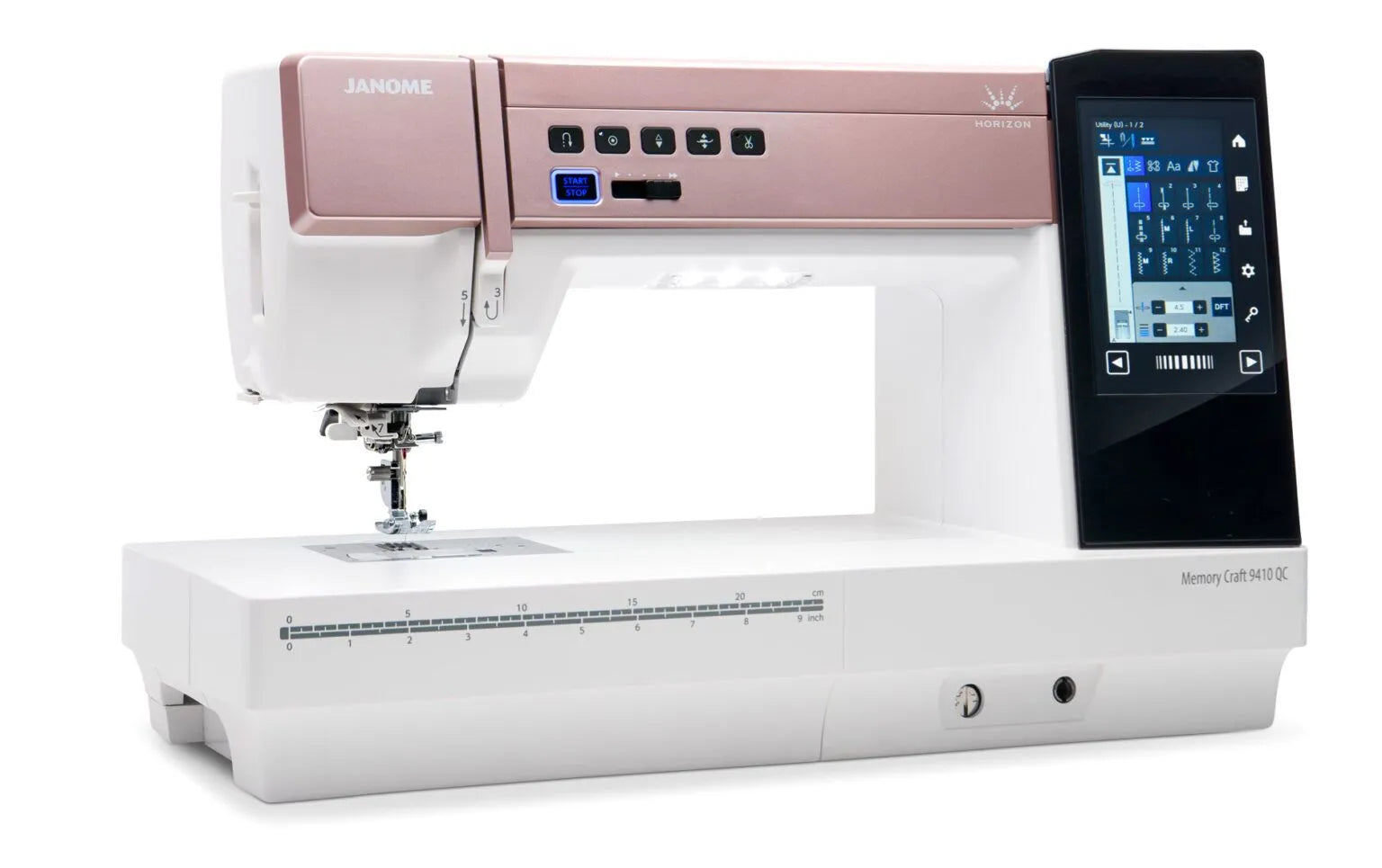

Janome Horizon Memory Craft 9410QC with its distinctive copper-pink accent panel and large colour touchscreen.
Hi-definition sewing and quilting
More room to create, with technology that supports every stitch
The Horizon Memory Craft 9410QC is designed for quilters, garment makers and creative sewists who want a spacious, highly capable machine without stepping into Janome’s largest Continental platform.
Its 280mm area to the right of the needle gives quilts, bags, garments and home décor projects room to move. The reshaped machine head improves your view of the needle area, while nine bright white LED lights illuminate the workspace from four locations.
A large, angled 5-inch colour touchscreen makes its extensive stitch library and advanced functions easy to navigate. Sewing Applications can recommend the correct stitch, foot and settings for common construction, garment and quilting techniques.
Why the 9410QC stands out
Premium features designed to make serious sewing easier
01
280mm workspace
Enjoy 280mm of space to the right of the needle and 120mm of workspace height for quilts, garments, bags and larger fabric sections.
02
Automatic pivot function
The presser foot can lift automatically with the needle lowered, allowing you to turn corners and reposition fabric without using your hands.
03
5-inch colour touchscreen
Select stitches, adjust settings, save favourites and access technique guidance on a clear, elevated high-definition display.
04
300 built-in stitches
Explore utility, quilting, heirloom, satin, decorative, tapering, mirage and lettering options with stitch widths up to 9mm.
05
Ruler Work Mode
The included high-shank QR ruler-work foot and dedicated machine mode let you quilt alongside suitable quilting rulers and templates.
06
Electronic automatic tension
The machine automatically manages upper-thread tension, with on-screen adjustment available whenever your fabric or technique requires it.
07
Automatic foot pressure
Electronic presser-foot pressure control helps the machine manage different fabric thicknesses while still allowing manual adjustment.
08
Superior Needle Threader 2
Janome’s refined needle threader guides the thread through the needle eye quickly and reliably so you can begin sewing sooner.
The 9410QC provides 280mm of workspace to the right of the needle.
Space for ambitious projects
An 11-inch work area without losing a practical free arm
The 280mm width to the right of the needle gives you substantially more room than a standard sewing machine, making it easier to manage quilts, long seams, bags and layered projects.
Unlike dedicated flat-bed models, the 9410QC also has a removable extension section that reveals a free arm for sleeves, trouser legs, cuffs and other tubular sewing.

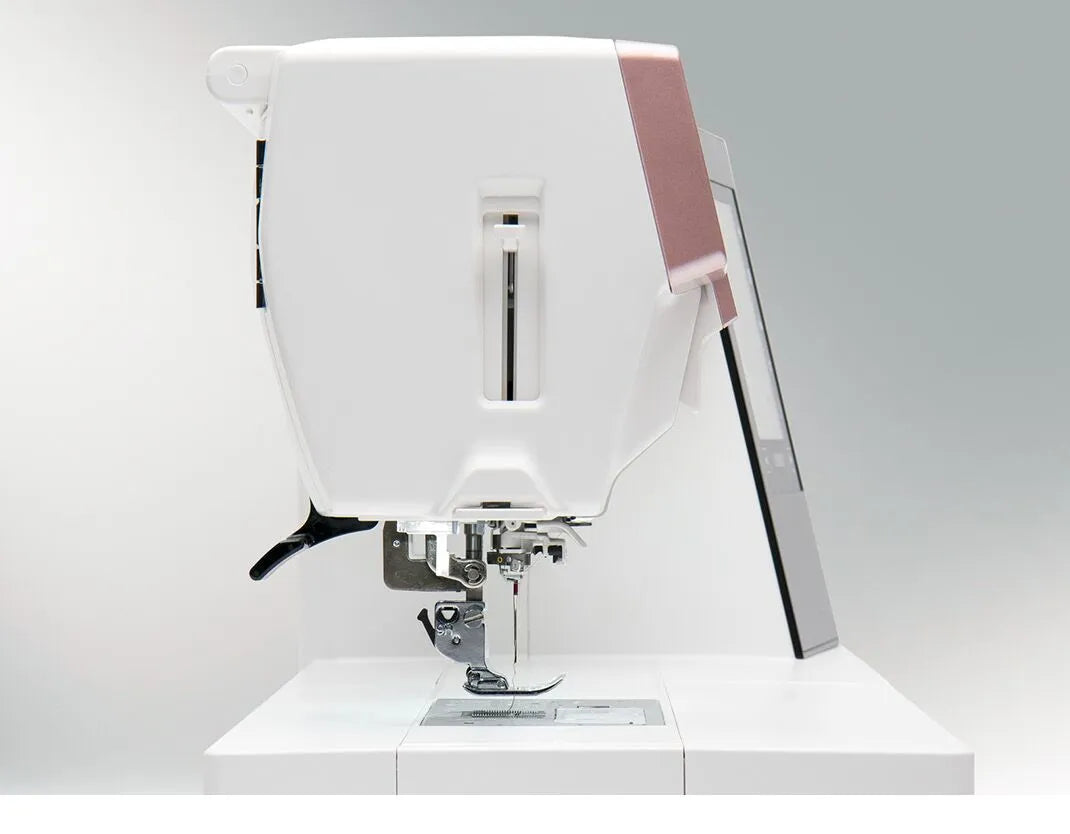

The machine’s rigid die-cast aluminium internal frame provides a stable foundation for smooth sewing at speeds of up to 1,060 stitches per minute.
280mm width right of needle
120mm workspace height
Practical removable free arm
Rigid aluminium internal frame
Nine bright LED lights
Four lighting locations
Intelligent on-screen guidance
A large screen that makes advanced sewing approachable
The angled 5-inch colour touchscreen gives you a clear view of stitches, recommended feet, settings and editing controls.
Sewing Applications lets you select the technique you want to complete, such as a zip, blind hem, buttonhole, patchwork seam, appliqué, free-motion quilting or ruler work. The machine then helps prepare the appropriate stitch and settings.
High-definition colour display
Sewing Applications guidance
Favourite stitch settings
Customisable screen colours
16 selectable languages
Built-in help and setting menus
Built for modern quilting
Piece, guide, pivot and quilt with confidence
The 9410QC provides a strong quilting package straight from the box, including specialist free-motion feet, a ruler-work foot, a straight-stitch needle plate and useful quilting applications.
Ruler Work Mode
Use the included QR foot with suitable high-shank quilting rulers to create controlled lines, curves and repeatable quilting shapes.
Free-motion quilting feet
Closed-toe, open-toe and clear-view zigzag free-motion feet are supplied for different visibility and quilting requirements.
Straight-stitch needle plate
The included straight-stitch plate supports precise piecing and helps stabilise lightweight fabrics around the needle opening.
Automatic pivoting
Keep the needle lowered while the presser foot lifts automatically, making corners, appliqué and direction changes faster and more controlled.
Variable Zigzag
With the optional adjustable knee lifter, zigzag width can be controlled while sewing for thread painting, free-motion monogramming and expressive quilting.
Optional AcuFeed Flex
The machine has the built-in AcuFeed drive. Compatible AcuFeed feet can be added for coordinated upper and lower feeding through multiple layers.
AcuFeed and A.S.R. clarification
The 9410QC has the built-in AcuFeed drive, but the AcuFeed feet and holders are optional purchases in the New Zealand and Australian package.
This model does not include and is not compatible with Janome’s A.S.R. Accurate Stitch Regulator. The included Ruler Work Mode, QR foot and speed control still provide an excellent platform for traditional free-motion quilting and ruler work.
Hands-free fabric positioning
Automatic presser-foot lift and pivot function
When the pivot function is selected, the machine stops with the needle lowered and raises the presser foot automatically. You can turn or reposition the fabric while both hands remain on the project.
Lower the foot controller or press start again and the presser foot returns to the fabric before sewing continues.
This feature is especially useful for corners, appliqué, garment details, patchwork, topstitching and projects that require frequent changes of direction.
Automatic pivoting helps you reposition fabric with the needle securely lowered.
Creative stitch control
300 stitches that can be adjusted, combined and personalised
The Horizon Memory Craft 9410QC includes utility, stretch, overcasting, heirloom, quilting, decorative, satin and speciality stitches with a maximum width of 9mm and a maximum length of 5mm.
Suitable stitches can be mirrored, elongated, tapered and combined. Preferred adjustments can be saved using Favourite Stitch, while pattern combinations can be stored in the machine’s built-in memory or transferred through the USB port.
Eleven buttonholes
Choose from ten sensor buttonholes and one automatic buttonhole style.
Seven font options
Regional selections include Block, Script, Broadway, 9mm capitals and numbers, Cyrillic, Hiragana and Katakana.
Stitch tapering
Create decorative angled beginnings and endings on compatible stitch patterns.
Five-times elongation
Lengthen suitable satin stitches while maintaining their original stitch density.
Startover function
Return directly to the beginning of a stitch or programmed combination.
Three megabytes of memory
Save customised patterns and combinations for future projects.
Mirage Stitches create the appearance of decorative satin motifs floating across the fabric.
A distinctive decorative effect
Create floating motifs with Mirage Stitches
Mirage Stitches use independently controlled main and connecting stitches to create the appearance of separated decorative motifs.
The visible satin element can appear to float across a single fabric surface or bridge two fabric pieces, producing a striking effect for garments, quilting, heirloom work and creative embellishment.
Separate adjustments for the main motif and hidden connecting stitches give you greater control over the final appearance.
Design your own stitches
Stitch Composer software included as a download
Stitch Composer allows you to create original stitch patterns on a compatible Windows computer.
Plot the stitch points, preview the result and transfer your new pattern to the 9410QC through USB. Your custom design can then be selected and sewn in the same way as the machine’s built-in stitches.
This gives creative sewists the freedom to develop personal motifs, borders, decorative sequences and signature stitches.
Designed to keep you sewing
Convenience features that quickly become essential
Automatic thread cutter
Cut the upper and bobbin threads together at the touch of a button.
Memorised needle stop
Choose whether the needle stops raised or securely lowered in the fabric.
Upper-thread sensor
The machine alerts you if the upper thread breaks or is not feeding correctly.
Bobbin-thread sensor
Receive an on-screen warning when the bobbin thread supply is running low.
One-step needle plates
Press the release lever to remove the plate without using a screwdriver.
Twin-needle protection
Activate Twin Needle Mode to limit stitch width and help protect the needle.
Easy Set Bobbin
Follow the guided path and built-in cutter without manually drawing up the bobbin thread.
Independent setup controls

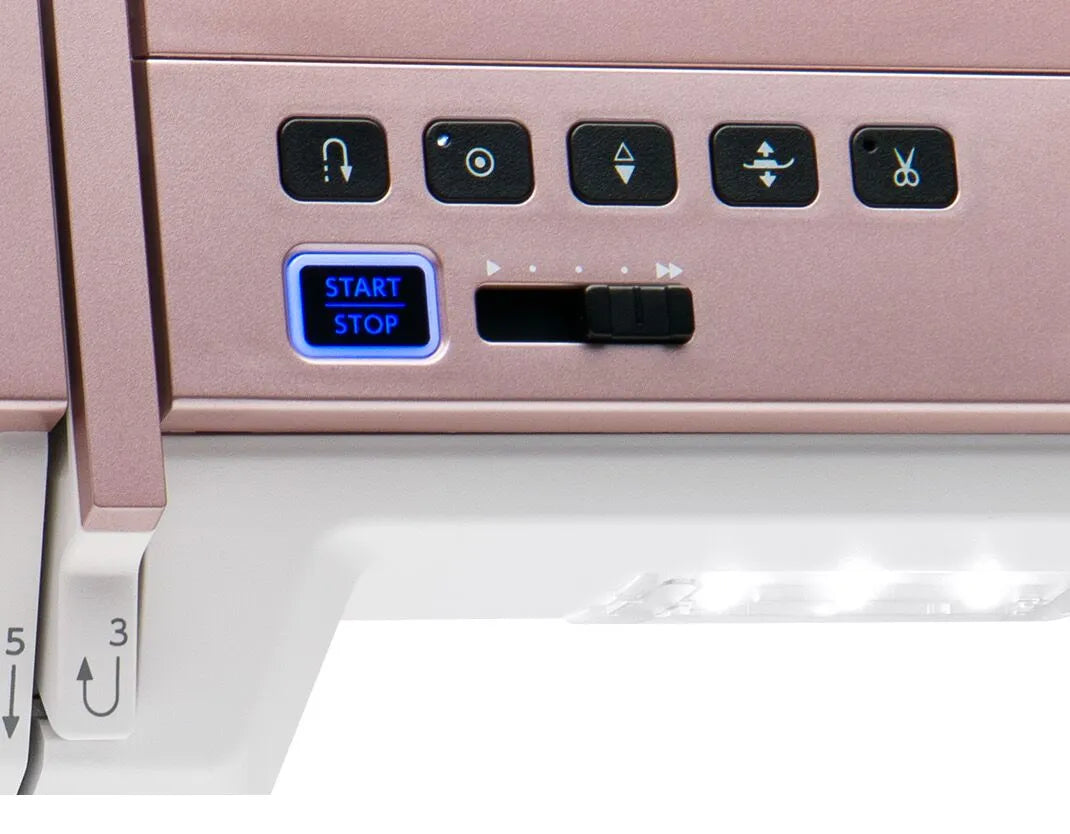

Use start and stop, reverse, locking stitch, speed control and needle-position buttons from the front panel.
Explore the 9410QC
Premium engineering in the details

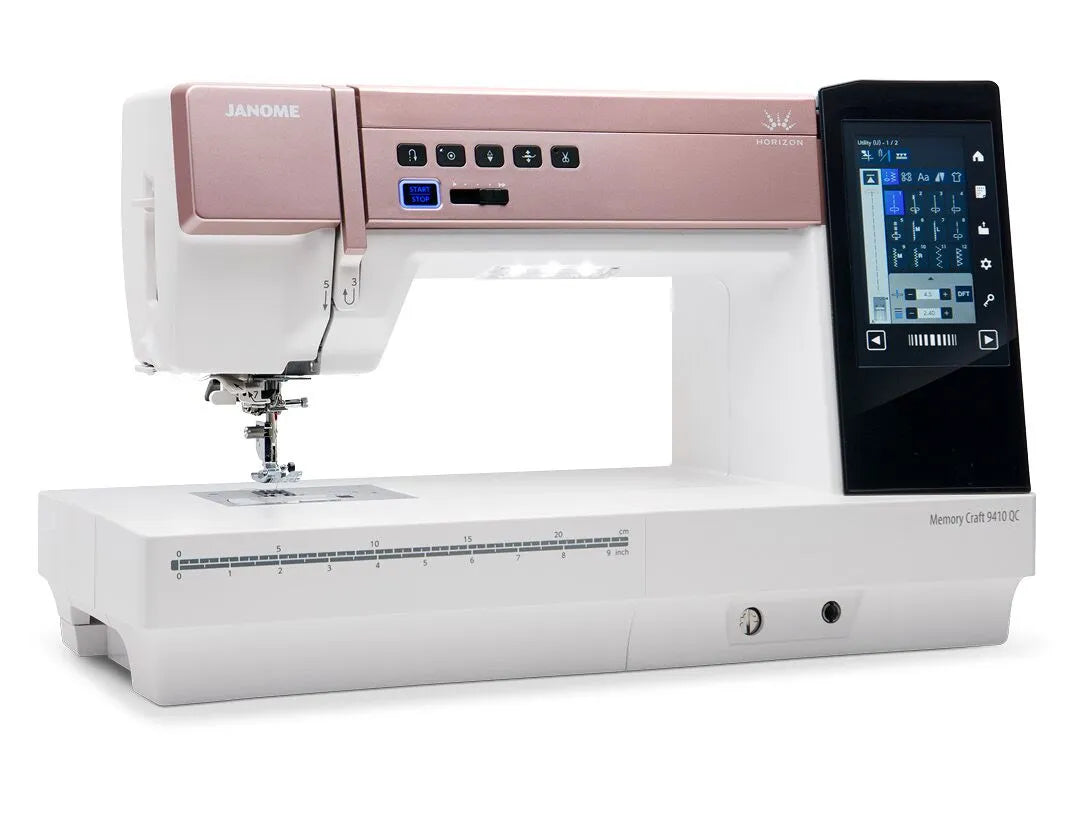

The expansive 280mm work area gives quilts and larger projects more room to move.

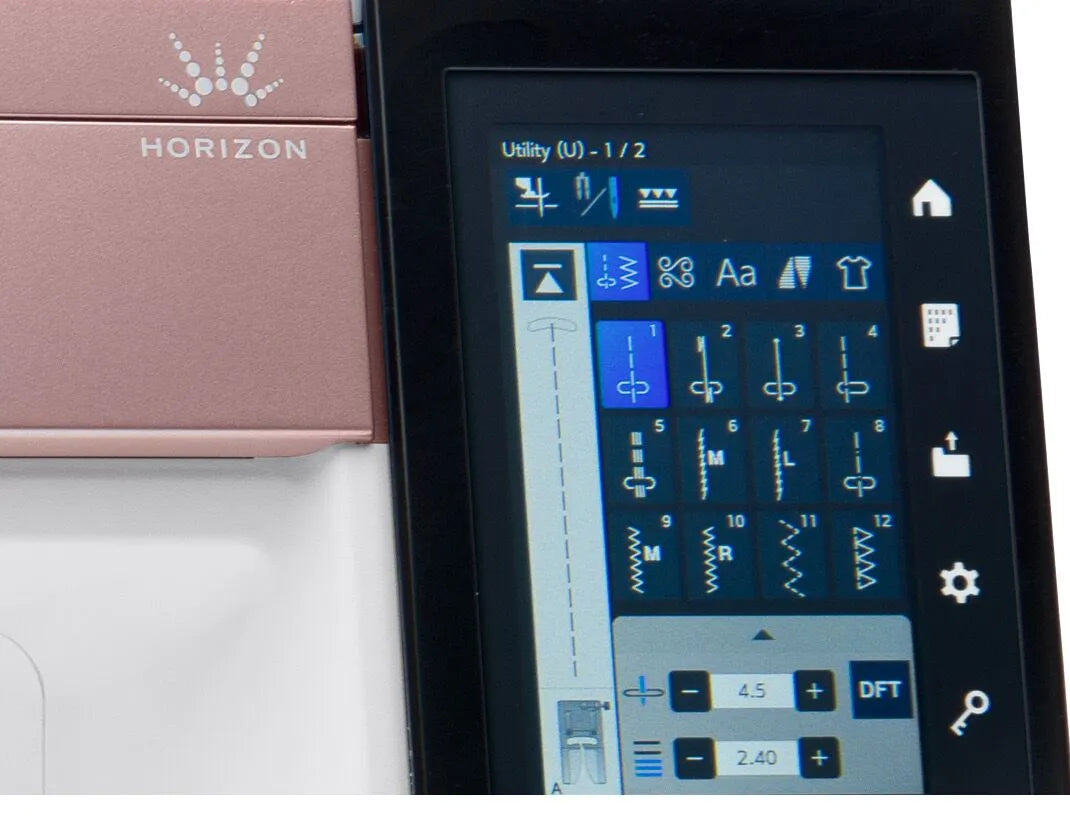

The large colour touchscreen makes stitches, settings and applications easy to navigate.

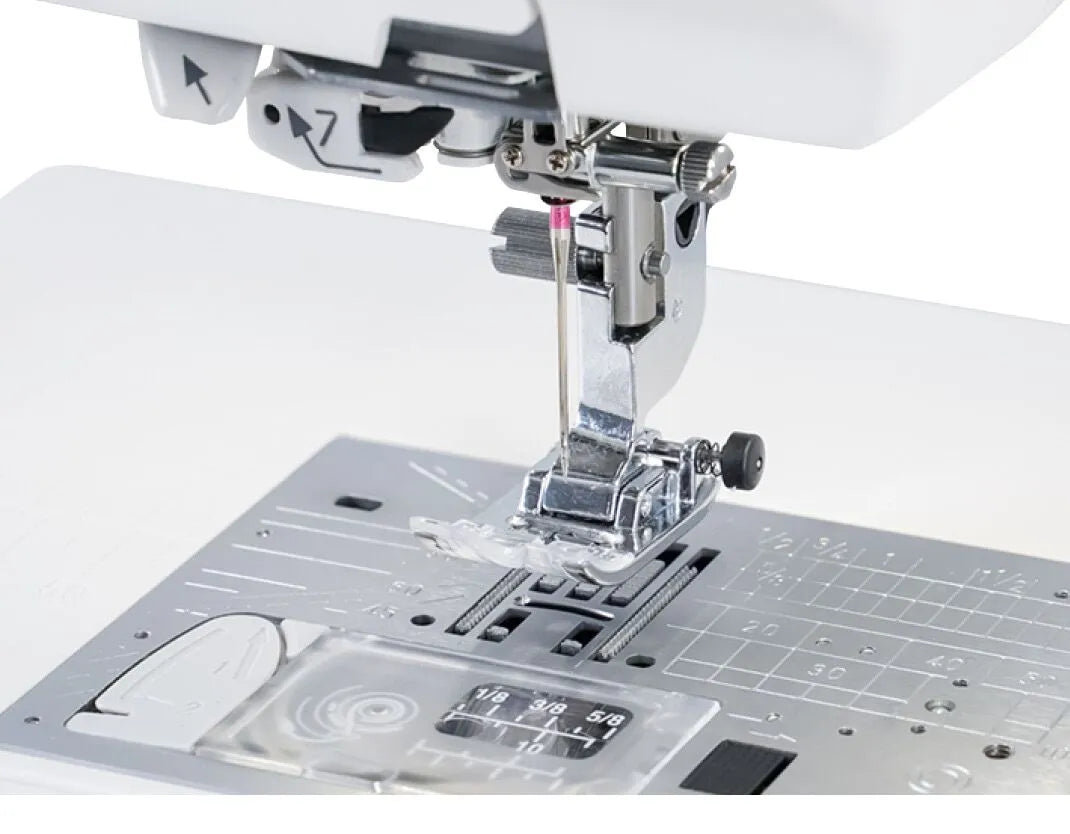

Superior Needle Threader 2 guides the thread through the needle eye with minimal effort.

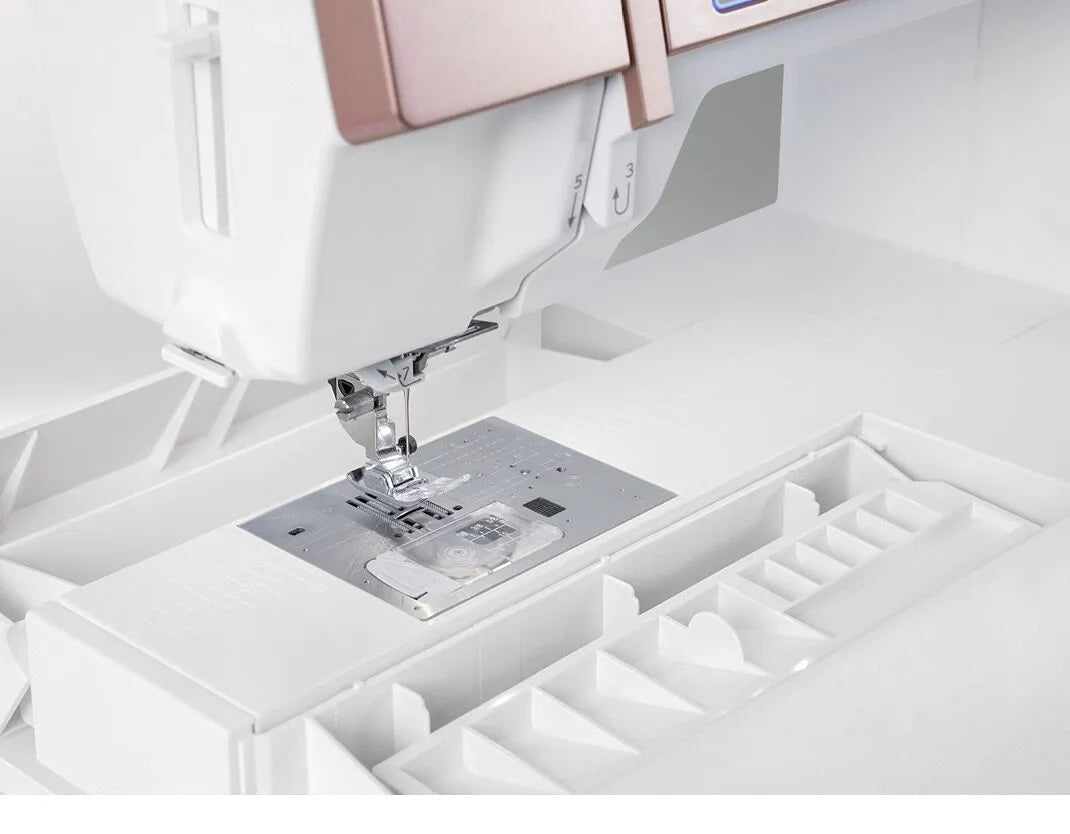

Change between the supplied zigzag and straight-stitch plates without screws or tools.
Who is the 9410QC for?
A premium all-rounder for sewing and quilting
Quilt piecing
Free-motion quilting
Ruler work
Garment construction
Patchwork and appliqué
Decorative stitching
Bag making
Home décor
Heirloom sewing
Creative sewing studios
Important information before purchasing
The 9410QC is a premium sewing and quilting machine. It does not perform machine embroidery.
The AcuFeed feet and holders, adjustable knee lifter, extra-wide extension table, Professional Grade HP system, AcuView magnifiers and remote thread-cutter switch are optional accessories.
This model is not compatible with Janome’s A.S.R. Accurate Stitch Regulator and does not have the Floating Mode fitted to the higher Horizon 9480QCP.
Comprehensive standard package
15 specialist sewing and quilting feet included
The New Zealand and Australian package gives you a strong selection for garment sewing, piecing, buttonholes, decorative work, free-motion quilting and ruler work.
View all supplied presser feet
Zigzag Foot A
Rolled Hem Foot D, 3mm
Zipper Foot E
Satin Stitch Foot F
Open-Toe Satin Stitch Foot F2
Blind Hemming Foot G
Overedge Foot M
1/4-inch Seam Foot O with guide
Darning Foot PD-H, closed toe
Free-Motion Closed-Toe Foot QC
Free-Motion Open-Toe Foot QO
Free-Motion Zigzag Foot QV
Ruler Work Foot QR
Automatic Buttonhole Foot R
Button Sewing Foot T
Everything supplied
Janome Horizon Memory Craft 9410QC standard accessories
Needle plates, controls and major accessories
Standard 9mm zigzag needle plate, fitted to the machine
Straight-stitch needle plate with three needle positions
Standard electronic foot controller
Buttonhole stabiliser plate
Quilting guide bar
Touchscreen stylus
Semi-hard fabric machine cover

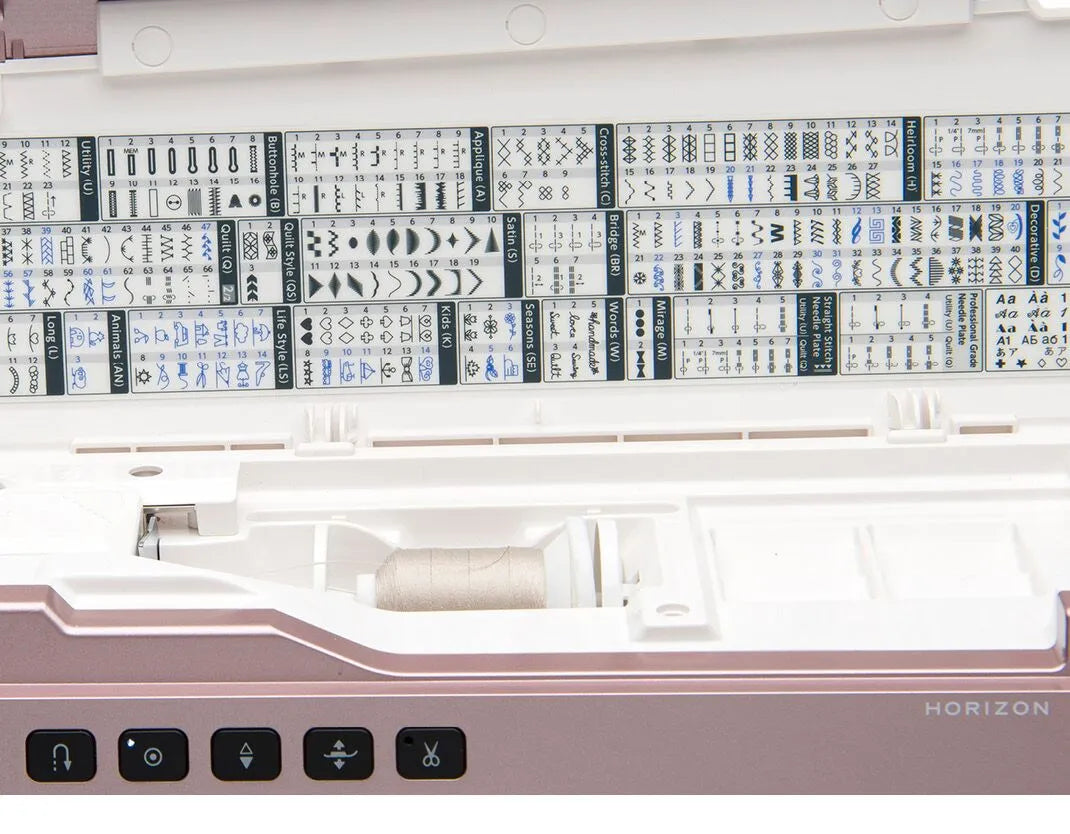

Large integrated accessory-storage area
Bobbins, needles and general accessories
Five Janome plastic bobbins, including one fitted in the machine
Needle set with sharp, purple-tip, blue-tip and twin needles
Additional horizontal spool pin with thread holder
Large spool holders x 2
Small spool holders x 2
Special spool holders x 2
Button shank plate
Screwdriver
Lint brush
Seam ripper and buttonhole opener
Threading-guide sticker
Power cable
Instruction book
Included digital resources
Stitch Composer software download for compatible Windows computers
Official instructional video resources
USB design and stitch-transfer capability
Build the machine around your sewing
Popular optional accessories
The Horizon Memory Craft 9410QC can be expanded with specialist AcuFeed feet, professional piecing equipment, magnifiers, tables, guides and garment-sewing attachments.
AcuFeed Flex accessories
Part number
Accessory
859819017
AcuFeed Twin Holder and AD Foot Unit
202125004
AcuFeed 1/4-Inch Quilt Piecing Foot OD, twin
202103006
AcuFeed Ditch Quilting Foot SD, twin
202149004
AcuFeed Open-Toe Foot UD, twin
202102005
AcuFeed Straight-Stitch Foot STD, twin
859833006
AcuFeed Single Holder
859835101
AcuFeed Foot VD, single
859838001
AcuFeed Zipper Foot ED, single
202415004
AcuFeed Flex Professional Grade Foot HP2
Professional quilting and visibility accessories
Part number
Accessory
869410004
Professional Grade HP Needle Plate and HP Foot Set
846417011
Adjustable Knee Lifter
202130002
AcuView Optic Magnifier Set with 1.2x, 1.4x and 1.6x lenses
865806009
Extra-Wide Extension Table with adjustable legs
858401008
Metal Cloth Guide
858418008
Remote Thread-Cutter Switch
043170108
Large-Style Foot Controller
200445007
Special Bobbin Case for Free-Motion Quilting
Popular garment and creative feet
Appliqué Foot AP
Binder Foot W
Border Guide Foot FB
Circular Sewing Attachment
Clear-View Quilting Foot and Guide Set OV
Concealed Zipper Foot Z
Nine-Hole Cording Foot H2
Free-Motion Couching Foot Set FMC
Heavy-Duty Roller Foot
Pintucking Feet and Cord Guides
Quilt Binder Set W1
Ruffler RF
Ultra Glide Foot and Needle Plate Set
Variable Zigzag Open-Toe Foot QZ
Technical information
Janome Horizon Memory Craft 9410QC specifications
Machine type
Premium computerised sewing and quilting machine
Maximum sewing speed
Up to 1,060 stitches per minute
Workspace
280mm wide x 120mm high to the right of the needle
Built-in stitches
300
Normal-sewing font options
Seven regional selections including Block, Script, Broadway, 9mm capitals and numbers, Cyrillic, Hiragana and Katakana
Buttonholes
Eleven, including ten sensor styles and one automatic style
Maximum stitch width
9mm
Maximum stitch length
5mm
Needle positions
91
Screen
Angled 5-inch high-definition colour touchscreen
Sewing Applications
Yes, with construction, garment and quilting technique guidance
Hook type
Top-loading full rotary hook bobbin system
Feed system
Redesigned seven-piece feed dog system
AcuFeed
Built-in AcuFeed drive; compatible AcuFeed feet and holders are optional
A.S.R. compatibility
No
Ruler Work Mode
Yes, with Ruler Work Foot QR included
Variable Zigzag
Yes, using the optional adjustable knee lifter
Floating Mode
No
Presser-foot lift
Automatic lift with pivot function and extra-high lift
Presser-foot pressure
Electronic automatic control with manual adjustment
Thread tension
Electronic automatic tension with on-screen adjustment
Needle threader
Superior Needle Threader 2
Needle up or down
Memorised needle stop position
Needle plates supplied
Standard 9mm zigzag plate and straight-stitch plate
Needle-plate changing
One-step lever release without screws or tools
Automatic thread cutter
Yes, programmable upper and bobbin thread cutting
Thread sensors
Upper-thread and bobbin-thread sensors
Lighting
Nine bright white LED lights across four locations
Drop feed
Yes, using the machine switch
Free arm
Yes
USB
One USB port
Built-in memory
Approximately 3MB
Stitch Composer
Included as a download for compatible Windows computers
Languages
16 selectable languages
Standard feet
15
Extra-wide table
Optional accessory
Adjustable knee lifter
Optional accessory
Machine dimensions
535mm wide x 326mm high x 243mm deep
Machine weight
Approximately 13.7kg
Machine cover
Semi-hard fabric cover included
Manuals and official resources
Learn more about the Horizon Memory Craft 9410QC
Instruction Manual
Read the complete operating guide covering setup, ordinary sewing, quilting, decorative stitches, Sewing Applications and maintenance.
Yes. It provides a 280mm workspace, a straight-stitch needle plate, 1/4-inch foot, three free-motion quilting feet, Ruler Work Mode, an included ruler-work foot and automatic pivoting.
Does the 9410QC include the A.S.R. stitch regulator?
No. The 9410QC is not compatible with Janome’s A.S.R. Accurate Stitch Regulator. A.S.R. compatibility is available on selected higher Janome quilting models.
Does it include AcuFeed Flex?
The machine has the built-in AcuFeed drive, but the AcuFeed holders and feet are optional purchases in the New Zealand and Australian package.
Is the extra-wide extension table included?
No. The extra-wide extension table is available separately as an optional accessory.
Does the machine include a knee lifter?
No. The adjustable knee lifter is optional. It can be used to raise the presser foot hands-free and to control Variable Zigzag width during compatible techniques.
Does the 9410QC have a free arm?
Yes. Removing the accessory-storage section reveals a free arm for cuffs, sleeves, trouser legs and tubular sewing.
Can it perform ruler-work quilting?
Yes. Ruler Work Mode and the high-shank QR ruler-work foot are included. Always use suitable high-shank quilting rulers rather than thin rotary-cutting rulers.
How large is the sewing workspace?
The machine provides 280mm of space to the right of the needle and 120mm of workspace height.
How fast does the 9410QC sew?
It can sew at up to 1,060 stitches per minute. The speed-control slider can reduce the maximum speed for detailed or controlled work.
Does it have automatic tension and automatic foot pressure?
Yes. Both upper-thread tension and presser-foot pressure are electronically controlled, with manual adjustment available through the screen.
Can I create my own stitches?
Yes. Stitch Composer software is available as an included download for compatible Windows computers. Custom stitches can be transferred to the machine through USB.
Does the 9410QC embroider?
No. It is a premium sewing and quilting machine and does not connect to an embroidery unit.
Buy from New Zealand sewing specialists
Premium equipment backed by knowledgeable support
Direct Sewing has supplied sewing, quilting and embroidery equipment throughout New Zealand since 2001. Our experienced team can demonstrate the Horizon Memory Craft 9410QC, explain its quilting and sewing functions and help you select compatible feet, tables, needles and accessories.
With genuine product knowledge, nationwide support and an in-house technical workshop, you can purchase with confidence and continue receiving assistance long after your machine leaves our showroom.
For sewists who want generous workspace, premium computerised control and excellent quilting versatility without moving into Janome’s largest flagship machines, the Horizon Memory Craft 9410QC is an outstanding choice.
