01
Large 360 × 200mm embroidery field
Stitch substantial designs in one hooping using the included Designer Royal Hoop. This makes the machine well suited to jacket backs, cushions, quilt blocks and coordinated design combinations.
Sewing and embroidery machine
Turn creative ideas into personalised embroidery

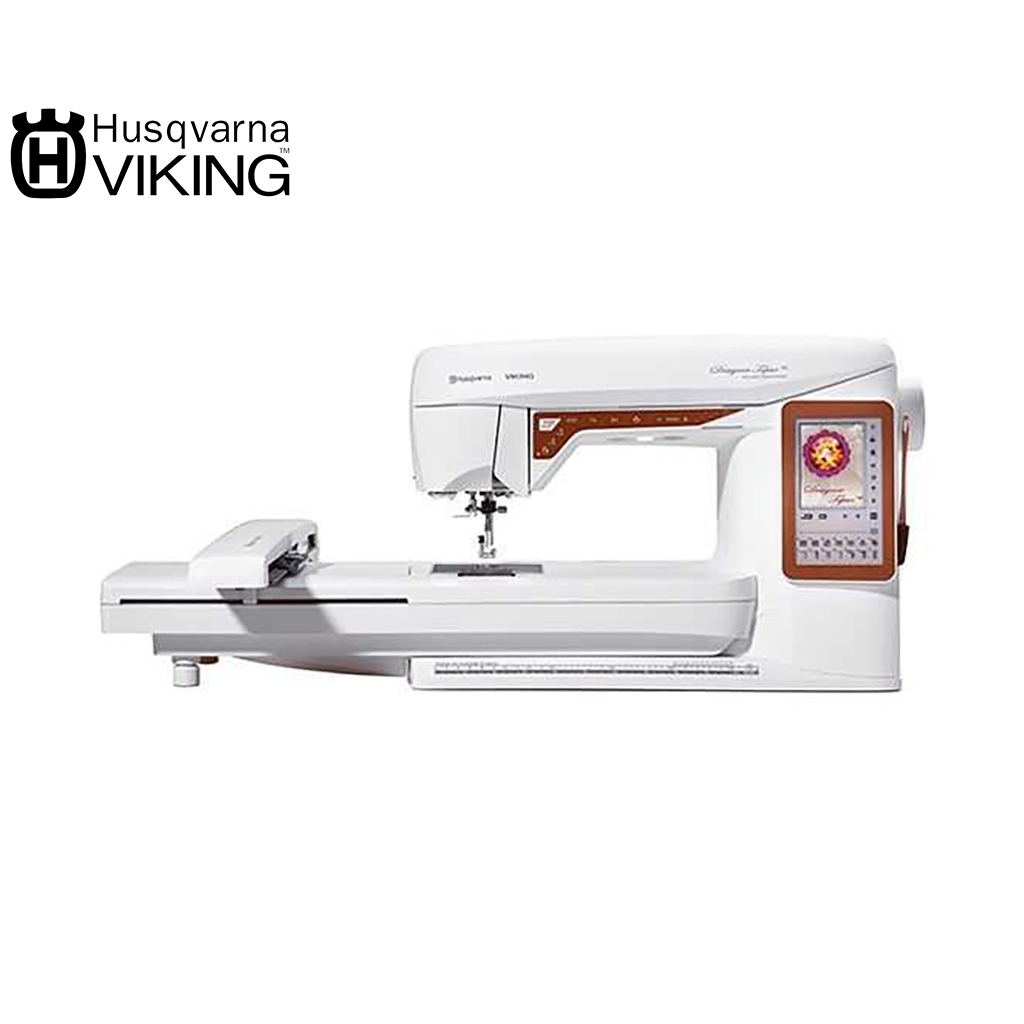

The Husqvarna Viking Designer Topaz 50 combines premium computerised sewing with a generous 360 × 200mm embroidery area, intuitive colour touchscreen control and advanced built-in assistance.
Create large embroidery designs, customise garments, quilt, sew home décor and complete everyday sewing on one capable machine. With 150 built-in embroidery designs and 261 sewing stitches, there is plenty of creative scope from the first project onward.
360 × 200mm
Maximum embroidery area
150
Built-in embroidery designs
261
Built-in sewing stitches
3.5-inch
Colour touchscreen
250mm
Sewing space
One machine, two creative disciplines
Full sewing capability with large-format embroidery
The Designer Topaz 50 is designed for sewists who want to add professional-looking embroidery without giving up the features of a capable premium sewing machine. Remove the embroidery unit for dressmaking, quilting and general sewing, then attach it when you are ready to personalise your next project.
02
Interactive colour touchscreen
Navigate sewing, embroidery and editing functions on a 3.5-inch colour touchscreen. Designs appear in colour, while Quick Help explains selected icons and functions directly on screen.
03
Built-in design editing
Combine, rotate, scale and mirror compatible designs directly on the machine. Completed combinations can be saved to machine memory or a USB embroidery stick.
04
Basic Design Positioning
Position a selected point in the design at a precise point on the fabric. This assists with placement, continuous embroidery and accurately joining larger design arrangements.
05
Exclusive Sensor System
Sensor Foot Pressure adapts to fabric thickness for even feeding, while Sensor Foot Pivot raises the foot slightly when the needle is down for easy turning, appliqué and quilting.
06
Exclusive Sewing Advisor
Select the fabric type and sewing technique, and the machine recommends or sets the stitch, width, length, tension, speed, presser-foot pressure, foot and needle information.
Embroidery capability
Personalise, combine and position your designs
The Topaz 50 provides the essential editing and placement tools required to move beyond individual motifs and create more considered embroidery layouts.
150 built-in designs
Start with a varied collection of decorative, floral, children’s and
project-focused embroidery designs.
Two embroidery fonts
Add names, dates and messages using two built-in embroidery fonts,
each available in three sizes.
Automatic jump-stitch trim
The machine cuts selected embroidery jump stitches and draws the
thread tails to the underside for cleaner finishing.
Combine and save
Arrange compatible designs and lettering together, then save the
completed combination for future use.
USB design transfer
Transfer compatible embroidery designs using a USB embroidery stick
and organise files using the on-screen My Files area.
Thread monitoring
Top- and bobbin-thread sensors alert you if the upper thread breaks or
the bobbin thread is becoming low.
Premium sewing features
More than an embroidery machine
With the embroidery unit removed, the Topaz 50 becomes a spacious computerised sewing machine for garments, quilts and home projects. The 250mm area to the right of the needle provides room for bulky and layered work.
- 261 utility, decorative and quilting stitches
- Five programmable sewing fonts
- Maximum standard stitch width of 7mm
- 24 permanent My Stitches memories
- Five selectable sewing speeds
- Automatic thread cutter
- Electronic self-adjusting thread tension
- Needle stop up/down
- Start/stop sewing without the foot control
- Instant and permanent reverse
- Twin-needle and stitch-width safety settings
Free-motion quilting
Choose between Free Motion Floating and Free Motion Spring Action to suit different free-motion feet and techniques. The feed teeth lower automatically when free-motion sewing is selected.
Consistent feeding
The Exclusive Sensor System responds to changing fabric thickness, helping feed quilt layers, hems and bulky seam intersections more evenly.
Useful workspace illumination
Three LED lights illuminate the needle and sewing area to reduce shadows across detailed sewing and embroidery preparation.
What can you create with the Topaz 50?
Personalised garments
Embroider names, monograms, borders and decorative motifs onto jackets, shirts, children’s clothing and accessories.
Quilts and blocks
Piece quilts using the spacious sewing area, then add embroidery, labels, decorative stitches or free-motion quilting.
Home décor
Create coordinated cushions, table linen, wall hangings, curtains and other customised interior projects.
Gifts and keepsakes
Add names, dates and personal design details to towels, blankets, bags and commemorative projects.
Husqvarna Viking Designer Topaz 50 specifications
| Machine type | Computerised sewing and embroidery machine |
|---|---|
| Maximum embroidery area | 360 × 200mm |
| Built-in embroidery designs | 150 |
| Embroidery fonts | Two fonts, each available in three sizes |
| Built-in sewing stitches | 261 |
| Programmable sewing fonts | Five |
| Maximum standard stitch width | 7mm |
| Display | 3.5-inch colour touchscreen, approximately 70 × 53mm with 320 × 240 resolution |
| Sewing space | Approximately 250mm to the right of the needle |
| Saved stitch memories | 24 My Stitches memories |
| Speed control | Five selectable sewing speeds |
| Design transfer | USB embroidery stick |
| Design editing | Combine, rotate, scale, mirror, position and save compatible designs |
| Free-motion modes | Free Motion Floating and Free Motion Spring Action |
| Thread sensors | Top-thread and bobbin-thread monitoring |
| Lighting | Three LED lights |
| Additional functions | Automatic thread cutter, automatic jump-stitch trim, self-adjusting tension, needle stop up/down, start/stop, reverse, FIX, STOP, stitch restart and twin-needle safety |
Included hoops
Ready for large and smaller designs
- Designer Royal Hoop: 360 × 200mm embroidery area
- Designer Splendid Square Hoop: 120 × 120mm embroidery area
Additional compatible Husqvarna Viking hoops are available for quilting, endless embroidery and other specialist techniques.
Included accessories
Essential equipment supplied
- Utility Foot A
- Decorative Stitch Foot B
- Buttonhole Foot C
- Blind Hem Foot D
- Zipper Foot E
- Non-Stick Glide Foot H
- Edging Foot J
- Embroidery and Darning Foot R
- Sensor One-Step Buttonhole Foot
- USB embroidery stick
- Six bobbins and hoop clips
- Stylus and pictogram pen
- Scissors, seam ripper, brush and screwdriver
- Spool caps, thread net and felt pad
- Needles, foot control, power cord and protective cover
Manufacturer-supplied package contents may change. Please confirm the current included hoops, feet, software and accessories with Direct Sewing if a particular item is essential.
Manual, stitch chart and embroidery designs
Buy with experienced local advice and support
Choosing an embroidery machine involves more than comparing a list of features. Direct Sewing is an authorised Husqvarna Viking dealer with more than 30 years of sewing-industry experience, providing genuine New Zealand machines, local after-sales assistance and nationwide delivery.
Authorised NZ dealer
Purchase through an established Husqvarna Viking retailer with genuine local warranty support.
Machine guidance
Get practical advice about embroidery capability, hoops, software, stabilisers, thread and compatible accessories.
Technical workshop
Direct Sewing’s Henderson workshop provides ongoing servicing and technical support for your machine.
Nationwide delivery
Order from throughout New Zealand or visit the Auckland showroom for in-person assistance.
Direct Sewing, 138 Railside Avenue, Henderson, Auckland.
Husqvarna Viking Designer Topaz 50 FAQ
Is the Topaz 50 both a sewing and embroidery machine?
Yes. Attach the embroidery unit for machine embroidery or remove it to use the Topaz 50 as a spacious computerised sewing and quilting machine.
What is the maximum embroidery area?
The maximum embroidery area is 360 × 200mm when using the compatible Designer Royal Hoop. This hoop is normally included with the machine, but current package contents should be confirmed before purchase.
How many embroidery designs are built into the machine?
The Topaz 50 includes 150 embroidery designs and two embroidery fonts, with each embroidery font available in three sizes.
Can I import additional embroidery designs?
Yes. Compatible embroidery files can be transferred using a USB embroidery stick. Check file-format and current software compatibility before purchasing or downloading third-party designs.
Can embroidery designs be edited on the Topaz 50?
Yes. Compatible designs can be combined, rotated, scaled and mirrored on the colour touchscreen. Completed combinations can be saved to the machine or a USB embroidery stick.
What is Basic Design Positioning?
Basic Design Positioning lets you match a selected point in the embroidery design with a chosen position on the fabric. It assists with accurate placement and joining larger or continuous embroideries.
Does the Topaz 50 automatically cut jump stitches?
Yes. Automatic Jump Stitch Trim cuts selected jump stitches during embroidery and draws the thread tails to the underside, reducing manual trimming after stitching.
What does the Exclusive Sensor System do?
It senses fabric thickness and automatically adapts presser-foot pressure and lift. Sensor Foot Pivot also raises the foot slightly when you stop with the needle down, helping with turning, appliqué and quilting.
Is the Topaz 50 suitable for quilting?
Yes. It offers approximately 250mm of sewing space, needle stop up/down, Sensor Foot Pivot and two free-motion modes. It can also embroider quilt blocks, labels and decorative quilting designs.
Does it have automatic thread tension and cutting?
Yes. The machine has electronic self-adjusting thread tension and an automatic cutter for the upper and bobbin threads. It also monitors the upper and bobbin thread during sewing and embroidery.
Is the Topaz 50 suitable for someone new to embroidery?
It can be a good choice for an ambitious beginner because the touchscreen, Quick Help, Sewing Advisor and Sensor System provide considerable guidance. New owners should still allow time to learn stabiliser selection, hooping, thread choices and design placement.
Does Direct Sewing provide support after purchase?
Yes. Direct Sewing provides local product guidance, genuine New Zealand warranty support and ongoing servicing through its Henderson showroom and technical workshop. Nationwide delivery is also available.
Ready to add embroidery to your sewing?
Speak with the Direct Sewing team for current availability, package details and practical help deciding whether the Designer Topaz 50 suits your sewing and embroidery plans.
