Ambitious embroiderers
Combine, resize, shape, colour-edit and precisely position large designs with a screen and embroidery field made for complex work.

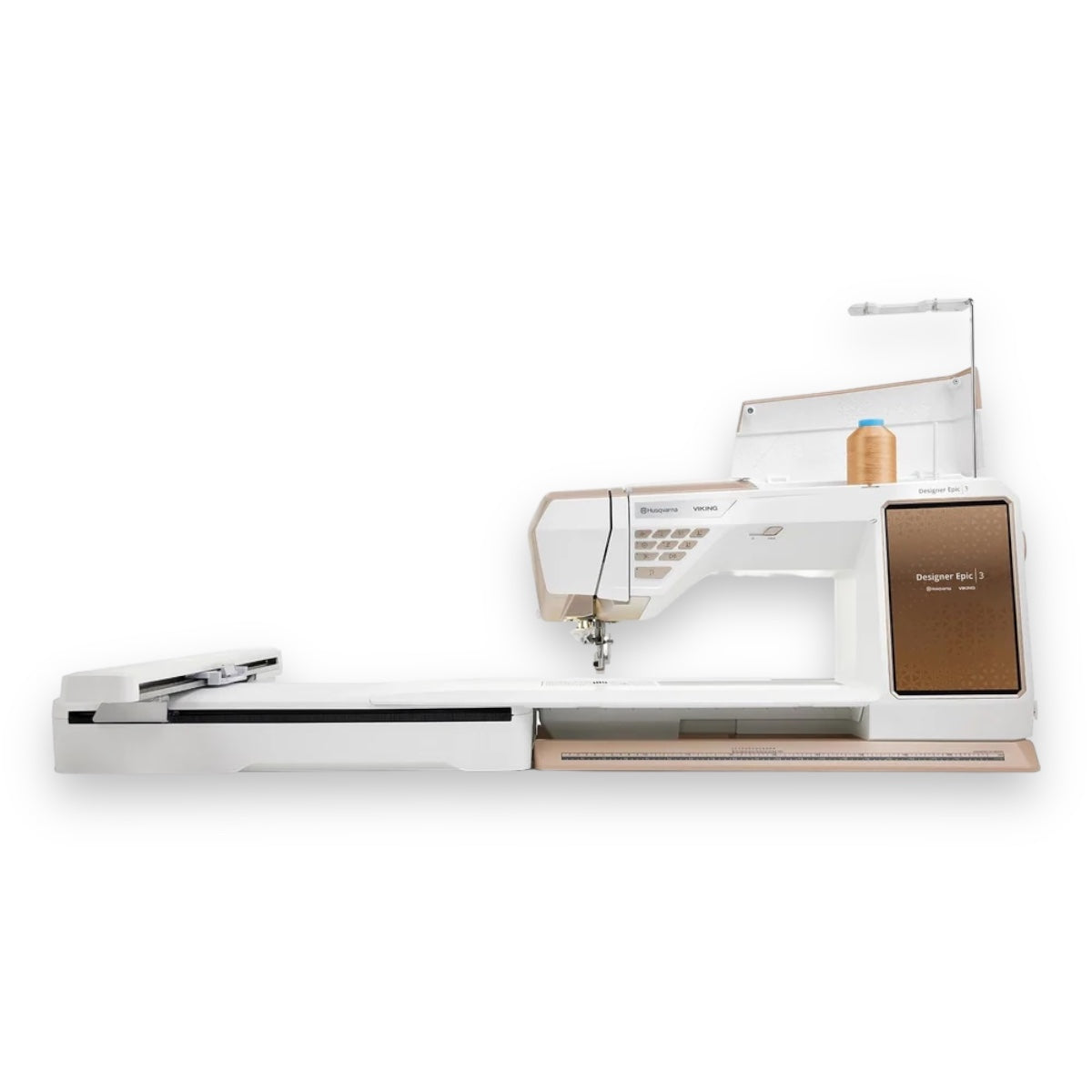

HUSQVARNA VIKING DESIGNER EPIC 3
See it. Place it. Create it at an epic scale.
The DESIGNER EPIC 3 is a flagship sewing and embroidery studio built around visual confidence. Projection previews sewing and embroidery on the actual fabric, hoop scanning brings the hooped project onto the screen, and an enormous creative platform turns ambitious quilts, garments and dimensional embroidery into a guided workflow.
- Sewing and embroidery projection helps preview placement, guidelines, grids and stitch position directly on the project.
- Hoop scanning plus precise positioning makes it easier to see the real fabric and align large or multi-hooped designs.
- 912 built-in embroidery designs and 871 stitches provide exceptional creative range before adding anything from outside the machine.
- 10.1-inch capacitive colour screen displays editing tools, guidance and designs at high resolution with a 180-degree viewing angle.
- Integrated Dual Feed and 310mm sewing space make this a serious premium sewing and quilting machine—not embroidery-only equipment.
- Four hoops and 12 presser feet included create a substantial starting package for embroidery, garments, quilting and specialty work.
Projection • Hoop scanning • 10.1in screen
912built-in embroidery designs
871built-in sewing stitches
450 × 450mmwith optional Mega Turnable Hoop
310mmspace right of the needle
A machine for makers whose ideas have outgrown ordinary limits
The DESIGNER EPIC 3 earns its place in a dedicated creative space. It is designed for people who want large-format embroidery, exact placement, premium sewing automation and the freedom to build projects on screen before committing the first stitch.
Quilters
Use 310mm of sewing space, Integrated Dual Feed, projection, 37 needle positions and included quarter-inch and free-motion feet.
Garment makers
Automatic threading, Sensor System, Sewing Advisor, buttonholes, IDF and projected placement support polished construction.
Studios + microbusinesses
Fast embroidery, four included hoops, WiFi transfer and repeatable placement suit high-value personalisation and custom work.
Creative technologists
Design shaping, Stitch Creator, cloud transfer, camera scanning and app connectivity bring digital planning into the sewing room.
Long-term creative investment
Optional free-arm, reversible special-technique, magnetic and embellishment accessories create room to expand over time.
From a single placement to a statement-sized finish
Genuine HUSQVARNA VIKING imagery shows the scale, visibility and project range that make the DESIGNER EPIC 3 different.

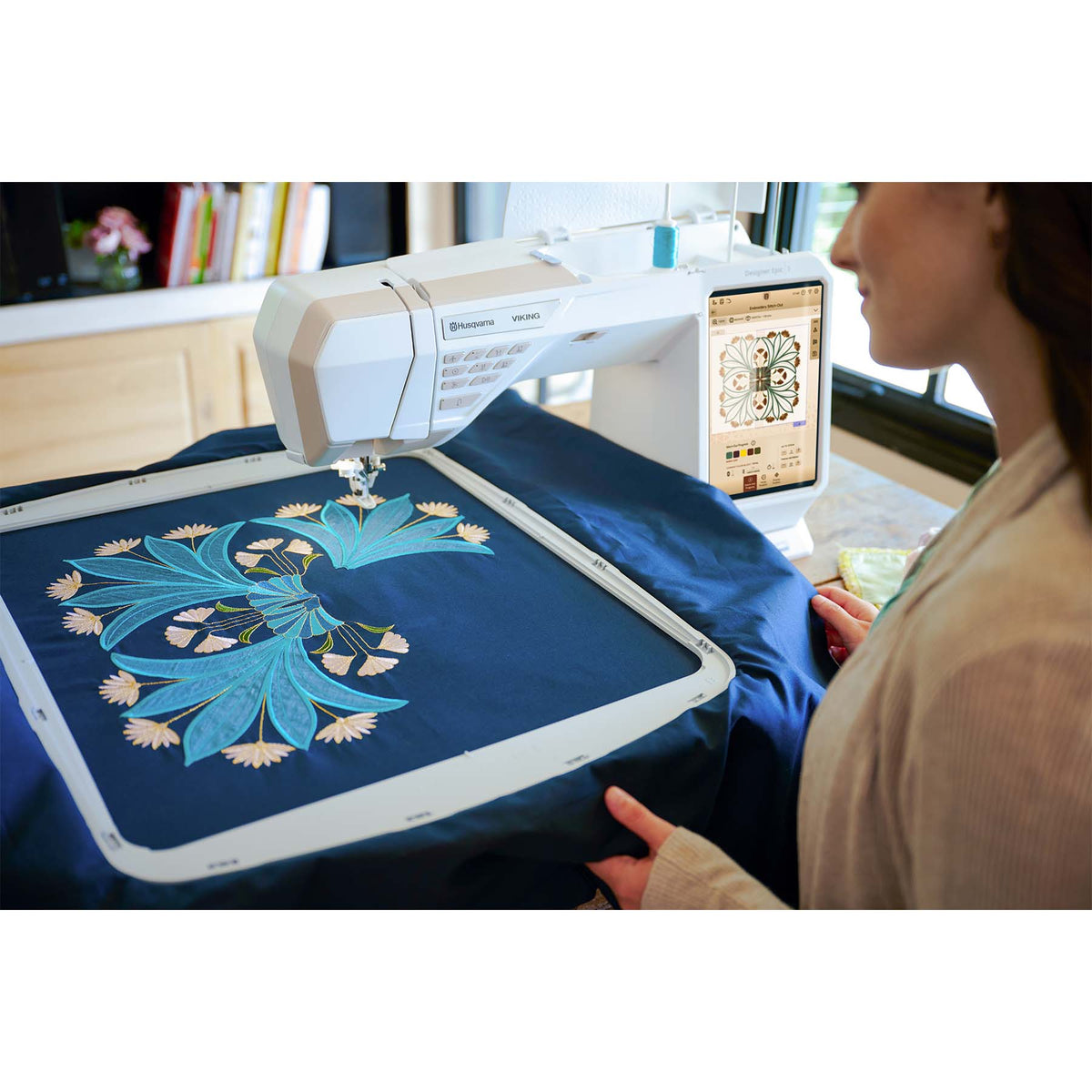

Large embroidery with the whole design in view

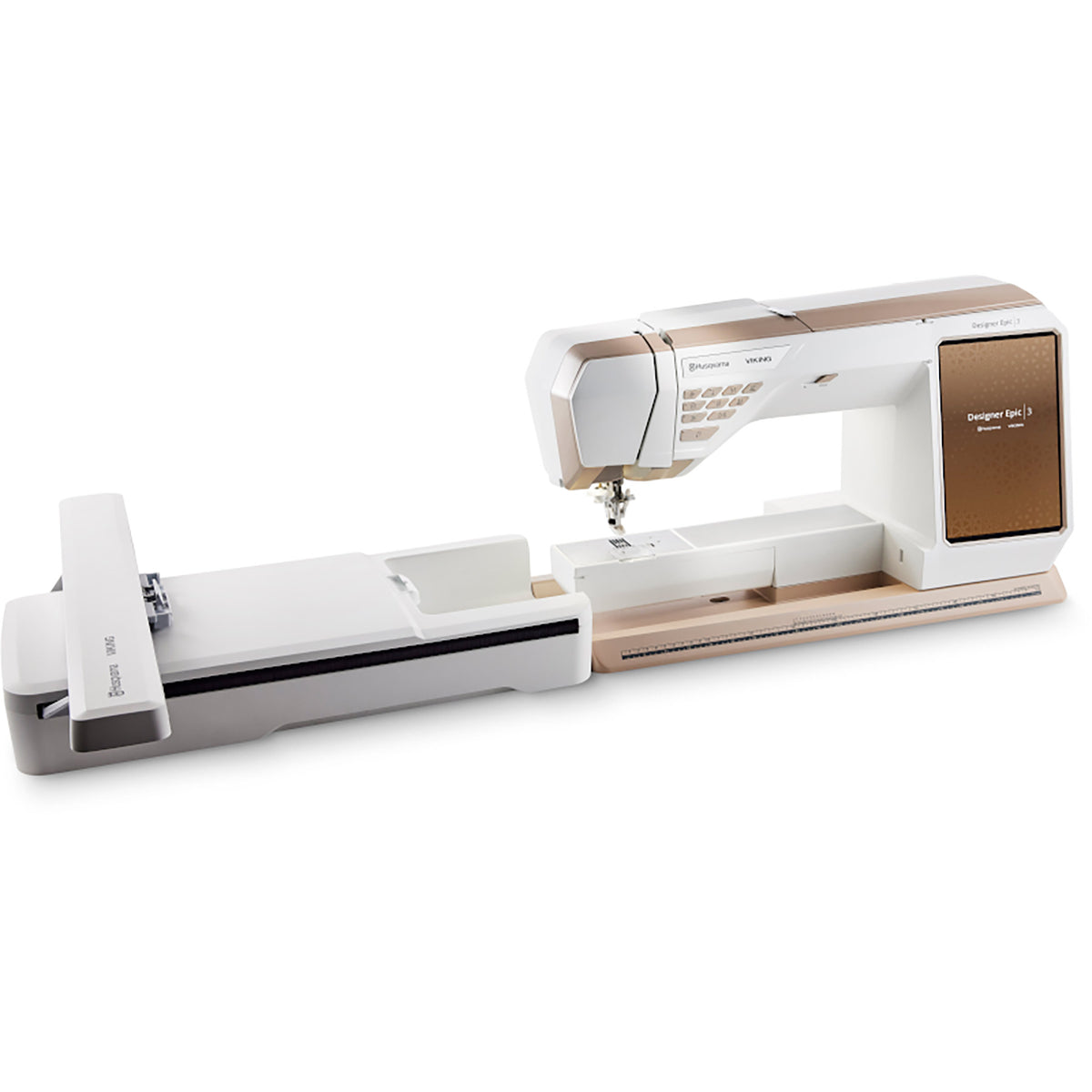

Work from the generous screen while the redesigned embroidery unit handles detailed motifs and broad fields with a stable, guided workflow.
Build repeatable designs into a larger composition
Exact positioning, hoop scanning and on-screen editing support accurately repeated motifs and carefully planned multi-hoop work.
Preview before the needle moves
Project grids, adjustable guidelines or the planned stitch onto the fabric for alignment you can see in the real sewing area.
Room for serious quilting
The 310mm needle-to-tower space, Integrated Dual Feed and bright work area support piecing, decorative stitching and bulky quilt handling.

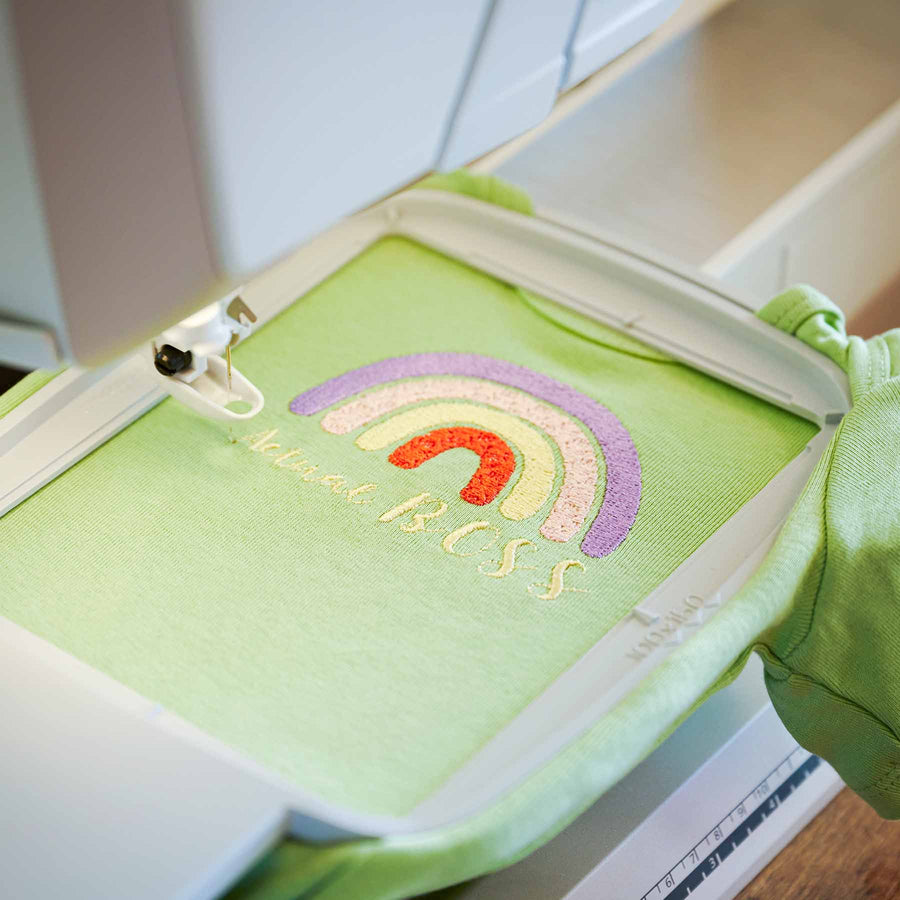

Optional free-arm embroidery
Add the matching Free-Arm Hoop to embroider sleeves, trouser legs, bags and other tubular projects without first opening a seam.
Placement becomes visible
Sewing projectionPreview stitches, adjustable grids and angled guidelines on the fabric before sewing. Embroidery projectionSee the general design position on the hooped project and support alignment between hoopings. Hoop scanningBring an image of the hooped fabric onto the screen for placement and colour decisions. Exact positioningFine-tune a chosen design point and match it to the intended point on the project.
Projection and hoop scanning bridge the screen and the fabric
Instead of imagining where a stitch or embroidery will land, the DESIGNER EPIC 3 lets you work with visual references in the real project area. Projection supports sewing alignment and embroidery placement, while the camera can scan the hooped fabric and display it behind the design on screen.
Know what arrives with the machine—and what expands it later
Four substantial hoops are included from day one. The headline 450 × 450mm field and several specialist techniques use optional hoops or attachments, so this page keeps those distinctions clear.
Included with the machine
A versatile four-hoop package
- DESIGNER Regal Hoop: 465 × 260mm
- DESIGNER Royal Hoop II: 360 × 200mm
- DESIGNER Jewel Hoop II: 240 × 150mm
- DESIGNER Splendid Square Hoop II: 120 × 120mm
- Hoop adapter for the included hoop system
- 912 designs, embroidery fonts, on-screen editing and up to 1,000 embroidery stitches per minute
Optional expansion
Add specialised capability when you need it
- Mega Turnable Hoop: up to 450 × 450mm embroidery area
- Free-Arm Hoop: tubular embroidery without opening a seam
- Special Techniques Hoop: combine reversible techniques such as felting or bobbin work with conventional embroidery
- DESIGNER Embellishment Attachment: guide ribbon, beads or yarn automatically
- Optional magnetic hoops, spool rack, extension table, magnification and multi-function foot control
Important: the machine is capable of these optional techniques, but the Mega Turnable Hoop, Free-Arm Hoop, Special Techniques Hoop and embellishment attachments are not part of the standard included package unless a separate promotion explicitly says otherwise.
A design studio built into the 10.1-inch screen
Select, arrange, group and layer multiple embroideries into one composition directly on screen.
Change a design's dimensions while the machine recalculates stitches to preserve the result.
Arrange designs or stitches around 23 shapes and use two fonts as shape-building elements.
Build appliqué using 68 shape options and 16 stitch options without leaving the machine.
Change thread colours, background colour and monochrome settings with an on-screen thread-colour database.
Create a 9mm stitch from scratch or edit built-in stitches by manipulating individual stitch points.
Sew large motifs in sections while projected guidance shows where and when to pivot the fabric.
Sort or merge colour blocks, change stitch-out order, view remaining time and step to an exact stitch.
Access project, technique, fabric, stabiliser, needle and accessory information on the machine.
A premium sewing machine in its own right
Integrated Dual Feed Electronic piercing power deLuxe Stitch System Automatic Sensor System AI foot recognition Bright adjustable lighting
Remove the embroidery unit and keep the flagship sewing experience
With 871 stitches, 310mm of workspace, Integrated Dual Feed, 37 needle positions, automatic threading and the Sensor System, the DESIGNER EPIC 3 is equipped for garments, quilts, home décor and precision creative sewing—not just hoop embroidery.
Feeds compatible projects from above and below for layered, slippery and matched fabrics.
Up to 150N pulsating needle force supports controlled penetration through demanding domestic projects.
Controls thread delivery for attractive results across sewing and embroidery techniques.
Controls presser-foot lift, pivot height, pressure and extra lift with feed-teeth drop.
Checks included presser-foot compatibility and whether the foot is attached correctly.
Market-leading LED illumination with adjustable intensity supports detailed work.
One platform for embroidery, quilting, garments and dimensional detail
Large-format embroidery
Combine motifs, build borders and plan multi-hoop compositions with scanning and exact positioning.
Quilting
Use 310mm of space, Integrated Dual Feed, the included quarter-inch foot and three free-motion modes.
Garment construction
Work with Sewing Advisor recommendations, 16 buttonholes, automatic pressure and included specialist feet.
Appliqué
Create shapes on screen or use projection, needle positioning and adjustable stitches for precise edges.
Side-motion stitches
Use the included Side-Motion Foot S for omnimotion designs beyond ordinary forward-and-back movement.
Ribbon + embellishment
Add the appropriate optional attachment to guide ribbon, beads or yarn automatically into embroidery.
Free-arm embroidery
Add the optional Free-Arm Hoop for sleeves, legs, bags and other difficult-to-hoop tubular projects.
Personalisation
Use embroidery fonts, sewing alphabets, imported designs and CREATIVATE connectivity for individual work.
The detailed reference
| Brand | HUSQVARNA VIKING |
|---|---|
| Model | DESIGNER EPIC 3, Starlight Bronze |
| Machine type | Flagship computerised sewing and embroidery machine |
| Largest embroidery area available | Up to 450 × 450mm with optional Mega Turnable Hoop |
| Included hoops | 465 × 260mm, 360 × 200mm, 240 × 150mm and 120 × 120mm, plus hoop adapter |
| Built-in embroidery designs | 912 |
| Embroidery fonts | 8 multi-size plus 2 single-size |
| Maximum embroidery speed | Up to 1,000 stitches per minute |
| Embroidery placement | Projection, hoop scanning and exact positioning |
| Automatic jump-stitch trim | Yes |
| Built-in sewing stitches | 871 |
| Maximum stitch width | 9mm |
| Needle positions | 37 |
| Sewing fonts | 6 programmable fonts; can also be embroidered |
| Maximum sewing speed | Up to 1,050 stitches per minute |
| Sewing space | 310mm / over 12in to the right of the needle |
| Display | 10.1in / 217 × 136mm capacitive colour touch screen, 1280 × 800 resolution and 180° viewing angle |
| Fabric feed | Integrated Dual Feed built in |
| Thread delivery | deLuxe Stitch System with electronic self-adjusting tension/portioning |
| Needle threader | Automatic |
| Thread sensors | Top and bobbin thread sensors |
| Presser-foot system | Exclusive Sensor System with automatic lift, pivot, pressure and extra lift |
| AI assistance | Recognition and compatibility guidance for included presser feet |
| Lighting | Adjustable-intensity LED work lighting |
| Free-motion modes | Ruler foot, floating and spring action |
| Connectivity | 2.4GHz WiFi, two USB ports, CREATIVATE cloud/app compatibility |
| On-machine / connected storage | 100MB My Stitches memory plus cloud and USB file options |
| Machine dimensions | Approximately 628 × 275 × 362mm, machine only |
| Approximate net weight | Machine approximately 15kg; embroidery unit approximately 8kg |
| Rated power | 100–240V, 50–60Hz; nominal consumption under 100W |
Start with fields for monograms, garments and large designs
The broadest included field for large motifs, borders and statement embroidery.
A highly useful large rectangular format for garments, cushions and quilt blocks.
A versatile mid-size hoop for everyday motifs, personalisation and project panels.
A compact field for small motifs, monograms and designs that benefit from tighter hooping.
A premium sewing package from day one
Tools, storage and setup pieces
The remaining included accessories
Alongside the four hoops and 12 feet, the standard package includes the core setup, storage and maintenance pieces listed in the official manual.
Nine bobbins
Four thread nets
Universal tool
Multipurpose tool
Seam ripper and brush
Edge / quilting guide
Two thread-cone holders
Six spool caps: two each in small, medium and large
Twenty hoop clips
Two large spool holders
Sensor straight-stitch plate
Self-adhesive glide plates
Needle pack
Foot control and power cord
Complimentary PC/Mac software download
Embroidery-unit luggage-style bag with packing insert
Package reminder: promotions can add extras, but only treat an optional hoop, attachment, table or accessory as included when the current Direct Sewing offer explicitly names it.
DESIGNER EPIC 3 manual
Setup, threading, IDF, projection, camera scanning, sewing, embroidery editing, stitch-out, WiFi, maintenance and troubleshooting.
Open Instruction Manual (PDF)Official machine support
Access the latest firmware, machine software and model-specific instructions from the official support centre.
Open EPIC 3 SupportTalk with Direct Sewing
Discuss your projects, included package, delivery, setup, training, compatible accessories and current NZ warranty before purchase.
Contact Direct SewingHUSQVARNA VIKING DESIGNER EPIC 3 FAQs
What kind of machine is the DESIGNER EPIC 3?
It is HUSQVARNA VIKING's flagship computerised sewing and embroidery machine. It combines large-format embroidery, projection, hoop scanning and advanced on-screen editing with 871 sewing stitches, Integrated Dual Feed and 310mm of sewing space.
What is the largest embroidery area?
The largest available embroidery area is up to 450 × 450mm when using the optional Mega Turnable Hoop. That hoop is not part of the standard included package. The largest included hoop is the DESIGNER Regal Hoop at 465 × 260mm.
Which embroidery hoops are included?
Four hoops are included: the 465 × 260mm DESIGNER Regal Hoop, 360 × 200mm DESIGNER Royal Hoop II, 240 × 150mm DESIGNER Jewel Hoop II and 120 × 120mm DESIGNER Splendid Square Hoop II, plus the hoop adapter.
How does embroidery projection help?
Projection displays the design position on the hooped fabric so you can assess general placement and support alignment between hoopings. Exact Positioning then provides finer point-to-point control.
What is sewing projection?
Sewing projection can display the selected stitch, adjustable grids and angled guidelines directly in the sewing area. This helps align seams, decorative stitching, quilting and repeated placement before sewing.
What is hoop scanning?
The built-in camera captures the hooped project and displays the fabric image on screen. You can then position embroidery against real motifs, seams or reference points and preview colour relationships more confidently.
Does it recognise presser feet?
Yes. Its AI feature can recognise the included presser feet, indicate whether the selected foot is compatible with the stitch and warn when it is attached incorrectly.
How many designs and stitches are built in?
It includes 912 embroidery designs and 871 sewing stitches. The machine also provides embroidery fonts, six programmable sewing fonts, Stitch Creator, design shaping and appliqué-creation tools.
Can it embroider sleeves and bags?
Yes, when fitted with the optional DESIGNER EPIC 3 Free-Arm Hoop. The 100 × 150mm accessory allows tubular projects such as sleeves, trouser legs, bags and small garments to pass around the free arm without opening a seam.
Is the reversible Special Techniques Hoop included?
No. The optional Special Techniques Hoop is required to combine reverse-side techniques such as felting or bobbin work with conventional embroidery without unhooping. Do not assume it is included unless a current promotion explicitly lists it.
Can it embroider ribbon, beads or yarn automatically?
The machine supports the appropriate optional DESIGNER Embellishment and ribbon-embroidery attachments. These accessories guide suitable ribbon, beads or yarn while the machine stitches, but they are not standard included items.
Is it also suitable for quilting?
Yes. It offers 310mm of space to the right of the needle, Integrated Dual Feed, 37 needle positions, three free-motion modes, projected guidelines and included quarter-inch, Sensor Q and darning feet.
Does it have an automatic needle threader?
Yes. Place the upper thread through the specified threading path and activate the automatic needle-threader button as described in the manual.
Does it cut jump stitches?
Yes. The selective automatic thread cutter includes automatic jump-stitch trimming for suitable embroidery designs and settings.
Can it wind a bobbin while sewing or embroidering?
Yes. A separate bobbin-winding motor allows bobbin winding while the machine continues sewing or embroidering when the setup and thread path are appropriate.
Does CREATIVATE require a subscription?
Core machine operation and the built-in designs do not require a paid subscription. Some connected library, software or premium ecosystem content may require an account or subscription. Offers and plan names can change, so check the current CREATIVATE terms.
How large and heavy is the machine?
The machine body is approximately 628 × 275 × 362mm and approximately 15kg. The embroidery unit is approximately 8kg. Allow additional clear table area for the unit, hoop and moving project.
Should I arrange a demonstration before buying?
Yes. A demonstration lets you experience the screen, projection, camera, hoop connection, embroidery workflow and sewing controls, and helps confirm the machine suits your space and projects. Contact Direct Sewing to discuss the current package, delivery, setup and NZ support.
Bring the biggest ideas into focus
Make placement visible—and creativity feel limitless.
Choose the DESIGNER EPIC 3 when you want flagship embroidery scale, precise visual guidance and a premium sewing platform working together in one extraordinary creative system.
