Electronic-feed industrial straight stitching

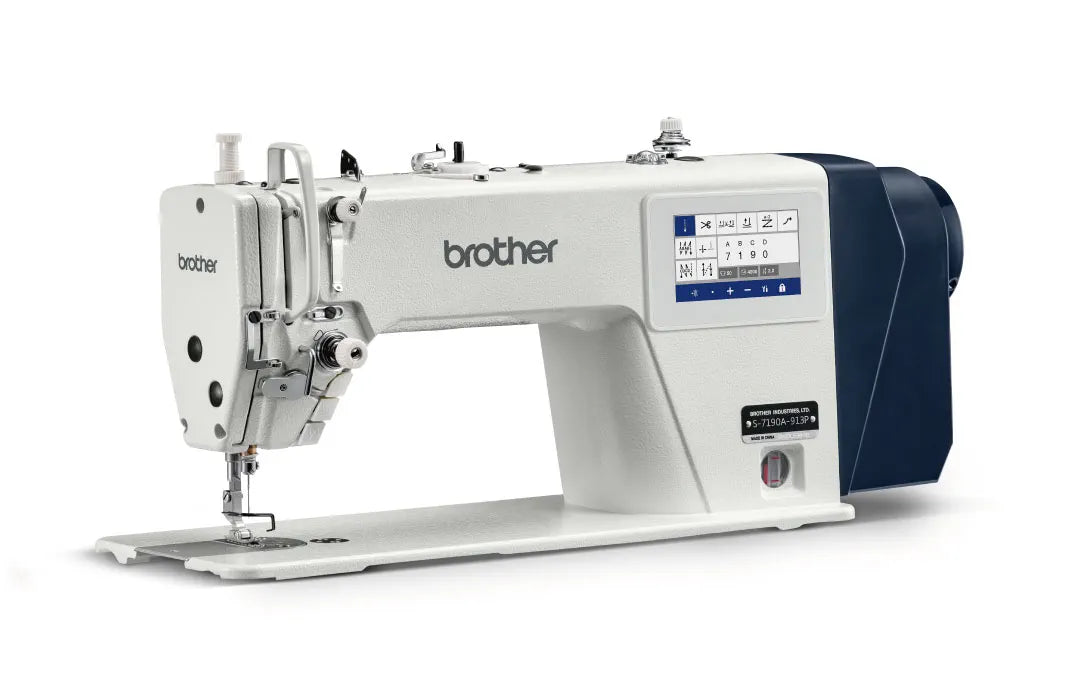

The Brother S-7190A is a single-needle, direct-drive industrial lockstitch machine with electronic feed, automatic thread trimming and an electric presser-foot lifter. A colour LCD touchscreen provides stitch-length and sewing controls, while LED lighting illuminates the work area.
Key features
- Electronic stitch-length control.
- Automatic backtack and thread trimming.
- Electric foot lift, up to 13mm.
- Direct-drive motor and sealed oil tank.
- Colour LCD touch panel and LED sewing light.
Specifications
- Maximum stitch length: 5mm.
- Maximum speed: up to 5,000 stitches per minute for the -913P configuration; -915P is rated to 4,000.
- Needle system: DB×1 / 16×231 as specified for this listing. Confirm the machine subclass when selecting needles.
Confirm the subclass and supplied setup with Direct Sewing to match your materials and production needs.
Included accessories
- Needles.
- Screwdrivers.
Instructions and specifications
Operation panel settings manual · Official Brother S-7190A specifications
