Brother NEXIO RH-982A · Industrial buttonholing
The finishing detail
that sets garments apart.

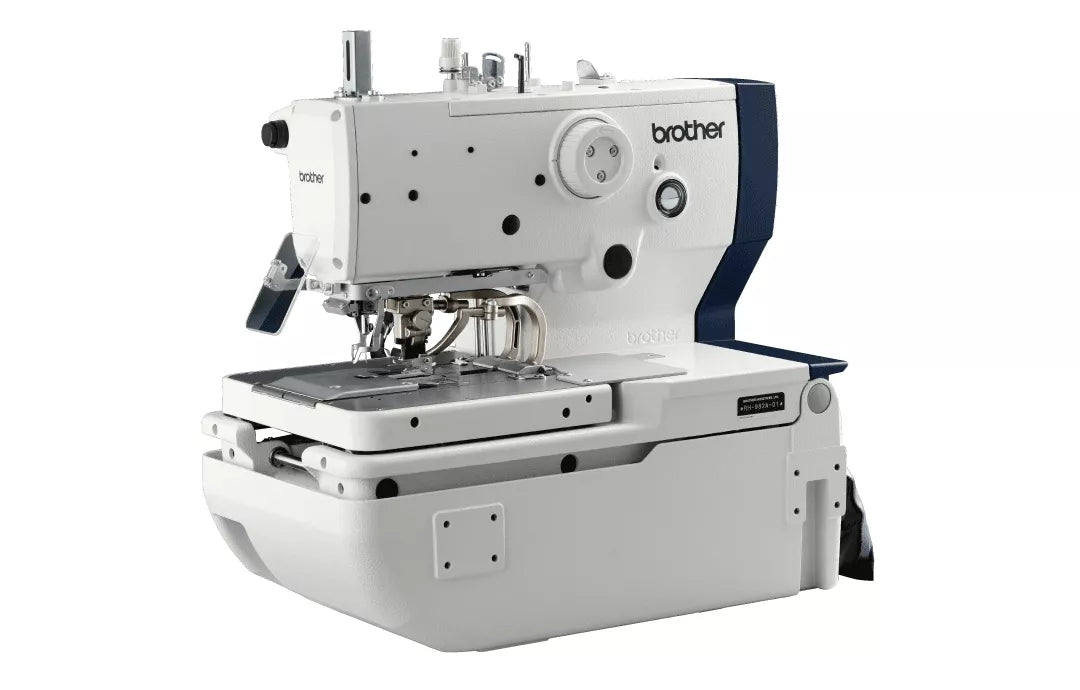

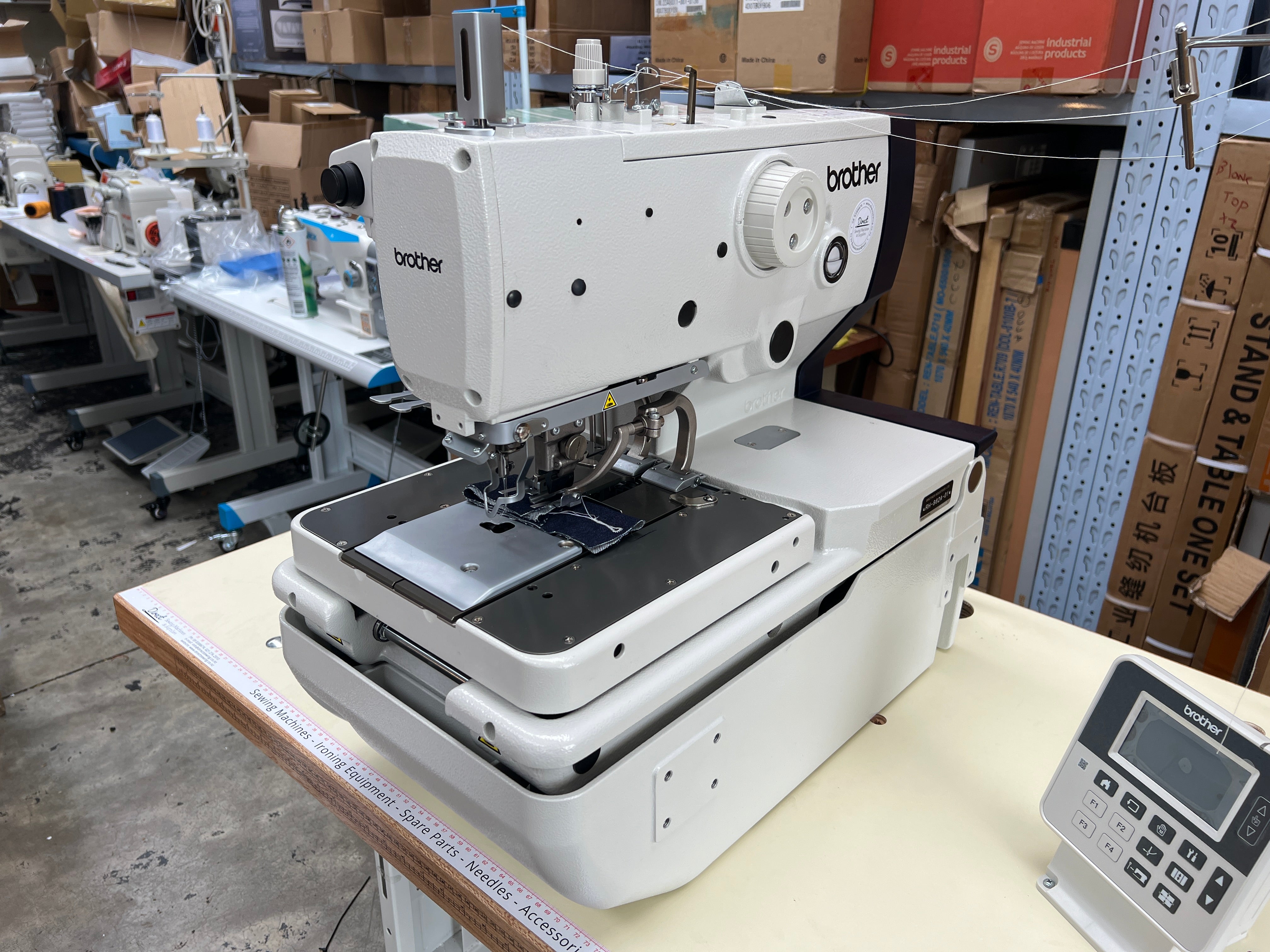

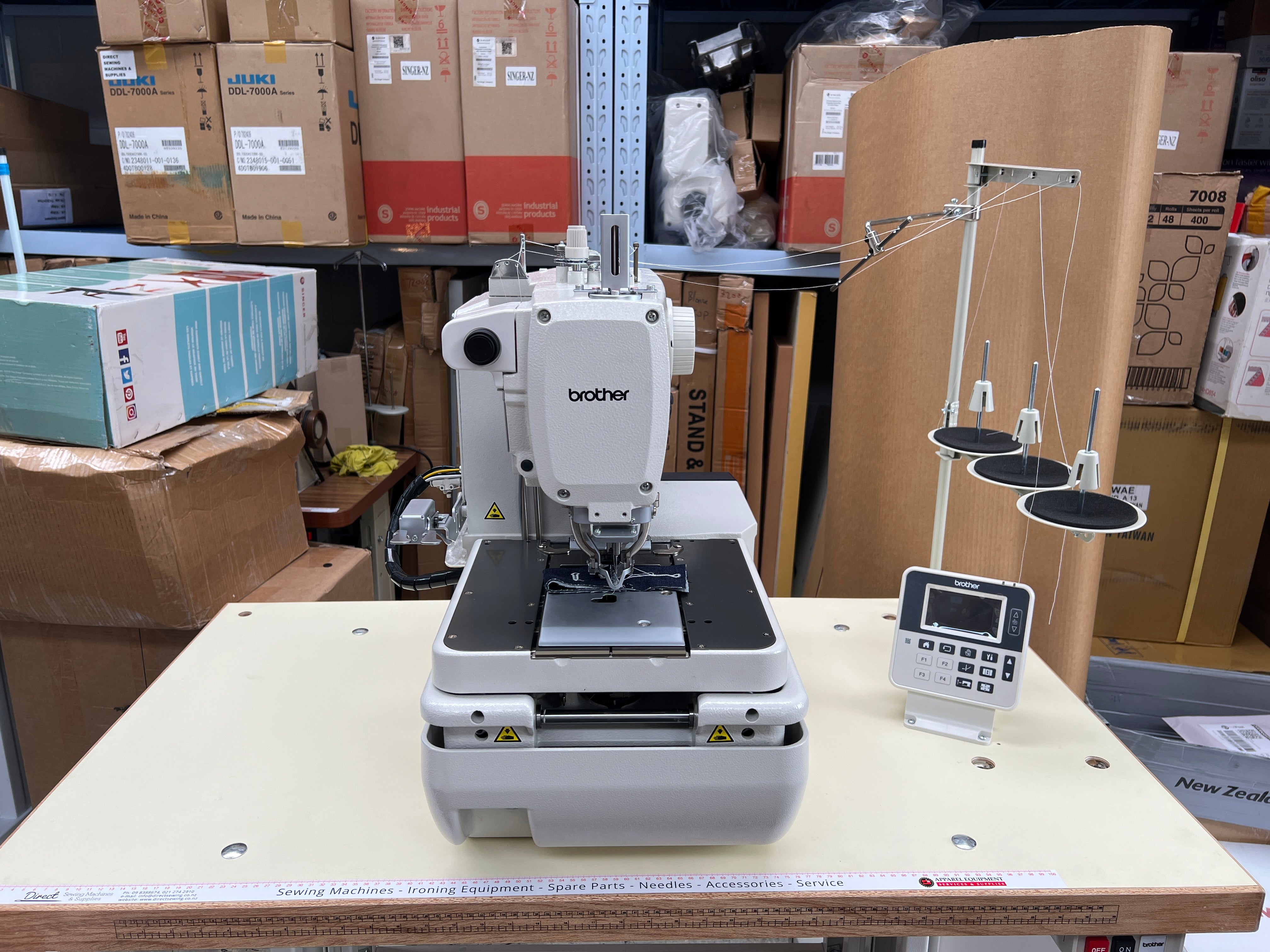

Give your buttonholes the attention they deserve with the Brother NEXIO RH-982A electronic eyelet buttonhole machine. Also known as a keyhole buttonholer, it brings programmable control and a refined stitch finish to garment production.
From tailoring to casualwear and denim, the RH-982A range offers configurations for different materials and finishing requirements. Its colour touchscreen makes everyday settings easier to manage.
Quality at the buttonhole
Built for a consistent, professional finish

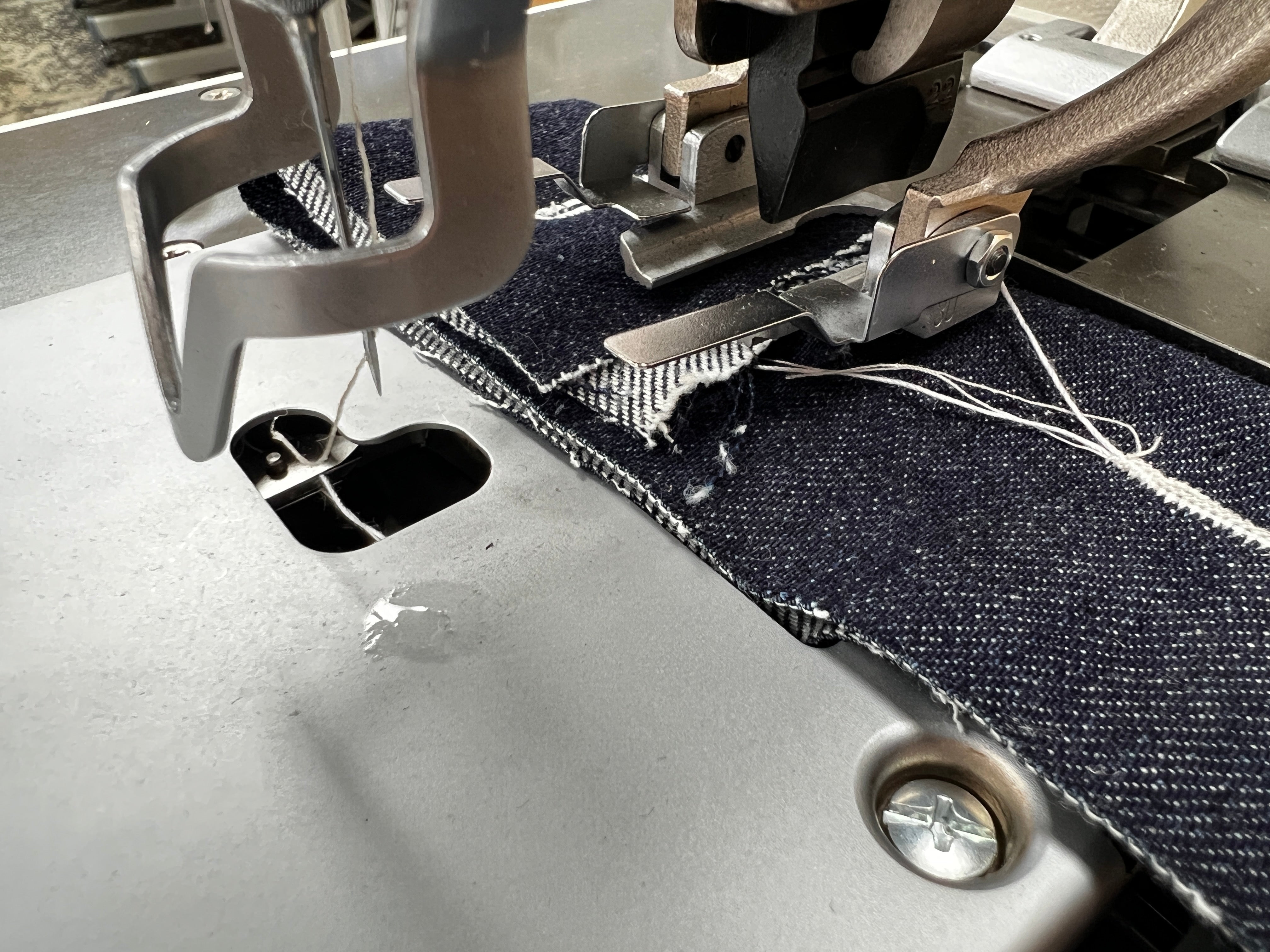

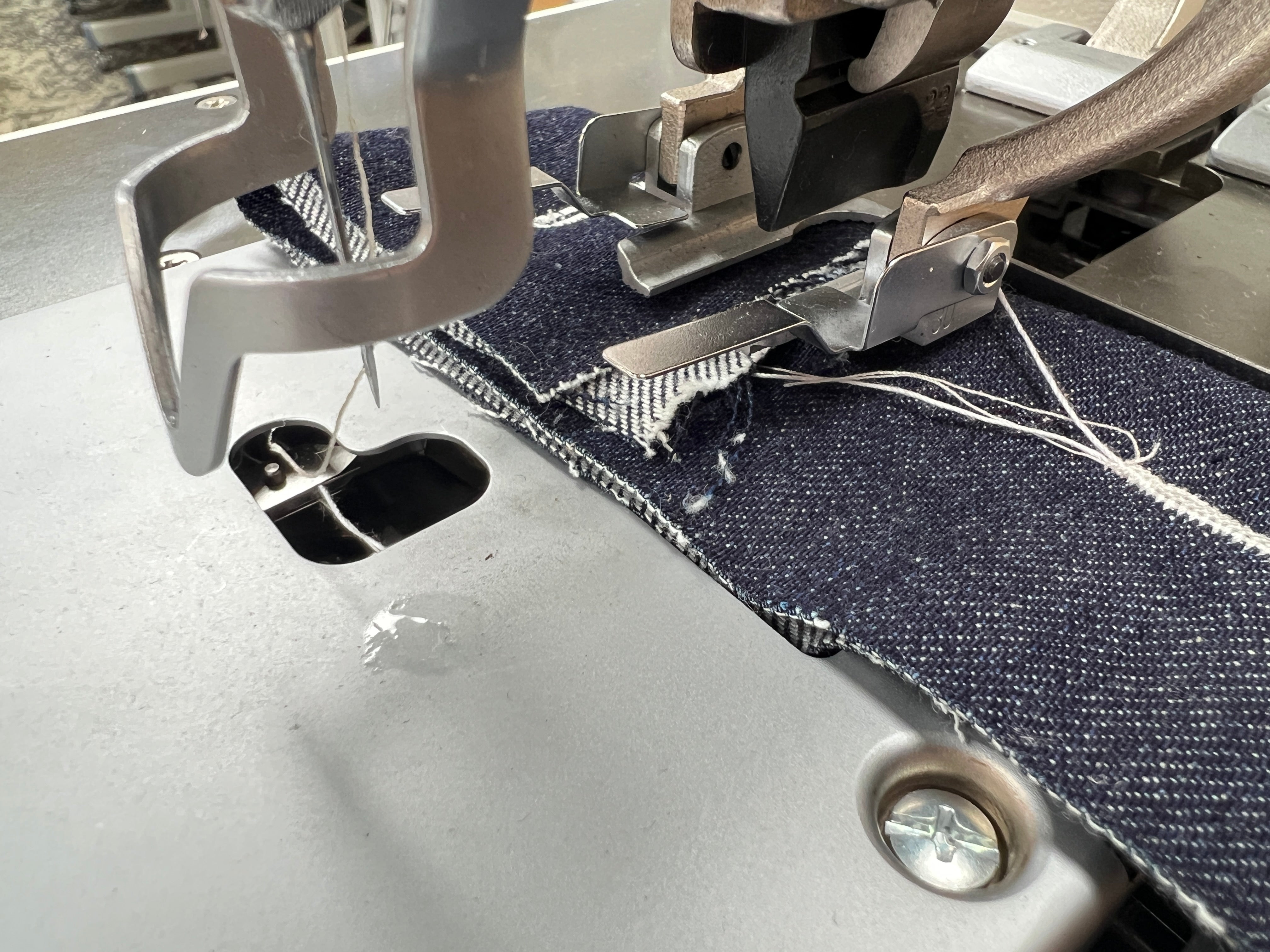

- Stitch formation: Brother’s looper and needle-guard design helps reduce skipped stitches and thread-tightening defects.

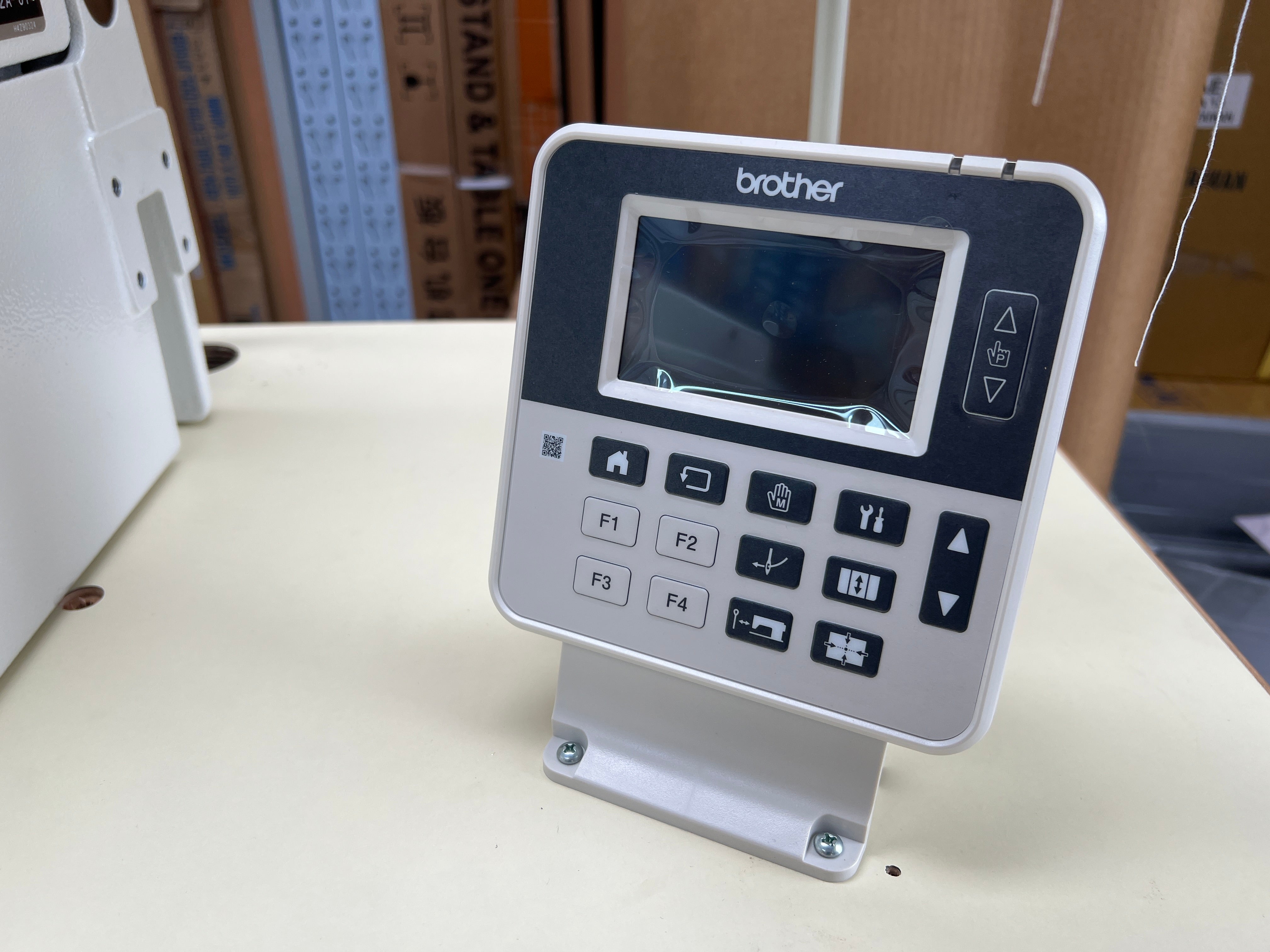

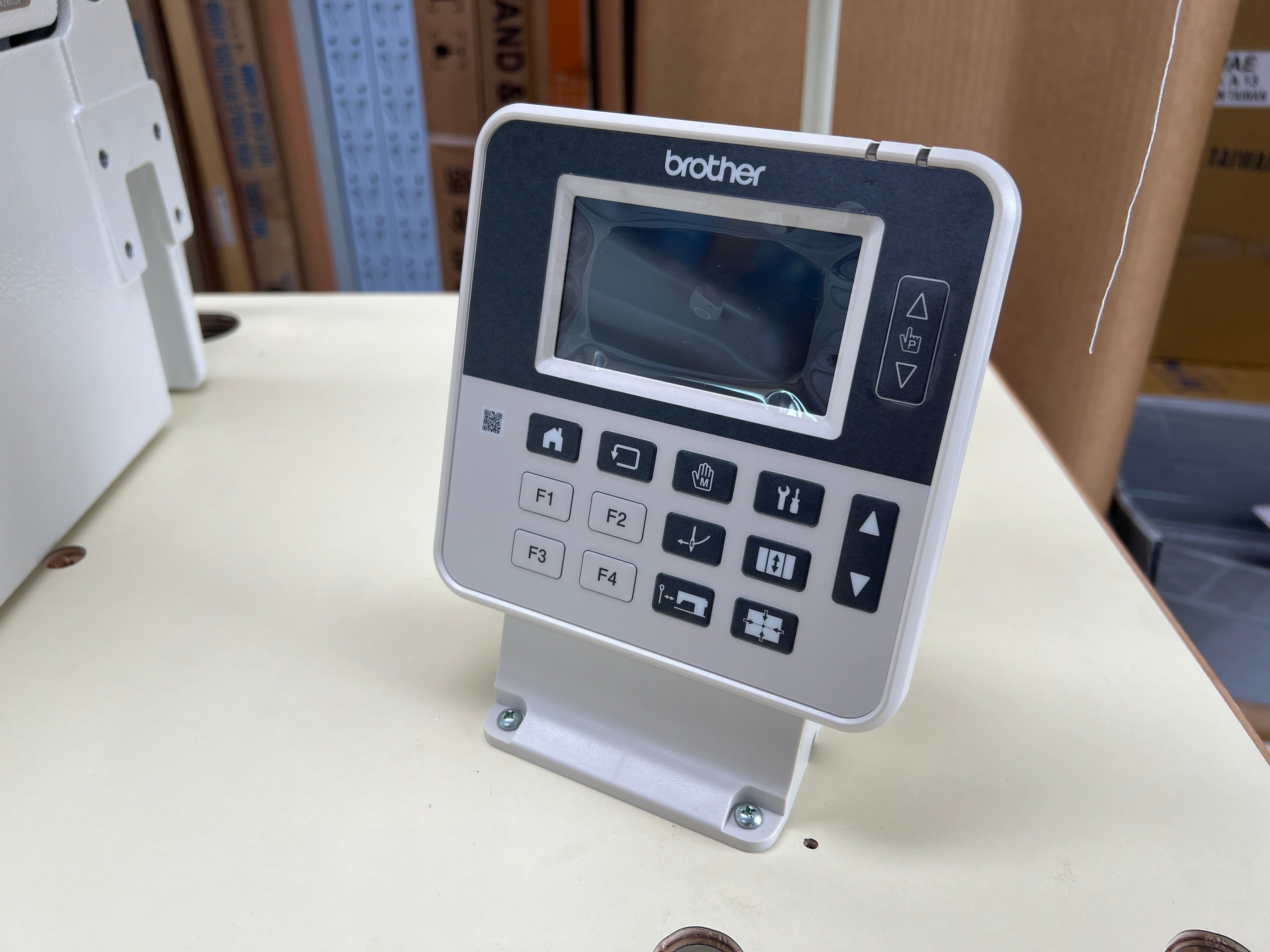

- Simple setup: adjust patterns, sewing speed, stitch length and cycle programmes through the colour LCD touch panel.

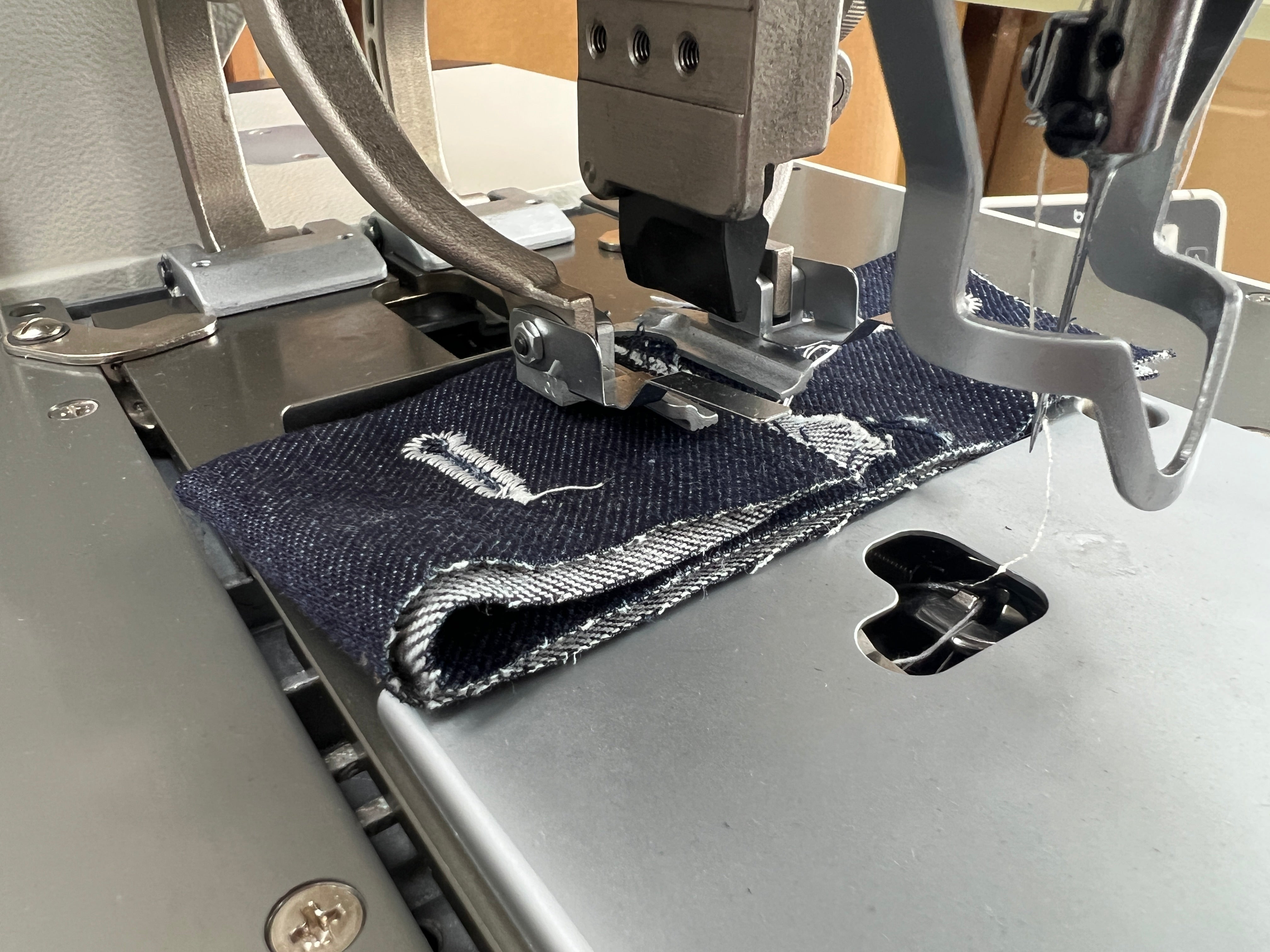

- Controlled cutting: an air-cylinder-operated hammer supports cutting across different materials.

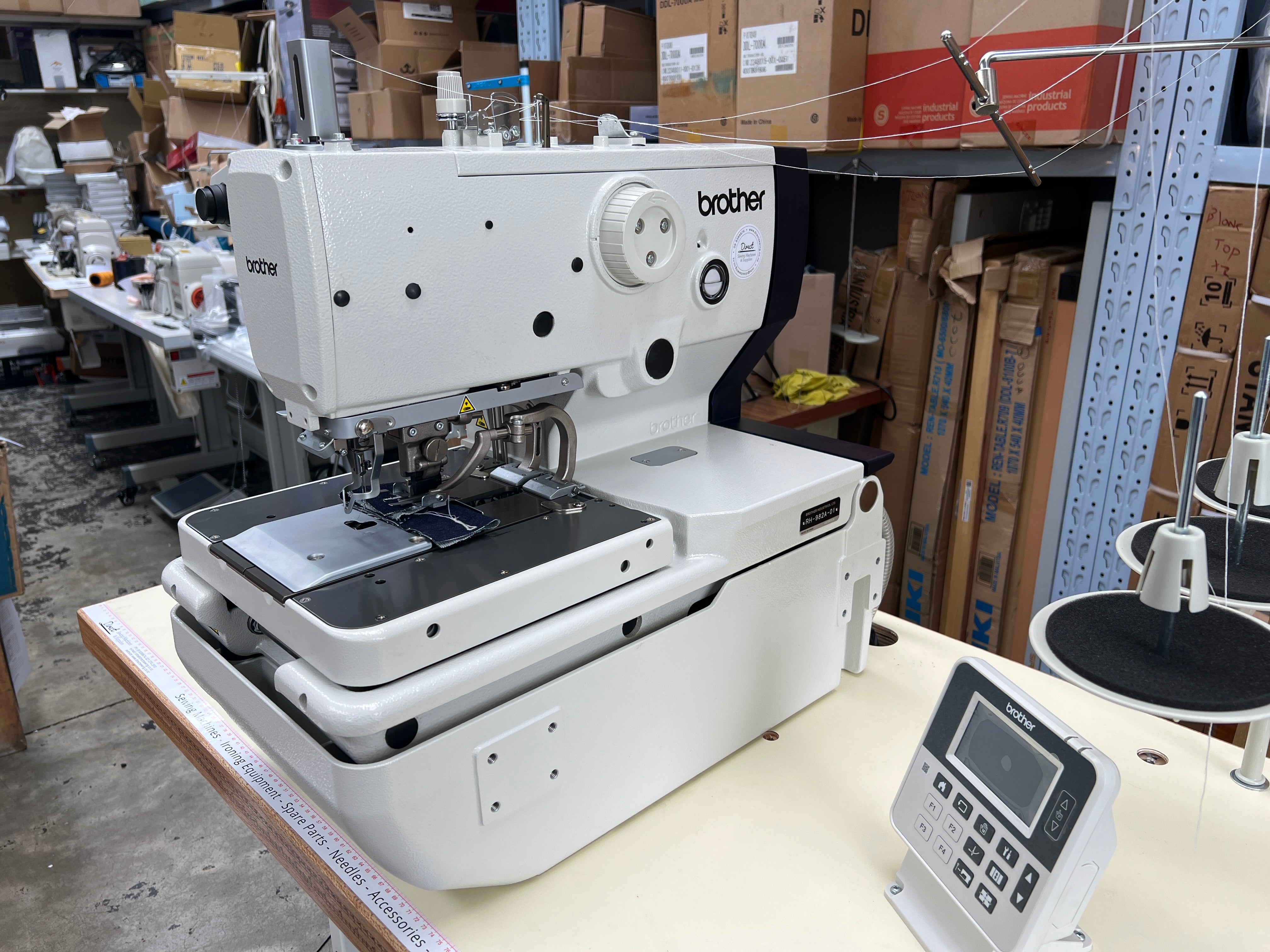

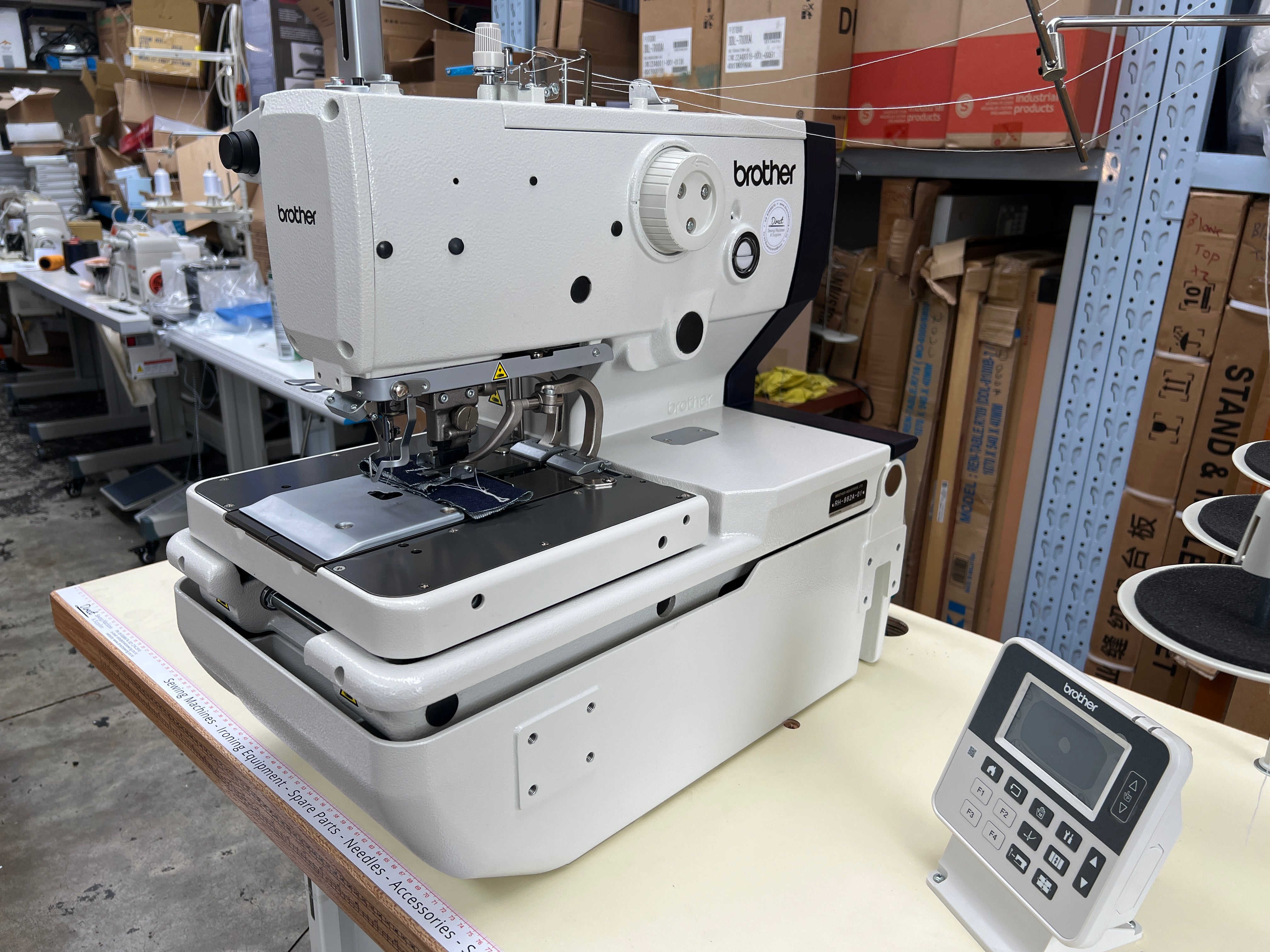

- Room and visibility: the 120mm arm pocket and standard LED light help with garment positioning.
- USB convenience: transfer sewing data between compatible machines and carry out software updates.
Core specifications
- Model
- Brother NEXIO RH-982A
- Machine type
- Electronic eyelet buttonholer
- Sewing speed
- 1,000–2,500 stitches/minute
- Stitch pitch
- 0.5–2.0mm
- Upper-thread trimming
- Included
- Buttonhole length / lower-thread trimming
- Depend on the machine subclass and fitted gauge parts
- Needle system
- DO×558, Nm80–Nm120
- Upper-shaft motor
- 550W AC servo
- Air pressure
- Main regulator: 0.5MPa; hammer regulator: 0.4MPa
- Air consumption
- 43.2 litres/minute at 8 cycles/minute
Choose the right setup
Configured around your garments
The RH-982A is available in -00, -01 and -02 subclasses, with different buttonhole-length and lower-thread-trimming arrangements. Confirm your required buttonhole size, fabric and thread finish with Direct Sewing before ordering.
Compressed air is required. Brother specifies 200–230V electrical versions in single- or three-phase configurations. The supplied version and site connection must be checked before installation; do not connect a 200–230V version directly to a 400V three-phase supply.

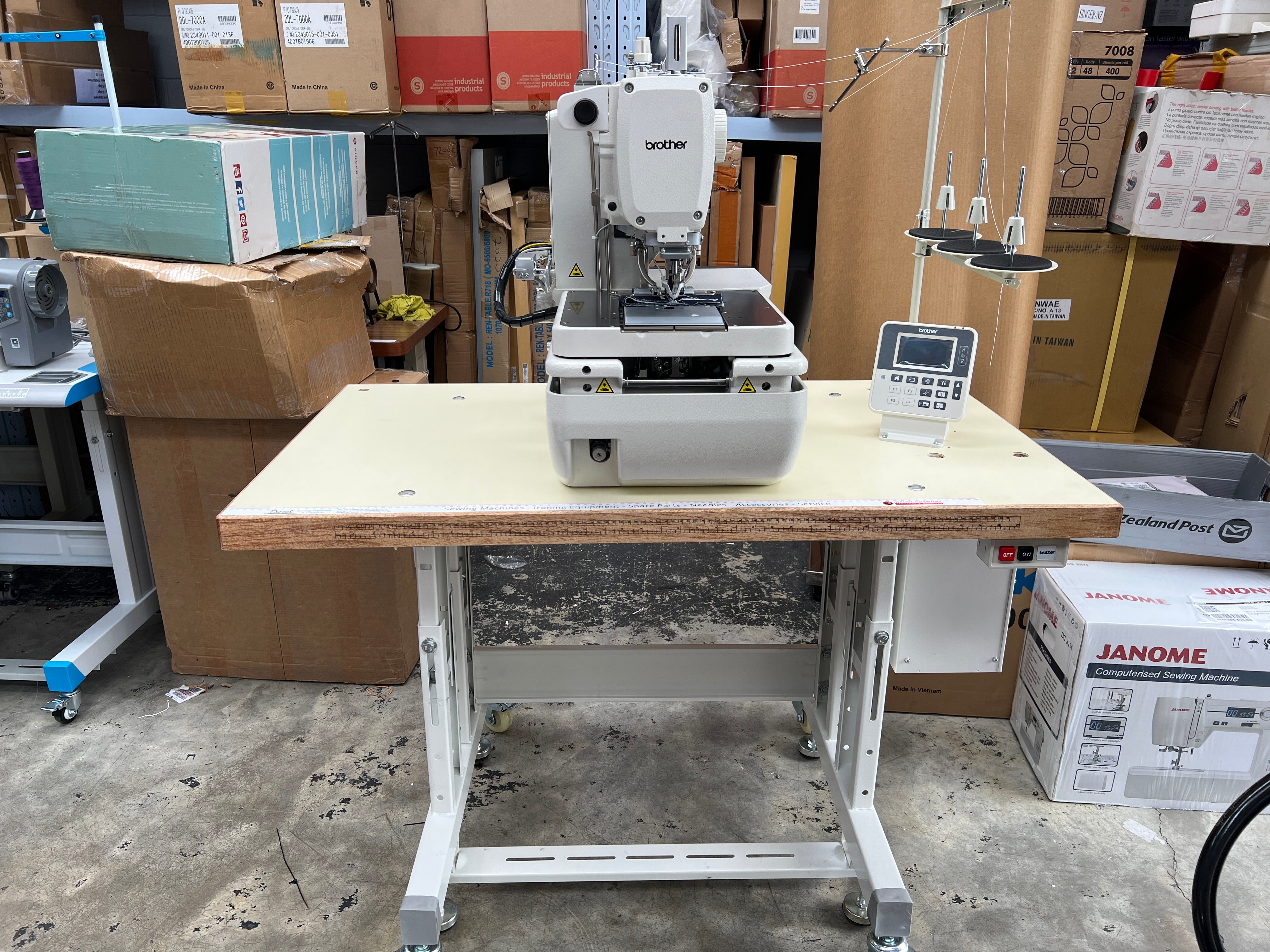

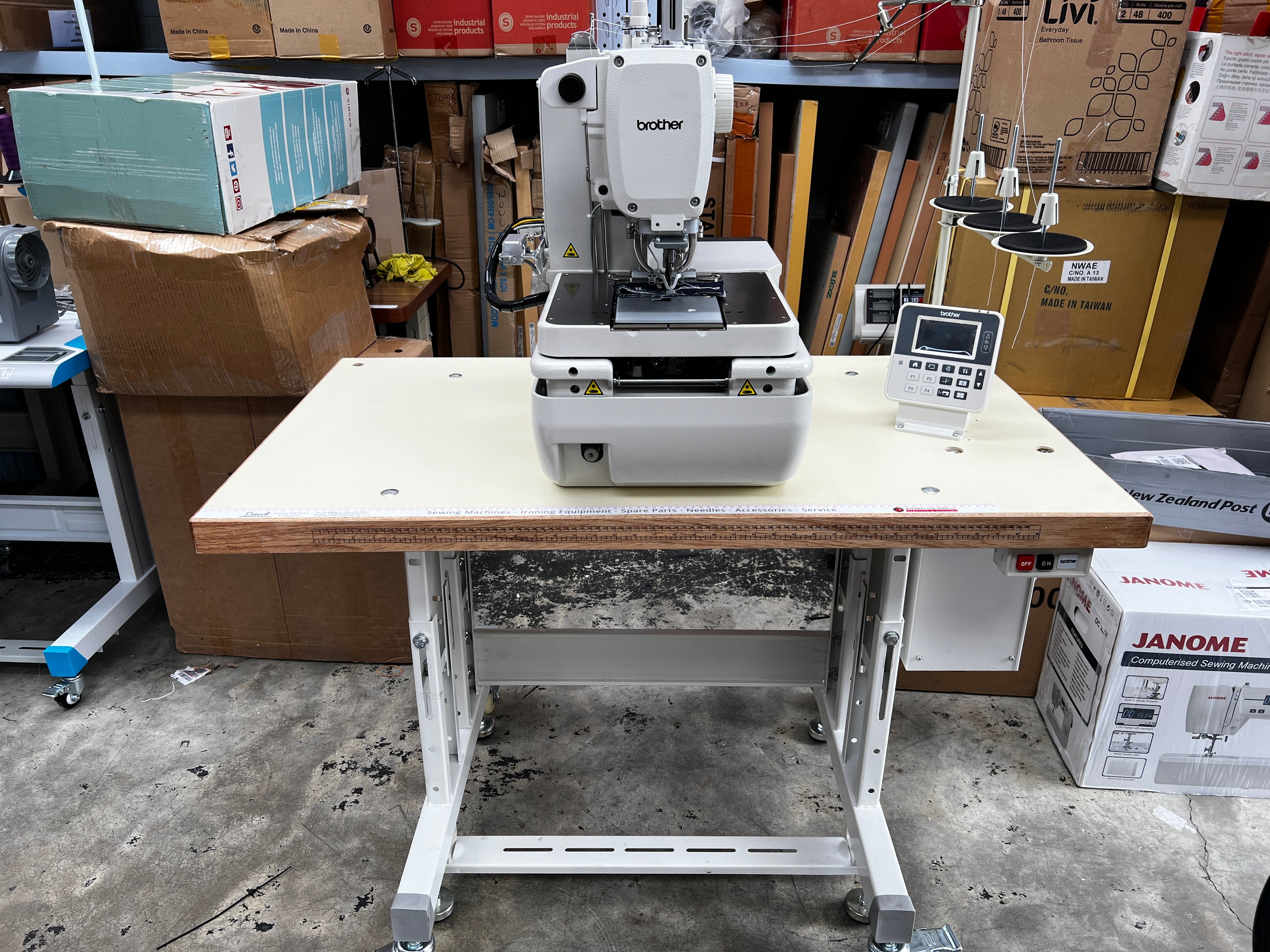

Contact Direct Sewing to confirm the supplied configuration, table and stand package, air supply, delivery and installation arrangements for your workroom.
