260 × 160mm embroidery field
Create larger designs and longer lettering layouts with fewer hooping limitations.
Dedicated Wi-Fi embroidery machine

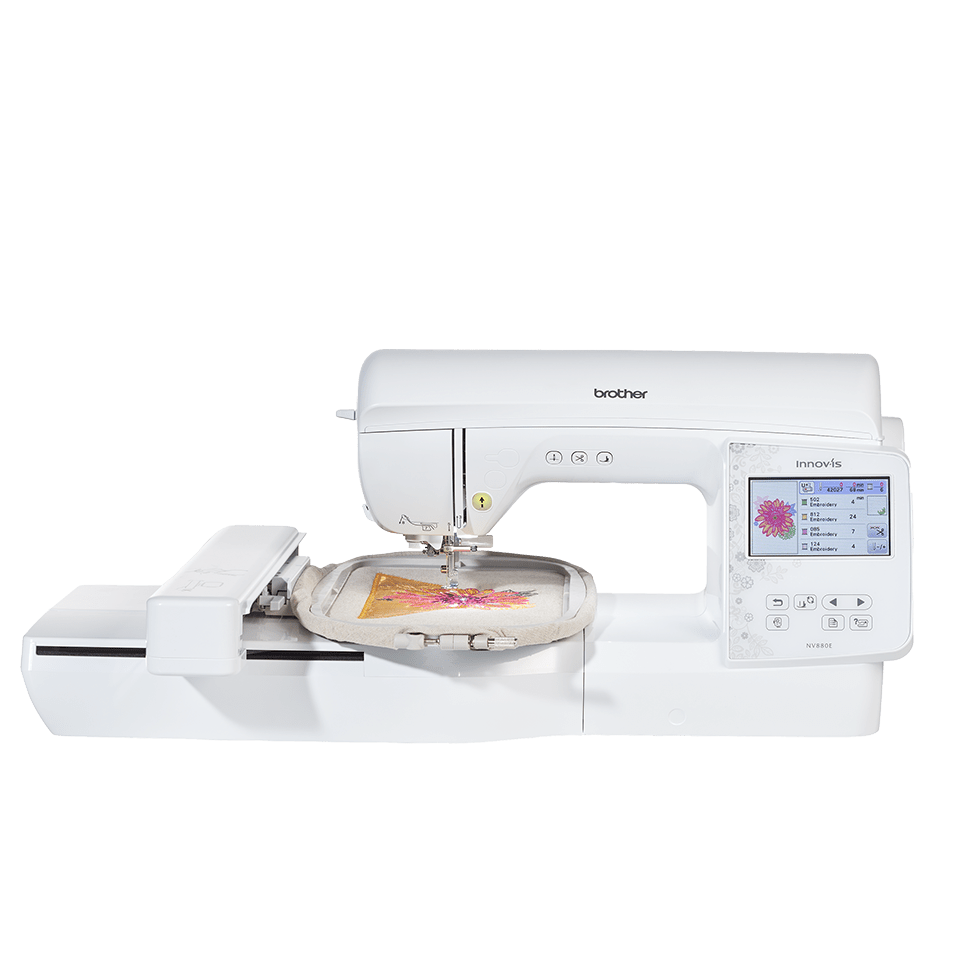

Brother Innov-is NV880E
Take personalised embroidery further with a large 260 × 160mm field, three included hoops, 258 built-in designs, 13 embroidery fonts and fast stitching at up to 850 stitches per minute. Built-in Wi-Fi, Artspira compatibility, colour sorting and Brother’s LED positioning pointer make the NV880E an exceptional home embroidery machine.
260 × 160mm
maximum embroidery field
258
built-in embroidery designs
13
embroidery fonts
850 SPM
maximum embroidery speed
More embroidery space, fewer limitations
The Brother Innov-is NV880E is for creators who want a dedicated embroidery machine with a substantially larger field than an entry-level 100 × 100mm model.
Its 260 × 160mm maximum embroidery area accommodates larger names, jacket-back motifs, detailed florals, quilt blocks, appliqué designs, borders and decorative layouts without constant rehooping.
Three hoop sizes are supplied, allowing the frame to be matched more closely to the project rather than using the largest hoop for every design.
The NV880E is embroidery-only, so every control and feature is focused on hoop positioning, design editing, thread management and producing clean embroidery results.
Exceptional standard package
Three embroidery hoops and LED pointer foot included
The NV880E arrives with three useful frame sizes, allowing you to move from compact monograms to larger decorative layouts immediately.
- Embroidery Foot U+ with LED pointer
- 260 × 160mm embroidery frame and grid sheet
- 150 × 150mm embroidery frame and grid sheet
- 100 × 100mm embroidery frame and grid sheet
- Embroidery bobbin thread
- Embroidery needle set
- Four Brother bobbins
- Thread spool insert
- Spool caps
- Spool net
- Scissors
- Seam ripper
- Cleaning brush
- Screwdriver set
- Accessory bag
- Soft machine cover
Large-format home embroidery with intelligent automation
Three hoops included
Choose between 260 × 160mm, 150 × 150mm and 100 × 100mm frames.
Built-in Wi-Fi
Transfer compatible designs wirelessly and install supported machine updates.
Artspira compatible
Browse, personalise and send compatible embroidery content from a mobile device.
LED positioning pointer
See the needle-drop location on the project before embroidery begins.
Colour sorting
Group matching colours across combined designs to reduce unnecessary rethreading.
Jump-stitch trimming
Automatically cut compatible jump stitches to reduce finishing work after embroidery.
258 built-in designs
Begin creating immediately with a broad library of professional embroidery patterns.
More room for ambitious designs
260 × 160mm maximum embroidery area
The large field measures approximately 10.25 × 6.25 inches, giving you significantly more room than a basic 4 × 4-inch embroidery machine.
Longer names, larger motifs and more detailed decorative layouts can be completed in one hooping when the design fits within the field.
Brother also provides approximately 210mm of physical workspace from the needle to the machine arm, giving bulky projects more room to sit beside the hoop.
- Jacket-back motifs
- Large florals
- Quilt blocks
- Appliqué embroidery
- Long names and wording
- Home décor panels
- Decorative borders
- Personalised gifts
Choose the right hoop for the design
Three embroidery frame sizes included
Matching the frame size to the embroidery design reduces excess fabric movement and makes positioning smaller projects more convenient.
The machine detects the attached frame and prevents designs that exceed its stitchable area from being positioned outside the available field.
Included frames
- 260 × 160mm extra-large frame
- 150 × 150mm square frame
- 100 × 100mm compact frame
- Matching grid sheets
- Automatic frame-size detection
- Three practical project sizes
Clear visual design control
4.9-inch full-colour touchscreen
The large display shows the design, hoop area, colour information and editing controls before embroidery begins.
Compatible designs can be moved, resized, rotated, mirrored and combined directly on the machine.
Enhanced zoom and realistic colour preview help you inspect small details and optimise the layout inside the selected frame.
- Full-colour design preview
- Enhanced zoom up to 200%
- Drag-and-drop positioning
- Design resizing
- Pattern rotation
- Horizontal mirroring
- Combine multiple designs
- Built-in tutorials and help
Wireless embroidery transfer
Wi-Fi, Artspira and computer connectivity
Connect the NV880E to a compatible wireless network and send embroidery data without repeatedly carrying a USB drive between your machine and computer.
Brother Design Database Transfer allows compatible files to be organised and sent from a Windows computer.
Artspira adds mobile design browsing, personalisation and wireless transfer from compatible phones and tablets.
- Built-in wireless LAN
- Brother Artspira compatibility
- Design Database Transfer
- Wireless firmware updates
- USB flash-drive import
- No constant cable connection
Wireless transfer requires a compatible network and correctly configured Brother software or app. Design Database Transfer is intended for supported Windows operating systems.
Position embroidery with more confidence
Droplight LED positioning marker
The included Embroidery Foot U+ projects a red positioning light onto the fabric beneath the needle.
This makes it easier to confirm where the design will begin and align embroidery with existing markings, seams or design elements.
The trial-position function can move the carriage around the design boundary so you can check that the entire layout fits within the intended area.
- Shows the needle-drop point
- Improves design placement
- Useful for centred monograms
- Helps align with markings
- Trial-position layout check
- LED pointer foot included
Intelligent colour sorting
When multiple designs are combined, the NV880E can group matching thread colours together and adjust the stitching order.
Instead of repeatedly changing back and forth between the same colours, all compatible sections using one colour can be embroidered together.
This is particularly useful for batches of repeated motifs, multi-element layouts and embroidery containing several matching colour blocks.
Fewer thread changes
Reduce repeated rethreading across combined designs.
Faster completion
Spend more time embroidering and less time stopping.
Improved workflow
Organise similar colour sections into a clearer sequence.
Repeated motifs
Useful when placing multiple copies of one design in a hoop.
Cleaner embroidery with less finishing
Automatic thread and jump-stitch trimming
The automatic cutter trims the upper and bobbin threads at suitable stopping points.
Compatible jump stitches between separate embroidery sections can also be cut automatically.
This reduces the web of loose connecting threads that would otherwise need to be removed by hand after the design is completed.
- Upper-thread cutting
- Bobbin-thread cutting
- Programmable jump-stitch trim
- Reduced manual finishing
- Cleaner multicolour designs
- Useful for lettering
258
Built-in embroidery designs
Begin creating immediately with a large library covering decorative, modern, floral, animal, quilting and blackwork styles.
A substantial ready-to-use design library
Embroidery content for gifts, garments and home projects
The NV880E includes 258 embroidery designs plus 140 frame-pattern combinations.
The collection includes large and small motifs, quilting blocks, borders, decorative patterns, animals, florals, blackwork and appliqué possibilities.
Additional compatible embroidery files can be imported wirelessly or through USB.
- Floral embroidery
- Animal motifs
- Blackwork designs
- Quilting patterns
- Decorative borders
- Appliqué possibilities
- Modern motifs
- Additional design import
140 built-in frame-pattern combinations
Ten frame shapes can be combined with 14 stitch styles to produce 140 different borders.
Frames can be used around monograms, names, labels and small motifs or stitched independently as decorative outlines.
- Ten frame shapes
- Fourteen stitch styles
- 140 total combinations
- Monogram borders
- Patch and badge outlines
- Decorative labels
Thirteen embroidery lettering fonts
Add names, initials, numbers, dates and messages as true machine embroidery.
Text can be entered across multiple lines and edited on screen using size, spacing, layout and curving controls.
Lettering may be combined with decorative designs and frame patterns, provided the finished layout fits inside the selected hoop.
Names
Personalise garments, towels, bags and children’s items.
Monograms
Create initials for gifts, linen and home accessories.
Quilt labels
Add the maker, date and a personal message.
Business branding
Create names and compact logos from compatible design files.
Advanced on-screen text editing
Lettering can be curved, arranged, resized and spaced directly on the touchscreen.
Multiple lines can be added and combined with frame shapes or decorative designs.
- Multiple-line text
- Letter-size selection
- Curved lettering
- Character spacing adjustment
- Array and layout controls
- Combine text and motifs
- Move lettering within the hoop
- Realistic colour preview
Fast enough for detailed home production
Up to 850 embroidery stitches per minute
High embroidery speed helps complete dense designs, lettering and larger motifs efficiently.
The machine automatically varies speed where required for corners, short stitches and intricate details.
Maximum speed can also be reduced when working with delicate materials, specialist threads or challenging projects.
- Up to 850 stitches per minute
- Electronic speed control
- Automatic speed adjustment
- Suitable for detailed designs
- Useful for small production runs
- Start and stop button operation
850
Maximum embroidery stitches per minute
Complete larger embroidery designs efficiently without sacrificing automatic stitch control.
210mm workspace from needle to arm
The generous inner-arm opening provides approximately 210mm of horizontal space and 104mm of height.
This makes it easier to accommodate quilt blocks, jacket panels, bags, towels and other substantial projects beside the embroidery hoop.
- Approximately 210mm horizontal workspace
- Approximately 104mm workspace height
- Compact faceplate
- Improved needle-area visibility
- Bright twin LED lighting
- Suitable for bulky projects
Faster preparation between colours
Advanced automatic needle threading
Follow the clearly marked upper-thread route and operate the threading mechanism to guide the thread through the needle eye.
This is particularly valuable during multicolour embroidery, when the upper thread may need to be changed repeatedly.
Upper and lower thread sensors monitor the machine and display a warning when thread breaks or the bobbin becomes low.
- Advanced needle threader
- Automatic thread tension
- Upper-thread sensor
- Bobbin-thread sensor
- Thread-break warning
- Low-bobbin warning
Quick-Set Bobbin and F.A.S.T winding
Insert the bobbin from above, guide the thread through the marked route and begin embroidering without manually drawing up the bobbin thread.
The adjustable-speed F.A.S.T bobbin-winding system makes preparing additional embroidery bobbins straightforward.
Use suitable Brother embroidery bobbin thread for the selected bobbin case and project.
- Top-loading horizontal bobbin
- Quick-Set Bobbin
- Adjustable winding speed
- Transparent bobbin cover
- Four bobbins included
- Embroidery bobbin thread included
Automatic presser-foot lowering
The machine can be programmed to lower the embroidery foot automatically when the start and stop button is pressed.
This reduces manual handling around the needle and keeps the startup process simple after each thread change.
Explore the Brother Innov-is NV880E
A powerful step up from entry-level embroidery
Large monograms
Personalised gifts
Quilt blocks
Jacket embroidery
Appliqué designs
Home décor
Children’s clothing
Bag embroidery
Decorative patches
Wireless design transfer
Small creative businesses
Advanced hobby embroidery
Important information before purchasing
The Brother Innov-is NV880E is a dedicated embroidery machine. It does not perform ordinary sewing, straight stitching, zigzag sewing, buttonholes, garment construction or quilting seams.
The NV880E is a single-needle machine. It stops at each embroidery colour stage so the upper thread can be changed manually.
The maximum embroidery field is 260 × 160mm. Designs larger than this must be split, reduced or repositioned using suitable embroidery software and techniques.
Wi-Fi and Artspira functions require a compatible network, device and Brother account or software.
Design Database Transfer is intended for compatible Windows computers.
Good embroidery requires suitable stabiliser, embroidery thread, bobbin thread, needle choice and secure hooping.
The NV880E uses flat embroidery frames. It is not designed to embroider finished structured caps in the way a commercial cap-frame machine can.
Although suitable for small creative production, it is a domestic embroidery machine rather than a commercial multi-needle production machine.
What comes with the Brother Innov-is NV880E?
Embroidery equipment
- Embroidery Foot U+ with LED pointer
- 260 × 160mm embroidery frame and sheet
- 150 × 150mm embroidery frame and sheet
- 100 × 100mm embroidery frame and sheet
- Embroidery design guide
- Quick-reference guide
Needles, bobbins and thread accessories
- Embroidery needle set
- Brother bobbins × 4
- Embroidery bobbin thread
- Standard bobbin case
- Large spool cap
- Medium spool caps × 2
- Small spool cap
- Thread spool insert
- Spool net
Tools and protection
- Seam ripper
- Scissors
- Cleaning brush
- Large screwdriver
- L-shaped screwdriver
- Disc-shaped screwdriver
- Accessory bag
- Soft machine cover
- Operation manual
Brother Innov-is NV880E specifications
| Machine type | Dedicated domestic single-needle embroidery machine |
|---|---|
| Maximum embroidery area | 260 × 160mm, approximately 10.25 × 6.25 inches |
| Included embroidery frames | 260 × 160mm, 150 × 150mm and 100 × 100mm |
| Built-in embroidery designs | 258 |
| Built-in frame combinations | 140, using 10 shapes and 14 stitch styles |
| Embroidery lettering fonts | 13 |
| Maximum embroidery speed | Up to 850 stitches per minute |
| Touchscreen | 4.9-inch full-colour LCD touch display |
| Screen colour display | Approximately 260,000 colours |
| On-screen design editing | Move, resize, rotate, mirror, combine and drag compatible designs |
| Enhanced zoom | Up to 200% |
| Text editing | Multiple lines, curving, spacing, layout and size adjustment |
| Wireless LAN | Yes |
| Artspira compatibility | Yes |
| Design Database Transfer | Yes, for compatible Windows computers |
| USB design transfer | Yes |
| Wireless machine updates | Yes |
| LED positioning pointer | Yes, Embroidery Foot U+ included |
| Colour sorting | Yes |
| Automatic jump-stitch trimming | Yes, on compatible embroidery data |
| Automatic thread cutter | Yes, cuts upper and bobbin threads |
| Needle threader | Advanced automatic threading system |
| Thread tension | Automatic |
| Upper-thread sensor | Yes |
| Bobbin-thread sensor | Yes |
| Bobbin system | Top-loading horizontal Quick-Set Bobbin |
| Bobbin winding | F.A.S.T winding with adjustable speed |
| Automatic foot lowering | Yes |
| Frame detection | Automatic embroidery-frame size detection |
| Trial-position function | Yes |
| Lighting | Two LED lights |
| Physical workspace | Approximately 210mm wide × 104mm high |
| Number of needles | One |
| Eco mode | Sleep and automatic power-off functions |
| Power consumption | Approximately 55 watts |
| Machine dimensions | Approximately 480mm wide × 249mm deep × 300mm high |
| Machine weight | Approximately 9kg |
| Machine cover | Soft dust cover included |
| Ordinary sewing functions | No, this model is embroidery-only |
Popular compatible optional accessories
Embroidery frames
- MF180AP magnetic sash frame, approximately 180 × 130mm
- EF73 small embroidery frame, 60 × 20mm
- EF74 medium embroidery frame, 100 × 100mm
- EF81 extra-large embroidery frame, 260 × 160mm
- BF2 border-frame set, 180 × 100mm
- SEF150 square embroidery frame
Embroidery software and connected tools
- Brother PE-DESIGN 11
- Brother Artspira mobile app
- Brother Design Database Transfer
- Compatible PES embroidery designs
- Brother embroidery design collections
Threads, bobbins and stabilisers
- Madeira Polyneon embroidery thread
- Brother embroidery thread sets
- Brother embroidery bobbin thread
- Brother 11.5mm bobbins
- Tear-away stabiliser
- Cut-away stabiliser
- Iron-on stabiliser
- Water-soluble stabiliser
- Water-soluble topping
Brother Innov-is NV880E FAQ
Is the Brother NV880E a sewing and embroidery machine?
No. It is a dedicated embroidery-only machine. A separate sewing machine is required for garment construction, quilting seams, buttonholes and ordinary sewing.
What is the maximum embroidery size?
The maximum stitchable embroidery field is 260 × 160mm, approximately 10.25 × 6.25 inches.
How many hoops are included?
Three frames are included: 260 × 160mm, 150 × 150mm and 100 × 100mm.
How many embroidery designs are built in?
The NV880E includes 258 embroidery designs plus 140 frame-pattern combinations.
Can it embroider names and monograms?
Yes. Thirteen built-in embroidery fonts provide multiple styles for names, numbers, dates, initials and short phrases.
Does the NV880E connect to Wi-Fi?
Yes. Built-in wireless LAN supports compatible design transfer, Artspira services and supported machine updates.
Is it compatible with Brother Artspira?
Yes. Compatible embroidery content can be browsed, personalised and transferred using the Brother Artspira app.
Can designs be transferred from a computer?
Yes. Use Brother Design Database Transfer on a compatible Windows computer or transfer files using a suitable USB flash drive.
Can designs be edited on the machine?
Yes. Compatible designs can be moved, rotated, resized, mirrored, combined and repositioned using the colour touchscreen.
What does the LED pointer do?
It projects the approximate embroidery needle-drop position onto the project to assist with design placement.
What is colour sorting?
Colour sorting groups matching colours across combined designs so fewer repeated thread changes are required.
Does it cut jump stitches?
Yes. Compatible jump stitches can be trimmed automatically, reducing the amount of manual finishing required.
Does it change embroidery colours automatically?
No. The NV880E has one needle and stops at each colour section so the upper thread can be changed manually.
Does it warn when the bobbin is low?
Yes. The machine monitors both the upper and bobbin threads and displays warnings when attention is required.
Can it embroider large jacket designs?
It can embroider designs that fit within the 260 × 160mm field. Larger jacket-back designs require splitting or repositioning with appropriate software and techniques.
Can it embroider structured caps?
No. The NV880E uses flat embroidery hoops. Flat cap panels may sometimes be embroidered before assembly, but finished structured caps require specialist commercial cap equipment.
Is it suitable for a small embroidery business?
It is suitable for personalised gifts, names, quilt blocks and small creative runs. A commercial multi-needle machine is more efficient for frequent colour changes, caps and higher-volume production.
Does it include digitising software?
No full professional digitising package is included. Brother PE-DESIGN software is available separately for creating and editing embroidery files.
What thread should be used?
Quality 40-weight embroidery thread is suitable for most designs. Use the correct bobbin thread, embroidery needle and stabiliser for the project.
Product information, manuals and connected tools
Brother New Zealand
View the current regional product information, key features and compatible accessories.
Official NV880E Brochure
Review the embroidery specifications, frame sizes, workspace and included feature package.
Manuals and Support
Access the operation manual, quick-reference guide, design guide and current machine updates.
NV880E Accessories
Browse compatible frames, bobbins, embroidery threads and accessories available through Direct Sewing.
Buy from New Zealand embroidery specialists
Real embroidery knowledge, genuine warranty support and in-house servicing
Direct Sewing has supplied sewing, quilting, embroidery, overlocking and industrial equipment throughout New Zealand since 2001.
Our experienced team can explain hooping, stabiliser selection, Artspira, wireless design transfer, embroidery thread, bobbin thread, design formats and the difference between domestic and commercial embroidery systems.
Your Brother Innov-is NV880E is supported by genuine New Zealand warranty assistance and our own in-house technical workshop. Servicing and repairs are completed by experienced sewing-machine and embroidery technicians with decades of industry knowledge.
For creators wanting a large embroidery field, three included hoops, fast stitching and intelligent wireless features without moving into a commercial multi-needle machine, the Brother Innov-is NV880E offers outstanding capability and value.
