Double cutting
Make different supported opening lengths without changing the cutter for every size. The selected knife and clamp still determine what your setup can produce.

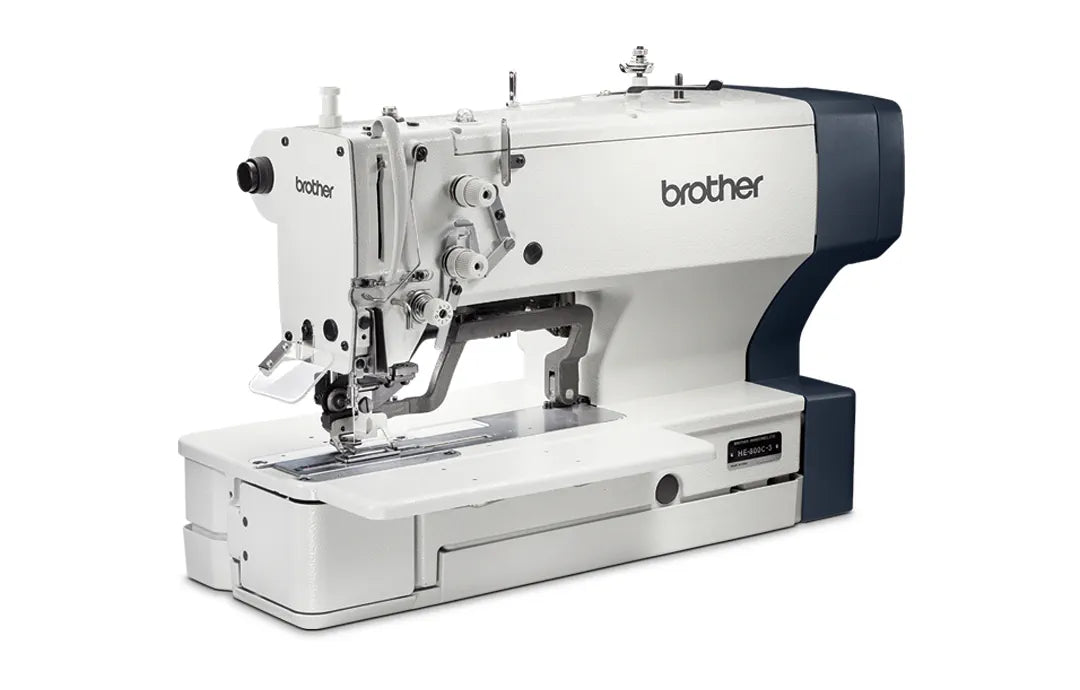

Brother NEXIO HE-800C • Electronic buttonholer
A precise finish at every fastening.
Dedicated industrial buttonhole sewing for garment workrooms that value consistency.
The Brother HE-800C combines electronic pattern control with direct drive to make repeat buttonhole work easier to manage. Keep a specialist finishing operation on its own machine and reproduce the chosen settings across a garment batch.
A straight lockstitch buttonholer—not a button-attaching or eyelet buttonhole machine.
21Standard pattern shapes
50Stored sewing programs
4,000Maximum stitches/min
13mmMaximum adjustable clamp lift
Designed around the finishing cycle.
Stored settings
The LCD panel makes it straightforward to select patterns and adjust sewing settings for repeat work.
Controlled material handling
Pulse-motor feeding and an adjustable powered clamp lift help with positioning, loading and removing the work.
Less finishing after sewing
Keep the thread ends tidy.
The HE-800C’s revised trimmer leaves shorter thread tails to reduce the clean-up needed after sewing. Brother’s comparison shows the HE-800C sample on the left.
For a polished garment, check both faces of the sample and the cut opening—not just the appearance of the top stitch.
Choose the setup for your fabric.
Brother offers the -2 configuration for woven garments and the -3 for knitted garments. The appropriate version depends on the material and construction; confirm the supplied subclass before ordering for a specific job.
Typical work includes shirts, blouses and uniforms in the woven configuration, or suitable knitwear in the knit configuration. Underlay settings can help stabilise difficult materials, but a trial on the actual fabric and interfacing remains important.
Key specifications
| Model | Brother NEXIO HE-800C |
|---|---|
| Type | Electronic direct-drive lockstitch buttonholer |
| Maximum speed | 4,000 stitches/min; production speed depends on the job |
| Pattern capacity | 21 standard shapes; 50 stored programs |
| Maximum stitched length | 40mm overall; maximum zigzag section 36mm |
| Cut opening length | 4–32mm, subject to knife and setup |
| Maximum stitch width | 6mm |
| Clamp lift | Up to 13mm, adjustable |
| Needle system | Schmetz 134; size depends on subclass and material |
Overall stitched length and cut opening length are different measurements. The required clamp, cutter and settings must match the finished buttonhole.
Start with your garment requirements.
Send the fabric, interfacing, button size and desired buttonhole dimensions when checking suitability. Confirm the machine subclass, supplied gauge parts and electrical configuration for your workroom.
Manufacturer documents cover several configurations; optional equipment and factory-network systems are not automatically included.
