Repeatable settings
Electronic control helps you reproduce the selected buttonhole for repeat orders and coordinated garment runs.

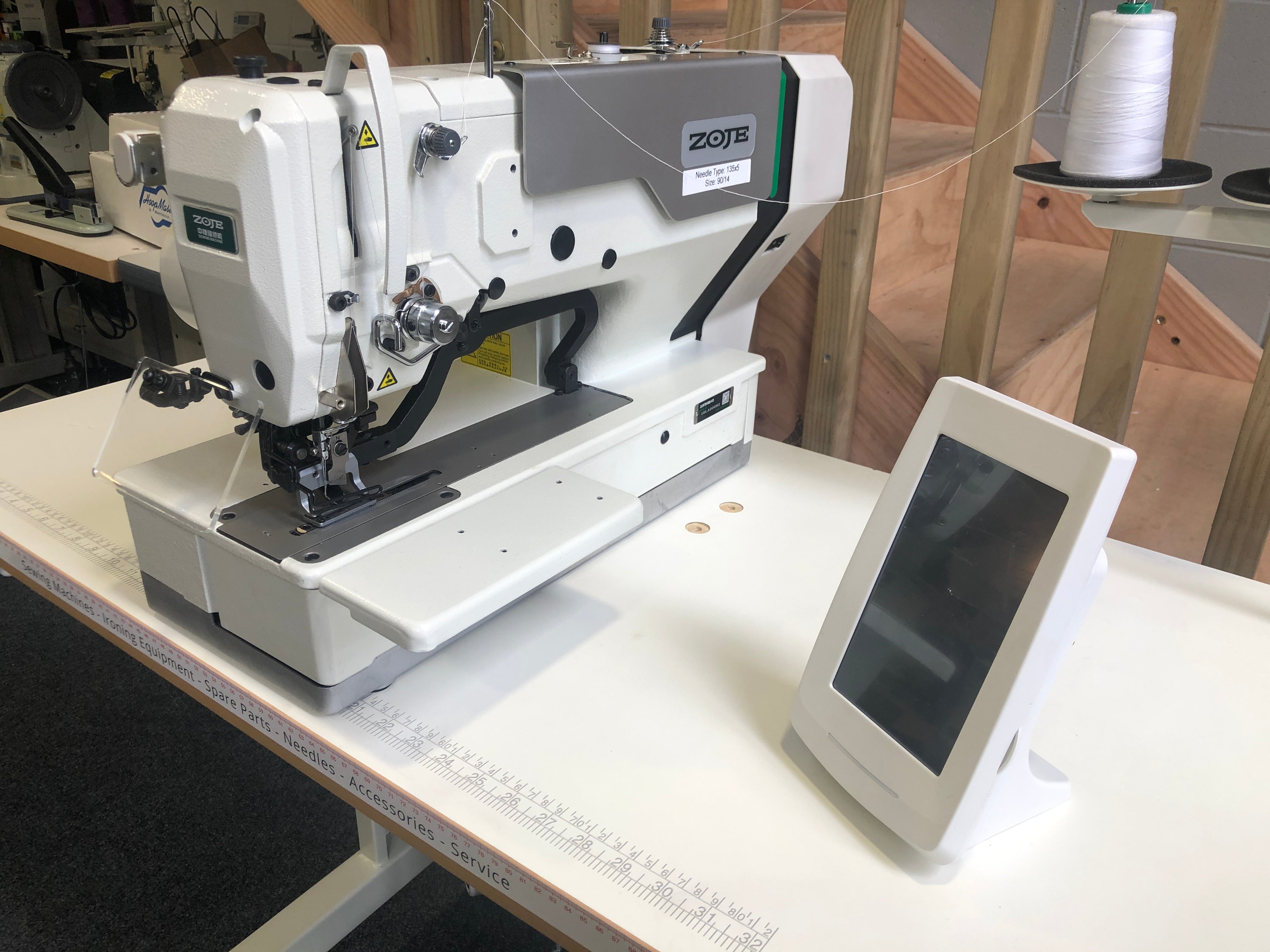

Zoje ZJ5781DS-V3 • Electronic straight buttonholer
A clean finish for every fastening.
Dedicated buttonhole sewing for shirts, uniforms and everyday garment production.
The Zoje ZJ5781DS-V3 brings electronic control and direct drive to repeat buttonhole work. Set up the stitch and cutting operation for your garment, then maintain a consistent finish across the batch.
This is a straight buttonhole machine—not an eyelet buttonholer or a button-attaching machine.
Less manual handling
Automatic presser-foot lifting, material feed and thread trimming reduce the separate steps around each sewing cycle.
Controlled cutting
The multi-cut system supports different opening lengths within the fitted knife and clamp limits. Confirm the setup against your actual button and garment.
See how the stitch builds
Give the opening a defined edge.
The manufacturer’s sample shows the progression from underlying stitches to the completed buttonhole sides. It is a useful close-up of the sewing process, not an artificial rendering.
Choose thread, needle and stitch settings together. A trial on the actual fabric and interfacing is the best way to check appearance, cutting and button clearance.
Made for garment workrooms.
A practical choice for straight buttonholes on woven shirts, blouses, uniforms and suitable workwear. It keeps a specialised finishing operation on a dedicated machine, leaving your plainsewers free for construction work.
The S configuration uses the standard presser foot. Knitted, stretchy or unusually layered fabrics may require a different setup; check suitability before committing to production.
Model and setup
| Model | Zoje ZJ5781DS-V3 |
|---|---|
| Machine type | Electronic industrial straight buttonhole machine |
| Drive | Direct-drive servo system |
| Needle system | DP × 5 / 135 × 5; select needle size to suit the material and thread |
| Presser-foot lift | Up to 17mm |
| Manufacturer sewing envelope | Up to 5mm wide × 40mm long, subject to the fitted clamp and setup |
| Power supply | Single-phase 220–240V |
| Warranty | One-year return-to-base warranty |
The maximum sewing envelope is not the same as the cut opening. Knife size, clamp clearance and selected stitch settings determine the usable buttonhole dimensions.
Match the machine to your buttonhole.
Before ordering for a particular job, send the required finished buttonhole length and width, fabric type, interfacing and number of layers. This lets the knife and clamp configuration be checked against your work.
Table and stand colours may differ from the photograph. For setup questions, contact us online.
Manufacturer information
View Zoje’s English ZJ5781D-series product information
The manufacturer page covers several versions. This listing is for ZJ5781DS-V3; specifications and attachments for other versions are not automatically included.
