Footwear
Guide shoe-upper components and curved sections around the raised post, with access close to the stitching point.

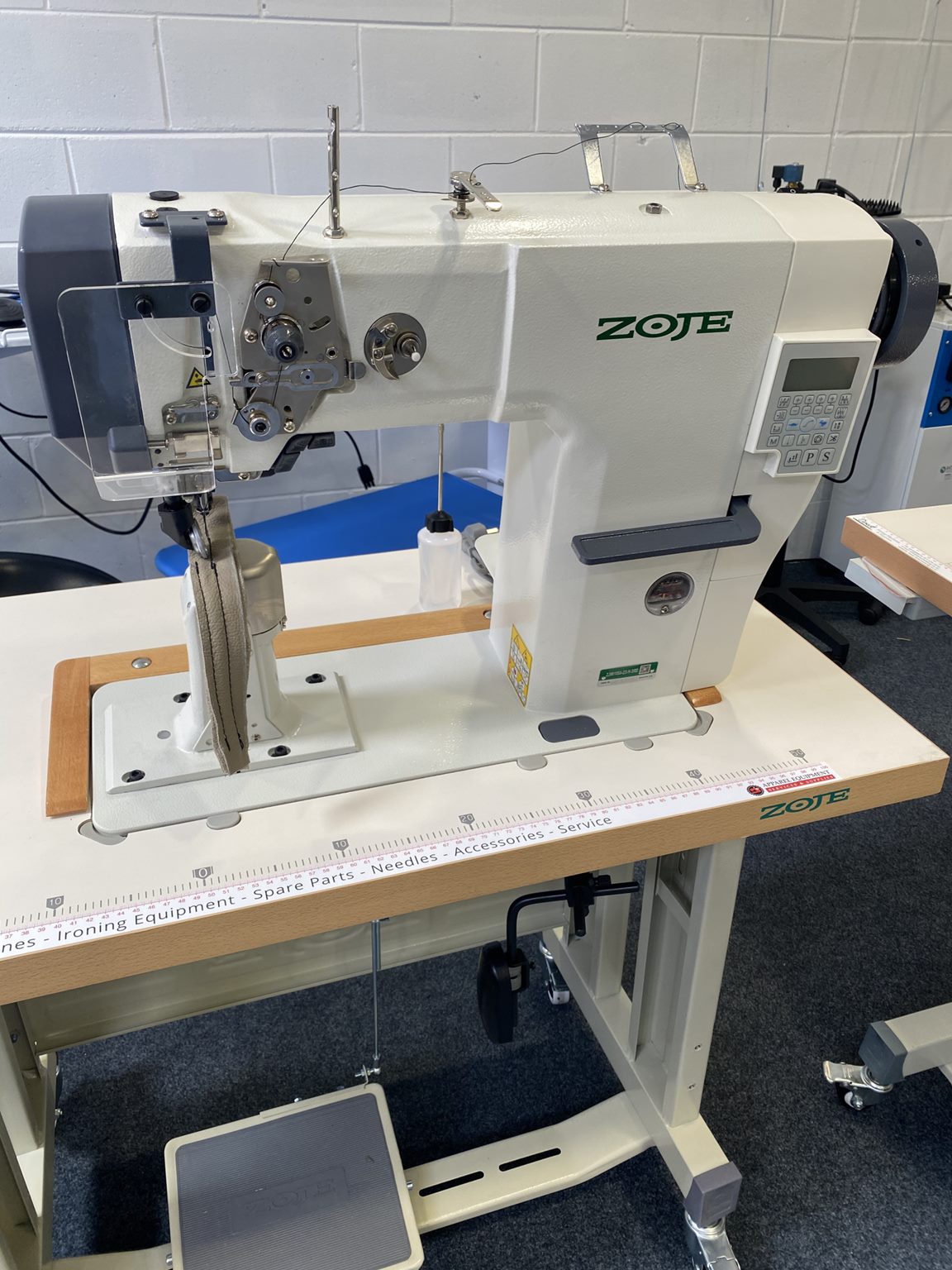

Zoje ZJ9610-D3 • Automatic post-bed machine
More room to work around the shape.
Controlled stitching for footwear, leather bags and shaped leather components.
The Zoje ZJ9610-D3 raises the sewing point above the table, giving you space to guide three-dimensional work around the post. Its roller-foot setup is useful for following curves and keeping an edge stitch in view.
Automatic thread trimming, foot lifting and backtacking help reduce handling between seams.
Post bedAccess around shaped work
1 needleLockstitch construction
Roller feedWith needle feed
AutomaticTrim, lift and backtack
Built for work that does not sit flat.
Leather bags
Work around suitable shaped bag components and panels where a flat table can restrict how you position the piece.
Decorative stitching
Follow edges and curved outlines on suitable leather goods. Match thread, needle point and stitch length to the finish you want.
Feeding control
Roller foot, bottom roller and needle feed.
The driven upper roller works with bottom roller feed and needle feed to move the material through the seam. The roller sits to the left of the needle, leaving a useful view of the stitch line.
This is a roller-foot post-bed machine, not a conventional walking-foot flatbed.
Less handling between seams
Automatic finishing functions.
Servo speed control lets you set a working pace suited to the piece. Automatic thread trimming, foot lift and backtacking support repeated seam work, while the front reverse control is within reach.
Key specifications
| Model | Zoje ZJ9610-D3 |
|---|---|
| Machine type | Single-needle post-bed lockstitch |
| Material range | Medium to heavy materials, with appropriate setup |
| Feed system | Bottom roller feed, needle feed and driven upper roller foot |
| Maximum stitch length | 4.5mm |
| Maximum foot lift | 10mm |
| Maximum sewing speed | 3,000 stitches per minute |
| Motor | Servo motor with speed control |
| Automatic functions | Thread trimming, foot lift and backtacking |
| Supplied with | Table and stand; colours may vary from the photograph |
| Warranty | 1-year return-to-base warranty |
Match the machine to the job
Check the material—not just its thickness.
Leather firmness, coatings, the number of layers and the shape of the piece all affect how it sews. Share details of your materials and the seam you want when enquiring so the setup can be checked for your work.
For visible leather surfaces, test roller pressure and needle choice on a sample before sewing the finished piece.
Enquire to order
Use the product enquiry option to confirm availability, configuration and lead time. Nationwide New Zealand freight can be arranged.
