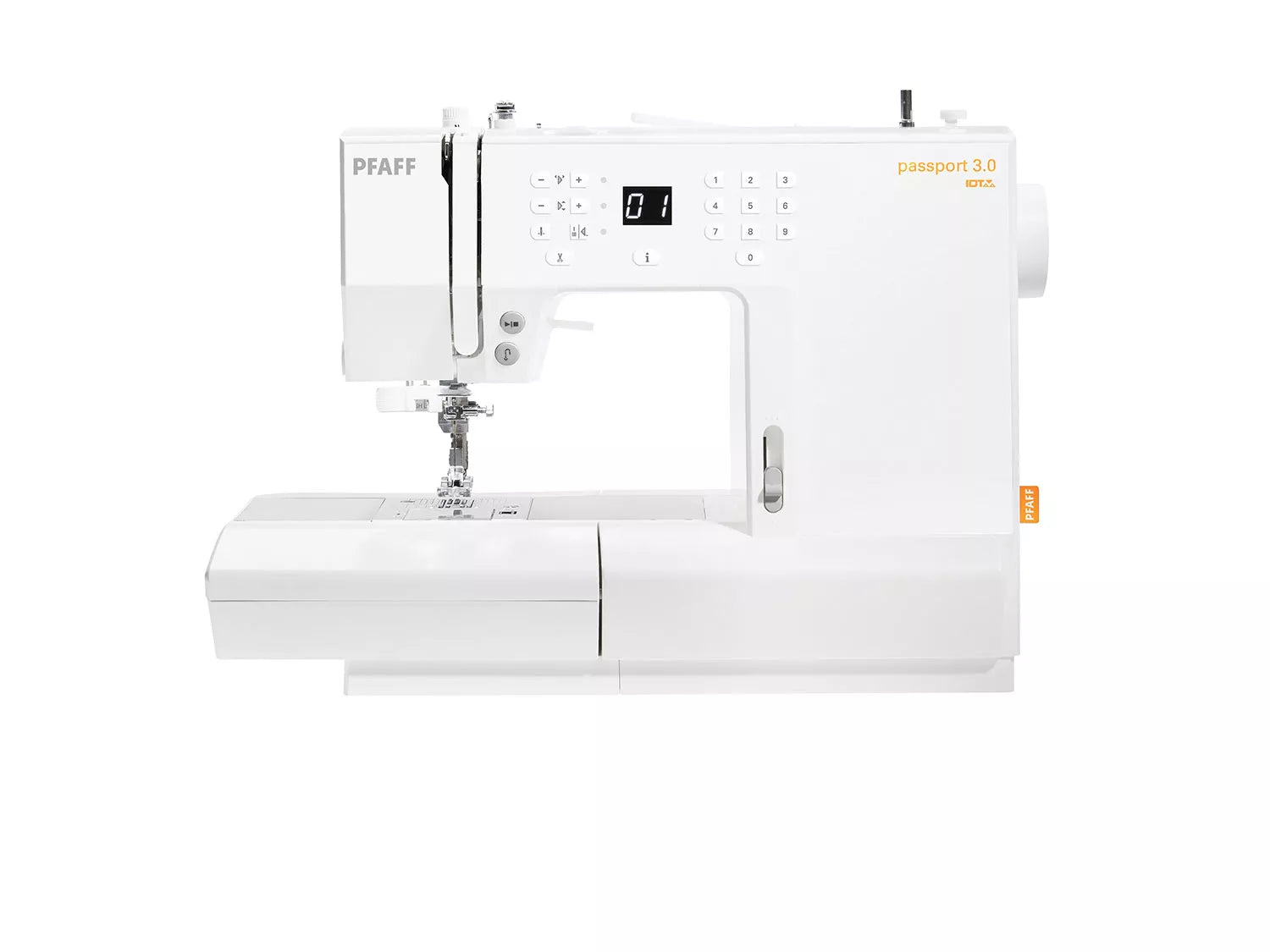

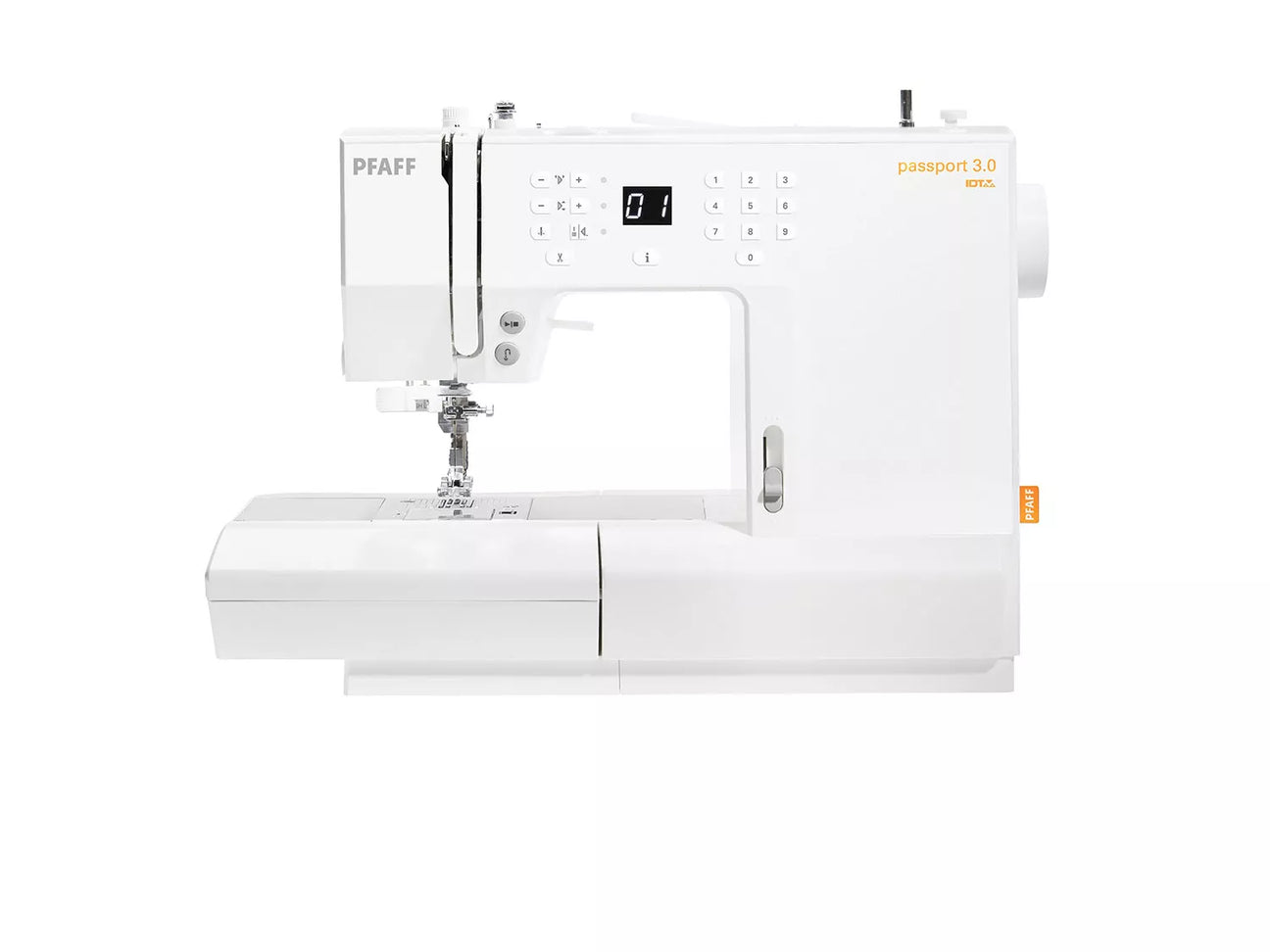

PFAFF passport 3.0 | Compact computerised sewing machine
Small enough to travel. PFAFF enough to sew beautifully.
The PFAFF passport 3.0 brings the Original IDT integrated dual-feed system, 100 stitches and automatic thread snips into a compact machine weighing approximately 6.7kg. Carry it to class, fit it into a smaller sewing space or make it your capable second machine—without leaving precision fabric feeding behind.
- Original IDT system feeds compatible projects from above and below for more controlled layer alignment.
- 100 built-in stitches include utility, buttonhole, stretch, decorative, quilting, needle-art and satin choices up to 7mm wide.
- Automatic thread snips cut the top and bobbin threads and draw the tails to the underside.
- Start/stop and speed slider give fingertip control with or without the foot controller.
- Needle up/down and immediate tie-off streamline pivoting, appliqué, quilting and neat seam finishes.
- Hard cover included protects the machine and stores the power cord and foot controller for transport.
100 stitches • Original IDT • 6.7kg approx.
100built-in stitches
Original IDTintegrated dual feed
800 SPMmaximum sewing speed
Approx. 6.7kgcompact + portable
Ideal when space or travel matters—but results still matter more
The passport 3.0 is more than a basic travel machine. Its integrated feed system, useful computerised controls and broad stitch library make it a genuine everyday choice for garment makers, quilters, class regulars and sewists who want PFAFF performance in a smaller footprint.
Compact sewing spaces
A clever option for apartments, shared rooms, cupboards and tables that cannot host a full-size machine permanently.
Garment makers
Utility and stretch stitches, one-step buttonholes, adjustable pressure, free arm, needle positions and zipper foot cover daily construction.
Piecing + quilting
IDT supports accurate layer feeding and matching, while needle down and speed control help with deliberate placement.
Creative stitchwork
Choose decorative, needle-art, satin, quilting and appliqué stitches up to 7mm wide.
A capable second machine
Keep familiar PFAFF-style feeding available at the bach, motorhome, studio, classroom or alongside an embroidery machine.
The feature that changes how fabric feeds
Matched patternsHelps checks, stripes and seam intersections stay aligned while sewing. Quilt layersSupports even movement for piecing, bindings and manageable layered work. Slippery materialsProvides extra feeding control when one fabric layer wants to shift against another. Long seamsHelps top and bottom layers finish closer together instead of creeping out of alignment.
Original IDT works with the fabric—not against it
PFAFF's integrated dual feed engages behind a compatible presser foot and works with the machine's lower feed teeth. The upper and lower layers travel together more consistently, helping reduce creeping, misaligned checks and the uneven movement that can appear when several layers meet.
See the features—not just a list of them
These genuine PFAFF images show how the passport 3.0 fits a sewing space, supports creative work and keeps its most useful features close at hand.

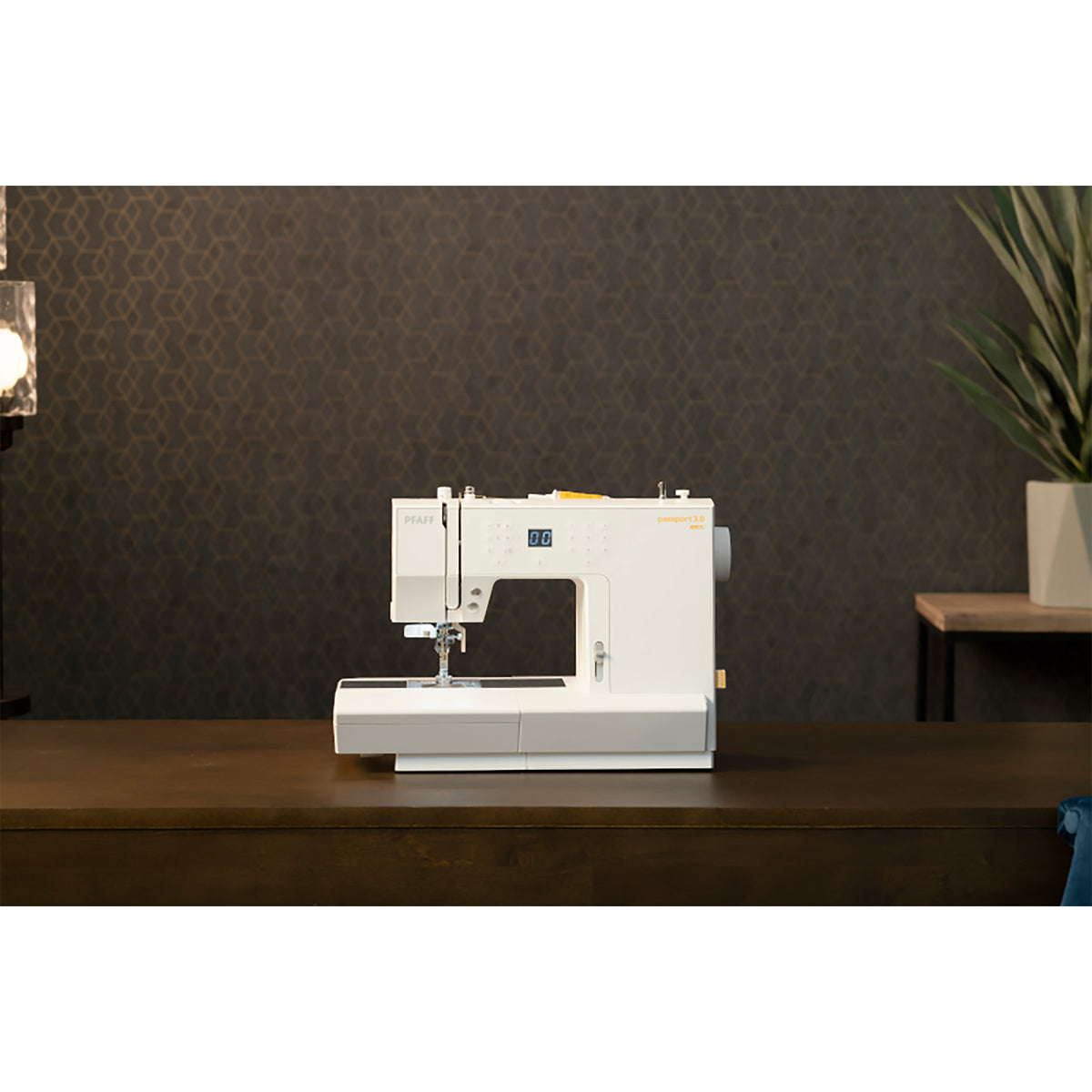

A compact footprint that still feels capable
The passport format is easy to place on a smaller table, pack away between projects or carry to a class without giving up computerised control.
Made for creative layers and accurate placement
Original IDT, needle down and controllable speed are a useful combination for appliqué, patchwork, bindings and detailed garment work.

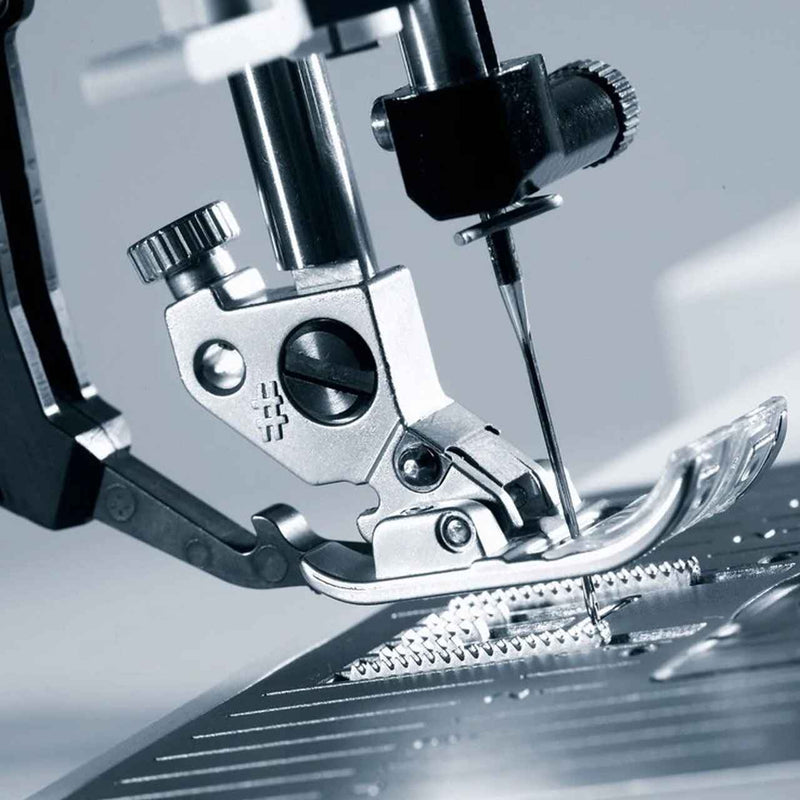

Original IDT is built in
The slim upper feed engages behind a compatible foot to work with the lower feed teeth—no bulky walking-foot attachment required.

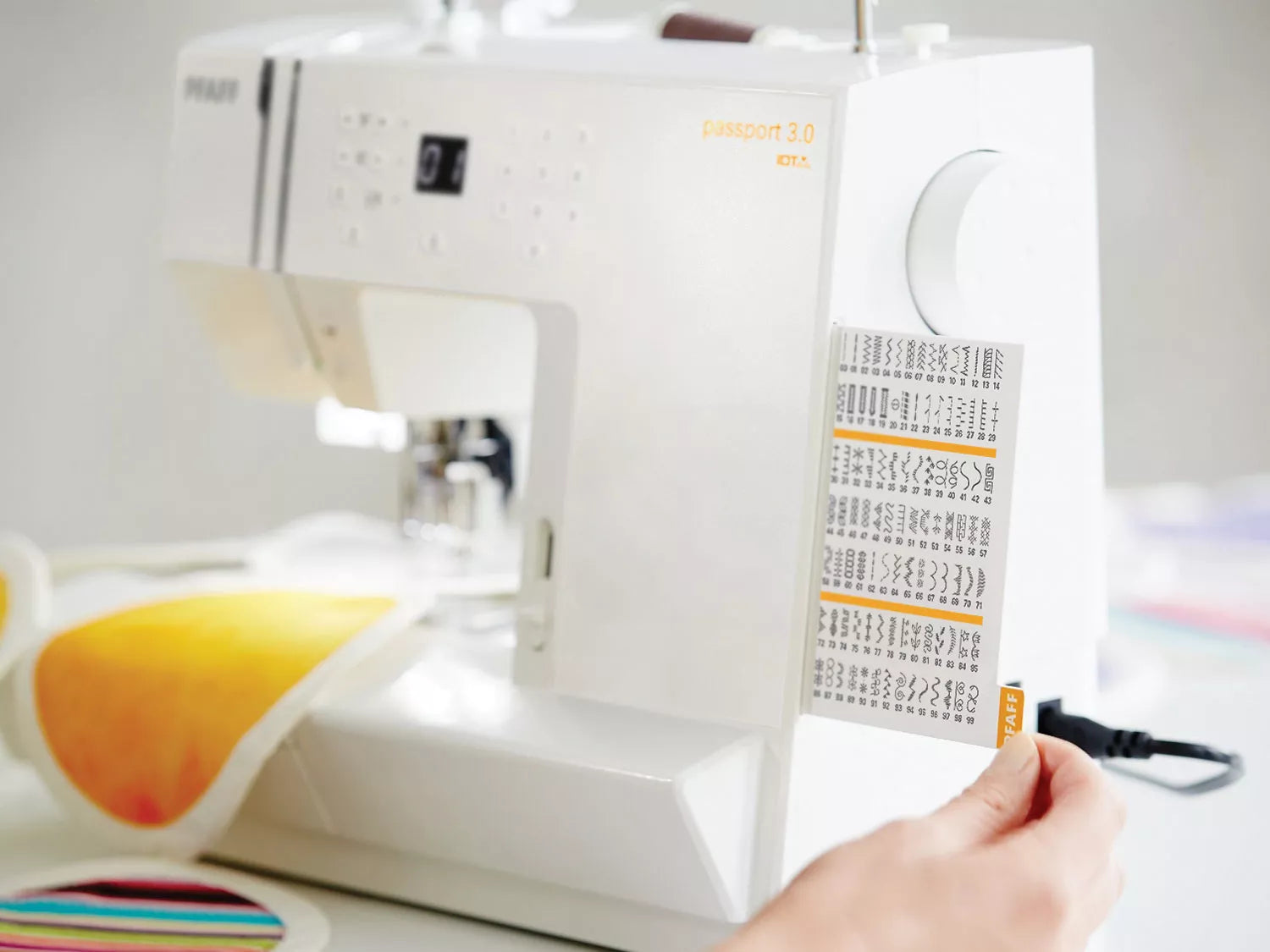

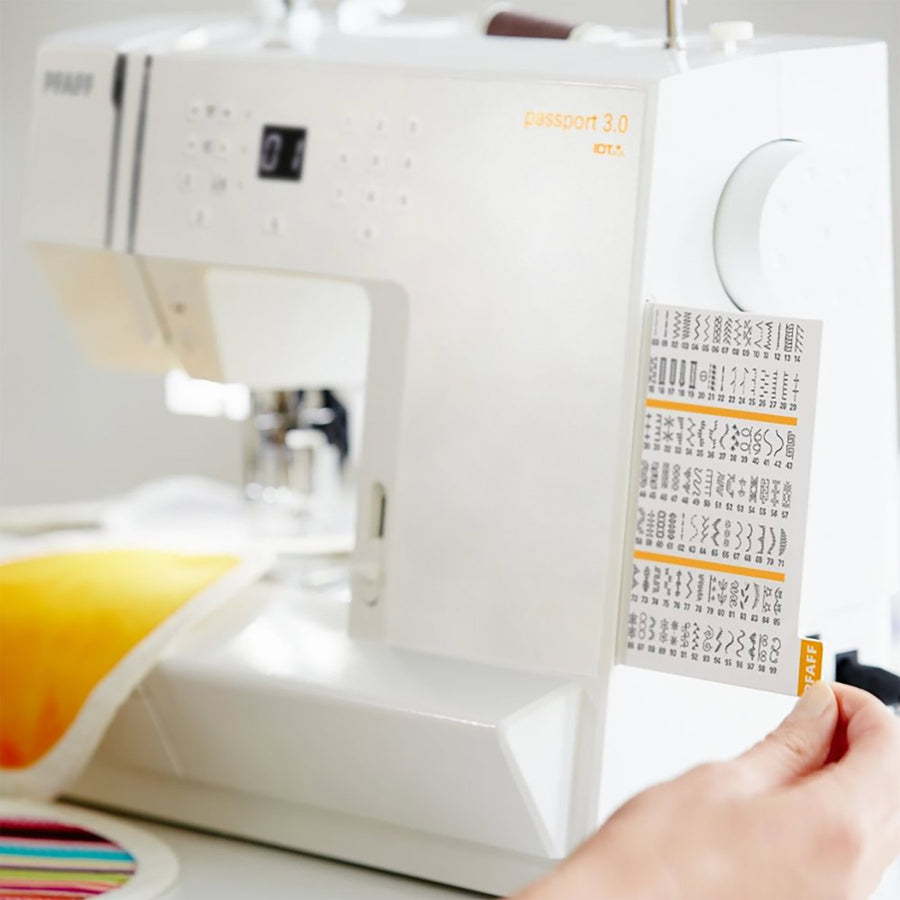

All 100 stitches stay visible
The pull-out stitch menu keeps utility, stretch, quilting and decorative choices on the machine instead of buried in a separate chart.

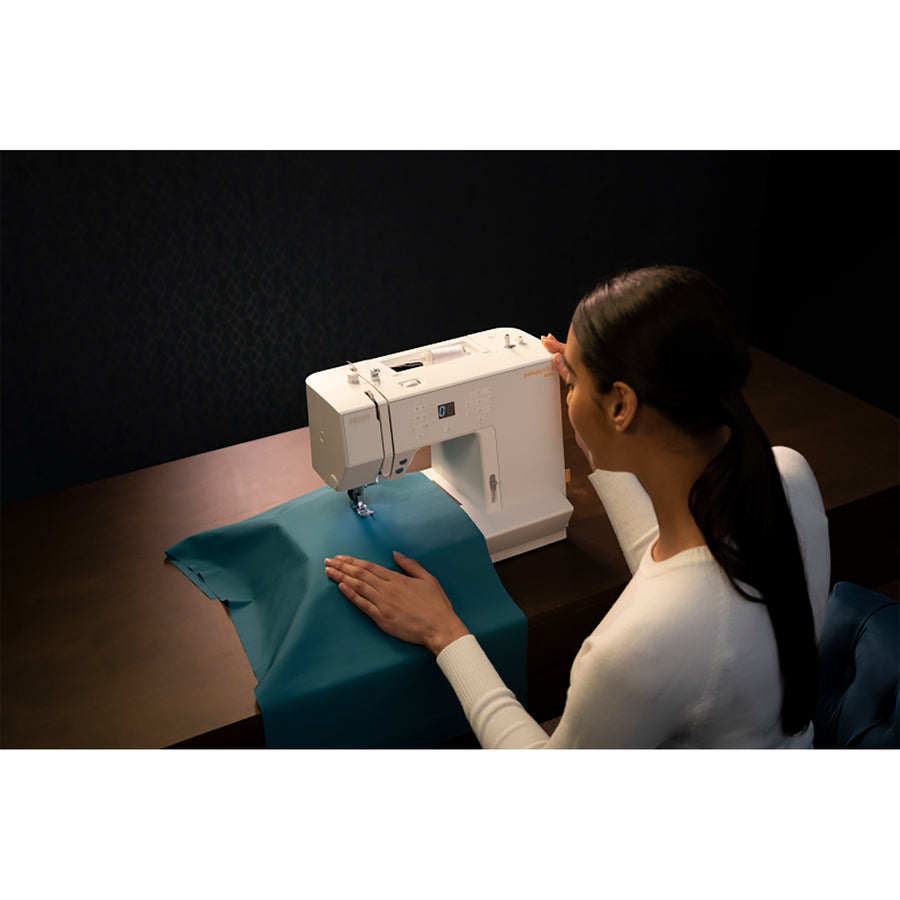

Two LED light sources over the work
Clear illumination around the needle and sewing area makes dark fabrics, accurate placement and evening sewing easier to see.
Less interruption between an idea and the next seam
Cut the upper and bobbin threads at the touch of a button, then draw the tails to the underside.
Choose whether the needle stops raised or in the fabric—ideal for pivoting, appliqué and guided work.
Sew without the foot controller when that suits a long seam, buttonhole or free-motion technique.
Limit the machine's maximum pace for precise details, curves, new techniques or confident learning.
Secure the current stitching with a programmed tie-off for a quick, tidy finish.
Assists with drawing the upper thread through the needle eye when the needle is positioned correctly.
Fine-tune straight-stitch placement for topstitching, edge stitching, zips, piping and quilting.
Displays the recommended presser foot for the selected stitch to reduce setup guesswork.
Illuminate the sewing area from two sources for clearer fabric and stitch visibility.
A compact machine with creative range
100 stitches you can see, select and use
The pull-out stitch menu on the right side keeps the complete library available without covering the machine front in tiny diagrams. Select the stitch electronically, use the info button to check the recommended foot, then adjust compatible length or width settings for the project.
Maximum stitch width is 7mm and maximum stitch length is 4.5mm. The adjustable appliqué pin stitch is a particular highlight for polished appliqué edges.
Stitch choice with purpose: this is not a decorative-stitch-only machine. Everyday utility, stretch, buttonhole and quilting options sit alongside the creative patterns.
Construction, reinforcement, hems, mending, zips, overedge-style finishing and everyday sewing.
Use the included 5B foot for repeatable buttonholes in a single programmed sequence.
Pair the suitable stitch with the correct stretch or ballpoint needle for knit garments and elastic seams.
Support piecing, hand-look effects, stitch-in-the-ditch approaches and decorative quilt detail.
Add borders, contrast thread, surface pattern, gifts and personalised accents up to 7mm wide.
Adjust the appearance to create a neat, deliberately placed appliqué edge.
Portable without feeling stripped back
Hard cover Accessory tray Free arm Two spool pins
The small details make travel sewing easier
The passport 3.0 is designed to move between spaces, but it still includes the controls and storage that turn portability into a workable routine rather than a compromise.
Protects the machine and provides smart storage for the foot controller and power cord.
Keeps the included feet, bobbins, tools and setup pieces close to the machine.
Remove the accessory compartment for cuffs, trouser hems and other tubular pieces.
Support twin-needle and specialist thread arrangements when the technique permits.
Plan for power: this is a mains-powered sewing machine, not a cordless travel appliance. Pack the supplied power cord and foot control inside the hard cover.
Know what the portable size gives you—and what it does not
Easy to relocate
Approximately 6.7kg is manageable for regular classes and travel compared with many full-size computerised machines.
145mm sewing space
The needle-to-tower area suits garments, piecing and many everyday projects while keeping the machine compact.
Optional extension table
Add flat support around the free arm for larger pieces, but the internal needle-to-tower space remains 145mm.
Honest quilting scale
Excellent for piecing, bindings and manageable quilting; very bulky free-motion quilts are easier on a machine with a larger harp.
Take garments, quilts and creative details wherever you sew
Garments
Construct wovens, install zips, sew buttonholes and finish hems.
Knitwear
Use suitable stretch stitches with the correct ballpoint or stretch needle.
Quilt piecing
Use IDT for controlled feeding and accurate patchwork alignment.
Bindings
Coordinate layers through long edges and around manageable corners.
Appliqué
Combine needle down, speed control and the adjustable pin stitch.
Home décor
Create cushions, table linen, light curtains and fabric accessories.
Classes
Carry the machine, cord, controller and essentials in the protective cover.
Repairs
Mend, shorten, reinforce and keep useful clothing in service.
Free motion
Lower the feed dogs and add the appropriate optional free-motion foot.
Decorative work
Personalise borders, crafts, gifts and visible details with 7mm stitches.
Use Original IDT where coordinated feeding helps
| Material or technique | Good starting setup | What to check on a test piece |
|---|---|---|
| Everyday woven cotton | 0A standard foot with IDT, universal needle and a suitable utility stitch. | Check stitch length, seam allowance and balanced tension. |
| Checks or stripes | IDT-compatible foot, careful pinning or basting and matched reference points. | Confirm the top and lower motifs remain aligned through the seam. |
| Quilt piecing | Appropriate PFAFF piecing foot if owned, IDT engaged and a sharp quilting needle. | Check seam allowance consistency and intersection alignment. |
| Jersey or knit | Suitable IDT foot, ballpoint/stretch needle and compatible stretch stitch. | Confirm the seam stretches without skipped stitches or tunnelling. |
| Slippery fabric | Fine sharp needle, suitable IDT foot, controlled speed and stabilisation if needed. | Check for puckering, marking and layer creep before sewing the garment. |
| Denim or canvas | Fresh jeans/heavy universal needle, suitable foot and slower speed at bulky joins. | Test the thickest intersection and stop if the needle meets hard resistance. |
| Decorative or satin stitch | 1A IDT fancy-stitch foot or 2A as recommended, stabiliser and suitable thread. | Check density, width, tension and whether IDT is recommended for the chosen foot. |
| Free-motion quilting | Lower feed dogs and fit the correct optional free-motion foot. | Practise hand movement, speed balance and tension on a sample sandwich. |
IDT is integrated—not compulsory for every technique: use it with compatible IDT feet where coordinated feeding benefits the project. Follow the manual when a stitch or accessory calls for IDT to be disengaged.
The quick reference
| Brand | PFAFF |
|---|---|
| Model | passport 3.0 |
| Machine type | Compact computerised domestic sewing machine |
| Built-in stitches | 100 |
| Maximum stitch width | 7mm |
| Maximum stitch length | 4.5mm |
| Buttonhole | One-step with included 5B buttonhole foot |
| Integrated feed | PFAFF Original IDT system |
| Maximum sewing speed | Up to 800 stitches per minute |
| Sewing space | Approximately 145mm / 5.7in from needle to tower |
| Approximate machine weight | Approximately 6.7kg |
| Screen | 1.3in diagonal |
| Thread cutter | Automatic thread snips for upper and bobbin threads |
| Needle threader | Built in |
| Needle positions | 29 |
| Needle stop | Programmable up/down |
| Start/stop | Yes; sew without the foot controller when desired |
| Speed control | Slider |
| Tie-off | Immediate tie-off button |
| Thread tension | Manual adjustment |
| Presser-foot pressure | Adjustable |
| Presser-foot lift | Extra-high position for placing bulky layers |
| Feed dogs | External drop-feed control at rear of free arm |
| Bobbin | Top loading; use the correct PFAFF bobbin style |
| Lighting | Two LED light sources |
| Spool pins | Two |
| Presser feet | Snap-on/snap-off; six feet included |
| Cover | Hard cover included with cord and controller storage |
| Extension table | Optional; not included |
Six useful feet plus the essentials for home and away
The everyday choice for many straight, zigzag and utility stitches with integrated feeding.
Supports many decorative stitches while retaining coordinated fabric feeding.
Designed for suitable decorative and satin stitches where IDT is not used.
Guides blind hems and selected edge-finishing techniques.
Sews close to zip teeth, piping cord and raised edges from either side.
Creates repeatable programmed buttonholes in one sequence.
Starter bobbins for organising common thread colours; match replacements to the manual.
Provides a movable guide for parallel stitching and repeatable spacing.
A starter needle pack and spool-pin felt; select fresh needles for each material.
Two large caps, one small cap and an auxiliary spool pin.
Needle-plate screwdriver, multi-purpose tool and combined seam ripper/brush.
Foot control, power cord and hard cover with storage for travel.
PFAFF passport line owner's manual
Threading, bobbin setup, IDT operation, stitch selection, controls, buttonholes, free-motion sewing, care and troubleshooting for passport 2.0 and 3.0.
Open Correct Manual (PDF)Direct Sewing support
Talk with the NZ team about IDT, compatible feet, needles, bobbins, setup, servicing or whether the portable passport format suits your work.
Contact Direct SewingPFAFF machines + accessories
Compare larger-workspace PFAFF models or add compatible presser feet and the optional passport extension table as your projects grow.
Explore the PFAFF CollectionPFAFF passport 3.0 FAQs
What makes the PFAFF passport 3.0 different?
It combines a genuinely compact, approximately 6.7kg format with PFAFF's Original IDT integrated dual feed, 100 stitches and automatic thread snips. It is designed for sewists who want capable garment and quilting features in a machine that is easier to store or transport.
What is the Original IDT system?
IDT is PFAFF's integrated dual-feed system. When engaged behind an IDT-compatible foot, it works with the lower feed teeth to move the upper and lower fabric layers together more consistently. This is especially useful for quilt layers, matched checks, stripes and materials that tend to creep.
Is IDT the same as an industrial compound-feed walking foot?
No. IDT is an integrated domestic dual-feed system designed for compatible PFAFF feet and a broad range of home-sewing projects. It is not an industrial compound-feed mechanism or a substitute for a production upholstery or leather machine.
Is the passport 3.0 easy to carry?
Yes. PFAFF describes it as a compact portable machine and publishes an approximate weight of 6.7kg in its feature material. The included hard cover protects it and stores the power cord and foot controller. Use a suitable padded travel bag if extra impact protection is needed.
Is it suitable for a beginner?
Yes, particularly for a beginner who values speed control, needle up/down, a built-in needle threader and room to grow. The computerised controls and 100 stitches take some familiarisation, but the info button helps identify the recommended foot for the selected stitch.
How many stitches does it have?
It has 100 built-in stitches up to 7mm wide, including utility, buttonhole, stretch, decorative, quilting, needle-art and satin options. The pull-out stitch menu displays the library.
Does it cut the threads automatically?
Yes. The thread-snips button automatically cuts both the upper and bobbin threads and draws the thread tails to the underside of the fabric.
Can I sew without the foot controller?
Yes. Use the start/stop button for hands-free machine operation, then set the desired maximum pace with the speed slider. The supplied foot controller remains available when pedal control is preferred.
Can the passport 3.0 sew buttonholes?
Yes. It includes one-step buttonhole programs and the 5B one-step buttonhole foot for repeatable programmed buttonholes.
Can it sew quilts?
Yes. Original IDT, needle down, speed control, quilting stitches and drop feed make it excellent for piecing, bindings and manageable quilting. Its compact 145mm needle-to-tower space is not intended to provide the same room as a large-throat quilting machine for very bulky quilts.
Can I do free-motion quilting?
Yes. Lower the feed dogs using the external control and fit the appropriate optional PFAFF free-motion foot. The operator then moves the fabric and balances hand movement with sewing speed.
Is the extension table included?
No. The matching extension/quilt table is an optional accessory. It provides additional flat support around the machine but does not change the 145mm needle-to-tower space.
Can it sew denim or canvas?
It can sew suitable domestic denim and canvas projects with a fresh project-appropriate needle, suitable thread and controlled speed. Test the thickest intersection and never force the machine through a hard or bulky stack. It is not an industrial heavy-material machine.
Does it have automatic thread tension?
No. Thread tension is adjusted manually using the tension dial. This gives direct control for changes in fabric, batting, needle and thread.
Does it have a free arm?
Yes. Remove the accessory compartment to expose the free arm for cuffs, trouser hems and other tubular pieces. The external feed-dog drop is located at the rear of the free arm.
What is the difference between the passport 2.0 and 3.0?
The passport 3.0 builds on the compact Original IDT platform with automatic thread snips and expands the stitch library to 100. Those are the clearest reasons to choose it over the passport 2.0.
Is the passport 3.0 an embroidery machine?
No. It is a computerised sewing machine with decorative stitches and free-motion capability. It does not use embroidery hoops or import digital embroidery designs.
Your passport to more places to sew
Pack less machine—without packing away precision.
Choose the PFAFF passport 3.0 for Original IDT fabric feeding, 100-stitch creativity and time-saving controls in a compact format that fits classes, retreats, smaller rooms and serious everyday sewing.
