Integrated direct drive
The motor is built into the machine head, keeping the drive compact. Adjustable speed lets you choose a comfortable maximum pace for your work.

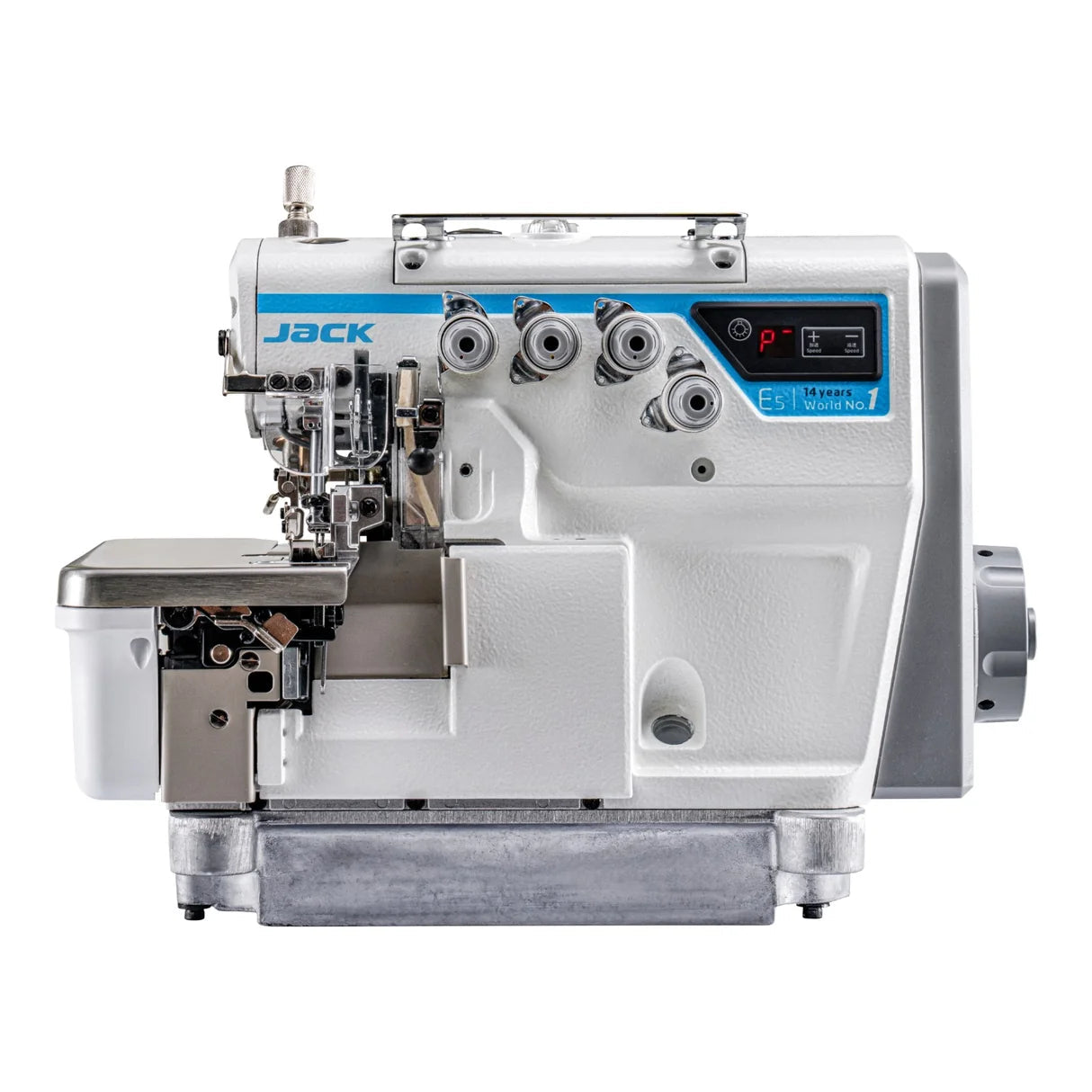

JACK E5-4-M03/333 · Four-thread industrial overlocker
Clean edges.
Confident garment sewing.
Join seams, trim excess fabric and overlock the edge in one pass with the JACK E5 four-thread industrial overlocker. Its two-needle setup is a practical choice for garment construction, alterations and everyday workroom sewing.
An integrated direct-drive motor, adjustable sewing speed and differential feed help you stay in control as you move between suitable fabrics and seam assemblies.
2 needles · 4 threadsDirect-drive motorAdjustable differential feed
Practical control, everyday versatility
A smoother way to finish your sewing.
From T-shirts and shirts to pillowcases and bed linen, the E5 gives regular sewing and alterations a dedicated industrial overlocking setup. Match the feed, needle and thread to your material, then test the finish on an offcut before starting.
Feed adjustment for fabric thickness
A manual light, medium and heavy setting lets you adapt the feed to the fabric assembly. This is a setting you select to suit the job, rather than automatic fabric detection.
Differential feed
Adjust how the fabric moves through the machine to help reduce unwanted stretching or gathering. Particularly useful when refining the finish on suitable knitted and woven fabrics.
Needle positioning
The needle positioner provides a consistent stopping position between sewing runs, helping you reposition your work with more control.
Supplied for your workroom
Table, motor and accessories included.
Your machine comes built up with its table, motor and thread stand, mounted on wheels for easier positioning. The table measures 1.2m long × 0.55m deep, with limited height adjustment.
The colour of the table and stand may vary from product photographs.
Included accessories
- Sewing machine oil
- Tweezers
- Screwdriver
- Needles
Model-specific details
JACK E5-4-M03/333 specifications.
- Stitch configuration
- 2 needles / 4 threads
- Drive
- Integrated direct-drive motor
- Maximum sewing speed
- Up to 5,500 stitches per minute
- Maximum stitch length
- 4.6mm
- Needle spacing
- 2mm
- Presser-foot lift
- 6mm
- Differential-feed ratio
- 0.72–2.0
- Needle system
- B27 / DC×27
- Typical applications
- Light to medium-weight garment sewing and alterations
- Table dimensions
- 1.2m long × 0.55m deep
Specifications refer to the E5-4-M03/333 four-thread model. Choose a sewing speed and setup appropriate to the material; maximum speed is not the right setting for every seam.
Choose the right stitch for your project.
This is a four-thread overlocker, not a five-thread safety-stitch or coverstitch machine. For bulky denim seams, upholstery or a particular production application, ask us to check your fabric and seam requirements before choosing.
Direct Sewing support
Help with your setup. Support after purchase.
Direct Sewing has serviced, repaired and sold sewing machines for over 30 years. We can help you choose suitable overlocker needles and sewing thread for your project.
Includes a one-year return-to-base warranty. Outside Auckland? Contact us to arrange freight to your location.
