55 Disney and Pixar designs
Personalise clothing, quilts and gifts using exclusive built-in character embroidery.

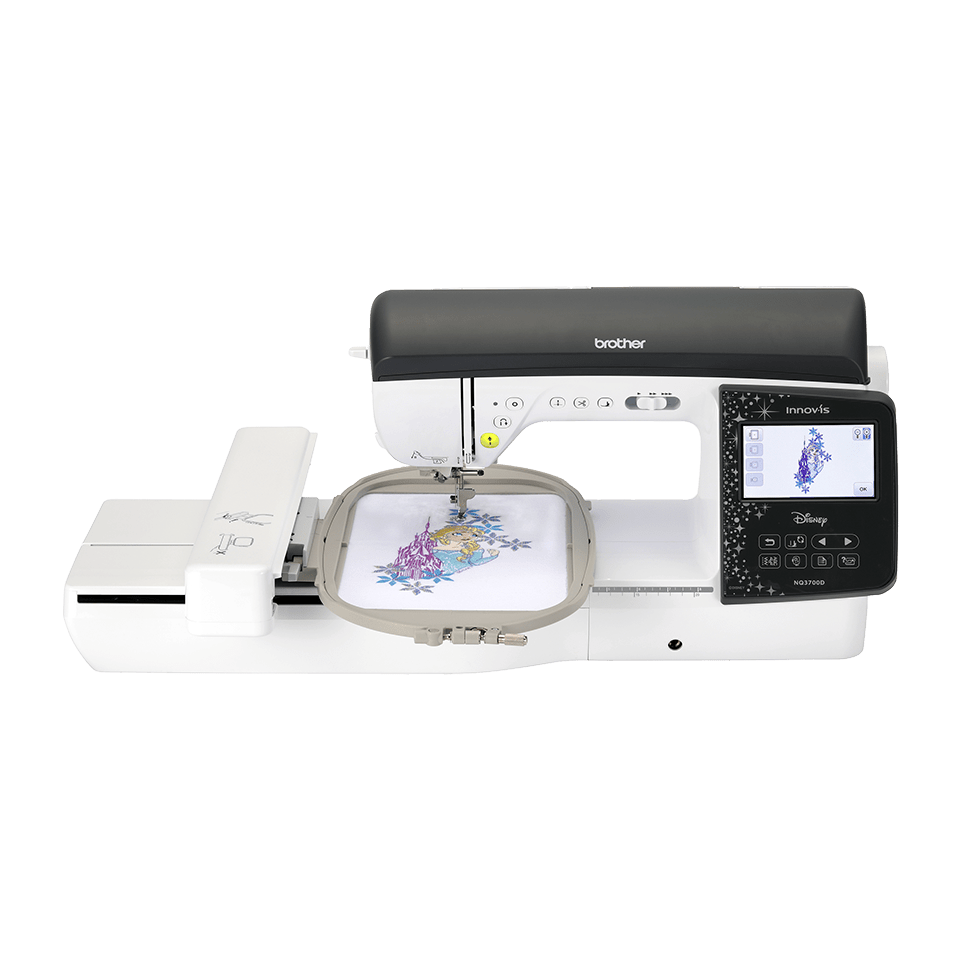

Brother Innov-is NQ3700D Electronic Sewing, Quilting & Embroidery Machine Disney Edition
$4,999.00
$5,299.00
Disney sewing, quilting and embroidery machine
Brother Innov-is NQ3700D
Bring sewing, quilting, personalised embroidery and the magic of Disney together in one premium creative machine. The Brother Innov-is NQ3700D combines 313 embroidery designs, including 55 Disney and Pixar designs, 291 sewing stitches, a 260 × 160mm embroidery field, Wi-Fi connectivity and intelligent Brother fabric-control technology.
313
embroidery designs
55
Disney and Pixar designs
291
built-in sewing stitches
260 × 160mm
embroidery area
One advanced machine for sewing, quilting and large embroidery
The NQ3700D gives garment makers, quilters and embroidery enthusiasts a complete creative system without requiring three separate machines.
Use sewing mode for garments, tailoring, patchwork, free-motion quilting, appliqué, decorative stitching, bags and home décor.
Attach the embroidery unit to create designs measuring up to 260 × 160mm using the built-in collection, exclusive Disney and Pixar designs, Artspira, wireless computer transfer or compatible USB files.
Automatic Height Adjuster, pivoting, sideways sewing, automatic thread cutting and the included knee lift provide the control expected from an advanced Brother machine.
An outstanding complete package
Two embroidery hoops and an extensive presser-foot collection
The regional NQ3700D package includes equipment for embroidery, garment sewing, patchwork, straight-line quilting, free-motion quilting and specialist fabric handling.
- Detachable embroidery unit
- 260 × 160mm embroidery frame
- 180 × 130mm embroidery frame
- Embroidery Foot U+ with LED pointer
- Zigzag Foot J
- Monogramming Foot N
- Overcasting Foot G
- Zipper Foot I
- Buttonhole Foot A
- Blind Stitch Foot R
- Button Fitting Foot M
- Stitch Guide Foot P
- Adjustable zipper and piping foot
- Free-motion open-toe quilting foot
- Non-stick foot
- Open-toe foot
- 1/4-inch piecing foot
- Walking foot
- Side cutter
- Quilting guide
- Knee lift
- Foot controller
- Embroidery bobbin thread
- Soft machine cover
Exclusive embroidery content with advanced sewing control
260 × 160mm embroidery field
Create large motifs, quilt blocks and lettering layouts with fewer rehooping limitations.
Automatic Height Adjuster
Maintain consistent feeding and stitch formation across changing fabric thicknesses.
Pivot function
Keep the needle lowered while the presser foot automatically lifts for accurate turning.
Wi-Fi and Artspira
Transfer compatible embroidery designs wirelessly from mobile and computer devices.
LED positioning pointer
See the approximate embroidery needle-drop location before stitching begins.
Colour sorting
Group matching colours across combined designs to reduce repeated thread changes.
Up to 850 stitches per minute
Complete sewing and embroidery projects efficiently with electronic speed control.
Exclusive built-in character embroidery
55 Disney and Pixar embroidery designs
The Disney Edition adds a collection of licensed character designs directly to the machine.
Browse the designs on the colour touchscreen, combine them with embroidery lettering and position the finished layout inside the selected hoop.
The built-in collection allows Disney projects to begin without purchasing or downloading a separate character-design package.
Children’s clothing
Add familiar character designs to jackets, dresses and tops.
Quilts
Create character blocks, labels and themed decorative panels.
Personalised gifts
Combine Disney motifs with embroidered names and dates.
Home projects
Decorate cushions, fabric storage, wall hangings and bags.
Large-format home embroidery
260 × 160mm maximum embroidery area
The maximum embroidery field measures approximately 10 × 6 inches, providing substantially more space than a basic 100 × 100mm machine.
Large motifs, quilt blocks, detailed florals and longer names can be completed in one hooping when the design fits within the field.
A second 180 × 130mm frame is included for medium-sized projects where the extra-large frame is unnecessary.
- Large decorative motifs
- Disney quilt blocks
- Jacket embroidery
- Appliqué designs
- Long names and wording
- Home décor panels
- Bag embroidery
- Personalised gifts
Two embroidery frames included
The standard package includes both the maximum-size 260 × 160mm frame and a practical 180 × 130mm frame.
260 × 160mm frame
Use for large motifs, quilt blocks and extended lettering layouts.
180 × 130mm frame
Use for medium designs without hooping excess fabric unnecessarily.
Automatic detection
The machine recognises the installed frame and its stitchable area.
Grid sheets included
Use the grids to assist with centred and measured placement.
Clear visual control
4.9-inch full-colour touchscreen
The 125mm display provides access to sewing stitches, embroidery designs, lettering, settings and built-in guidance.
Embroidery can be previewed in realistic colour before stitching begins.
Use touch controls to move, rotate, resize, combine and position compatible designs within the hoop.
- Approximately 260,000 display colours
- Realistic embroidery preview
- Drag-and-drop positioning
- Design resizing
- Pattern rotation
- Letter editing
- Enhanced zoom
- Built-in help screens
313
Built-in embroidery designs
A large creative library including 55 Disney and Pixar designs plus 258 general embroidery designs.
Embroidery content ready from day one
Designs for garments, quilting and personalisation
The built-in collection covers decorative, floral, animal, character, quilting and appliqué-inspired embroidery.
Thirteen embroidery fonts and 140 frame-pattern combinations expand the personalisation options further.
- 55 Disney and Pixar designs
- 258 general embroidery designs
- 140 frame combinations
- Thirteen embroidery fonts
- Decorative motifs
- Floral designs
- Quilting patterns
- Additional design transfer
Thirteen embroidery lettering fonts
Add names, initials, dates, numbers and short messages as true machine embroidery.
Lettering can be curved, spaced, resized and combined with Disney characters, decorative designs or frame patterns.
Names
Personalise clothing, towels, bags and children’s projects.
Monograms
Create initials for gifts, linen and home accessories.
Quilt labels
Add the maker’s name, date and a personal message.
Character layouts
Combine lettering with compatible Disney and Pixar designs.
Position designs with greater confidence
Droplight LED positioning marker
Embroidery Foot U+ projects a red light onto the fabric beneath the needle.
Use the marker to confirm where the design will begin and align the embroidery with seams, markings or existing project details.
- Shows the approximate needle-drop point
- Assists centred monogram placement
- Helps align with marked fabric
- Useful for quilt labels
- Supports repositioning
- LED pointer foot included
Connected embroidery
Wi-Fi, Artspira and wireless computer transfer
Connect the NQ3700D to a compatible wireless network and send embroidery designs without repeatedly carrying a USB drive between devices.
Brother Artspira supports compatible mobile design browsing, editing and wireless transfer.
Design Database Transfer allows supported embroidery files to be organised and sent from a compatible Windows computer.
Connected options
- Built-in wireless LAN
- Brother Artspira compatibility
- Design Database Transfer
- Wireless file transfer
- USB flash-drive import
- Software-update notifications
Wireless transfer requires a compatible Wi-Fi network and supported Brother software or app. Design Database Transfer is intended for compatible Windows computers.
Reduce unnecessary thread changes
Intelligent embroidery colour sorting
When several embroidery designs are combined, colour sorting can group matching thread colours and change the sewing order.
This reduces switching back and forth between the same colours and improves the workflow for repeated or multi-element layouts.
- Groups matching colours
- Reduces repeated rethreading
- Improves embroidery efficiency
- Useful for repeated motifs
- Works with combined layouts
- Reduces unnecessary stops
Automatic thread and jump-stitch trimming
The machine cuts the upper and bobbin threads at suitable embroidery stopping points.
Compatible jump stitches between separate design elements can also be trimmed automatically.
- Upper-thread cutting
- Bobbin-thread cutting
- Automatic jump-stitch trimming
- Cleaner embroidery lettering
- Less manual scissor work
- Reduced finishing time
A complete advanced sewing machine
291 built-in sewing stitches
Remove the embroidery unit and use the NQ3700D for garments, alterations, quilting, appliqué, bags and creative sewing.
The stitch library includes utility, stretch, overcasting, quilting, decorative and sideways-feed patterns.
Five sewing fonts create names and decorative wording while the fabric feeds beneath the presser foot.
- Utility stitches
- Stretch stitches
- Overcasting stitches
- Quilting stitches
- Decorative patterns
- Sideways sewing
- Five sewing fonts
- Ten one-step buttonholes
- Enhanced My Custom Stitch
- Automatic reinforcement
291
Built-in sewing stitches
Advanced construction, quilting and decorative options for ambitious home sewing.
Room for quilts and larger projects
210mm workspace to the right of the needle
The machine provides approximately 210mm of horizontal room and 104mm of height within the sewing area.
This gives quilt blocks, bag panels, garment sections and home décor more room to move beneath the machine arm.
- 210mm horizontal workspace
- 104mm workspace height
- Large 210 × 310mm bed area
- Convertible free arm
- Twin LED lighting
- Optional wide table available
Intelligent fabric handling
Automatic Height Adjuster
Automatic Height Adjuster responds to changes in fabric thickness and helps maintain suitable presser-foot pressure.
This supports more consistent feeding and stitch formation as the machine moves across uneven layers, bulky seams and quilted sections.
Manual presser-foot pressure adjustment remains available when the fabric or technique requires it.
- Responds to changing thickness
- Supports consistent stitch length
- Useful over bulky seams
- Helps with quilt layers
- Improves fabric feeding
- Manual adjustment available
Turn corners without losing alignment
Automatic pivot function
When pivot mode is active, the needle remains lowered in the fabric while the presser foot rises automatically.
Rotate or reposition the project with both hands, then resume sewing and allow the presser foot to lower.
Ideal for
- Appliqué
- Quilt piecing
- Top stitching
- Bag making
- Curved seams
- Precise corners
- Chain piecing
- Detailed garment work
Walking foot, 1/4-inch foot, knee lift and free-motion foot
The NQ3700D arrives ready for patchwork, layered quilting and free-motion creativity.
Walking foot
Feed quilt layers and difficult fabric combinations more evenly.
1/4-inch foot
Piece patchwork seams with a consistent quarter-inch allowance.
Free-motion foot
Guide the project manually with the feed dogs lowered.
Knee lift
Raise the presser foot while keeping both hands on the project.
Pivot function
Turn corners with the needle remaining securely in the fabric.
Quilting guide
Sew evenly spaced parallel quilting lines.
Sideways sewing and longer seven-point feed
Supported stitches can feed the fabric forwards, backwards and sideways for decorative work and difficult areas.
Brother’s longer seven-point feed system maintains broad contact with the underside of the fabric for smooth movement.
- Four-direction fabric feeding
- Useful for patching
- Helps in awkward project areas
- Longer seven-point feed dogs
- Consistent fabric contact
- Suitable for varied fabric weights
Ten automatic one-step buttonholes
Place the button into Buttonhole Foot A and allow the machine to establish the required buttonhole length.
The full buttonhole is sewn automatically in one continuous sequence for more consistent repeated results.
Enhanced My Custom Stitch
Place and edit stitch points on a grid to create original feed-through sewing patterns.
Custom and built-in sewing stitches can be combined, adjusted and stored in the machine’s memory.
My Custom Stitch creates ordinary sewing stitches. It does not convert artwork or photographs into embroidery files.
Advanced threading, Quick-Set Bobbin and thread sensors
Brother’s advanced needle-threading system helps guide the upper thread through the needle eye.
Insert the bobbin from above, follow the marked route and begin sewing without manually drawing the bobbin thread through the needle plate.
Upper and bobbin sensors stop the machine and display a warning when thread attention is required.
- Advanced needle threader
- Quick-Set Bobbin
- Top-loading horizontal bobbin
- Adjustable bobbin-winding speed
- Upper-thread sensor
- Bobbin-thread sensor
Efficient sewing and embroidery
Up to 850 stitches per minute
The NQ3700D reaches speeds up to 850 stitches per minute in both sewing and embroidery modes.
Use the speed-control slider to limit maximum sewing speed for curves, appliqué, beginners and detailed work.
- Up to 850 sewing stitches per minute
- Up to 850 embroidery stitches per minute
- Electronic speed control
- Start and stop button
- Foot-controller operation
- Automatic embroidery speed management
850
Maximum stitches per minute
Complete sewing and embroidery projects efficiently while retaining electronic control.
Explore the Brother Innov-is NQ3700D
An advanced all-rounder for ambitious Disney, sewing and embroidery projects
Disney embroidery
Garment construction
Machine embroidery
Patchwork
Quilting
Free-motion work
Appliqué
Children’s clothing
Personalised gifts
Bag making
Artspira projects
Small creative businesses
Important information before purchasing
The Brother Innov-is NQ3700D is a domestic computerised sewing, quilting and single-needle embroidery machine. It is not a commercial multi-needle embroidery machine.
Its maximum embroidery area is 260 × 160mm. Larger designs must be reduced, split or repositioned using suitable embroidery software and techniques.
The machine changes embroidery colours manually. It stops at each colour stage so the upper thread can be changed.
Wi-Fi and Artspira functions require a compatible network, device and supported Brother software or account.
Design Database Transfer is intended for compatible Windows computers.
Good embroidery requires appropriate stabiliser, embroidery thread, bobbin thread, needle choice and secure hooping.
The NQ3700D uses flat embroidery frames and is not intended for finished structured caps in the way a commercial cap-frame machine is.
Disney and Pixar embroidery designs are supplied for use within the machine and remain subject to the applicable Brother and Disney licensing conditions.
What comes with the Brother Innov-is NQ3700D?
Included sewing and quilting feet
- Zigzag Foot J
- Monogramming Foot N
- Overcasting Foot G
- Zipper Foot I
- Buttonhole Foot A
- Blind Stitch Foot R
- Button Fitting Foot M
- Stitch Guide Foot P
- Adjustable zipper and piping foot
- Free-motion open-toe quilting foot
- Non-stick foot
- Open-toe foot
- 1/4-inch piecing foot
- Walking foot
- Side cutter
Embroidery equipment
- Detachable embroidery unit
- Embroidery Foot U+ with LED pointer
- 260 × 160mm embroidery frame and grid sheet
- 180 × 130mm embroidery frame and grid sheet
- Embroidery bobbin thread
- Embroidery needle-plate cover
- Embroidery positioning stickers
- Embroidery design guide
- Disney embroidery design guide
Quilting and machine control
- Knee lift
- Quilting guide
- Foot controller
- My Custom Stitch grid sheets
- Needle set
- Ballpoint embroidery needle
- Twin needle
- Standard bobbin case
- Alternate bobbin case
Bobbins, thread accessories and tools
- Brother bobbins
- Extra spool pin
- Thread spool insert
- Spool caps
- Spool felt
- Spool net
- Seam ripper
- Scissors
- Cleaning brush
- Screwdriver set
- Accessory bag
- Soft machine cover
- Operation manual
- Quick-reference guide
Brother Innov-is NQ3700D specifications
| Machine type | Computerised domestic sewing, quilting and single-needle embroidery machine |
|---|---|
| Built-in sewing stitches | 291, including buttonhole styles |
| Sewing lettering fonts | Five |
| Buttonhole styles | Ten automatic one-step styles |
| Total embroidery designs | 313 |
| Disney and Pixar designs | 55 |
| General embroidery designs | 258 excluding Disney and Pixar designs |
| Frame-pattern combinations | 140, using 10 shapes and 14 stitch patterns |
| Embroidery lettering fonts | Thirteen |
| Maximum embroidery area | 260 × 160mm, approximately 10 × 6 inches |
| Included embroidery frames | 260 × 160mm and 180 × 130mm |
| Maximum sewing speed | Up to 850 stitches per minute |
| Maximum embroidery speed | Up to 850 stitches per minute |
| Maximum stitch width | 7mm |
| Maximum stitch length | 5mm |
| Sewing workspace | Approximately 210mm wide × 104mm high |
| Machine-bed area | Approximately 210 × 310mm |
| Touchscreen | 4.9-inch full-colour LCD touch display |
| Display colours | Approximately 260,000 |
| On-screen embroidery editing | Resize, rotate, reposition, combine, mirror and drag compatible designs |
| Wireless LAN | Yes |
| Artspira compatibility | Yes |
| Design Database Transfer | Yes, for compatible Windows computers |
| USB design transfer | Yes |
| Automatic Height Adjuster | Yes |
| Automatic presser-foot lift | Yes |
| Pivot function | Yes |
| Knee lift | Included |
| Presser-foot pressure | Automatic height adjustment with manual pressure adjustment |
| Thread tension | Automatic with adjustment available |
| Needle threader | Advanced automatic threading system |
| Automatic thread cutter | Yes, cuts upper and bobbin threads |
| Jump-stitch trimming | Yes, on compatible embroidery data |
| Upper-thread sensor | Yes |
| Bobbin-thread sensor | Yes |
| Bobbin system | Top-loading horizontal Quick-Set Bobbin |
| Bobbin winding | F.A.S.T winding with adjustable speed |
| Feed system | Longer seven-point feed system |
| Sideways sewing | Yes |
| Drop feed | Manual |
| My Custom Stitch | Enhanced custom-stitch creation and editing |
| Start and stop button | Yes |
| Speed-control slider | Yes |
| Needle up/down | Yes |
| Reverse and reinforcement | Yes |
| Lighting | Two LED lights |
| Free arm | Yes |
| Wide table | Available separately |
| Machine cover | Soft cover included |
Popular compatible optional accessories
Embroidery frames and supplies
- Compatible 180 × 130mm magnetic frame
- Additional Brother embroidery frames
- Brother embroidery thread sets
- Madeira Polyneon embroidery thread
- Embroidery bobbin thread
- Tear-away stabiliser
- Cut-away stabiliser
- Water-soluble stabiliser
- Water-soluble topping
Quilting and sewing accessories
- Brother wide extension table
- Magnetic free-motion guide grip
- Ruler-work foot and rulers
- Stitch-in-the-ditch foot
- Circular sewing attachment
- Multi-function foot controller
- Spool stand kit
- Bobbin-work accessory kit
Embroidery software and apps
- Brother PE-DESIGN 11
- Brother Artspira mobile app
- Brother Design Database Transfer
- Compatible PES embroidery collections
Brother Innov-is NQ3700D FAQ
Is the NQ3700D a sewing and embroidery machine?
Yes. It is a full computerised sewing and quilting machine with a detachable single-needle embroidery unit.
How many Disney embroidery designs are included?
The machine includes 55 built-in Disney and Pixar embroidery designs.
How many embroidery designs are included in total?
There are 313 designs in total, comprising 258 general Brother embroidery designs and 55 Disney and Pixar designs.
What is the maximum embroidery size?
The maximum stitchable embroidery area is 260 × 160mm, approximately 10 × 6 inches.
How many embroidery hoops are included?
Two hoops are included, measuring 260 × 160mm and 180 × 130mm.
Can it embroider names and monograms?
Yes. Thirteen embroidery fonts are included for true embroidered names, initials, dates and phrases.
Does the NQ3700D have Wi-Fi?
Yes. Built-in wireless LAN supports compatible Artspira functions, computer transfer and machine updates.
Is it compatible with Brother Artspira?
Yes. Compatible embroidery projects and designs can be transferred through the Brother Artspira mobile app.
Can I import my own embroidery designs?
Yes. Compatible embroidery designs can be transferred wirelessly or loaded through a suitable USB flash drive.
Does it change embroidery colours automatically?
No. It is a single-needle machine and stops at each colour section so the upper thread can be changed.
Does it cut embroidery jump stitches?
Yes. Compatible embroidery jump stitches can be trimmed automatically.
What does the LED pointer do?
It projects the approximate needle-drop position onto the fabric to assist with embroidery placement.
What is Automatic Height Adjuster?
It responds to changing fabric thickness and helps maintain suitable presser-foot pressure for consistent feeding and stitch formation.
Does it include a walking foot?
Yes. A walking foot, 1/4-inch piecing foot and free-motion quilting foot are included.
Does it include a knee lift?
Yes. The knee lift lets you raise the presser foot while keeping both hands on the project.
Can it free-motion quilt?
Yes. The feed dogs can be lowered and a free-motion open-toe quilting foot is supplied.
Can it sew sideways?
Yes. Supported sewing stitches can move the fabric in multiple directions.
Can it sew stretch fabric?
Yes. It includes stretch stitches and intelligent fabric-control features. Use the correct stretch or ballpoint needle.
Can it sew denim?
It can sew ordinary garment-weight denim with the correct jeans needle, thread and settings. It is not an industrial heavy-material machine.
Does it include a wide extension table?
No. A compatible Brother wide extension table is available separately.
Can it embroider finished caps?
It uses flat embroidery hoops. Finished structured caps require specialist commercial cap-frame equipment.
Is it suitable for a small embroidery business?
It can suit personalised gifts, names, quilt blocks and smaller creative runs. A commercial multi-needle machine is more efficient for higher production volumes and automatic colour changes.
Product information, manuals and creative tools
Brother New Zealand
View the official New Zealand features, specifications and current warranty information.
Official NQ3700D Brochure
Review the complete sewing, quilting, Disney and embroidery specification summary.
Manuals and Support
Access the operation manual, quick-reference guide, design guides and software downloads.
Brother Artspira
Explore mobile embroidery design, customisation and wireless transfer tools.
Buy from New Zealand Brother sewing and embroidery specialists
Expert advice, genuine warranty assistance and in-house servicing
Direct Sewing has supplied sewing, quilting, embroidery, overlocking and industrial equipment throughout New Zealand since 2001.
Our experienced team can explain embroidery hooping, stabiliser selection, Artspira, Disney design use, Automatic Height Adjuster, free-motion quilting, walking-foot sewing and the difference between domestic and commercial embroidery systems.
Your Brother Innov-is NQ3700D is supported by genuine New Zealand warranty assistance and our own in-house technical workshop. Servicing and repairs are completed by experienced sewing-machine and embroidery technicians with decades of industry knowledge.
For creators wanting advanced sewing, serious quilting capability, large embroidery and exclusive Disney designs in one machine, the Brother Innov-is NQ3700D is an exceptional all-round creative system.
