No separate boiler
The suspended bottle uses gravity to feed water to the heated iron, keeping the system compact and straightforward to maintain.

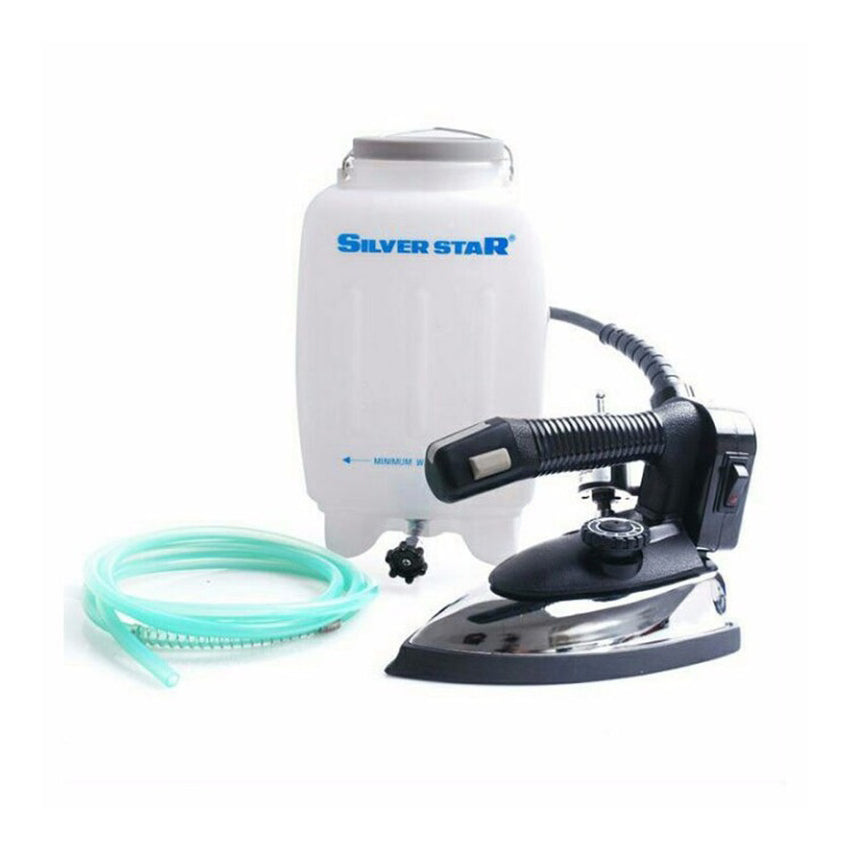

Silver Star ES-94A | Professional gravity-feed iron
Sharper seams without a separate boiler
A professional weighted steam iron for dressmaking, tailoring, alterations and workroom pressing. Its elevated 2.5L water bottle feeds the iron by gravity, providing controlled steam without a boiler unit taking up bench or floor space.
- Purpose-built for construction pressing—open seams, flatten darts, set pleats and form crisp edges as you sew.
- 2.5L separate water bottle supports longer sessions than a small integral iron tank.
- Thumb-operated steam switch puts short, deliberate bursts under your working hand.
- Teflon shoe and SF-100 water purifier are listed in the box for fabric protection and scale management.
2.5LNZ-listed bottle capacity
1100WNZ-listed rated power
1.8kgNZ-listed iron weight
1.5m+required bottle height
Professional pressing with a simpler water system
Weight that helps press
The heavier professional iron combines heat, weight and controlled steam to shape seams and garment details.
Steam on demand
A soft-touch thumb switch releases steam only when required, supporting a deliberate press-lift-move workflow.
Set it up correctly before switching on
Hang the bottle
Secure it more than 1.5m above the ironing surface so gravity can feed the iron.
Connect the hose
Join the bottle valve and iron solenoid with the supplied silicone hose.
Support the lines
Use the supplied hook to keep the hose and power cord clear of the work.
Fill + treat
Unplug first, add clean water and use the supplied purifier as instructed.
Heat fully
Switch on, set the dial to 4 and allow about five minutes for initial heat-up.
Open + test
Open the bottle valve, test steam away from the garment, then begin pressing.
The technique that prevents dripping
Pulse the steam—do not hold the switch down
The Silver Star manual recommends short bursts after the iron is fully hot. Excessively long steam activation can send water through instead of producing dry steam.
Where the ES-94A earns its place
Seams + darts
Open seam allowances cleanly and flatten shaped darts during assembly.
Pleats + creases
Use heat, weight and steam to define folds and set sharper edges.
Tailoring
Support controlled shaping through jacket, trouser and structured-garment construction.
Alterations + production
Keep a dedicated pressing station ready for repeat work between sewing operations.
Match heat to the fabric—not just the task
| Dial position | Manufacturer guidance | How to use it safely |
|---|---|---|
| 1–2 | Pre-heating range. | Allow the iron to reach working temperature before requesting steam. |
| 3 | Silk or sensitive clothing; low temperature. | Check the care label, use the Teflon shoe where appropriate and test on a hidden area first. |
| 4 | Cotton and wool; medium temperature. | The manual uses position 4 for initial warm-up. Protect wool and nap with a suitable pressing cloth where required. |
| 5 | Other thick clothing; high temperature. | Use only when the textile can tolerate high heat. Keep flammable materials away from the hot soleplate. |
Always prioritise the textile care label. Fibre blends, coatings, fusibles, prints and finishes can change the safe temperature.
The complete NZ-listed gravity-feed set
ES-94A iron
Weighted professional iron with rear controls and thumb-operated steam switch.
Water container
Separate 2.5L bottle that must be securely suspended above the pressing surface.
Hose set
Silicone water hose and fittings for connecting the bottle to the iron.
Teflon shoe
Fits over the soleplate to help reduce shine and protect suitable fabrics.
SF-100 purifier
Water-treatment filter that helps reduce mineral contamination and scale.
SAA NZ plug
The Direct Sewing listing specifies a 220V unit fitted with an SAA NZ plug.
A professional iron needs a professional station
Required working habits
- Use a stable ironing surface and secure the bottle so it cannot fall.
- Always rest the hot iron flat on a suitable heat-resistant silicone iron pad—never stand it upright.
- Keep the hose free from kinks and away from the soleplate.
- Never leave the powered iron unattended, even briefly.
- Unplug before filling, cleaning or leaving the station.
- Allow at least 30 minutes to cool before handling or storage.
Prevent burns and damage
The soleplate can exceed 200°C and steam can cause serious injury.
- Never direct steam at people or animals.
- Keep children away from the workstation.
- Do not operate with wet hands.
- Connect directly to a correctly rated outlet.
- Stop using the iron if temperature control, the cable, valve or hose is damaged.
Gravity feed, boiler or garment steamer?
ES-94A gravity-feed iron
Best for sewing construction and workroom pressing when you want a weighted iron, 2.5L bottle and no separate boiler.
Review ES-94A SpecsSilver Star boiler + iron
A 2.3L boiler system with published 0.25–0.4MPa pressure for buyers wanting a dedicated pressurised-steam setup.
View Boiler + IronSilver Star SR-5000
An upright garment steamer for presentation work on hanging clothes rather than flat, weighted construction pressing.
View SR-5000The quick reference
| Brand / model | Silver Star ES-94A |
|---|---|
| Product type | Professional gravity-feed steam iron |
| Water system | Elevated bottle; no boiler required |
| NZ-listed bottle capacity | 2.5 litres |
| NZ-listed rated power | 1100W |
| NZ-listed voltage / plug | 220V with SAA NZ plug |
| NZ-listed iron weight | 1.8kg |
| Manufacturer manual base size | 209 × 120mm |
| Initial warm-up guidance | Set to 4 and allow approximately 5 minutes |
| Bottle position | More than 1.5m above the ironing surface |
| Included fabric protection | Teflon shoe |
| Included water treatment | SF-100 demineralizer / water purifier filter |
Keep the pressing station ready
SF-100 purifier
Replacement Silver Star filter for water treatment and scale management.
View the SF-100 Filter →300g demineralizer
Alternative bottle-iron water treatment with clear refill instructions.
View Demineralizer →ES-94 Teflon shoe
Replacement shoe sized for Silver Star ES-94 models.
View Teflon Shoe →Silicone iron pad
A heat-resistant flat rest for safely parking the hot iron between operations.
View Silicone Rest →Silver Star ES-94A FAQs
Does the ES-94A need a boiler?
No. The separate water bottle is suspended more than 1.5m above the pressing surface and gravity feeds water to the heated iron.
What is a gravity-feed iron best used for?
The manufacturer classifies the ES-94A for intermediate processing. It is particularly useful for opening seams, flattening darts, setting pleats, shaping garment sections and pressing during sewing.
How long should I press the steam switch?
Use short 1–2 second bursts with 3–4 second pauses. The manual says not to hold the steam switch continuously for more than 5–6 seconds.
Why is water coming from the soleplate?
The iron may not be fully hot, the temperature may be too low, the steam switch may be held too long, or the steam path may need maintenance. Stop, unplug and follow the supplied troubleshooting guidance.
Can I stand the iron upright between presses?
No. Silver Star instructs users to place it flat on a suitable silicone resting pad. The hot soleplate must not be left on the ironing surface or stood upright.
Is the silicone resting pad included?
The current Direct Sewing box list names the iron, water container, hose set, Teflon shoe and SF-100 purifier; it does not list a silicone rest. Because the manual requires one, confirm your package contents or add the compatible Silver Star silicone iron pad.
What water should I use?
Use clean water with the supplied water-purifier product as directed. Do not add fragrance, starch or other chemicals. Replace the purifier as required by local water conditions and its instructions.
Is a Teflon shoe included?
Yes, the NZ listing includes a Teflon shoe. It can help prevent shine and protect suitable fabrics, but you should still follow the care label and test first.
How long does the iron take to heat?
The manufacturer’s initial setup guidance is to set the control to position 4 and wait approximately five minutes before opening the bottle valve and testing steam.
Does it have a New Zealand plug?
The Direct Sewing listing specifies a 220V unit with an SAA NZ plug. Always check the rating plate on the supplied iron before connection.
Heat. Weight. Steam where you need it.
Build a pressing station that keeps up with your sewing.
Give seams, darts, pleats and garment details the controlled finish that elevates the whole project.
