No cool-down wait to add water
Use the pump to transfer water from the separate tank into the boiler while the system remains under pressure.

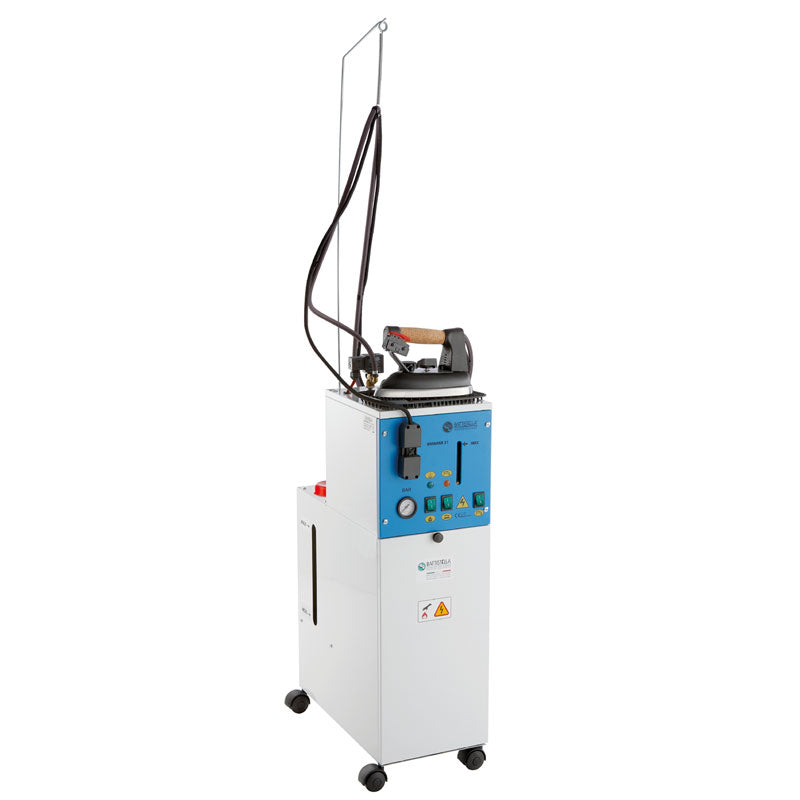

Battistella Barbara 31 Semi-Automatica | Pump + tank + EOS iron
Refill the boiler without stopping to cool down
The Barbara 31 Semi-Automatica adds a 48W pump and separate 10L water tank to the proven 4.5L stainless boiler and weighted EOS iron. Pump-assisted refilling lets you add water while the boiler remains pressurised, supporting a smoother, continuous pressing workflow.
- 10L external water tank and 48W pump reduce interruptions for cooling and manual refilling.
- Refill while the boiler remains pressurised using the operator-controlled pump system.
- 3.4L usable stainless boiler capacity maintains a substantial working steam reserve.
- 2.8-bar working steam pressure delivers controlled steam through the EOS iron.
- Wheeled floor-standing format keeps the complete system organised beside the workstation.
10Lexternal supply tank
3.4Luseful boiler capacity
2.8 barworking steam pressure
2298Wtotal installed power
A more continuous workflow, with water level under your control
Operator-controlled filling
Switch the pump on when water is needed, watch the boiler level, then switch it off at the desired level.
10L supply close at hand
The external tank provides a much larger water reserve than a manually filled Barbara alone.
Built for a productive pressing rhythm
Keep working instead of waiting for a hot boiler to cool
The semi-automatic system avoids opening the safety cap for routine refilling. Add distilled water to the separate tank, use the pump switch to bring the boiler back to the desired level, and continue once the steam system is ready. The full station measures approximately 25 × 47 × 89cm and rolls into position beside the ironing table.
For pressing work where refill downtime matters
Alteration shops
Move through repeated repairs and finishing with a larger water supply close at hand.
Dressmaking studios
Open seams, set hems and shape garment sections throughout longer construction days.
Embroidery finishing
Press finished garments and stabilised projects with adjustable steam output.
Busy sewing rooms
Reduce refill interruptions when multiple projects or garments are moving through the workspace.
A simple six-stage start-up
Position
Place the wheeled unit upright on a level, stable surface beside the ironing table.
Fill the tank
Add distilled water to the external 10L tank and keep the pump intake supplied.
Load the boiler
Connect to power, switch the pump on and watch the boiler-level window.
Stop at level
Switch the pump off once the desired level is reached; never exceed the MAX mark.
Heat
Switch on the boiler and iron and wait for the gauge to reach approximately 2.8 bar.
Prime
Point the iron safely away from people and fabric and release four or five short steam bursts.
4.5L vessel, 3.4L usable boiler and 10L supply tank
| Capacity | Published figure | What it means | Important qualifier |
|---|---|---|---|
| Boiler vessel | 4.5 litres | The physical stainless boiler volume. | This is not the amount to pump into the boiler. |
| Useful boiler capacity | 3.4 litres | The working water volume inside the pressurised boiler. | Stop the pump before the level exceeds MAX. |
| External water tank | 10 litres | The separate supply used by the refill pump. | It does not turn the boiler itself into a 13.4L boiler. |
| Working pressure | 2.8 bar | Pressurised steam delivery through the EOS iron. | Wait for the gauge and ready indicator before pressing. |
| Total installed power | 2298W | 1450W boiler, 800W iron and 48W pump. | Connect directly to a suitable, correctly earthed 230V outlet. |
A complete pump-assisted Barbara station
Stainless Barbara boiler
4.5L vessel with 3.4L usable pressurised water capacity.
EOS steam iron
800W weighted iron with cork handle and steam microswitch.
10L water tank
Separate supply reservoir for pump-assisted boiler refilling.
48W refill pump
Transfers water to the boiler under operator control.
Wheeled floor stand
Organises the boiler, tank and pump beside the ironing table.
Hose support + iron rest
Keeps the steam hose organised and provides a safe resting place for the hot iron.
Use distilled water and flush the boiler weekly
Protect the boiler and pump
Distilled water helps minimise scale and residue from minerals and treatment chemicals found in tap water.
- Use distilled water in the external supply tank.
- Keep enough water in the tank whenever the pump is used; never run the pump dry.
- Drain and flush the boiler once a week.
- Drain only when the system is cold, unplugged and the gauge reads 0 bar.
- Wait at least one hour after switch-off before draining.
- Never add fragrance, starch, special ironing water or chemical treatments.
Safe everyday operation
Connect the Barbara Semi-Automatica directly to a correctly earthed 230V outlet suitable for its 2298W load.
- Avoid multi-boxes and unsuitable extension leads.
- Monitor the boiler-level window whenever the pump is running.
- Switch the pump off once the desired boiler level is reached.
- Never move the system while it is hot, operating or pressurised.
- Never open the safety cap while the generator is operating or pressurised.
- Always return the hot iron to its supplied rubber rest.
Semi-Automatica, 31FS or 31P?
Barbara Semi-Automatica
10L supply tank and operator-controlled pump for refilling while the 3.4L useful boiler remains pressurised.
Review Semi-Automatic SpecsBarbara 31FS
A freestanding 3.4L usable boiler and EOS iron with no separate tank or refill pump.
View Barbara 31FSBarbara 31P
The manually filled portable Barbara boiler supplied with an upright wheeled stand.
View Barbara 31PThe quick reference
| Brand / model | Battistella Barbara 31 Semi-Automatica |
|---|---|
| Product type | Pump-assisted steam generator with EOS iron and external water tank |
| Power supply | 230V / 50Hz |
| Total installed power | 2298W |
| Boiler power | 1450W |
| Iron power | 800W |
| Pump power | 48W |
| Boiler vessel size | 4.5 litres |
| Useful boiler capacity | 3.4 litres |
| External water tank | 10 litres |
| Working format | Pump-assisted refill for a continuous pressing workflow |
| Working steam pressure | 2.8 bar |
| Current published system weight | 20kg |
| Overall dimensions | Approximately 25 × 47 × 89cm high |
| Recommended water | Distilled water |
Complete the semi-automatic pressing station
EOS Teflon shoe
Compatible anti-sheen shoe for delicate, dark or shine-prone fabrics. Confirm that the iron is marked EOS.
View EOS Teflon Shoe →Eolo Maxi vacuum table
A heated vacuum surface helps remove excess steam and reduce water marking during pressing.
View Eolo Maxi Table →Battistella Barbara 31 Semi-Automatica FAQs
What does “semi-automatic” mean?
The boiler can be refilled from the separate 10L tank using an electric pump. You control the process with the pump switch: turn it on to add water, watch the boiler-level window, then switch it off at the desired level.
Can the boiler be refilled while it is hot?
Yes—use the external tank and pump system. The manufacturer states that this method can add water while the machine remains pressurised, avoiding the usual cool-down wait. Never open the safety cap while the boiler is hot or pressurised.
Does the pump stop automatically?
No. This is why the model is described as semi-automatic. The operator monitors the level and switches the pump off once the desired boiler level is reached.
Is the total water capacity 13.4L?
No. The pressurised boiler has a 4.5L vessel and 3.4L useful capacity. The separate 10L tank supplies water to that boiler through the pump; it does not increase the boiler vessel itself to 13.4L.
How long can it provide steam?
The pump-assisted system is designed for a continuous pressing workflow rather than one fixed runtime. Keep distilled water available in the 10L tank and refill the boiler as needed using the pump and level window.
Why must the supply tank contain water?
The pump relies on water from the external tank. Running it dry can damage the pump, so check the tank level before activating the refill switch.
Why is distilled water important?
Distilled water reduces the minerals and treatment chemicals entering the boiler and pump, helping limit scale and residue. Do not add perfume, starch, special ironing water or chemical treatments.
How often should I drain the boiler?
Drain and flush it once a week. The machine must be cold and unplugged, the pressure gauge must read 0 bar, and at least one hour should have passed since switch-off.
What electrical connection does it need?
The Barbara 31 Semi-Automatica is rated at 230V / 50Hz and 2298W. Connect it directly to a suitable, correctly earthed outlet and avoid multi-boxes and unsuitable extension leads.
10L supply. Pump-assisted refill. Weighted EOS iron.
Keep the steam workflow moving.
Refill through the pump, reduce cool-down interruptions and give busy pressing work a dedicated Barbara station.
