Digital stitch-length control
Set stitch length in 0.1mm increments. Electronic control makes settings repeatable when returning to a job or changing between sewing operations.
Brother S-7190A · Electronic feed · Direct drive
Consistent seams.
Less handling.
Make repeated straight-stitch work more efficient with the Brother S-7190A automatic industrial sewing machine. Electronic feed and digital stitch-length control help keep settings consistent, while automatic thread trimming, backtacking and electric foot lift reduce the handling between seams. The colour LCD touchscreen brings the key sewing controls within easy reach.
Electronic stitch controlAutomatic thread trimmingElectric foot lift

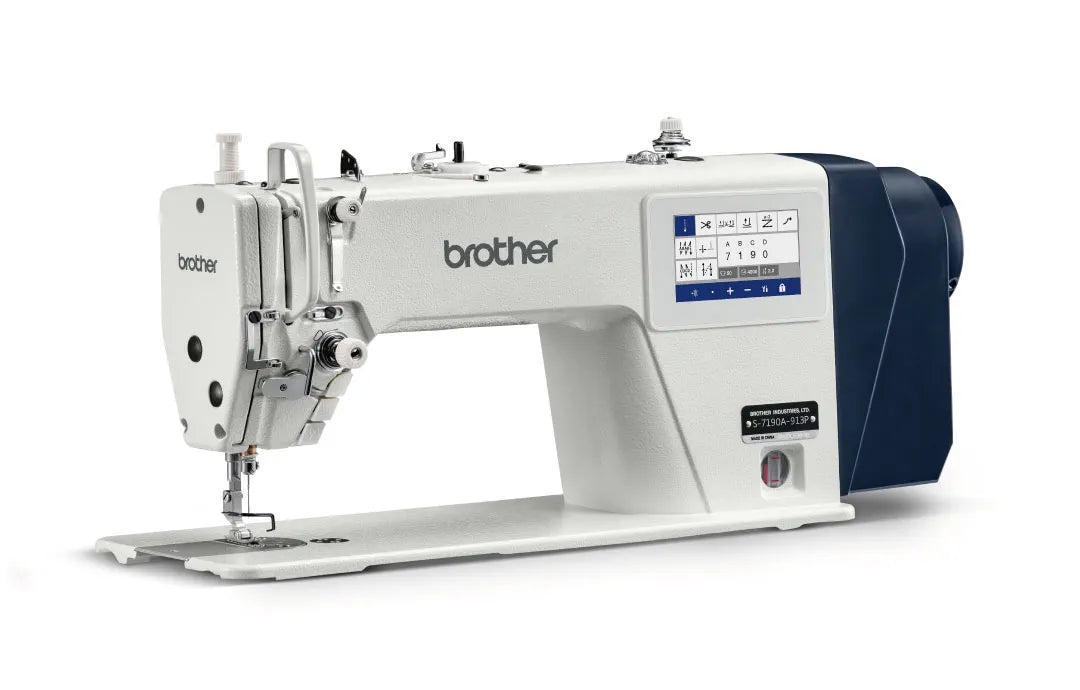

Machine head shown.
Useful automation from start to finish.
Spend more of each sewing cycle guiding the work, with controls designed for repeated garment and production tasks.
Automatic seam finishing
Automatic backtacking reinforces seam ends, while the double-action thread trimmer leaves short thread tails to reduce follow-up trimming.
Electric presser-foot lift
Lift the foot electrically to load, reposition or remove your work, with a maximum lift of 13mm.
Colour touchscreen
The LCD touch panel keeps sewing settings visible and accessible when you need to adjust an operation.
Direct-drive servo motor
An integrated AC servo motor provides the drive for industrial straight-stitch sewing, with the controls built into the machine.
LED lighting & sealed oil tank
LED lighting illuminates the needle area. The sealed oil tank is designed to help keep the lubricating oil clean.
Specifications at a glance
The S-7190A range has different machine subclasses. Match the supplied configuration to your fabric and thread.
- Model
- Brother S-7190A
- Machine type
- Single-needle industrial straight lockstitch
- Feed control
- Electronic feed with digital stitch-length setting
- Maximum stitch length
- 5mm
- Maximum sewing speed
- 5,000 stitches/minute (-913P); 4,000 stitches/minute (-915P)
- Maximum presser-foot lift
- 13mm, electric lifter
- Needle system
- DB×1 / 16×231 for the listed setup; confirm the subclass before ordering needles
- Drive & display
- Direct-drive AC servo motor; colour LCD touchscreen
Maximum speed depends on the machine subclass. Select the needle, thread and sewing speed to suit the material and number of layers.
Designed for industrial straight-stitch work.
A practical choice for suitable garment seams, alterations and repeated production sewing where consistent settings and reduced manual handling matter. It is a plainsewer, not an overlocker or coverstitch machine. If your work involves bulky upholstery, heavy leather or difficult layers, ask us to check suitability before choosing your machine.
Support for your sewing setup.
Needles and screwdrivers are included. Contact Direct Sewing to discuss the machine configuration, your materials and delivery requirements.
Operation panel settings manual · Brother S-7190A specifications
