Six-Item Production
Embroider the same production design across up to six garments, caps or suitable flat items during one machine run.
Six-head commercial embroidery production
Embroider Six Matching Items in the Same Production Run

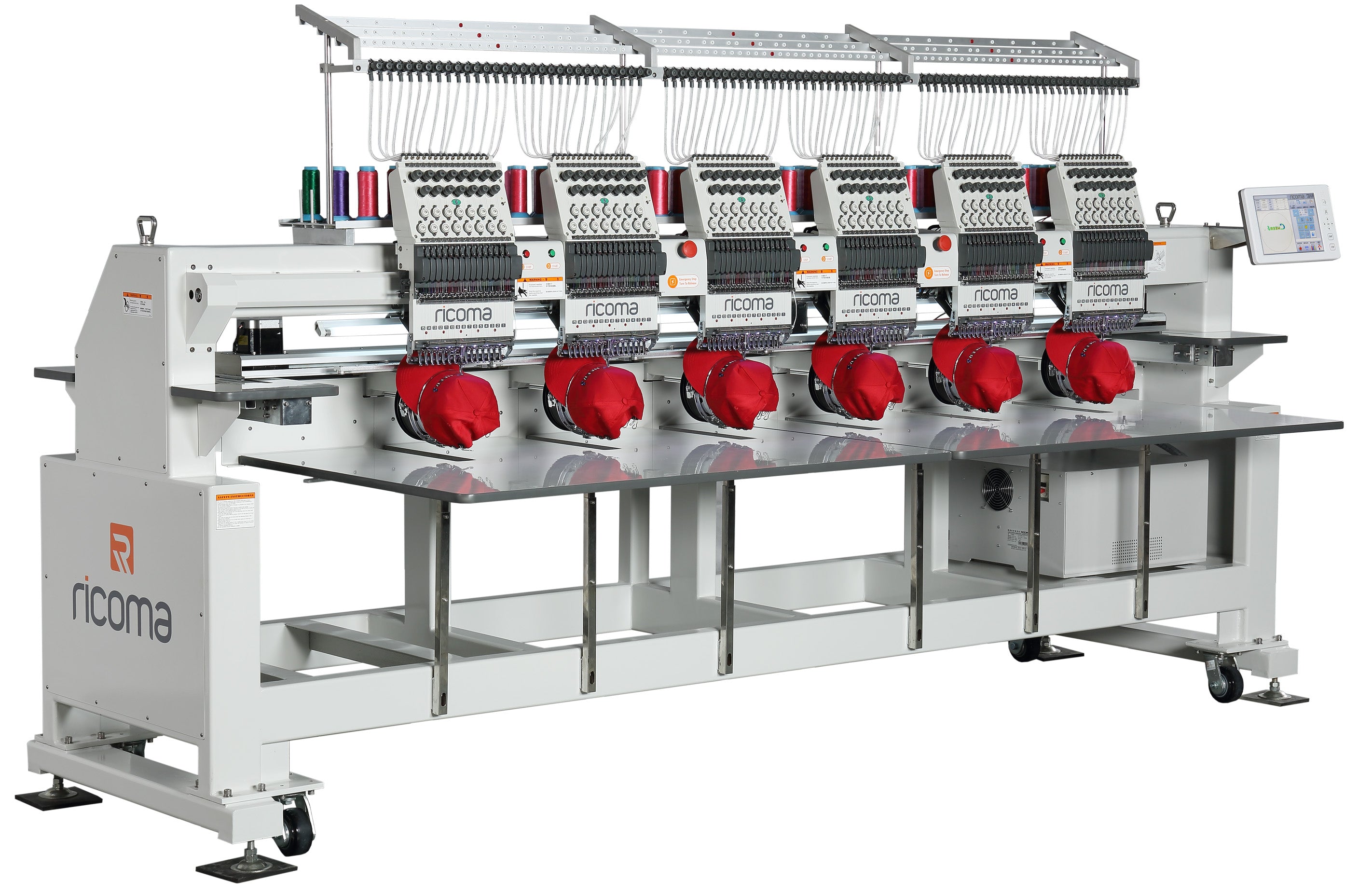

The Ricoma CHT2-1206 combines six commercial embroidery heads, 12 needles per head, onboard lettering and a large 10.4-inch colour touchscreen. It is built for established embroidery businesses ready to process larger repeat orders with an organised, high-capacity production workflow.
Includes 60 commercial hoops, a sash frame, six-head cap equipment, Chroma embroidery software, startup supplies, a maintenance toolkit and hands-on training from Direct Sewing.
6
Embroidery heads
12
Needles per head
1,000
Maximum stitches per minute
400 × 450 mm
Maximum embroidery area
10.4"
HD colour touchscreen
Built for higher-volume repeat embroidery
Increase Capacity Without Repeating Every Job One Garment at a Time
When the same logo or design is required across multiple garments, the CHT2-1206 can embroider up to six matching items together. This makes it an excellent commercial option for uniform suppliers, contract embroiderers, apparel decorators and established businesses processing regular repeat orders.
Onboard Lettering
Create straightforward names and wording directly at the touchscreen for efficient personalised embroidery.
12 Needles per Head
Keep up to 12 thread colours prepared on every head while the machine follows the programmed colour sequence.
Six-Head Cap Production
Twelve cap rings, six cap drivers and a hooping station provide a complete setup for repeat embroidered headwear.
Large Embroidery Field
A maximum 400 × 450 mm embroidery area supports garments, bags, panels and a wide range of flat embroidery work.
Stable CHT2 Construction
A reinforced double-beam structure, square guide rails and double-belt system support smooth commercial operation.
10.4-inch HD control panel
Manage Designs, Lettering and Production from the Touchscreen
The high-definition true-colour touchscreen provides a central place to load, preview, position and manage embroidery jobs. Frequently used controls are available directly at the machine, helping operators prepare work and monitor repeat production.
- Create straightforward personalised lettering at the machine
- Preview the loaded embroidery design before sewing
- Review and manage the programmed colour sequence
- Use preset hoop parameters for easier job preparation
- Trace the design area before embroidery begins
- Access one-step appliqué functions
- Save frequently used designs in the machine memory
Personalised text prepared at the machine
Create Simple Lettering Without Preparing Every Name as a Separate Design
Onboard lettering is particularly useful for names, straightforward wording and identification. Text can be prepared, arranged and checked directly from the control panel before embroidery begins.
Type the required name or wording using the lettering controls on the touchscreen.
Select the lettering settings and arrange the text within the available embroidery area.
Preview and trace the job to confirm its placement before embroidery begins.
Embroider the prepared lettering across the matching items in the production run.
Onboard lettering does not replace logo digitising
The lettering function is intended for simple text. Customer logos, detailed artwork and complex branded graphics still need to be converted into a suitable embroidery file using digitising software or a professional digitising service.
The Six-Head Production Advantage
Produce matching embroidered items together instead of repeating the complete machine cycle for each individual garment.
6 heads
Working on the same production job
Up to 6 items
Embroidered during the same run
12 colours
Ready on each embroidery head
Efficient commercial operation
Automation That Supports Repeat Production
The CHT2-1206 combines six-head capacity with automatic embroidery functions that help the operator manage repeat work and respond quickly when attention is required.
- Automatic colour changes follow the programmed design sequence
- Automatic thread trimming reduces manual trimming between colours
- Thread-break detection alerts the operator when attention is required
- Automatic memory retention helps protect job information
- One-step tracing helps confirm design placement before sewing
- USB input provides a straightforward method for loading designs
- Work lighting improves visibility around the sewing area
Expanded CHT2 design memory
Store up to 50 Million Stitches or 200 Designs
The CHT2 control system provides substantial onboard storage for frequently used customer logos and production files. The machine reads common commercial embroidery formats including DST and DSB, along with other supported formats.
USB design transfer
Prepare the embroidery file, save it to a compatible USB drive and load it through the machine’s protected USB input.
CHT2 commercial construction
Reinforced for Stable Multi-Head Embroidery
The CHT2 platform incorporates structural and drive-system improvements intended to support reliable operation across larger repeat production runs.
Double-Beam Structure
Reinforced construction helps increase machine stability and reduce unwanted movement during production.
Double-Belt System
The drive design supports higher torque, quieter operation and easier ongoing maintenance.
Square Guide Rails
Reinforced guide rails are designed for commercial durability and consistent movement.
Compact Sewing Arm
The smaller sewing-arm design helps when embroidering caps and other compact finished items.
Heavy-Duty Stand
A commercial steel stand with wheels supports stability while allowing planned movement within the workspace.
Emergency Stop
A dedicated emergency stop control gives the operator immediate access when the machine needs to be halted.
Commercial embroidery applications
Suited to Larger Repeat Orders Across a Range of Products
Six-head production is particularly valuable for businesses supplying repeat branded garments, uniforms, headwear and merchandise.
Workwear and uniforms
Polos, shirts, jackets, safety garments and staff uniforms.
Caps and headwear
Repeat branded caps using the included six-head cap system.
Schools and clubs
Crests, names and identification across matching garments.
Corporate apparel
Consistent company branding across staff clothing.
Contract embroidery
Repeat production for garment suppliers and local brands.
Promotional products
Bags, patches, merchandise and suitable flat items.
Retail ranges
Branded apparel and embroidered merchandise collections.
Personalisation
Names, wording and identification for customer orders.
Commercial equipment included
60 Hoops, a Sash Frame and Six-Head Cap Equipment
Each embroidery head receives two hoops in each of five sizes, providing a comprehensive selection for small, medium and larger embroidery placements.
60 Commercial Hoops
Twelve hoops in each of five sizes: 90 mm, 120 mm, 150 mm and 200 mm round hoops, plus 290 mm square hoops. A sash frame is also included.
Six-Head Cap System
Includes 12 cap rings, six cap drivers and one stable cap hooping station.
Technical information
Ricoma CHT2-1206 Specifications
Important information for comparing production capability and preparing your premises for delivery.
| Model | Ricoma CHT2-1206 |
|---|---|
| Embroidery heads | 6 |
| Needles | 12 needles per head |
| Maximum speed | Up to 1,000 stitches per minute |
| Maximum embroidery area | 400 × 450 mm |
| Head interval | 400 mm |
| Control panel | 10.4-inch high-definition true-colour LCD touchscreen |
| Onboard lettering | Yes—create straightforward personalised text at the machine |
| Memory capacity | Up to 50 million stitches or 200 designs |
| Design input | USB input |
| Design formats | DST, DSB and additional supported embroidery formats |
| Cap embroidery | Wide-angle cap embroidery system |
| Automatic functions | Colour change, thread trimming, thread-break detection and memory retention |
| Drive motor specification | 150 W servo motor |
| Approximate machine dimensions | 3500 × 1230 × 1600 mm |
| Approximate net weight | 760 kg |
| Approximate gross weight | 850 kg |
Specifications and supplied equipment should be confirmed with Direct Sewing when ordering. Please discuss doorways, site access, floor loading, available space, delivery arrangements and electrical requirements before installation.
Packed with commercial equipment
What Is Included with the CHT2-1206?
The package includes commercial hoops, cap equipment, software, startup supplies and training to help prepare the machine for production.
60 Hoops and Sash Frame
- 12 × 90 mm round hoops
- 12 × 120 mm round hoops
- 12 × 150 mm round hoops
- 12 × 200 mm round hoops
- 12 × 290 mm square hoops
- 1 × sash frame
Cap Embroidery Equipment
- 12 × cap rings
- 6 × cap drivers
- 1 × cap hooping station
- Equipment for all six embroidery heads
- Wide-angle cap embroidery capability
Software and Startup Supplies
- Chroma embroidery digitising software
- Thread for initial setup
- Bobbins and needles
- Embroidery backing
- Additional startup consumables
Training and Setup Equipment
- Hands-on machine training
- Toolkit for setup and routine maintenance
- Direct Sewing after-sales assistance
- Delivery and installation preparation
- Purchasing and payment-plan enquiries
Product resources
Brochure, Embroidery Thread and Expert Advice
View the Ricoma CHT2 Brochure
Review the commercial features, included equipment and technical
information for the CHT2 Series.
Open brochure
Shop Madeira Polyneon Thread
Explore professional polyester embroidery thread for uniforms,
workwear and commercial embroidery.
Shop embroidery thread
Discuss Your Production Requirements
Talk with Direct Sewing about capacity, training, access, delivery
and payment options.
Contact Direct Sewing
More Than 30 Years of Industry Experience
Direct Sewing supplies and supports commercial sewing and embroidery equipment for New Zealand businesses. Our involvement continues beyond the initial machine purchase.
Local knowledge and after-sales support
Commercial Embroidery Support from Direct Sewing
A six-head embroidery machine is a major production investment. Our team can help you assess the machine against your expected workload, prepare for delivery and understand its everyday operation through practical hands-on training.
- Help selecting equipment for your production requirements
- Hands-on training with the machine and supplied equipment
- Local after-sales assistance when questions arise
- Advice about delivery access and installation preparation
- Auckland showroom and workshop support
- Purchasing and payment-plan enquiries welcomed
Visit: 138 Railside Avenue, Henderson, Auckland
Phone: (09) 838 8674
Mobile: 021 274 2910
Email: info@directsewing.co.nz
Frequently asked questions
Ricoma CHT2-1206 Questions and Answers
Helpful information for businesses considering a six-head commercial embroidery machine.
How many heads and needles does the Ricoma CHT2-1206 have?
The CHT2-1206 has six embroidery heads with 12 needles on each head. Up to 12 thread colours can remain prepared on every head for the programmed design.
What is the advantage of a six-head embroidery machine?
It can embroider the same production design across up to six matching items during the same run. This is particularly useful for repeat uniform, workwear, cap and merchandise orders.
Can every head embroider a completely different design?
A commercial multi-head machine is primarily designed to embroider the same job across its heads. Its main advantage is producing several matching items together rather than operating six unrelated designs simultaneously.
What can I create with the onboard lettering?
Onboard lettering can create straightforward personalised text directly at the machine. It is useful for names, wording and similar lettering jobs.
Does onboard lettering replace logo digitising?
No. Logos, detailed artwork and complex branded graphics still need to be converted into an appropriate embroidery file.
Do I need a computer to operate the machine?
Routine job selection, positioning, tracing, colour management and simple lettering can be handled through the touchscreen. A computer is still useful for digitising logos, editing artwork and preparing embroidery files.
How are embroidery designs transferred to the CHT2-1206?
Compatible embroidery designs can be loaded through the machine’s USB input. Supported commercial formats include DST and DSB, along with other compatible formats.
Can the CHT2-1206 embroider caps?
Yes. The package includes 12 cap rings, six cap drivers and one cap hooping station for six-head cap embroidery production.
How many hoops are included?
The CHT2-1206 package includes 60 individual hoops: 12 hoops in each of five sizes. A sash frame is also included for larger flat embroidery work.
What is the maximum embroidery area?
The maximum embroidery area is 400 × 450 mm. The usable area for an individual job also depends on the selected hoop, item and embroidery placement.
How much design memory does the machine have?
The CHT2-1206 can store up to 50 million stitches or 200 embroidery designs in its onboard memory.
What happens if a thread breaks?
Thread-break detection alerts the operator when a thread requires attention, allowing the issue to be addressed before continuing the embroidery job.
What embroidery thread do you recommend?
Direct Sewing stocks Madeira Polyneon embroidery thread , a professional polyester thread suitable for commercial embroidery, workwear, uniforms and durable branded garments.
Does Direct Sewing provide training and support?
Yes. Hands-on training is included, and Direct Sewing provides local after-sales assistance. The team has more than 30 years of industry experience and operates from its Auckland showroom and workshop.
What must be checked before delivery?
The machine is approximately 3500 × 1230 × 1600 mm and has a net weight of approximately 760 kg. Doorways, site access, floor loading, available space and electrical requirements should be discussed with Direct Sewing before delivery.
Can I enquire about purchasing or payment plans?
Yes. Contact Direct Sewing to discuss purchasing arrangements and available payment-plan options. Any finance or payment arrangement remains subject to the relevant terms and approval.
Plan your next production step
Is the Six-Head CHT2-1206 Right for Your Business?
Talk with Direct Sewing about your typical order quantities, products, available space and future production plans. We can help you compare commercial embroidery options and prepare for delivery, installation and training.
